Hikivision DS-K1107AM Slimline Card Reader Access Control

Hikivision DS-K1107M Slimline Card Reader Access Control

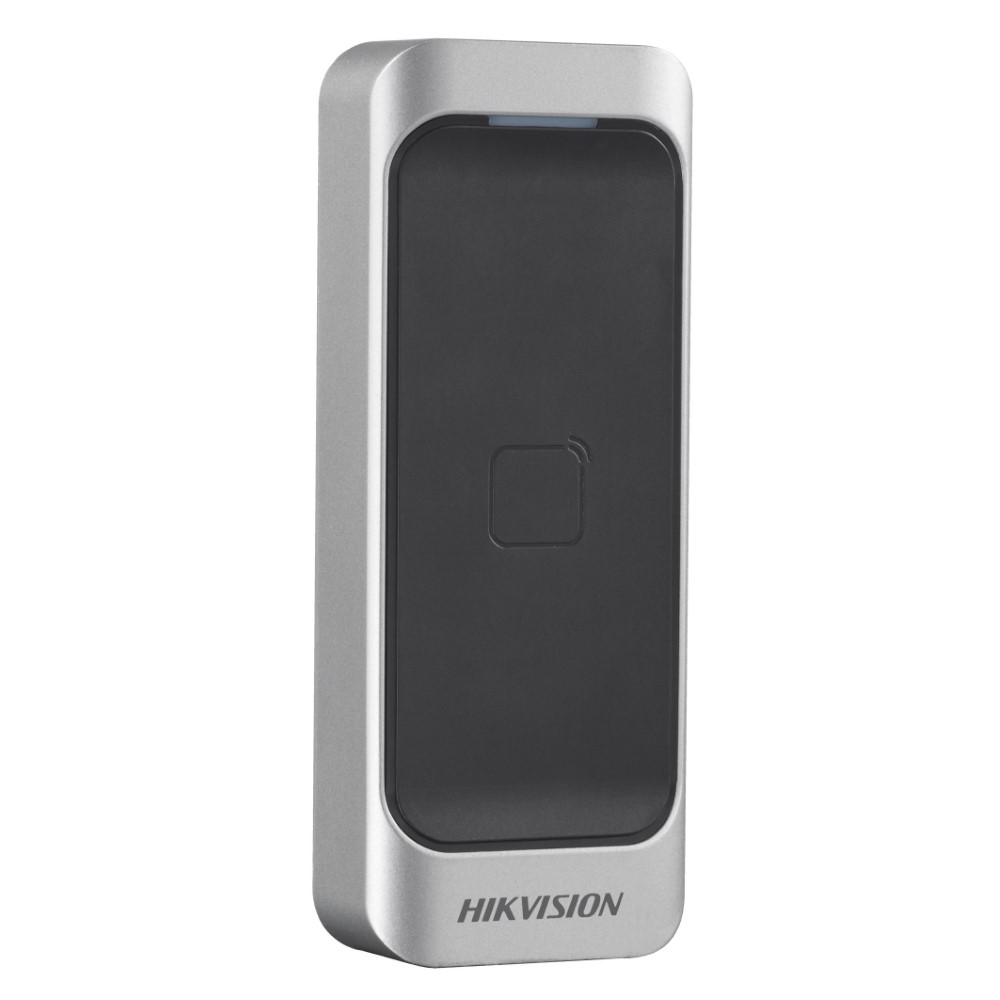

The Hikvision DS-K1107AM is a high-performance Mifare card reader from Hikvision’s Pro Series, engineered to deliver reliable and secure access control for both indoor and outdoor applications. Its sleek design, robust build, and advanced feature set make it suitable for commercial, industrial, and institutional environments where dependable access verification is essential.

Key Features

• Mifare Card Technology: Integrates a 13.56 MHz Mifare reading module, supporting contactless authentication with a maximum reading distance of up to 50 mm for fast and secure entry.

• Multi-Protocol Support: Compatible with RS-485 and Wiegand (W26/W34) communication protocols. Also supports OSDP (Open Supervised Device Protocol) for flexible integration with a wide range of access control systems.

• High-Speed Processing: Powered by a 32-bit high-speed processor for rapid data handling and smooth user operation.

• Tamper Detection & Audible Feedback: Built-in tamper alarm triggers alerts if unauthorized interference is detected. Includes a buzzer that provides audible confirmation of successful or failed card scans.

• Watchdog Function: Equipped with a self-recovery watchdog mechanism that auto-recovers from software faults to ensure long-term operational stability.

• Online Firmware Updates: Supports remote firmware upgrades via network, allowing for easier maintenance and feature enhancements without physical access.

Technical Specifications

• Card Reading Frequency: 13.56 MHz

• Maximum Reading Distance: ≤50 mm

• Interfaces: RS-485, Wiegand (configurable via DIP switch), OSDP

• Indicators: LED lights for power and status indication

• Power Supply: 12 VDC

• Power Consumption: ≤2 W

• Operating Temperature: -20°C to 65°C

• Operating Humidity: 10% to 90% (non-condensing)

• Ingress Protection: IP65-rated, suitable for outdoor use

• Dimensions: 115 mm × 44 mm × 22 mm

• Mounting Method: Surface-mounted with screws (not gang box compatible)

Ideal Applications

The DS-K1107AM is designed for secure access control in environments such as:

• Corporate offices

• Warehouses and factories

• Schools and universities

• Hospitals and clinics

• Apartment complexes and gated communities

Its weatherproof build, modern security features, and support for remote updates make it a practical solution for professional access control installations.
