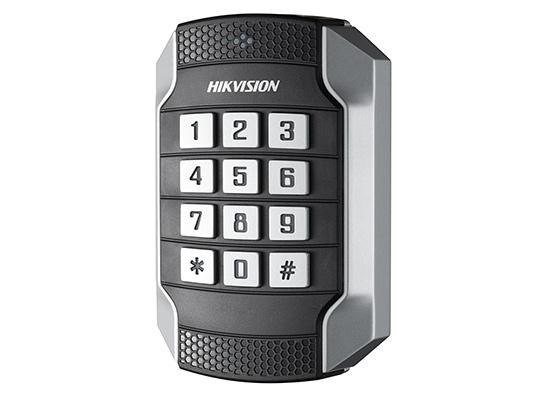

Hikivision DS-K1104MK Card Reader Access Control Vandalproof

The Hikvision DS-K1104MK is a high-performance Mifare card reader equipped with a 12-key keypad, designed for use in professional access control systems. As part of Hikvision’s Pro Series, it supports secure, dual-factor authentication using both card and PIN, offering an added layer of security for sensitive access points.

Key Features:

• Mifare Card Support
  Operates at 13.56 MHz, compliant with ISO/IEC 14443 Type A standards. The reader supports encrypted Mifare cards, making it suitable for secure credential management.

• Keypad Input
  Integrated 12-key keypad enables password or PIN input, supporting access control scenarios that require dual verification (card + PIN).

• Wiegand and RS-485 Output
  Offers flexible connectivity through both Wiegand (W26/W34) and RS-485 interfaces, allowing seamless integration with a wide variety of access control panels and systems.

• Durable and Weatherproof
  The reader features an IP65-rated weatherproof housing and IK10-rated vandal-resistant structure, ensuring stable operation in both indoor and outdoor environments.

• Audible and Visual Indicators
  Includes a built-in buzzer and tri-color LED indicator for real-time operation status and user feedback (e.g., access granted/denied, standby).

• Tamper-Resistant Design
  Tamper detection alarm triggers if the device is physically compromised, enhancing the overall security system integrity.

• Configuration via DIP Switch
  DIP switches on the rear of the unit allow for straightforward configuration of reader parameters without the need for software.

Technical Specifications:

• Card Type: Mifare (13.56 MHz)

• Communication Interface: RS-485 and Wiegand (W26/W34)

• Protection Level: IP65 (weatherproof), IK10 (vandal-resistant)

• Keypad: 12 keys (numeric 0–9, * and #)

• Working Voltage: 12 VDC ±10%

• Power Consumption: ≤ 2W

• Operating Temperature: -20°C to +65°C

• Operating Humidity: 10% to 90% (non-condensing)

• Dimensions: 118 mm × 76 mm × 23 mm

• Weight: ≤ 0.52 kg

• Installation: Surface mount, compatible with standard 86 and 120 electrical boxes

Use Cases:

The DS-K1104MK is ideal for secure access environments such as commercial buildings, data centers, industrial facilities, and gated communities. Its keypad functionality makes it suitable for multi-factor authentication zones where elevated security is necessary, while its robust design ensures durability even in demanding external conditions.
