Product SKU: XNV-6120R
Product Overview

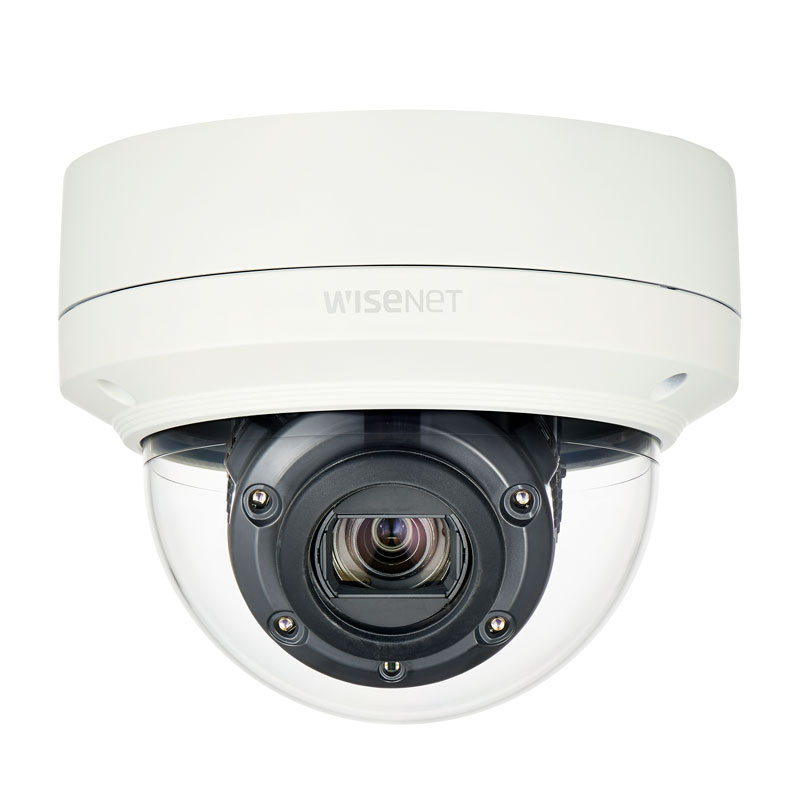

For installers and specifiers who need variable focal coverage in a rugged outdoor dome housing, the Hanwha XNV-6120R delivers a 12x optical zoom lens spanning 5.2 to 62.4 mm, giving a horizontal field of view that shifts from 54.6 degrees at wide end down to 5.3 degrees at full telephoto. That flexibility makes it well suited to perimeter fence lines, transport terminals, and industrial yards where a single camera must cover broad entry zones and then zoom to capture detail at distance. Featuring a 2MP 1/2.8-inch CMOS sensor streaming Full HD at up to 60 fps, the XNV-6120R pairs its zoom range with 70 m IR illumination and 150 dB WDR to maintain usable images through high-contrast and low-light conditions. Built-in analytics including loitering, intrusion, and sound classification add event-based intelligence, while IP67, IK10, and NEMA 4X ratings confirm suitability for coastal, mining, and industrial exposure across an operating temperature range of -40 degrees C to +55 degrees C.
Key Capabilities
12x Optical Zoom Lens
A 5.2 to 62.4 mm varifocal lens lets installers frame coverage from wide-area scene capture down to narrow telephoto detail from a single mounting point. The 54.6 to 5.3 degree horizontal field of view range removes the need for multiple fixed-lens cameras across a long perimeter approach.
70 m IR Illumination
Infrared LEDs extend night visibility to 70 metres, which matches the telephoto reach of the zoom lens at close range and maintains usable footage in completely dark outdoor environments such as unlit industrial yards or remote fence lines after hours.
150 dB Wide Dynamic Range
A 150 dB WDR rating handles scenes where bright sunlight and deep shadow appear in the same frame, such as loading dock entrances, covered car park exits, and transport terminals where vehicles and pedestrians transition between light and shade continuously.
IK10 / IP67 / NEMA 4X Housing
The metal dome housing is rated IK10 for impact resistance, IP67 for dust and water ingress, and NEMA 4X for corrosion, making the XNV-6120R appropriate for coastal sites, chemical processing areas, mining environments, and any outdoor installation exposed to salt air or harsh washdown conditions.
Built-in Analytics Suite
Loitering detection, intrusion detection, direction detection, tampering alerts, fog detection, and sound classification are all onboard without requiring additional licences. These analytics support event-driven recording and reduce the volume of footage operators must review manually across large sites.
Dual microSD Storage and WiseStream II
Two onboard microSD/SDHC/SDXC slots support up to 512 GB of local storage for standalone or redundant recording. WiseStream II combined with H.265 compression reduces bandwidth and storage consumption, which matters when streaming high-frame-rate 1080p footage over long cable runs or across networks with limited throughput.
Best For
- Long-Range Perimeter Monitoring: The 12x optical zoom and 70 m IR range allow a single camera to cover extended fence lines or restricted zone boundaries with both wide context and close telephoto detail from one mounting position.
- Industrial and Coastal Sites: NEMA 4X corrosion resistance and IK10 vandal protection suit environments involving salt spray, chemical exposure, dust, or deliberate physical interference, including mining yards, ports, and petrochemical facilities.
- Transport and Loading Infrastructure: Variable zoom lets operators monitor broad terminal approaches and then focus in on vehicle identification zones, platform edges, or access gates without repositioning the camera or adding extra units.
- Sites Requiring Standalone Failover Recording: Dual microSD slots providing up to 512 GB of onboard storage allow the XNV-6120R to continue recording independently if the primary NVR or network connection is interrupted.
Why Choose the XNV-6120R
The XNV-6120R occupies a specific position in the Wisenet X Series: it is a vandal-rated outdoor dome that delivers a 12x optical zoom range ordinarily associated with PTZ or bullet-form cameras, while retaining the tamper-resistant low-profile dome housing preferred in semi-public and high-risk outdoor locations. A simpler fixed-lens outdoor dome cannot reframe its coverage after installation, and a standard varifocal dome typically offers a much narrower zoom ratio. The XNV-6120R’s 5.2 to 62.4 mm lens, 150 dB WDR, and full analytics suite in a single NEMA 4X certified unit reduce the number of cameras required across large outdoor sites and lower ongoing licence and storage costs through WiseStream II compression. It is available through Security Wholesalers as part of the professional Hanwha Vision range, backed by Australian distribution and technical support.
Buyer Decision Tips
Zoom Framing Requires Post-Install Calibration: The 12x optical zoom must be set and locked after physical mounting. Plan for a calibration visit after the camera is positioned, as zoom and focus adjustments made from ground level before final bracket tightening will shift once the dome is fully sealed. Confirm whether your NVR or VMS supports remote zoom/focus control for the XNV-6120R to simplify this process.
Power Supply at 18 W Maximum Draw: The XNV-6120R draws up to 18 W, which exceeds the 15.4 W limit of standard IEEE 802.3af PoE switches. Ensure your PoE switch or injector supports IEEE 802.3at (PoE+) or plan for a 24V AC or 12V DC local power supply at the mounting point to avoid under-power situations that reduce IR output or cause reboots in cold weather.
Key Features & Technical Specifications
| Model |
XNV-6120R |
| Camera Type |
2MP Outdoor Varifocal IR Vandal Dome |
| Image Sensor |
1/2.8-inch CMOS |
| Resolution |
1920 x 1080 (Full HD) |
| Frame Rate |
Up to 60 fps |
| Lens |
5.2-62.4 mm (12x Optical Zoom) |
| Horizontal Field of View |
54.6 degrees (wide) to 5.3 degrees (telephoto) |
| Wide Dynamic Range |
150 dB |
| IR Range |
Up to 70 m |
| Built-in Analytics |
Loitering, Intrusion, Direction Detection, Tampering, Fog Detection, Sound Classification |
| Video Compression |
H.265 / H.264 / MJPEG |
| Smart Codec |
WiseStream II |
| Onboard Storage |
Dual microSD/SDHC/SDXC slots (up to 512 GB total) |
| Ingress Protection |
IP67 / IP66 |
| Vandal Resistance |
IK10 |
| Corrosion Protection |
NEMA 4X |
| Operating Temperature |
-40 degrees C to +55 degrees C |
| Power Supply |
PoE (IEEE 802.3at recommended) / 24V AC / 12V DC |
| Maximum Power Consumption |
18 W |
| Housing Material |
Metal (weather and impact resistant), White RAL 9003 |
| Series |
Hanwha Vision Wisenet X Series |
Ideal Use Cases
Industrial Perimeter Fence Lines
The 12x optical zoom allows the camera to be mounted at a central vantage point and focused on specific sections of a long perimeter fence, while the IK10 and NEMA 4X housing withstands the dust, vibration, and weather typical of industrial site boundaries.
Ports and Coastal Infrastructure
NEMA 4X corrosion resistance and IP67 sealing make the XNV-6120R suitable for wharf edges, boat ramps, and port terminal approaches where salt air and spray would degrade standard outdoor camera housings over time.
Transport Terminal Overviews
At bus interchanges, rail platforms, or freight loading docks, the varifocal lens covers broad platform areas at wide angle and zooms to entrance gates or vehicle zones as required, with 150 dB WDR managing the strong contrast between covered canopy shade and open sunlit areas.
Remote Unmanned Sites
Dual microSD slots providing up to 512 GB of onboard storage allow the XNV-6120R to record locally at remote locations without a continuous NVR connection. Analytics-triggered recording reduces storage consumption by capturing only relevant events such as intrusions or loitering activity.
Large Open Car Parks
Mounted at height on a pole or building corner, the XNV-6120R uses its wide-to-telephoto zoom range to survey a large car park bay layout and zoom in on specific entry and exit lanes, with IR illumination extending to 70 m for after-dark coverage across unlit parking areas.
Choosing the Right Model
- Choose this model if: Your site requires variable focal length in a vandal-rated outdoor dome housing, particularly where a single camera must cover both a wide overview zone and a distant detail point, and where the housing must withstand corrosion, impact, and temperature extremes from -40 to +55 degrees C.
- Choose a different model if: You need motorised pan and tilt in addition to zoom, a fixed-lens option will cover your area at lower cost, your PoE infrastructure is limited to standard 802.3af switches and local power is not available, or you require resolution above 2MP for very long telephoto identification tasks.
FAQs
- Does the 12x optical zoom on the XNV-6120R mean it can pan and tilt automatically?
No. The XNV-6120R is a fixed-position dome camera. The 12x optical zoom refers to the varifocal lens range from 5.2 to 62.4 mm, which is set during installation and commissioning. The camera has no motorised pan or tilt mechanism. If you need automated directional coverage with zoom, a PTZ unit would be required instead.
- Does the dome housing protect against vandalism, or is it only weatherproof?
Both. The XNV-6120R carries an IK10 impact resistance rating, which is the highest standard in the IK scale and indicates the housing can withstand a significant mechanical impact. It also holds IP67 and IP66 weatherproof ratings along with NEMA 4X corrosion resistance. The metal construction is built for outdoor environments where deliberate interference is a realistic risk.
- What PoE class does the XNV-6120R require?
The camera draws up to 18 W, which exceeds the 15.4 W maximum of standard IEEE 802.3af PoE. You will need a PoE+ switch or injector compliant with IEEE 802.3at to power it over Ethernet reliably. Alternatively, a local 24V AC or 12V DC power supply at the mounting point will meet the power requirement without a PoE+ switch.
- How does the 70 m IR range relate to the zoom lens at full telephoto?
At the telephoto end of the lens (62.4 mm, 5.3 degree horizontal field of view), the camera is capturing a narrow slice of scene at long distance. The 70 m IR range is most effective at closer ranges within that zone. For targets beyond 70 m in total darkness, external lighting or a camera with longer IR reach would be more appropriate.
- Can the XNV-6120R record locally without being connected to an NVR?
Yes. With 2 microSD/SDHC/SDXC slots supporting up to 512 GB of total storage, the camera can record independently. This is particularly useful for remote sites, temporary installations, or as a failover layer if the primary recording system becomes unavailable. Analytics-based event recording can help manage storage consumption across both slots.
- What does the defog function do and when is it useful?
The defog function applies image processing to counteract the contrast and colour loss caused by atmospheric haze, fog, or smoke. It is particularly relevant for cameras monitoring long outdoor distances, such as a 12x zoom camera looking across an industrial yard or waterfront, where atmospheric conditions at range reduce image clarity more noticeably than at short focal lengths.
- Is the XNV-6120R compatible with third-party VMS platforms?
The XNV-6120R is part of the Wisenet X Series and supports standard ONVIF protocols, which provides compatibility with a wide range of third-party video management systems in addition to Hanwha’s own Wisenet WAVE and SSM platforms. Confirm ONVIF profile support with your VMS vendor for specific feature compatibility. The XNV-6120R is supplied through Security Wholesalers alongside compatible Hanwha recorders and accessories for complete system builds.
