Does the QRN-830S come with a hard drive included?

No. The QRN-830S ships without a hard drive. It has 1 SATA bay that accepts a single surveillance-grade drive up to 6TB. You will need to purchase a compatible HDD separately before the unit can begin recording. Surveillance-rated drives such as WD Purple or Seagate Skyhawk are recommended for continuous write workloads.

How much recording time can I expect from a 6TB drive?

Retention depends on resolution, frame rate, number of active channels, and whether recording is continuous or motion-triggered. H.265 compression reduces file sizes by up to 50 percent compared to H.264, which meaningfully extends retention on the single 6TB maximum drive. For precise estimates, use a storage calculator based on your intended camera resolutions and frame rates.

What does ARB do and why does it matter for this NVR?

ARB stands for Automatic Recovery Backup. When the network connection between a camera and the QRN-830S is temporarily lost, compatible cameras store footage locally. Once the connection is restored, the NVR automatically pulls that locally stored footage and inserts it into the recording timeline, preventing gaps. This is particularly valuable for sites where network reliability cannot be guaranteed.

Can I use non-Hanwha cameras with the QRN-830S?

The QRN-830S is designed for the Hanwha Wisenet camera ecosystem. ONVIF-compatible cameras from other brands may connect, but advanced features such as ARB, dual track recording, and full Wisenet mobile app integration are confirmed for Hanwha cameras. Verify compatibility with any third-party cameras before committing to a mixed installation. Security Wholesalers can assist with compatibility questions for Hanwha Wisenet products.

How does P2P QR code connect work for remote access?

The QRN-830S supports P2P connection, which allows the Wisenet mobile app to link to the recorder by scanning a QR code displayed on the NVR or generated during setup. This removes the need to configure port forwarding on the site router in many cases, making remote access commissioning faster and more straightforward for both installers and end users.

What is dual track recording and when is it useful?

Dual track recording means the QRN-830S simultaneously records both a main stream at full resolution and a sub stream at a reduced resolution. The full-resolution stream is stored for evidence quality footage, while the sub stream enables smoother remote viewing over limited-bandwidth connections such as mobile data. This is particularly useful for sites where the internet uplink speed is modest but full local recording quality must be maintained.

Hanwha Wisenet QRN-830S 8ch 8MP PoE NVR, H.265, 80Mbps, No HDD (1 SATA 6TB max)

$806.15

FREE DELIVERYWARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

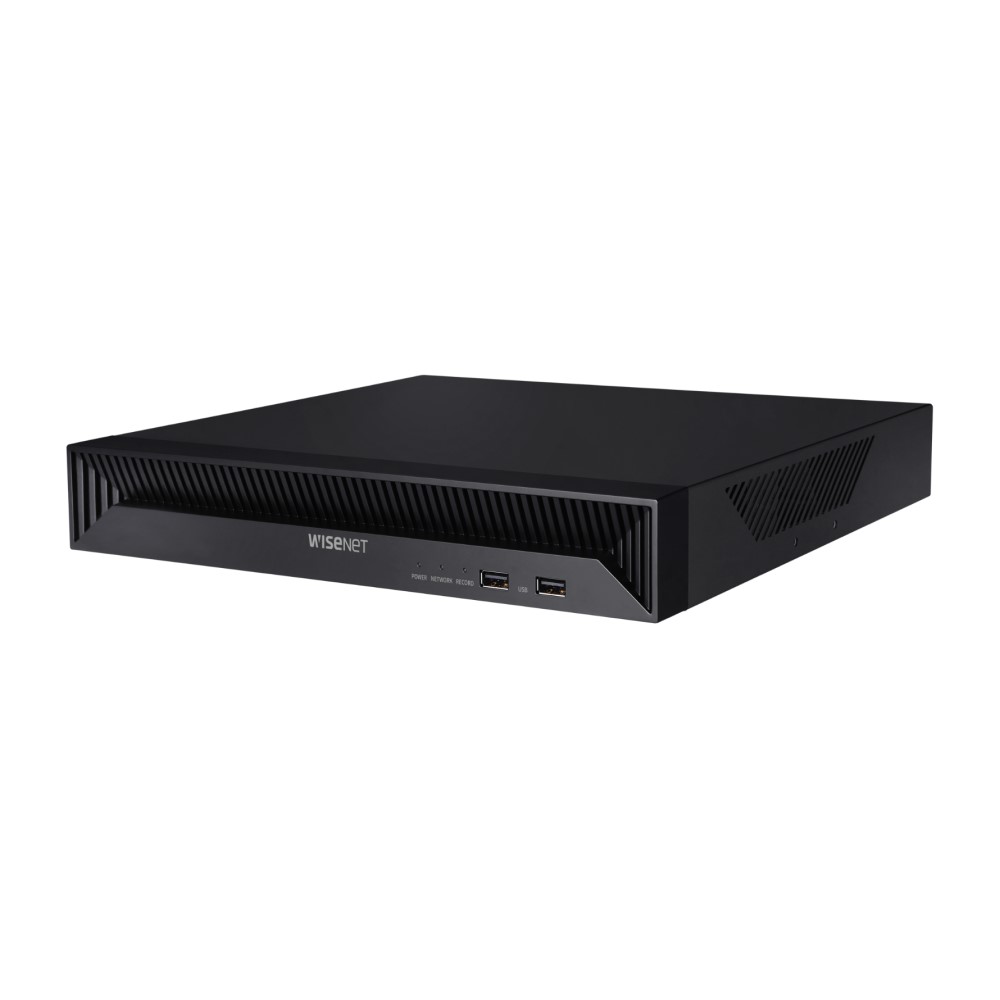

Hanwha Wisenet QRN-830S | 8-Channel PoE NVR | 8MP | H.265 | 80Mbps

The Hanwha Wisenet QRN-830S is an 8-channel plug-and-play PoE NVR designed for small to medium security installations. Equipped with H.265 compression, it can reduce storage space and costs by up to 50 percent compared to older compression formats. Featuring support for up to 80Mbps throughput and dual-stream recording, it delivers reliable performance across a range of deployment scenarios. The Wisenet mobile app and P2P QR code connectivity provide straightforward remote access and setup. This unit ships without a hard drive and supports 1 SATA drive up to 6TB.

Key Features

8-Channel PoE NVR: Supports up to 8 IP cameras via built-in PoE ports for simple plug-and-play installation.
8MP Recording: Capable of recording up to 8MP resolution for high-detail footage across all channels.
H.265 Compression: Reduces storage requirements and bandwidth usage by up to 50 percent over H.264.
80Mbps Throughput: Handles high-bandwidth streams across all 8 channels simultaneously.
Dual-Stream Recording: Records main and sub streams concurrently for flexible local and remote viewing.
Mobile App and P2P Support: Compatible with the Wisenet mobile app and QR code P2P setup for easy remote access.

Additional Information

QRN-830S Datasheet

$806.15 inc GST +3 Year Warranty & Support

Description
Specifications

Product SKU: QRN-830S

Product Overview

Installers and integrators building 8-camera Hanwha Wisenet IP systems will find the QRN-830S a well-matched recording platform for small to medium installations. This 8-channel PoE NVR supports cameras up to 8MP resolution and handles up to 80Mbps of incoming network camera data, giving it the headroom needed for multi-camera 4K or high-resolution deployments. Equipped with 8 built-in PoE ports, it simplifies cabling by powering and connecting cameras over a single Cat cable run per channel. Built with H.265 compression support, the QRN-830S can reduce storage consumption by up to 50 percent compared to H.264-only recorders. It also includes dual track recording, ARB (Automatic Recovery Backup), and P2P QR code connect for straightforward remote access setup via the Wisenet mobile app. The unit ships without a hard drive and accommodates 1 SATA drive up to 6TB, so storage capacity should be planned before deployment.

Key Capabilities

8-Channel PoE Recording

8 built-in PoE ports allow cameras to be powered and connected over a single Cat cable per channel, removing the need for separate power supplies and simplifying rack or cabinet layouts in small to medium installations.

8MP Camera Support at 80Mbps

The QRN-830S handles cameras up to 8MP resolution and sustains up to 80Mbps of total recording bandwidth, providing the throughput required for high-resolution multi-channel recording without bottlenecking image quality.

H.265 Compression

H.265 encoding can cut storage requirements by up to 50 percent against H.264 recordings. On a single-bay NVR capped at 6TB, this compression advantage directly extends usable retention periods without changing hardware.

Dual Track Recording

Simultaneous main stream and sub stream recording lets operators store full-resolution footage for evidence while keeping a lower-bandwidth stream available for smooth remote viewing over constrained network connections.

P2P QR Code Remote Access and ARB

P2P QR code connect pairs the NVR with the Wisenet mobile app quickly without complex port forwarding. ARB (Automatic Recovery Backup) restores footage recorded locally at cameras during any network interruption, maintaining continuity of the recording history.

Best For

Small to Medium Commercial Sites: 8 PoE channels suits retail stores, offices, and light industrial premises where a single recorder handles the full camera count without requiring additional PoE switches.
Hanwha Wisenet IP Camera Deployments: Designed to work within the Wisenet ecosystem, making it a natural recording hub for installers already specifying Hanwha cameras across a site.
Storage-Conscious Installations: H.265 compression maximises retention from a single 6TB drive, benefiting sites where minimising hardware footprint is a priority.
Integrators Requiring Simple Remote Setup: P2P QR code connect and Wisenet mobile app support reduce commissioning time for remote access, particularly useful for multi-site installers.

Why Choose the QRN-830S

The QRN-830S stands apart from generic 8-channel NVRs through its native compatibility with the Hanwha Wisenet camera range, 80Mbps recording bandwidth that supports 8MP resolution across all 8 channels simultaneously, and built-in ARB functionality that protects footage continuity even when the network between cameras and recorder is temporarily disrupted. A basic PoE NVR at this channel count may lack ARB, dual track recording, or the Wisenet mobile app integration that makes remote management straightforward. H.265 compression extends the storage life of the single 6TB SATA drive, reducing how frequently storage needs to be managed or expanded. Available at Security Wholesalers, the QRN-830S is a purpose-built Hanwha recorder that delivers a complete recording solution when paired with compatible Wisenet IP cameras.

Buyer Decision Tips

Plan Your HDD Before Installation: The QRN-830S ships without a hard drive and supports a single SATA drive up to 6TB. Calculate your required retention period based on channel count, resolution, frame rate, and whether continuous or motion-triggered recording will be used before ordering. At 8 channels recording 4MP at moderate frame rates with H.265, a 6TB drive typically provides several days of continuous retention. If longer retention is needed, adjust recording schedules or frame rates accordingly since the unit cannot accept a second drive.

Confirm Camera Compatibility Within the Wisenet Ecosystem: While the QRN-830S is designed for Hanwha Wisenet IP cameras, ONVIF-compatible third-party cameras may also be connected. However, full feature support including ARB, dual track recording, and Wisenet app integration is confirmed for Hanwha cameras. Verify compatibility for any non-Hanwha cameras before specifying them alongside this recorder.

Key Features & Technical Specifications

Model	QRN-830S
Channels	8
Maximum Camera Resolution	8MP
Recording Bandwidth	80Mbps
PoE Ports	8 x built-in PoE
Video Compression	H.265, H.264, MJPEG
Recording Mode	Dual track recording
HDD Bays	1 x SATA
Maximum HDD Capacity	Up to 6TB
HDD Included	No
Video Output	1 x HDMI
Remote Access	P2P QR code connect, Wisenet mobile app
ARB (Automatic Recovery Backup)	Supported
Brand / Ecosystem	Hanwha Wisenet

Ideal Use Cases

Retail Store Surveillance

8 PoE channels cover a full retail environment including entry points, aisles, and point-of-sale areas. H.265 compression keeps storage demand manageable across continuous recording from all channels on a single drive.

Office and Workplace Monitoring

Built-in PoE removes the need for a separate switch in smaller office deployments. HDMI output allows a monitor to be connected directly for on-site viewing at a reception desk or security station.

Multi-Site Managed Installations

P2P QR code connect and Wisenet mobile app support allow remote monitoring and management without complex network configuration, reducing repeat visits for installers managing multiple client sites.

Light Commercial and Hospitality

Venues such as cafes, small hotels, and service businesses with up to 8 camera positions benefit from the QRN-830S’s 8MP support and dual track recording, which maintains a low-bandwidth stream for remote check-ins.

Network Outage-Resilient Recording

ARB support means cameras that store footage locally during a network drop will automatically sync that footage back to the NVR when connectivity is restored, avoiding gaps in the recorded timeline at critical moments.

Choosing the Right Model

Choose this model if: You are building an 8-camera Hanwha Wisenet IP system and need a PoE NVR with 8MP support, H.265 compression, ARB, and straightforward mobile remote access via QR code pairing.
Choose a different model if: Your site requires more than 8 camera positions, needs multiple HDD bays for extended on-site retention, or requires a recorder that accepts a larger number of simultaneous high-bandwidth 4K streams across more channels.

FAQs

Does the QRN-830S come with a hard drive included?
No. The QRN-830S ships without a hard drive. It has 1 SATA bay that accepts a single surveillance-grade drive up to 6TB. You will need to purchase a compatible HDD separately before the unit can begin recording. Surveillance-rated drives such as WD Purple or Seagate Skyhawk are recommended for continuous write workloads.
How much recording time can I expect from a 6TB drive?
Retention depends on resolution, frame rate, number of active channels, and whether recording is continuous or motion-triggered. H.265 compression reduces file sizes by up to 50 percent compared to H.264, which meaningfully extends retention on the single 6TB maximum drive. For precise estimates, use a storage calculator based on your intended camera resolutions and frame rates.
What does ARB do and why does it matter for this NVR?
ARB stands for Automatic Recovery Backup. When the network connection between a camera and the QRN-830S is temporarily lost, compatible cameras store footage locally. Once the connection is restored, the NVR automatically pulls that locally stored footage and inserts it into the recording timeline, preventing gaps. This is particularly valuable for sites where network reliability cannot be guaranteed.
Can I use non-Hanwha cameras with the QRN-830S?
The QRN-830S is designed for the Hanwha Wisenet camera ecosystem. ONVIF-compatible cameras from other brands may connect, but advanced features such as ARB, dual track recording, and full Wisenet mobile app integration are confirmed for Hanwha cameras. Verify compatibility with any third-party cameras before committing to a mixed installation. Security Wholesalers can assist with compatibility questions for Hanwha Wisenet products.
How does P2P QR code connect work for remote access?
The QRN-830S supports P2P connection, which allows the Wisenet mobile app to link to the recorder by scanning a QR code displayed on the NVR or generated during setup. This removes the need to configure port forwarding on the site router in many cases, making remote access commissioning faster and more straightforward for both installers and end users.
What is dual track recording and when is it useful?
Dual track recording means the QRN-830S simultaneously records both a main stream at full resolution and a sub stream at a reduced resolution. The full-resolution stream is stored for evidence quality footage, while the sub stream enables smoother remote viewing over limited-bandwidth connections such as mobile data. This is particularly useful for sites where the internet uplink speed is modest but full local recording quality must be maintained.

Additional Information

HAN-QRN-830S Datasheet
