Product SKU: XRN-3210B2
Product Overview

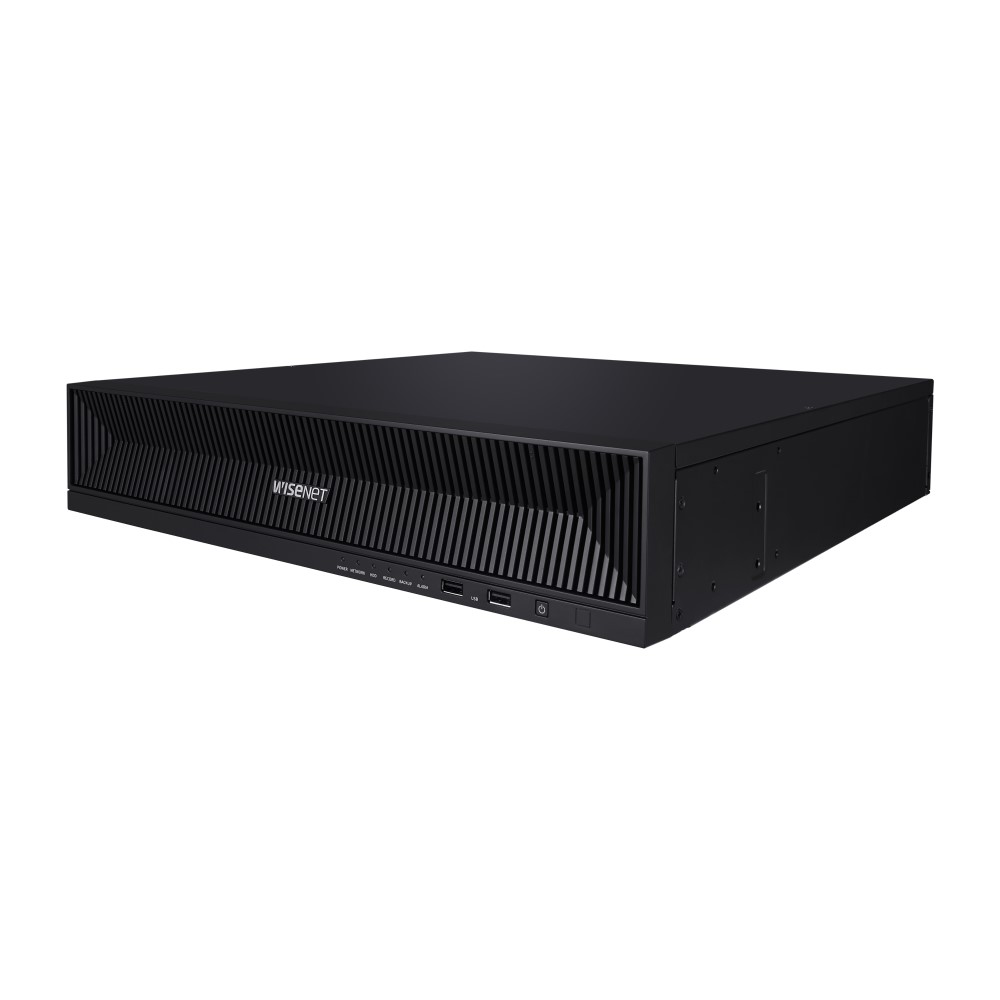

Designed for large-scale commercial and enterprise surveillance deployments, the Hanwha XRN-3210B2 is a 32-channel NVR built to handle the demands of high-density, high-resolution camera networks. Supporting cameras up to 32 megapixels and a recording bandwidth of up to 400Mbps, this unit is suited to installations where image detail and continuous throughput are non-negotiable. Equipped with dual HDMI outputs, the first delivering 4K resolution at 3840 x 2160 and the second at 1920 x 1080, it supports a two-monitor control room layout without additional hardware. Featuring 8 SATA bays with a combined maximum capacity of 80TB, the XRN-3210B2 provides substantial on-site storage headroom for long-retention recording schedules. H.265 compression reduces storage consumption by up to 50 percent compared to H.264, making the available drive space work harder. SUNAPI and ONVIF protocol support ensures broad camera compatibility across the Hanwha Wisenet ecosystem and third-party devices.
Key Capabilities
32-Channel, 32MP Recording
The XRN-3210B2 accepts up to 32 IP camera inputs and supports resolutions from CIF through to 32 megapixels, allowing operators to deploy ultra-high-resolution cameras across a full 32-channel layout without any resolution trade-offs at the recorder level.
400Mbps Recording Bandwidth
With a maximum recording bandwidth of 400Mbps, this NVR sustains continuous high-bitrate streams across all 32 channels simultaneously, making it suitable for installations where multiple high-resolution or multi-sensor cameras are running in parallel around the clock.
Dual HDMI Outputs
Two independent HDMI outputs allow operators to run a dual-monitor control room setup directly from the unit. HDMI 1 supports 4K output at 3840 x 2160, while HDMI 2 runs at 1920 x 1080, giving flexibility for a primary review screen alongside a secondary status display.
8-Bay Storage up to 80TB
Eight SATA drive bays with a combined maximum capacity of 80TB give this unit significant on-site retention capability. Installations with strict retention requirements, including 30-day or 90-day footage archives across dozens of cameras, can be planned without relying on cloud or off-site backup.
H.265 Compression
H.265 encoding reduces storage consumption by up to 50 percent compared to H.264 at equivalent quality levels. For a recorder with 8 drive bays, this effectively doubles the usable retention period without adding extra hardware costs, a meaningful advantage for high-channel, long-retention deployments.
P2P Remote Access and Dynamic Events
Built-in P2P service with QR code connect simplifies remote access setup without requiring manual port forwarding. Dynamic Event support and bookmark management give operators the tools to tag, flag, and retrieve specific footage segments quickly during incident review.
Best For
- Enterprise and Corporate Campuses: The 32-channel input and 400Mbps bandwidth handle large-footprint sites with dozens of high-resolution cameras spread across buildings, car parks, and access points.
- Security Control Rooms Requiring Dual Monitors: The dual HDMI outputs at 4K and 1080p support a dedicated two-screen operator station without additional video processing hardware.
- Installations with Long Footage Retention Requirements: Eight SATA bays supporting up to 80TB, combined with H.265 compression, provide the storage headroom for extended recording schedules across all 32 channels.
- Mixed-Manufacturer Camera Networks: ONVIF protocol support alongside native SUNAPI allows the XRN-3210B2 to integrate both Hanwha Wisenet cameras and compatible third-party IP cameras within the same system.
Why Choose the XRN-3210B2
The XRN-3210B2 sits at the high-capacity end of the Hanwha Wisenet NVR range, combining 32 channels, 32MP camera support, and a 400Mbps recording bandwidth in a single rack-mount unit. Where entry-level or mid-range NVRs cap out at lower channel counts or bandwidth limits that force resolution compromises, this unit removes those constraints for large installations. The 8-bay storage architecture supporting up to 80TB gives system designers genuine flexibility when planning retention schedules, and H.265 compression stretches that capacity further without sacrificing footage quality. Dual HDMI outputs at 4K and 1080p make it a practical choice for purpose-built monitoring stations that need two independent displays. Dynamic Event support and P2P remote connectivity add operational value beyond basic recording. Available through Security Wholesalers, the XRN-3210B2 is suited to integrators and end-users who need a recorder that scales with a demanding, high-resolution camera network.
Buyer Decision Tips
Storage Planning: The XRN-3210B2 ships with no hard drives installed. Before deployment, calculate your total storage requirement based on channel count, camera bitrate, and required retention period. With 8 SATA bays available, you can start with a partial drive configuration and expand later, but drive compatibility should be confirmed against the Hanwha supported HDD list prior to purchase. Enterprise-grade surveillance HDDs rated for 24/7 operation are strongly recommended for all bays.
Bandwidth and Channel Allocation: The 400Mbps total recording bandwidth is shared across all 32 channels. At full 32-channel capacity, average per-camera bandwidth is approximately 12.5Mbps. High-resolution cameras running at elevated bitrates may require careful stream configuration to stay within this ceiling, particularly if multiple 12MP or higher cameras are deployed. Review the bitrate settings on your cameras before finalising the system design to avoid throughput bottlenecks.
Key Features & Technical Specifications
| Model |
Hanwha Wisenet XRN-3210B2 |
| Channel Inputs |
Up to 32 channels |
| Maximum Camera Resolution |
32MP |
| Resolution Range |
32MP to CIF |
| Recording Bandwidth |
Maximum 400Mbps |
| Video Compression |
H.265, H.264, MJPEG |
| Protocols |
SUNAPI, ONVIF |
| Local Display – HDMI 1 |
3840 x 2160 (4K) |
| Local Display – HDMI 2 |
1920 x 1080 (Full HD) |
| HDD Bays |
8 x SATA |
| Maximum Storage Capacity |
Up to 80TB |
| Included Hard Drives |
None (sold separately) |
| Remote Access |
P2P service with QR code connect |
| Additional Features |
Dynamic Event support, Bookmark management |
| Power Input |
100 – 240V AC |
| Power Consumption |
Maximum 138W |
| Colour / Material |
Black, metal |
| Dimensions |
438mm x 86mm x 434.9mm |
| Weight |
7.5kg |
Ideal Use Cases
Security Control Rooms
Dual HDMI outputs at 4K and 1080p allow a two-screen monitoring station to be built directly from the XRN-3210B2 without additional video splitters or display controllers, making it practical for staffed monitoring environments.
Large Retail and Shopping Centres
High camera counts across sales floors, stockrooms, entrances, and car parks are handled within a single 32-channel system. H.265 compression keeps storage costs manageable across extended retention schedules needed for loss prevention investigations.
Industrial Facilities and Warehouses
Large warehouse floors, loading docks, and perimeter zones typically require high camera density. The 400Mbps recording bandwidth supports continuous high-bitrate streams from cameras covering wide areas, where footage detail is critical for incident investigation.
Corporate Campuses and Office Complexes
Multi-building deployments with cameras across lobbies, car parks, stairwells, and access points can consolidate recording into a single XRN-3210B2 unit, with ONVIF support allowing cameras from different manufacturers to be integrated into one system.
High-Resolution Specialist Deployments
Installations requiring 12MP, 20MP, or 32MP cameras for detailed forensic coverage, such as cashier zones, server room access points, or high-value storage areas, can operate at full resolution without the recorder imposing a downgrade on incoming streams.
Choosing the Right Model
- Choose this model if: You are specifying a large commercial or enterprise system requiring 32 channels, cameras above 8MP, dual-monitor local display, and significant on-site storage retention of up to 80TB across 8 drive bays.
- Choose a different model if: Your installation requires 16 channels or fewer, as a lower-channel NVR will typically offer a more cost-effective fit without unused capacity. Similarly, if the site requires built-in PoE switching to power cameras directly from the recorder, a PoE-integrated NVR would be a more suitable choice, as the XRN-3210B2 does not include onboard PoE ports.
FAQs
- Does the XRN-3210B2 come with hard drives included?
No. The XRN-3210B2 ships without any hard drives installed. All 8 SATA bays are empty and drives must be purchased separately. Hanwha publishes a supported HDD compatibility list, and enterprise-grade surveillance drives rated for 24/7 continuous operation are recommended. Total usable capacity depends on the drive sizes fitted, up to a combined maximum of 80TB.
- What cameras are compatible with the XRN-3210B2?
The XRN-3210B2 is natively compatible with Hanwha Wisenet IP cameras using the SUNAPI protocol, which enables full feature access including Dynamic Event support. It also supports ONVIF-compliant cameras from other manufacturers, allowing mixed-brand installations. Camera resolution support ranges from CIF up to 32 megapixels per channel.
- Can the XRN-3210B2 record all 32 channels at full resolution simultaneously?
The recorder supports up to 400Mbps total recording bandwidth shared across all 32 channels. Whether all channels can run at their maximum resolution simultaneously depends on the bitrate of each connected camera. For high-resolution cameras with elevated bitrates, stream settings should be reviewed to ensure the combined load stays within the 400Mbps ceiling during continuous recording.
- What resolution does the local HDMI display output support?
The XRN-3210B2 includes 2 HDMI outputs. HDMI 1 supports 4K output at 3840 x 2160, suitable for a high-resolution primary monitoring display. HDMI 2 outputs at 1920 x 1080, suitable for a secondary operator screen. Both outputs are independent, allowing a dual-monitor control room configuration to be set up without additional hardware.
- How does H.265 compression affect storage planning on this NVR?
H.265 compression reduces the file size of recorded footage by up to 50 percent compared to H.264 at equivalent visual quality. On a system with up to 80TB of raw capacity, this compression advantage effectively extends the practical retention period without requiring additional drives or cloud storage. It is particularly significant when recording high-resolution streams across all 32 channels continuously.
- Does the XRN-3210B2 support remote access?
Yes. The unit includes a built-in P2P service with QR code connect, which simplifies remote access setup without requiring manual router port forwarding. Operators can connect remotely via compatible Hanwha Wisenet mobile applications or client software. Bookmark management also allows specific footage events to be flagged for easy remote retrieval during incident review.
- Is the XRN-3210B2 suitable for rack mounting in a server room environment?
Yes. The XRN-3210B2 has a rack-compatible form factor with dimensions of 438mm x 86mm x 434.9mm and a metal chassis. Its 100 to 240V AC power input suits standard Australian electrical infrastructure, and the maximum 138W power consumption should be factored into rack power budgeting. The unit weighs 7.5kg and is part of the Security Wholesalers Hanwha X Series range, which targets advanced performance installations.
