Does the XRN-1620SB1 come with hard drives included?

No. The XRN-1620SB1 ships without any HDDs fitted. It has 4 SATA bays supporting a maximum total capacity of 24TB. Surveillance-rated drives such as WD Purple or Seagate Skyhawk are recommended and can be purchased separately. Matching drive capacity to your camera count, resolution, and required retention period before purchase avoids having to revisit storage after installation.

Which cameras are compatible with the AI Search feature?

AI Search on the XRN-1620SB1 is activated by compatible Wisenet AI cameras that pass AI metadata to the recorder over SUNAPI. Standard ONVIF cameras or older Wisenet models without AI classification will not trigger AI Search, and conventional motion-based event retrieval will apply instead. Check that cameras you intend to use are confirmed Wisenet AI models before relying on this feature in your system design.

What is the total PoE power budget, and how does it affect camera selection?

The XRN-1620SB1 provides 200W of shared PoE power across all 16 ports. This is sufficient for a full 16-camera system in most configurations, but power draw will vary depending on the cameras selected. Cameras with IR illuminators, heaters, or active deterrence features draw more power. If your camera selection is power-intensive, calculate total draw before finalising the design to confirm the budget is not exceeded.

Can the XRN-1620SB1 be mounted in a standard equipment rack?

Yes. The metal chassis and dimensions of 440mm x 89.8mm x 428.4mm are consistent with a 2U rack-mount form factor, making it suitable for installation in a standard 19-inch equipment rack. The unit weighs 5.76kg without drives, so factor total weight when planning rack load capacity with drives installed.

Does the NVR support non-Hanwha cameras via ONVIF?

Yes. The XRN-1620SB1 supports ONVIF in addition to Hanwha's SUNAPI protocol, allowing third-party IP cameras that conform to ONVIF standards to be connected and recorded. However, advanced features including AI Search and certain Wisenet-specific metadata functions will only operate with compatible Wisenet cameras connected via SUNAPI.

What are the display output options for live monitoring?

The XRN-1620SB1 supports a single HDMI output at up to 3840x2160 UHD for 4K monitor configurations. When operating in FHD mode, both HDMI and VGA outputs are active simultaneously, supporting a dual-monitor setup. This allows a main 4K display for live view alongside a secondary screen for management or playback without additional hardware. Available through Security Wholesalers, the unit suits installations where a dual-screen control station is part of the project scope.

How much storage is needed for 16 cameras at typical settings?

Storage requirements depend on recording resolution, frame rate, scene complexity, and whether continuous or motion-triggered recording is used. H.265 compression on the XRN-1620SB1 reduces storage consumption by up to 50% compared to H.264, which extends effective retention on the same drives. As a general approach, use a storage calculator based on your specific camera specs to determine the right drive size before selecting HDDs for the 4 SATA bays.

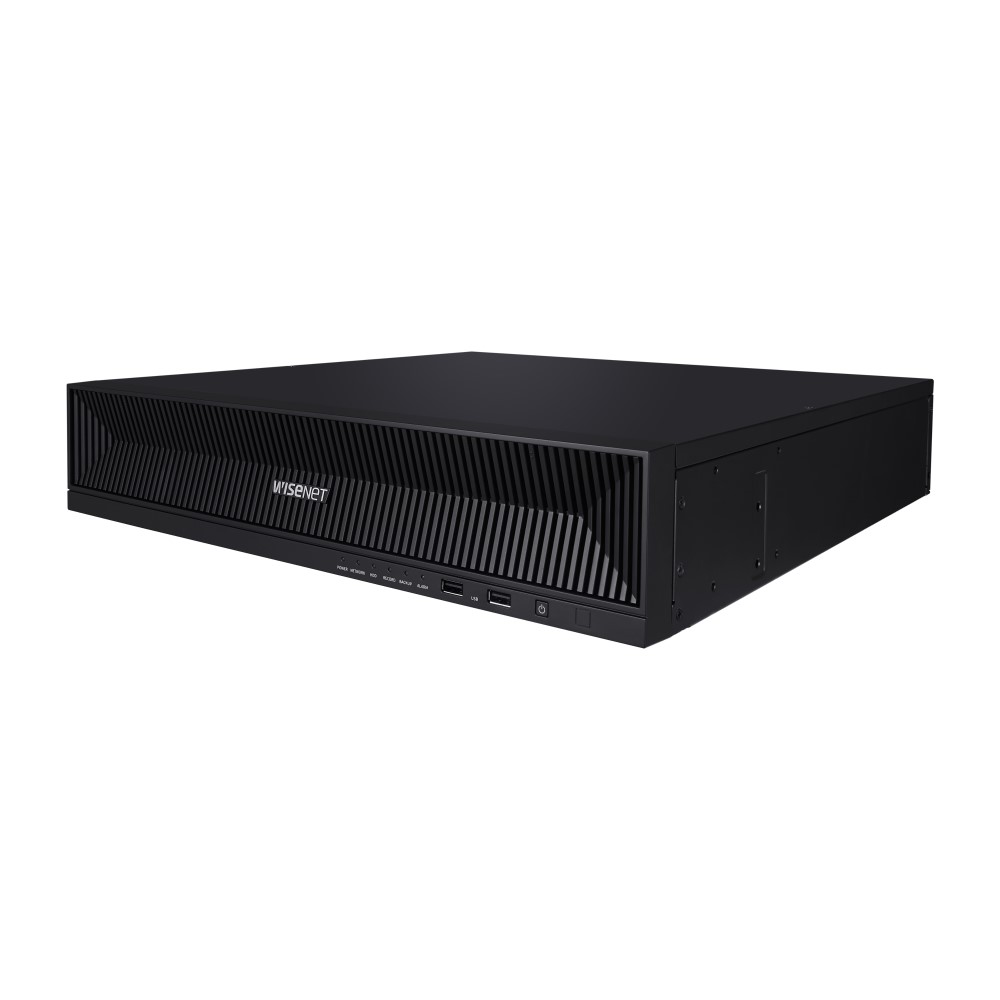

Hanwha Wisenet XRN-1620SB1 16ch PoE NVR, AI Search, H.265, 140Mbps, No HDD (4 SATA 24TB)

$1,899.71

FREE DELIVERYWARRANTY GUARANTEED

SW ADVANTAGE✓ Trade-Price Verified✓ Priority Tech Support✓ Dedicated After-Sales Support✓ Easy Returns & Warranty

The Hanwha Wisenet XRN-1620SB1 delivers a 16-channel NVR solution designed for high-performance IP surveillance installations. Featuring 16 built-in PoE ports with a total bandwidth of 140Mbps, it supports true plug-and-play camera connectivity without additional switching equipment. Equipped with H.265 compression, the system can reduce storage consumption by up to 50% compared to older codecs, and supports recording resolutions up to 32 megapixels with a 4K HDMI output at 3840 x 2160. It also includes AI Search capability when paired with compatible Wisenet AI cameras, enabling intelligent event retrieval across the recorded footage. Up to 4 SATA drives can be installed, supporting a maximum capacity of 24TB.

Key Features

16-Channel PoE Recording: Supports up to 16 IP cameras via built-in PoE ports at a combined bandwidth of 140Mbps.
AI Search: Compatible with Wisenet AI cameras for intelligent event-based search and retrieval.
H.265 Compression: Reduces storage requirements by up to 50% compared to H.264, lowering overall system costs.
4K HDMI Output: Delivers video output at up to 3840 x 2160 resolution for high-clarity monitoring.
32MP Recording Support: Capable of recording and displaying ultra-high-resolution camera streams.
Expandable Storage: Houses up to 4 SATA HDDs with a maximum supported capacity of 24TB.

Additional Information

XRN-1620SB1 Datasheet

$1,899.71 inc GST +3 Year Warranty & Support

Description

Product SKU: XRN-1620SB1

Product Overview

Built for commercial and enterprise installations requiring centralised 16-channel recording, the Hanwha Wisenet XRN-1620SB1 is a rack-mount NVR designed to sit at the core of a structured IP camera system. Featuring 16 built-in PoE ports with a combined 200W budget and a maximum recording bandwidth of 140Mbps, it supports plug-and-play camera connection without requiring a separate PoE switch. Equipped with H.265 compression, the XRN-1620SB1 can reduce storage consumption by up to 50% compared to H.264 systems, extending the useful life of installed drives. It supports recording up to 32MP resolution and outputs 4K UHD at 3840×2160 via HDMI, with simultaneous HDMI and VGA dual-monitor support at FHD. This model also supports AI Search when paired with compatible Wisenet AI cameras, enabling faster event retrieval across large footage archives. Four SATA bays support up to 24TB of storage, and the unit ships without HDDs, allowing installers to spec drives to suit the project.

Key Capabilities

16-Channel PoE Integration

All 16 camera channels are powered directly through the NVR’s built-in PoE switch, eliminating the need for external PoE injectors or switches. The shared 200W PoE budget supports a full array of IP cameras over a single CAT cable run per camera.

AI Search Capability

When used with compatible Wisenet AI cameras, the XRN-1620SB1 supports AI Search, allowing operators to retrieve specific events from recorded footage faster than conventional timeline scrubbing. This is particularly useful on multi-camera sites where reviewing incidents manually is time-consuming.

4K UHD Display Output

The NVR supports a 3840×2160 HDMI output for single UHD monitor configurations, and simultaneous HDMI plus VGA dual-monitor operation at FHD. This flexibility suits security control rooms with multi-screen setups or installations requiring a dedicated review display.

H.265 Compression

H.265 encoding reduces file sizes by up to 50% compared to H.264, directly lowering the HDD capacity required for a given retention period. On a 16-channel system with continuous recording, this saving translates into meaningfully longer footage archives on the same physical drives.

Up to 32MP Recording Resolution

Supporting camera inputs up to 32MP, the XRN-1620SB1 is compatible with high-resolution multi-sensor and panoramic Wisenet cameras. This makes it suitable for wide-area coverage scenarios where a single camera position needs to capture detail across a large zone.

Flexible Storage Expansion

Four SATA drive bays support up to 24TB of total storage, giving installers the choice to match drive capacity to the site’s retention requirements. The unit ships without HDDs, allowing surveillance-rated drives to be specified and fitted before deployment.

Best For

Multi-camera commercial sites: The 16-channel PoE architecture and 140Mbps recording bandwidth support a full complement of IP cameras across retail stores, offices, schools, and healthcare facilities without requiring additional network switching infrastructure.
AI-enabled Wisenet installations: Sites using compatible Wisenet AI cameras benefit directly from the AI Search feature, enabling operators to locate events across large footage libraries far more efficiently than manual review.
Rack-mount server room deployments: The metal chassis and standard 2U rack-compatible form factor make the XRN-1620SB1 appropriate for installations where the recorder is housed in a dedicated IT or security rack rather than on an open shelf.
Storage-conscious long-retention projects: H.265 compression combined with up to 24TB of internal storage capacity suits projects where extended footage retention, such as 30 days or more across 16 cameras, is a project specification.

Why Choose the XRN-1620SB1

The XRN-1620SB1 positions itself above entry-level 16-channel NVRs through its combination of built-in 16-port PoE, 200W PoE budget, and native AI Search support, features that entry-grade recorders typically omit or limit. The 140Mbps recording bandwidth provides headroom for high-resolution cameras without bottlenecking throughput across a fully loaded 16-camera system. Dual monitor output at both FHD and UHD adds operational flexibility that simpler units lack, while H.265 compression keeps storage costs manageable at scale. The SUNAPI and ONVIF protocol support means the recorder integrates cleanly into broader Wisenet ecosystems or third-party VMS platforms where ONVIF compliance is required. Available at Security Wholesalers, the XRN-1620SB1 is a practical choice for installers and integrators who need a high-bandwidth, AI-capable NVR that won’t require a separate PoE switch on a 16-camera project.

Buyer Decision Tips

No HDD Included – Plan Your Storage Before Purchase: The XRN-1620SB1 ships without any hard drives fitted. Before ordering, calculate your required storage based on the number of cameras, recording resolution, frame rate, and target retention period. The unit supports up to 4 SATA drives with a combined maximum of 24TB. Surveillance-rated drives such as WD Purple or Seagate Skyhawk are recommended for continuous 24/7 recording workloads, and these can be added separately at the time of purchase.

AI Search Requires Compatible Wisenet AI Cameras: The AI Search feature on the XRN-1620SB1 is not universal. It only activates when connected Wisenet cameras are AI-capable models that pass AI metadata to the recorder. If you are migrating from an older camera system or mixing camera brands via ONVIF, standard motion-based search will apply instead. Confirm camera AI compatibility before specifying this feature as part of your site solution.

Key Features & Technical Specifications

Model	Hanwha Wisenet XRN-1620SB1
Video Inputs	Up to 16 channels
Maximum Recording Resolution	32MP
Recording Bandwidth	Max 140Mbps
Video Compression	H.265, H.264, MJPEG
HDMI Output (UHD)	Up to 3840×2160 (single monitor)
Local Display (FHD)	HDMI and VGA dual monitor
PoE Ports	16 built-in PoE ports
PoE Budget	200W total
HDD Bays	4 x SATA
Maximum Storage Capacity	Up to 24TB
Included HDD	None (sold separately)
Network Protocols	SUNAPI, ONVIF
AI Search	Supported with compatible Wisenet AI cameras
Power Input	100-240V AC
Power Consumption	Max 310W
Colour / Material	Black, metal
Dimensions	440mm x 89.8mm x 428.4mm
Weight	5.76kg

Ideal Use Cases

Retail and Hospitality Chains

A 16-channel configuration with built-in PoE covers all key zones across a mid-size retail store or venue, including entry points, POS areas, stockrooms, and car parks, while the 4K HDMI output supports clear live viewing on a wall-mounted monitor at the manager’s station.

Schools and Education Facilities

Schools benefit from the XRN-1620SB1’s capacity to handle a full campus camera layout, including corridors, entrances, car parks, and playground zones, without requiring a separate PoE switch. AI Search can accelerate incident review when integrated with compatible Wisenet AI cameras.

Commercial Office Buildings

Office environments with server or comms rooms benefit from the rack-mount metal chassis, which installs cleanly alongside IT infrastructure. The dual-monitor output supports a dedicated security display without additional hardware, and H.265 compression keeps storage costs contained across extended retention periods.

Warehouses and Industrial Sites

The 140Mbps recording bandwidth accommodates high-resolution cameras positioned across large warehouse floors, loading docks, and perimeter fence lines without throughput constraints. ONVIF support allows integration with third-party management platforms commonly used in industrial security deployments.

Security Control Rooms

Sites with a dedicated monitoring station benefit from simultaneous HDMI and VGA dual-monitor output, enabling a live view wall alongside a management interface. The UHD 4K output ensures that camera feeds from high-resolution Wisenet cameras are displayed at full detail on a 4K monitor.

Choosing the Right Model

Choose this model if: You are building a 16-camera Wisenet IP system and want integrated PoE, high-bandwidth recording, 4K display output, and AI Search capability without adding external switching hardware. The metal rack-mount chassis suits server room and comms cabinet installations.
Choose a different model if: Your site requires more than 16 channels, in which case a higher-channel NVR will be needed. If your camera budget is based on non-Wisenet or basic ONVIF cameras only, the AI Search feature will not activate, and a simpler NVR may deliver the same recording outcome at lower cost. If internal HDD storage alone is insufficient for your retention requirements, consider a solution with external storage expansion support.

FAQs

Does the XRN-1620SB1 come with hard drives included?
No. The XRN-1620SB1 ships without any HDDs fitted. It has 4 SATA bays supporting a maximum total capacity of 24TB. Surveillance-rated drives such as WD Purple or Seagate Skyhawk are recommended and can be purchased separately. Matching drive capacity to your camera count, resolution, and required retention period before purchase avoids having to revisit storage after installation.
Which cameras are compatible with the AI Search feature?
AI Search on the XRN-1620SB1 is activated by compatible Wisenet AI cameras that pass AI metadata to the recorder over SUNAPI. Standard ONVIF cameras or older Wisenet models without AI classification will not trigger AI Search, and conventional motion-based event retrieval will apply instead. Check that cameras you intend to use are confirmed Wisenet AI models before relying on this feature in your system design.
What is the total PoE power budget, and how does it affect camera selection?
The XRN-1620SB1 provides 200W of shared PoE power across all 16 ports. This is sufficient for a full 16-camera system in most configurations, but power draw will vary depending on the cameras selected. Cameras with IR illuminators, heaters, or active deterrence features draw more power. If your camera selection is power-intensive, calculate total draw before finalising the design to confirm the budget is not exceeded.
Can the XRN-1620SB1 be mounted in a standard equipment rack?
Yes. The metal chassis and dimensions of 440mm x 89.8mm x 428.4mm are consistent with a 2U rack-mount form factor, making it suitable for installation in a standard 19-inch equipment rack. The unit weighs 5.76kg without drives, so factor total weight when planning rack load capacity with drives installed.
Does the NVR support non-Hanwha cameras via ONVIF?
Yes. The XRN-1620SB1 supports ONVIF in addition to Hanwha’s SUNAPI protocol, allowing third-party IP cameras that conform to ONVIF standards to be connected and recorded. However, advanced features including AI Search and certain Wisenet-specific metadata functions will only operate with compatible Wisenet cameras connected via SUNAPI.
What are the display output options for live monitoring?
The XRN-1620SB1 supports a single HDMI output at up to 3840×2160 UHD for 4K monitor configurations. When operating in FHD mode, both HDMI and VGA outputs are active simultaneously, supporting a dual-monitor setup. This allows a main 4K display for live view alongside a secondary screen for management or playback without additional hardware. Available through Security Wholesalers, the unit suits installations where a dual-screen control station is part of the project scope.
How much storage is needed for 16 cameras at typical settings?
Storage requirements depend on recording resolution, frame rate, scene complexity, and whether continuous or motion-triggered recording is used. H.265 compression on the XRN-1620SB1 reduces storage consumption by up to 50% compared to H.264, which extends effective retention on the same drives. As a general approach, use a storage calculator based on your specific camera specs to determine the right drive size before selecting HDDs for the 4 SATA bays.

Additional Information

XRN-1620SB1 Datasheet
