Product SKU: XNV-8020R
Product Overview
For commercial and public-space installations that demand both protection and intelligence, the Hanwha Wisenet XNV-8020R delivers 5MP outdoor dome surveillance with an extensive analytics suite rarely found at this camera class. Featuring a 3.7mm fixed lens, a 1/1.8″ CMOS sensor, and 30m IR range, it captures detail across building entrances, car park ceilings, corridors, and semi-exposed outdoor areas. Equipped with 120dB WDR and ICR day/night switching, it handles scenes with strong backlight or full darkness. WiseStream II combined with H.265 compression cuts data usage by up to 99%, reducing storage and bandwidth costs significantly. It also integrates an on-board analytics engine covering people counting, queue management, loitering detection, heatmap analysis, sound classification, and PTZ handover. With IK10 vandal resistance, IP66/IP67 and NEMA 4X weatherproofing, and support for PoE, 24V AC, or 12V DC power, the XNV-8020R suits demanding outdoor deployments where both image quality and operational insight are required.
Key Capabilities
5MP Resolution with 3.7mm Fixed Lens
The 2560 x 1920 sensor captures wide-angle detail at up to 30fps across all resolutions in both H.265 and H.264. The 3.7mm fixed lens suits overhead ceiling mounting in corridors, lobbies, and covered outdoor areas where a broader field of view is needed.
120dB Wide Dynamic Range
The 120dB WDR rating handles scenes with simultaneous bright and dark zones, such as entrances with strong natural backlight or covered car parks with mixed lighting. Foreground and background detail are preserved without the wash-out common in lower-spec cameras.
WiseStream II and H.265 Compression
WiseStream II dynamically adjusts encoding to areas of motion and detail, cutting bandwidth and storage demands by up to 99% when paired with H.265. This directly reduces NVR storage requirements and network load across multi-camera deployments.
Advanced On-Board Analytics
Built-in intelligence includes people counting, queue management, loitering detection, directional detection, heatmap generation, digital auto tracking, sound classification, fog detection, and PTZ handover, making this camera suited to retail, transport, and public safety applications without additional server-side software.
IK10 Vandal Resistance and Weatherproofing
The metal dome housing carries IK10 impact resistance alongside IP66/IP67 ingress protection and NEMA 4X certification, making it suitable for outdoor ceilings, covered walkways, and semi-exposed wall positions where physical interference or weather exposure is a concern.
Flexible Power and Local Storage
The XNV-8020R accepts PoE (IEEE 802.3af), 24V AC, or 12V DC, suiting varied electrical environments. An SD/SDHC/SDXC card slot supports up to 512GB local storage for edge recording, providing resilience in the event of network interruption.
Best For
- Retail and Shopping Centre Operations: People counting, queue management, and heatmap analytics provide operational data alongside security coverage, suited to high-footfall retail environments.
- Car Parks and Covered Outdoor Areas: IK10 vandal resistance, IP67 weatherproofing, and 30m IR range cover the variable lighting and exposure conditions common in multi-storey or open-deck car parks.
- Building Entrances and Lobby Ceilings: The 3.7mm wide-angle fixed lens and 120dB WDR manage backlit entrance scenarios while the dome housing keeps a low profile on ceiling soffits and canopies.
- Bandwidth-Constrained Multi-Camera Systems: WiseStream II with H.265 cuts data by up to 99%, making the XNV-8020R a practical choice for sites where network infrastructure or NVR storage capacity is limited.
Why Choose the XNV-8020R
Where many 5MP outdoor dome cameras offer resolution without intelligence, the XNV-8020R combines both in a single vandal-resistant housing. The on-board analytics engine, covering loitering, queue management, people counting, heatmap, sound classification, and PTZ handover, removes the need for separate analytics servers in many deployments. WiseStream II with H.265 is a genuine operational benefit, cutting storage and bandwidth costs at scale across multi-camera sites. The 120dB WDR and 1/1.8″ CMOS sensor handle low-light and high-contrast scenes that challenge smaller-sensor alternatives. USB and Wi-Fi provisioning options simplify commissioning without requiring extra tools or devices on site. The combination of IP66/IP67, IK10, and NEMA 4X ratings means this camera holds up in outdoor conditions that would compromise lighter-duty housings. The XNV-8020R is available at Security Wholesalers as part of the Hanwha Wisenet X Series range.
Buyer Decision Tips
Fixed Lens Framing: The 3.7mm focal length provides a wide field of view suited to overhead ceiling mounting in corridors and open areas, but it cannot be adjusted after installation. Confirm your mounting height and required coverage width before purchasing. If your application requires a narrower field of view or the ability to frame a longer approach or distant target, a varifocal lens camera would be more appropriate.
Analytics Activation and NVR Compatibility: The on-board analytics features, including people counting, queue management, and PTZ handover, operate on the camera itself, but full integration with reporting and event management typically requires a compatible Hanwha Wisenet NVR or VMS. Confirm your recorder supports Wisenet X Series analytics output before deploying these features in a commercial environment.
Key Features & Technical Specifications
| Resolution |
5MP (2560 x 1920) |
| Image Sensor |
1/1.8″ 6M CMOS progressive scan |
| Lens |
3.7mm fixed |
| Frame Rate |
Max. 30fps at all resolutions (H.265 / H.264) |
| Video Compression |
H.265, H.264, MJPEG – multiple streaming supported |
| Wide Dynamic Range |
120dB WDR |
| Minimum Illumination (Colour) |
0.16 lux (F1.6, 1/30sec) |
| Minimum Illumination (B/W) |
0 lux (IR LED on) |
| IR Range |
30m |
| Day/Night |
ICR (true day/night), defog |
| Analytics |
Loitering detection, directional detection, people counting, queue management, heatmap, digital auto tracking, sound classification, fog detection, PTZ handover, motion detection, tampering, audio detection |
| Lens Distortion Correction |
LDC supported |
| Hallway View |
Supported |
| Local Storage |
SD/SDHC/SDXC slot, max. 512GB |
| Network Interface |
RJ-45 10/100Base-T Ethernet |
| Power |
PoE (IEEE 802.3af), 24V AC, 12V DC |
| Audio |
Bi-directional audio support |
| Weatherproofing |
IP66/IP67, NEMA 4X |
| Vandal Resistance |
IK10 |
| Housing |
Ivory, metal |

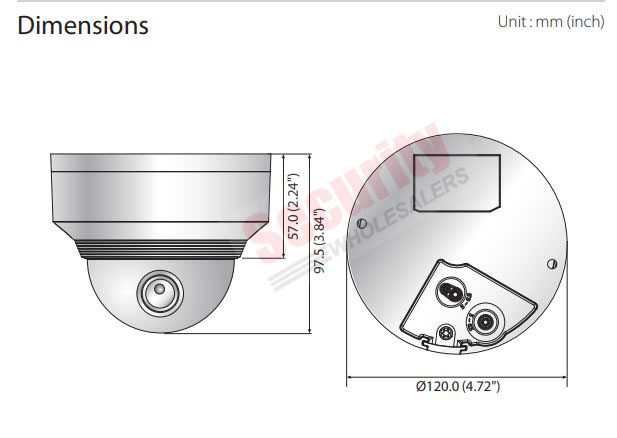

| Dimensions |
120 x 97.5mm |
| Weight |
615g |
Ideal Use Cases
Retail Floor and Checkout Areas
People counting and queue management analytics provide foot traffic data and service level insight alongside security coverage. Ceiling mounting with the 3.7mm wide-angle lens gives broad overhead coverage of retail zones.
Car Parks and Covered Walkways
IP67 and NEMA 4X weatherproofing combined with IK10 vandal resistance handle the moisture, temperature variation, and physical exposure typical of open-deck and basement car park environments. IR coverage extends to 30m in darkness.
Building Entrances and Lobbies
120dB WDR manages strong backlight from glazed entrance facades while the dome housing mounts cleanly on entrance canopy ceilings. Loitering detection can trigger alerts when individuals remain in an entry zone beyond a defined duration.
Public Transport and Transit Hubs
PTZ handover allows the XNV-8020R to pass tracking coordinates to a compatible PTZ camera when a person of interest moves out of frame, supporting coordinated monitoring across large transit environments without manual operator intervention.
Bandwidth-Limited Multi-Site Deployments
WiseStream II with H.265 reduces data transmission by up to 99%, which is directly useful on sites with limited internet uplink or constrained NVR storage. Multi-camera deployments benefit from the lower per-camera bandwidth footprint.
Choosing the Right Model
- Choose this model if: You need a 5MP outdoor vandal dome with a built-in analytics suite covering people counting, queue management, loitering, heatmap, and PTZ handover, combined with WiseStream II bandwidth reduction and IK10/IP67 rated protection for ceiling-mounted outdoor or semi-exposed positions.
- Choose a different model if: Your application requires a varifocal lens to frame specific distant targets or narrow corridors. The 3.7mm fixed lens on the XNV-8020R cannot be adjusted post-installation, and sites needing telephoto reach or tight angle framing should consider a motorised varifocal dome instead.
- Choose a different model if: Your deployment does not require advanced analytics and budget is the primary consideration. A simpler 5MP fixed dome without the full Wisenet X analytics stack may be more cost-effective for basic recording-only applications.
FAQs
- What does WiseStream II actually do on the XNV-8020R?
WiseStream II is Hanwha’s dynamic encoding technology that analyses each frame and concentrates bitrate on areas of motion or fine detail while reducing it in static background areas. When used alongside H.265 compression, it can cut overall bandwidth and storage requirements by up to 99% compared to standard H.264 encoding, which directly reduces NVR hard drive usage and network load across multi-camera installations.
- Is the XNV-8020R suitable for outdoor installation?
Yes. The XNV-8020R carries IP66 and IP67 ingress protection ratings, NEMA 4X certification for weather resistance, and IK10 vandal resistance. This combination makes it suitable for outdoor ceiling and wall mounting in covered or exposed positions, including car parks, building entrances, and walkways subject to rain, dust, and physical interference.
- Can the PTZ handover feature work with any PTZ camera?
PTZ handover allows the XNV-8020R to pass a target’s positional coordinates to a compatible PTZ camera so it can automatically slew to track the subject. This feature requires a compatible PTZ camera and a Wisenet-compatible NVR or VMS that supports the handover protocol. Compatibility should be confirmed with Hanwha or your installer before relying on this feature in a live deployment.
- How much local storage can the XNV-8020R hold?
The camera includes an SD/SDHC/SDXC card slot supporting cards up to 512GB. This allows edge recording directly on the camera, which continues to operate during network outages. At 5MP resolution with WiseStream II and H.265 enabled, storage duration will vary significantly based on scene activity and configured bitrate settings.
- Does the 3.7mm lens limit what this camera can cover?
The 3.7mm fixed lens provides a wide field of view suited to overhead ceiling mounting in corridors, lobbies, open retail floors, and car parks. It cannot be adjusted or zoomed after installation. If you need to cover a narrow lane, a long approach, or a specific target at distance, a varifocal lens camera would offer better framing flexibility. Always confirm coverage requirements against mounting height before selecting this model.
- What power options does the XNV-8020R support?
The camera accepts three power inputs: PoE via IEEE 802.3af over the network cable, 24V AC from a traditional transformer feed, or 12V DC from a local power supply. This flexibility allows it to be integrated into new PoE-based IP systems or retrofitted into older CCTV infrastructure using existing cabling and power supplies.
- Where can I purchase the XNV-8020R in Australia?
The XNV-8020R is part of the Hanwha Wisenet X Series range supplied by Security Wholesalers. It is available for trade purchase and is backed by local stock and technical support. The datasheet linked on this page provides the full specification sheet for installation planning and system documentation purposes.
