Product SKU: XNF-8010R
Product Overview
Wide-area monitoring from a single ceiling mount is the core strength of the Hanwha Wisenet XNF-8010R, a 6MP indoor fisheye camera designed to eliminate blind spots in open-plan spaces, retail floors, reception areas, and lift lobbies. Featuring a 1.6mm fixed lens with a 192-degree field of view, this ceiling-mounted unit captures an entire room in a single shot, with on-board dewarping and 8x digital PTZ allowing operators to navigate the image without a mechanical drive. Equipped with H.265 compression and WiseStream II technology, the XNF-8010R can reduce bandwidth consumption by up to 99% compared to standard H.264 streams, supporting up to 512GB of local SD card storage. It also integrates 15m IR for low-light coverage, 120dB WDR for high-contrast environments, and an analytics suite covering people counting, queue management, heatmapping, loitering detection, and sound classification. This makes it well suited to indoor environments where coverage breadth and business intelligence matter as much as raw image detail.
Key Capabilities
192-Degree Fisheye Coverage
The 1.6mm F1.6 fixed lens captures a full 192-degree hemispheric view from a single ceiling position. One camera can replace multiple fixed cameras in open-plan areas such as retail floors, waiting rooms, and open-plan offices, reducing cabling and installation cost.
On-Board Dewarping and Digital PTZ
The XNF-8010R performs dewarping processing inside the camera itself, removing the fisheye distortion before the stream reaches the recorder. Operators can apply 8x digital PTZ to navigate the dewarped image in real time without any mechanical movement or additional server processing.
WiseStream II and H.265 Compression
WiseStream II combined with H.265 encoding can reduce data volumes by up to 99% compared to standard H.264 streams. For high-resolution 6MP fisheye footage running continuously, this has a direct impact on NVR storage requirements and network bandwidth planning.
Business Intelligence Analytics
Built-in analytics include people counting, queue management, heatmapping, loitering detection, directional detection, and sound classification. These tools support retail operations, venue management, and compliance monitoring without requiring separate analytics hardware or software licences.
120dB WDR with IR to 15m
120dB wide dynamic range handles environments where bright windows or lighting sit within the same frame as shadowed areas. The built-in IR illuminator extends usable coverage to 15m in darkness, reaching 0 Lux in black-and-white IR mode for after-hours or unlit spaces.
Bi-Directional Audio
The XNF-8010R includes a built-in microphone and speaker, enabling real-time two-way voice communication through the camera. This supports staff communication, visitor interaction, or immediate audio response without requiring a separate intercom device at the monitored location.
Best For
- Retail Floor Coverage: The 192-degree overhead view maps an entire shop floor from a single ceiling point, with heatmapping and people counting analytics providing customer movement and dwell-time data alongside security footage.
- Open-Plan Office and Reception Monitoring: Ceiling-mounted fisheye placement covers a full room without rotating parts or multiple camera runs, making it suited to corporate reception areas, meeting rooms, and open workspaces where a low-profile install is preferred.
- Queue and Crowd Management: Built-in queue management and people counting analytics deliver actionable data for service counters, ticketing areas, transport terminals, and venue entry points.
- Low-Light Indoor Areas: With a 0.1 Lux colour threshold and 15m IR illumination reaching 0 Lux in monochrome, the XNF-8010R maintains usable footage in storerooms, corridors, and spaces where lighting is switched off after hours.
Why Choose the XNF-8010R
The XNF-8010R stands apart from basic fixed-lens indoor cameras by combining full 192-degree hemispheric coverage with on-board dewarping, removing the need for an NVR or server to handle dewarping processing. The 8x digital PTZ lets operators inspect specific zones of the dewarped image without any mechanical wear. Where a standard fixed camera provides a single viewing angle, a single XNF-8010R can replicate the coverage of 3 to 4 conventional cameras in an open room. The analytics suite, which includes heatmapping, queue management, people counting, loitering detection, and sound classification, is processed inside the camera itself rather than requiring a separate analytics licence. WiseStream II with H.265 keeps storage demand manageable for continuous 6MP recording. Available through Security Wholesalers, the XNF-8010R is a considered choice for indoor installations where coverage breadth, operational intelligence, and bandwidth efficiency all factor into the design.
Buyer Decision Tips
Ceiling Height and IR Range: The XNF-8010R is optimised for indoor ceiling mounting where the full 192-degree field of view can be used effectively. The 15m IR range is sufficient for most indoor spaces, but in very high-ceiling environments such as warehouses or atriums, the IR may not reach the floor at full detail. Confirm ceiling height is within the practical range before specifying this camera for coverage-critical positions.
NVR and Dewarping Compatibility: The XNF-8010R performs dewarping on-board, which means the dewarped stream can be displayed on compatible NVRs without additional processing. However, to use analytics features such as people counting and heatmapping, confirm that your VMS or NVR platform supports Hanwha Wisenet analytics data. Not all third-party recorders expose these outputs in their interface.
Key Features & Technical Specifications
| Model |
Hanwha Wisenet XNF-8010R |
| Resolution |
6MP, 2048 x 2048 |
| Image Sensor |
1/1.8″ 6MP CMOS progressive scan |
| Lens |
1.6mm fixed, F1.6 |
| Field of View |
192 degrees (horizontal, vertical, and diagonal) |
| Minimum Illumination |
Colour: 0.1 Lux (F1.6), B/W: 0 Lux (IR LED on) |
| IR Range |
15m |
| WDR |
120dB |
| Video Codecs |
H.265, H.264, MJPEG |
| Frame Rate |
30fps |
| Compression |
WiseStream II (up to 99% data reduction with H.265) |
| On-Board Dewarping |
Yes, with 8x digital PTZ |
| Audio |
Bi-directional (built-in microphone and speaker) |
| Analytics |
Tampering, loitering, directional detection, audio detection, sound classification, heatmap, people counting, queue management, motion detection, fog detection, lens distortion correction, PTZ handover |
| Local Storage |
SD/SDHC/SDXC slot, up to 512GB |
| Network Interface |
RJ-45 10/100Base-T Ethernet |
| Power |
12V DC / PoE |
| Housing |
Ivory, aluminium |

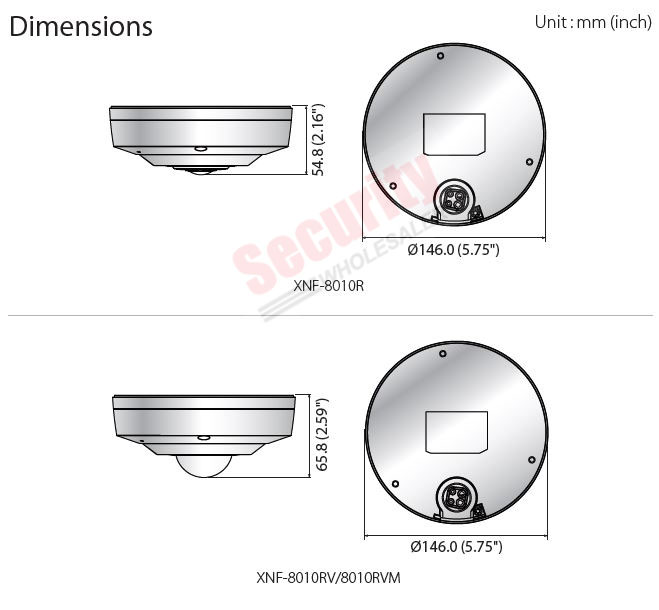

| Dimensions |
146 x 54.8mm |
| Weight |
730g |
Ideal Use Cases
Retail Stores and Supermarkets
A single ceiling-mounted XNF-8010R covers an entire aisle bay or checkouts area in one shot. The heatmapping and people counting analytics provide customer flow data that can inform floor layout and staffing decisions alongside security monitoring.
Lift Lobbies and Stairwells
The 192-degree overhead coverage eliminates the corner-to-corner blind spots that fixed cameras struggle with in confined indoor spaces. The 15m IR range keeps the image usable when lobby lighting is reduced after business hours.
Reception and Waiting Areas
Ceiling placement above a reception desk captures visitor arrivals, staff interactions, and the full room without requiring multiple camera runs. The bi-directional audio adds a communication layer for unmanned reception positions.
Casinos and Gaming Floors
The 6MP resolution and 8x digital PTZ allow operators to zoom into specific table or machine areas from the dewarped view, supporting incident review and compliance monitoring from a ceiling position that covers the full zone.
Transport Terminals and Ticketing Halls
Queue management and people counting analytics make the XNF-8010R useful at transit hubs, ticketing counters, and check-in areas where monitoring crowd density and wait times directly supports operational decisions.
Choosing the Right Model
- Choose this model if: You need full 192-degree indoor overhead coverage from a single camera with on-board dewarping, built-in analytics including people counting and queue management, and WiseStream II compression to manage the storage demand of continuous 6MP recording.
- Choose a different model if: Your installation is outdoors or in a weather-exposed area, as the XNF-8010R is rated for indoor use only. If your space requires long-range directional coverage rather than a wide overhead view, a varifocal bullet or turret camera will deliver more usable detail at distance. If your NVR platform does not support Hanwha Wisenet analytics outputs, some of the built-in intelligence features may not surface in your monitoring interface.
FAQs
- What does on-board dewarping mean and why does it matter for this camera?
On-board dewarping means the XNF-8010R corrects the fisheye lens distortion inside the camera before sending the stream to the recorder. This reduces the processing load on the NVR and allows the corrected image to be displayed on compatible systems without additional software. The 8x digital PTZ is applied to the already-dewarped image, so operators navigate a natural-looking view rather than a distorted fisheye circle.
- How many cameras can the XNF-8010R replace in a typical indoor space?
In open-plan areas such as retail floors, reception zones, or waiting rooms, the 192-degree fisheye field of view can cover what would typically require 3 to 4 conventional fixed cameras. Coverage will depend on ceiling height, room layout, and the level of facial detail required for specific zones, so each installation should be planned against those requirements rather than assuming a fixed replacement ratio.
- Is this camera suitable for outdoor installation?
No. The XNF-8010R is specified for indoor use. It does not carry an IP weather resistance rating. For outdoor fisheye applications, a camera with a minimum IP66 rating should be selected. The aluminium and ivory housing of the XNF-8010R is designed for ceiling mounting in sheltered indoor environments.
- How does WiseStream II affect storage requirements for 6MP continuous recording?
WiseStream II is Hanwha’s dynamic compression technology that reduces bitrate during static scenes and raises it during motion. Combined with H.265, it can reduce data volumes by up to 99% compared to standard H.264 streams under ideal conditions. For practical storage planning, assume a meaningful reduction in average bitrate compared to a fixed H.264 stream at the same resolution, though actual savings will vary with scene activity and lighting conditions.
- What analytics are processed inside the XNF-8010R itself?
The camera processes people counting, queue management, heatmapping, loitering detection, directional detection, tampering, audio detection, sound classification, fog detection, and motion detection on-board. These do not require a separate analytics server. However, to surface the output data in dashboards or reports, your VMS or NVR platform needs to support Hanwha Wisenet analytics integration.
- Does the XNF-8010R support local SD card recording?
Yes. The camera includes an SD/SDHC/SDXC memory card slot supporting cards up to 512GB. This allows edge recording as a backup to NVR storage or as a standalone recording option in smaller deployments. The camera also supports 12V DC and PoE power, giving flexibility in how it is connected and powered.
- Does the bi-directional audio work without additional hardware?
Yes. The XNF-8010R has a built-in microphone and speaker, so two-way audio communication is available through the camera itself without attaching external speakers or microphones. This is useful for reception areas, interview rooms, or any monitored space where verbal interaction may be needed. Available at Security Wholesalers, the XNF-8010R ships ready to use for bi-directional audio on compatible NVR and VMS platforms.
