Product SKU: XND-8081VZ
Product Overview

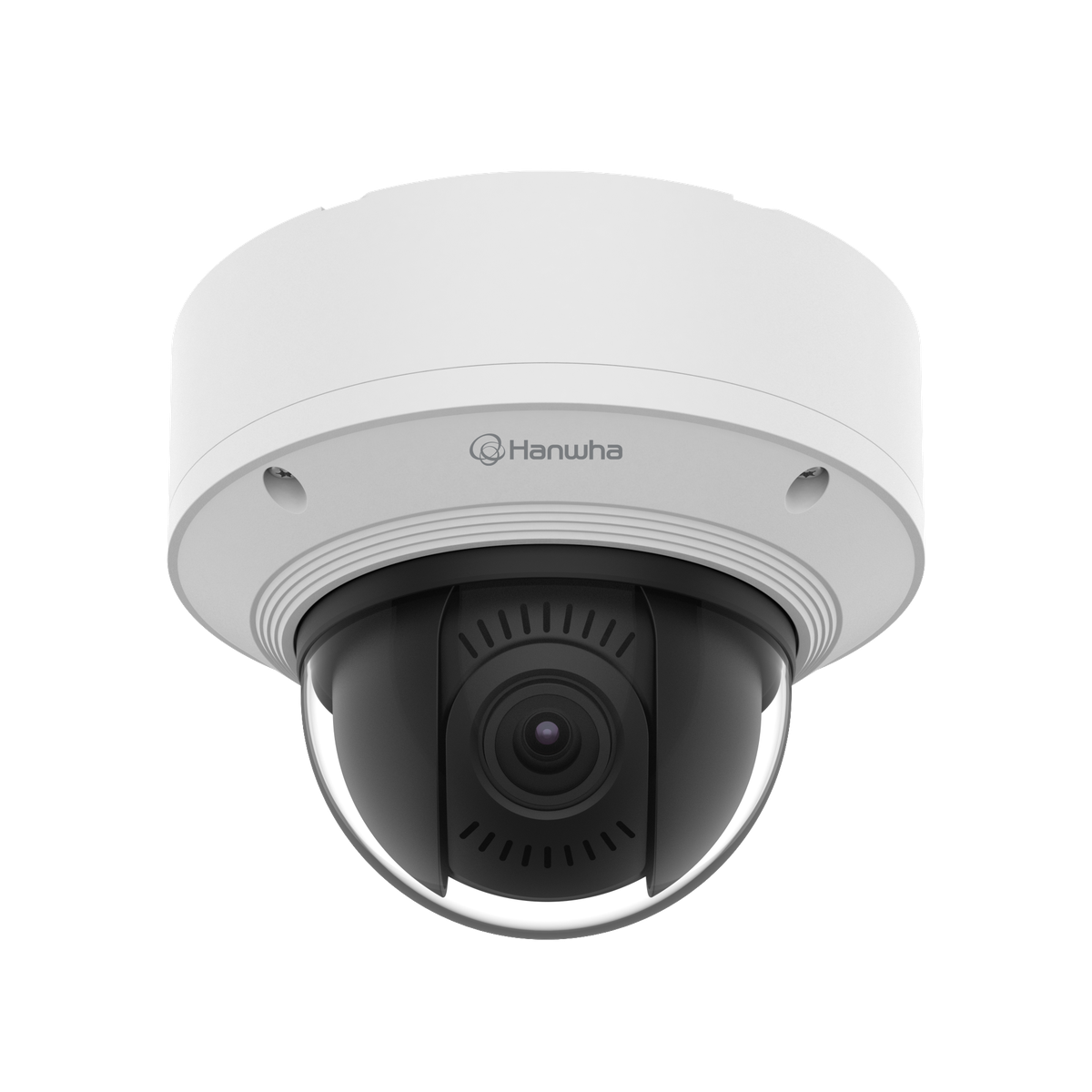

For commercial installers who need precise framing without re-mounting hardware, the Hanwha Wisenet XND-8081VZ offers a motorised PTRZ lens that allows pan, tilt, rotate, and zoom adjustment remotely after installation. This 5MP indoor dome camera is built on the Hanwha X Plus platform, delivering 2560×1920 resolution from a 1/1.8″ CMOS sensor alongside 150dB Wide Dynamic Range for clear imaging in lobbies, retail floors, and corridor environments where lighting is inconsistent. Featuring H.265 compression with WiseStream II, the XND-8081VZ significantly reduces bandwidth and storage demands without compromising captured detail. It also includes Hallway View support for vertical corridor framing, on-camera analytics covering motion, tampering, defocus, and shock detection via a built-in gyro sensor, and IK10 vandal resistance for demanding indoor locations. It is well suited to corporate offices, education facilities, retail stores, and internal access control points where ceiling-mounted, discreet coverage is required.
Key Capabilities
Motorised PTRZ Lens
The 3.6-9.4mm motorised varifocal lens with PTRZ control lets installers adjust pan, tilt, rotation, and zoom remotely after the dome is mounted. This removes the need to physically re-position the housing during commissioning, saving time on multi-camera commercial fitouts.
150dB Wide Dynamic Range
A 150dB WDR rating allows the camera to handle scenes with extreme contrast between bright windows or skylights and shadowed interiors. Lobbies, retail entranceways, and reception areas with mixed natural and artificial light benefit directly from this capability.
5MP Imaging on a 1/1.8″ Sensor
The 1/1.8″ CMOS sensor at 5MP resolution captures fine detail at 2560×1920, with a colour minimum illumination of 0.07 lux. This supports after-the-fact forensic review where face or clothing identification is needed from ceiling-mounted positions in commercial spaces.
WiseStream II with H.265 Compression
WiseStream II dynamically adjusts compression based on scene complexity, reducing data output by up to 99% compared to standard H.264 when combined with H.265. For long-retention deployments across multiple cameras, this directly lowers NVR storage and network infrastructure costs.
Hallway View Support
Hallway View rotates the image orientation to a vertical aspect ratio, maximising coverage along long corridors, aisles, and access passages. This makes the XND-8081VZ suitable for installations where a standard horizontal frame would waste field of view on walls and ceiling rather than the usable space below.
On-Camera Analytics Suite
Built-in analytics include motion detection, tampering detection, defocus detection, and shock detection via an integrated gyro sensor. These run on-device without requiring a separate analytics server, making them accessible on compatible NVR platforms without additional licensing overhead.
Best For
- Corporate Offices and Commercial Buildings: The motorised PTRZ lens and 5MP resolution make it straightforward to frame specific desk areas, access points, or open-plan floors precisely from a fixed ceiling mount.
- Retail Stores and Shopping Centres: The 150dB WDR handles the contrast between large shopfront windows and interior lighting, reducing washed-out or silhouetted images common in standard retail camera deployments.
- Corridors, Hallways, and Internal Access Points: Hallway View support allows the camera to be oriented vertically to maximise usable coverage along long, narrow passageways without cropping the scene.
- Storage-Conscious Multi-Camera Deployments: WiseStream II combined with H.265 compression substantially reduces the storage and bandwidth footprint across large camera counts, which directly affects NVR sizing and retention period planning.
Why Choose the XND-8081VZ
The XND-8081VZ stands apart from standard fixed-lens indoor domes through its motorised PTRZ adjustment, which removes the trial-and-error repositioning that adds time to multi-camera commercial installs. The 150dB WDR rating exceeds the capability of most entry-level 5MP domes, and the 1/1.8″ sensor at 0.07 lux colour sensitivity captures usable detail in dimly lit indoor spaces without relying on IR. WiseStream II compression means storage planning across a 16 or 32 camera deployment is far more efficient than with older H.264-only models. The inclusion of on-camera analytics including gyro-based shock detection adds a layer of tamper awareness that simpler models omit. Available at Security Wholesalers, the XND-8081VZ is a strong selection for integrators and security managers who need a ceiling-mount indoor dome that holds its own in demanding commercial environments.
Buyer Decision Tips
Buyer Tip – Indoor-Only Rating: The XND-8081VZ carries an IP52 ingress protection rating, which means it is rated for indoor environments only and should not be installed in locations exposed to rainfall, direct moisture, or outdoor conditions. For covered external areas such as undercover car parks or external building overhangs, confirm that the installation point is fully protected from water ingress before specifying this model. If there is any doubt, an IP66 or IP67 rated model should be considered instead.
Buyer Tip – PTRZ Lens and Zoom Range: The motorised PTRZ lens offers a focal length of 3.6-9.4mm with approximately 2.6x optical zoom and a horizontal field of view ranging from around 102 degrees at wide to 39 degrees at tele. For large open areas requiring a wide overview, set the lens toward the wide end. For longer distances or tighter framing such as a reception counter or a specific doorway, use the tele end during commissioning. The PTRZ functionality allows this to be done remotely through the camera interface rather than by physically adjusting the lens housing.
Key Features & Technical Specifications
| Image Sensor |
1/1.8″ CMOS |
| Maximum Resolution |
2560 x 1920 (5MP) |
| Frame Rate |
Up to 30 fps |
| Minimum Illumination (Colour) |
0.07 lux |
| Minimum Illumination (B/W) |
0.007 lux |
| Wide Dynamic Range |
Up to 150 dB |
| Video Compression |
H.265, H.264, MJPEG (WiseStream II supported) |
| Lens Type |
Motorised varifocal PTRZ (Pan, Tilt, Rotate, Zoom) |
| Focal Length |
3.6 – 9.4 mm |
| Optical Zoom |
Approx. 2.6x |
| Horizontal Field of View |
Approx. 102° (wide) to 39° (tele) |
| Minimum Focus Distance |
Approx. 0.5 m |
| Network Interface |
10/100 Mbps Ethernet |
| Edge Storage |
Micro SD / SDHC / SDXC |
| ONVIF Compliance |
Profile S, G, and T |
| Power Supply |
PoE (IEEE 802.3af) or 12V DC |
| Power Consumption |
Approx. 8-10 W |
| Ingress Protection |
IP52 (indoor only) |
| Impact Protection |
IK10 vandal resistant |
| Operating Temperature |
-25°C to +60°C |
| Dimensions |
Approx. 160 mm diameter x 125 mm |
| Weight |
Approx. 1.45 kg |
Ideal Use Cases
Corporate Office Floors
Open-plan offices and meeting rooms benefit from the PTRZ lens, which allows installers to dial in the exact framing needed for specific workstations or doorways after the dome is fixed to the ceiling, without disturbing ceiling finishes or cabling.
Retail Stores and Supermarkets
The 150dB WDR manages the contrast between bright shopfront glazing and darker interior aisles, producing usable images across the full scene rather than overexposed or silhouetted footage at checkout lanes and entrances.
Corridors and Internal Passageways
Hallway View support allows the XND-8081VZ to be oriented vertically, matching the long narrow shape of a corridor rather than wasting field of view on wall surfaces. This is practical for school hallways, hospital corridors, and hotel access passages.
Reception Areas and Building Lobbies
IK10 vandal resistance makes this dome suitable for public-facing indoor areas where the camera housing may be within reach of visitors or staff. The 5MP resolution supports face-level detail from a ceiling mounting height above a reception counter.
Education Facilities
Classrooms, library areas, and internal campus access points are well served by the combination of 5MP detail, on-camera tamper and shock detection, and efficient WiseStream II compression that keeps storage manageable across a high camera-count school deployment.
Choosing the Right Model
- Choose this model if: You are installing a ceiling-mounted indoor dome in a commercial space where framing flexibility is important, lighting conditions are mixed, and long-term storage efficiency across multiple cameras needs to be managed through WiseStream II compression.
- Choose a different model if: The installation location is exposed to weather, moisture, or outdoor conditions. The XND-8081VZ is rated IP52 and is not suitable for outdoor use. An IP66 or IP67 rated outdoor dome or turret camera should be specified for any external position.
- Choose a different model if: The installation requires a fixed focal length at a known distance and the PTRZ capability is not needed. A fixed-lens indoor dome may offer a simpler, lower-cost alternative where framing adjustment post-installation is not a requirement.
FAQs
- Is the XND-8081VZ suitable for outdoor installation?
No. This camera carries an IP52 ingress protection rating, which means it is designed for indoor environments and is not rated to withstand rain or direct water exposure. For outdoor positions, including covered external areas where splash or condensation is a risk, a camera with at least IP66 certification should be selected instead.
- What exactly does the PTRZ lens do that a standard motorised zoom lens does not?
A standard motorised varifocal lens adjusts zoom only. The PTRZ lens on the XND-8081VZ also allows remote electronic pan, tilt, and rotation adjustment after the dome is physically mounted. This means an installer can correct the framing direction without opening the housing or physically repositioning the camera on the ceiling, which reduces commissioning time on multi-camera sites significantly.
- Can this camera be powered entirely by PoE without a separate power supply?
Yes. The XND-8081VZ supports Power over Ethernet to the IEEE 802.3af standard, which is sufficient to power the camera through a standard PoE switch or injector. A 12V DC power supply is also supported as an alternative, but PoE alone is a complete and common installation approach for this model.
- Does the camera work with third-party NVRs and VMS platforms?
Yes. The XND-8081VZ supports ONVIF Profile S, G, and T, which provides compatibility with a broad range of third-party network video recorders and video management systems. Profile T in particular covers H.265 streaming and metadata, which supports more capable integration with modern VMS platforms.
- What analytics does the XND-8081VZ support on-device without a separate analytics server?
On-camera analytics include motion detection, tampering detection, defocus detection, and shock detection via a built-in gyro sensor. These operate directly on the camera without requiring an external analytics engine. The gyro-based shock detection is particularly useful for alerting when the dome housing is struck or physically disturbed. Security Wholesalers can provide further guidance on compatible recording platforms that support the full metadata output from these analytics.
- How does Hallway View work and when should it be used?
Hallway View rotates the camera’s image output to a vertical orientation, which matches the long narrow shape of a corridor or aisle rather than the standard wide horizontal frame. When a camera is ceiling-mounted at the end of a hallway, enabling Hallway View maximises the usable monitored length of the passageway. It is most beneficial in corridors, lift lobbies, hospital passages, and retail aisles where the area being monitored is significantly taller than it is wide from the camera’s perspective.
