Product SKU: XND-6080RV
Product Overview
For commercial ceiling installations where precise field-of-view adjustment is just as important as image quality, the Hanwha Wisenet XND-6080RV delivers a capable indoor dome camera built around a 2.8-12mm motorised varifocal lens. That motorised zoom means installers can dial in the exact coverage angle from ground level or via software, without swapping lenses or repositioning the housing. Featuring 150dB WDR, the XND-6080RV handles environments where bright windows, overhead lighting, or mixed illumination would wash out or crush detail in conventional cameras. Equipped with WiseStream II and H.265 compression, the camera can reduce bandwidth consumption by up to 99% compared to standard H.264 streams, which keeps storage costs controlled without sacrificing recorded detail. It also integrates a 30m IR range, IK08 vandal resistance, bi-directional audio, onboard SD card storage up to 512GB, and a suite of video analytics including loitering detection, queue management, sound classification, and PTZ handover, making it a well-rounded indoor dome for demanding commercial environments.
Key Capabilities
150dB Wide Dynamic Range
The XND-6080RV’s 150dB WDR handles scenes with extreme contrast between bright and shadowed areas. In lobby, retail, or reception environments where large windows sit behind the subject, this prevents overexposed backgrounds and silhouetted subjects from obscuring useful detail.
Motorised Varifocal Lens (2.8-12mm)
The motorised 2.8-12mm F1.4 lens allows remote focus and zoom adjustment without physically accessing the camera dome. This is a significant advantage in ceiling-mounted applications in commercial buildings, reducing installation time and eliminating the need for ladder access during commissioning.
WiseStream II with H.265 Compression
WiseStream II dynamically compresses low-activity scene areas while preserving detail in motion-active zones. Combined with H.265, this can reduce data throughput by up to 99% versus standard H.264, cutting NVR storage requirements and network load across multi-camera installations.
Digital Image Stabilisation with Gyro Sensor
A built-in gyro sensor drives digital image stabilisation, correcting for vibration caused by foot traffic, HVAC systems, or industrial equipment. This keeps the indoor ceiling view clean and stable without the blurring or jitter that can degrade usable footage in busy commercial spaces.
Comprehensive Video Analytics
Built-in analytics include loitering detection, directional detection, queue management, sound classification, tampering detection, fog detection, and PTZ handover. These run on-camera without requiring a separate analytics server, adding intelligence to the installation without additional licensing costs.
Bi-Directional Audio and Onboard Storage
Confirmed bi-directional audio support enables real-time two-way voice communication through the camera. The onboard SD/SDHC/SDXC slot supports cards up to 512GB, providing local edge recording as a fallback if the primary NVR loses network connectivity.
Best For
- Reception and Lobby Monitoring: The 150dB WDR manages the high-contrast lighting typical of entry areas with glass facades, keeping faces and activity at the counter clearly visible regardless of background brightness.
- Retail Floor Coverage: The motorised varifocal 2.8-12mm lens lets installers frame aisle widths, checkout zones, or display areas precisely from the ceiling without repositioning the camera body after mounting.
- Queue and Crowd Management Environments: The built-in queue management and loitering detection analytics make the XND-6080RV well suited to environments such as banks, government offices, or transport hubs where occupancy patterns need to be monitored.
- Installations Requiring Edge Recording Redundancy: With onboard storage up to 512GB and PoE or 12V DC power options, the camera can operate independently of the NVR during network disruptions, maintaining continuous recording at the edge.
Why Choose the XND-6080RV
The XND-6080RV separates itself from standard 2MP indoor domes through the combination of a motorised varifocal lens, 150dB WDR, and a full on-camera analytics package that most fixed-lens or budget dome alternatives do not include. The motorised 2.8-12mm F1.4 lens means the same camera body can be deployed across wide corridor views, tight zoom-in positions, or mid-range counter shots, reducing the number of different SKUs an installer needs to stock. WiseStream II alongside H.265 compression provides measurable storage savings across large multi-camera systems, which translates directly to lower NVR storage costs per deployment. The IK08 vandal-rated housing and 30m IR range add practical durability and after-hours visibility for indoor areas that may be accessed by staff outside business hours. Available through Security Wholesalers, the XND-6080RV is part of the Wisenet X series, which is positioned toward commercial and enterprise installations that require analytics depth and flexible commissioning tools beyond basic motion detection.
Buyer Decision Tips
Motorised Varifocal vs. Fixed Lens: The 2.8-12mm motorised varifocal lens is the XND-6080RV’s most practical installation advantage. If you are mounting to a ceiling where physical access for lens adjustment is difficult, the remote zoom and focus capability via software or USB/Wi-Fi connection removes the need to re-access the camera after initial mounting. For positions where the field of view is already established and fixed, a fixed-lens dome would be a simpler and lower-cost choice. Choose the varifocal only where framing flexibility or post-installation adjustment is a genuine requirement.
Analytics Requirements and NVR Compatibility: The XND-6080RV’s on-camera analytics, including queue management, sound classification, and PTZ handover, run independently of the NVR. This means you get analytics capability without needing a Wisenet server licence or a high-spec recorder. However, PTZ handover and some advanced event triggers will function most reliably when integrated with a Hanwha-compatible NVR that supports Wisenet protocol. Verify your recorder’s compatibility before specifying this camera in a mixed-brand system.
Key Features & Technical Specifications
| Resolution |
2MP (1920 x 1080) |
| Image Sensor |
1/2.8″ 2MP CMOS progressive scan |
| Frame Rate |
Max. 60fps at all resolutions (H.265 / H.264) |
| Lens |
2.8-12mm motorised varifocal, F1.4 |
| Wide Dynamic Range |
150dB WDR |
| Minimum Illumination |
Colour: 0.015 lux (F1.4, 1/30sec) / B/W: 0 lux (IR on) |
| IR Range |
30m |
| Day/Night |
True Day/Night with ICR (Infrared Cut filter Removable) |
| Video Compression |
H.265, H.264, MJPEG; multiple streaming supported |
| Bandwidth Optimisation |
WiseStream II (up to 99% data reduction with H.265) |
| Video Analytics |
Loitering detection, directional detection, queue management, sound classification, fog detection, tampering, motion detection, digital auto tracking, PTZ handover |
| Image Stabilisation |
Digital image stabilisation with built-in gyro sensor |
| Lens Distortion Correction |
LDC supported |
| Audio |
Bi-directional audio supported |
| Local Storage |
SD/SDHC/SDXC slot, max. 512GB |
| Network Interface |
RJ-45 10/100BASE-T Ethernet |
| Power |
12V DC / PoE (IEEE 802.3af) |
| Vandal Rating |
IK08 |
| Housing |
Indoor dome, ivory, aluminium |
| Dimensions / Weight |

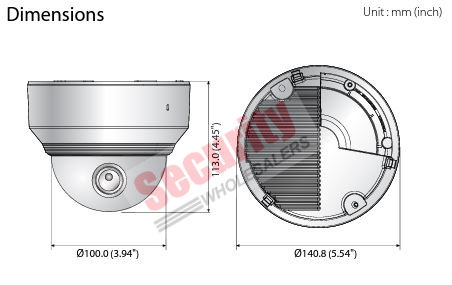

140.8 x 113.0mm / 724g |
Ideal Use Cases
Corporate Lobby and Reception
The 150dB WDR handles the contrast between daylight through glass facades and interior lighting, keeping visitor faces and access points visible without blown-out backgrounds. The motorised varifocal allows precise framing of the reception counter from a ceiling mount position.
Retail and Supermarket Aisles
Queue management and loitering detection analytics run on-camera, making the XND-6080RV a practical choice for retail environments where checkout wait times and aisle congestion need to be monitored without a separate analytics server.
Bank and Financial Institution Interiors
Directional detection and loitering analytics combined with 60fps recording provide detailed footage of customer movement patterns and any unusual behaviour at teller windows, ATMs, or vault access areas inside the branch.
Education and Childcare Facilities
The IK08 vandal-resistant indoor dome housing withstands accidental impact in active environments. Digital image stabilisation with the built-in gyro sensor keeps the view stable in buildings where foot traffic and door movement create vibration.
Corridor and Stairwell Monitoring
Hallway view mode rotates the sensor output to a 9:16 portrait orientation, which maximises coverage along the length of a corridor or stairwell from a ceiling position. The 30m IR ensures visibility in poorly lit internal passages after hours.
Choosing the Right Model
- Choose this model if: You need an indoor dome with a motorised varifocal lens for ceiling positions where post-installation framing adjustments are likely, or if the site has demanding WDR requirements due to mixed or high-contrast lighting conditions.
- Choose this model if: On-camera analytics such as queue management, loitering detection, or sound classification are required without investing in a separate analytics server or NVR-based licence.
- Choose a different model if: The installation only needs a fixed, wide-angle view with no framing flexibility required. A fixed-lens indoor dome at a lower price point would cover that requirement without the cost of the motorised varifocal mechanism.
- Choose a different model if: The mounting location is outdoors or in a wet area. The XND-6080RV is designed for indoor use and does not carry an IP weather-resistance rating for exposed outdoor installation.
FAQs
- Can the XND-6080RV be installed outdoors?
No. The XND-6080RV is an indoor dome camera and does not carry an IP weather-resistance rating. It is not suitable for exposed outdoor installation. For outdoor ceiling or eave applications, a separate outdoor-rated dome or turret camera should be selected.
- How does the motorised varifocal lens help during installation?
The 2.8-12mm motorised varifocal lens allows zoom and focus to be adjusted remotely via software or through the camera’s USB and Wi-Fi connectivity, without physically opening the dome housing. This reduces installation time significantly on ceiling mounts where repositioning the camera body after cabling is impractical.
- What does the 150dB WDR rating mean in a practical indoor setting?
150dB WDR indicates the camera’s ability to simultaneously expose very bright and very dark areas of the same frame. In a reception or lobby where a glazed wall sits behind the subject, this prevents the outdoor light from silhouetting the people in the foreground, keeping faces and activity at the entry point visible throughout the day.
- Does the XND-6080RV support two-way audio out of the box?
Yes. The XND-6080RV has confirmed bi-directional audio support, which enables real-time voice communication in both directions through the camera. This is useful in reception, access control, or intercom-adjacent applications where operators need to speak with people in the camera’s field of view.
- How much onboard storage can the XND-6080RV support?
The camera’s SD/SDHC/SDXC memory slot supports cards up to 512GB. Combined with WiseStream II and H.265 compression, this onboard storage can hold a substantial amount of footage, making it a viable edge recording fallback if the primary NVR loses network connectivity.
- What analytics are available on the XND-6080RV without additional licences?
The XND-6080RV includes loitering detection, directional detection, queue management, sound classification, fog detection, tampering detection, motion detection, digital auto tracking, and PTZ handover as built-in on-camera analytics. These run without a server-side licence, which keeps the total system cost lower for analytics-enabled deployments. The XND-6080RV is part of the Security Wholesalers Hanwha range, so stock and technical guidance are available through that channel.
- What is PTZ handover and does the XND-6080RV support it?
PTZ handover allows the XND-6080RV to trigger a PTZ camera to automatically track or zoom into a subject or zone that the dome camera has flagged through an analytics event. The XND-6080RV supports this feature, making it suited for integrated installations where a fixed overview dome works alongside a PTZ camera for automatic follow-up coverage of detected events.
