Product SKU: SLA-T4680
Product Overview

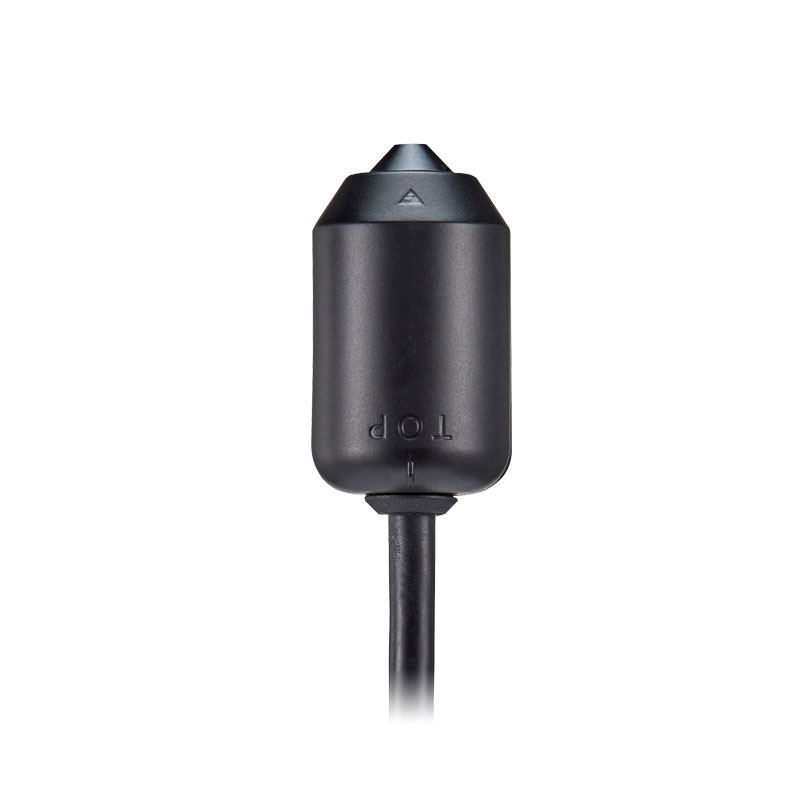

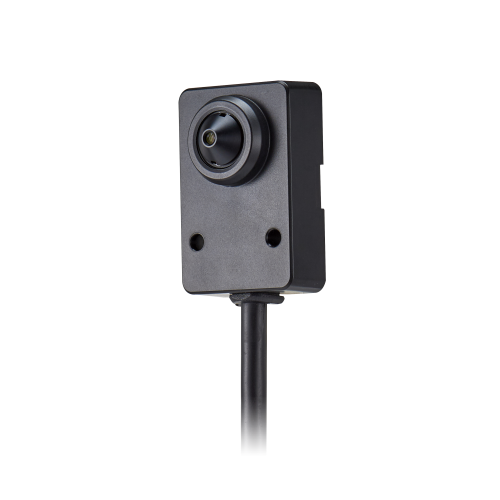

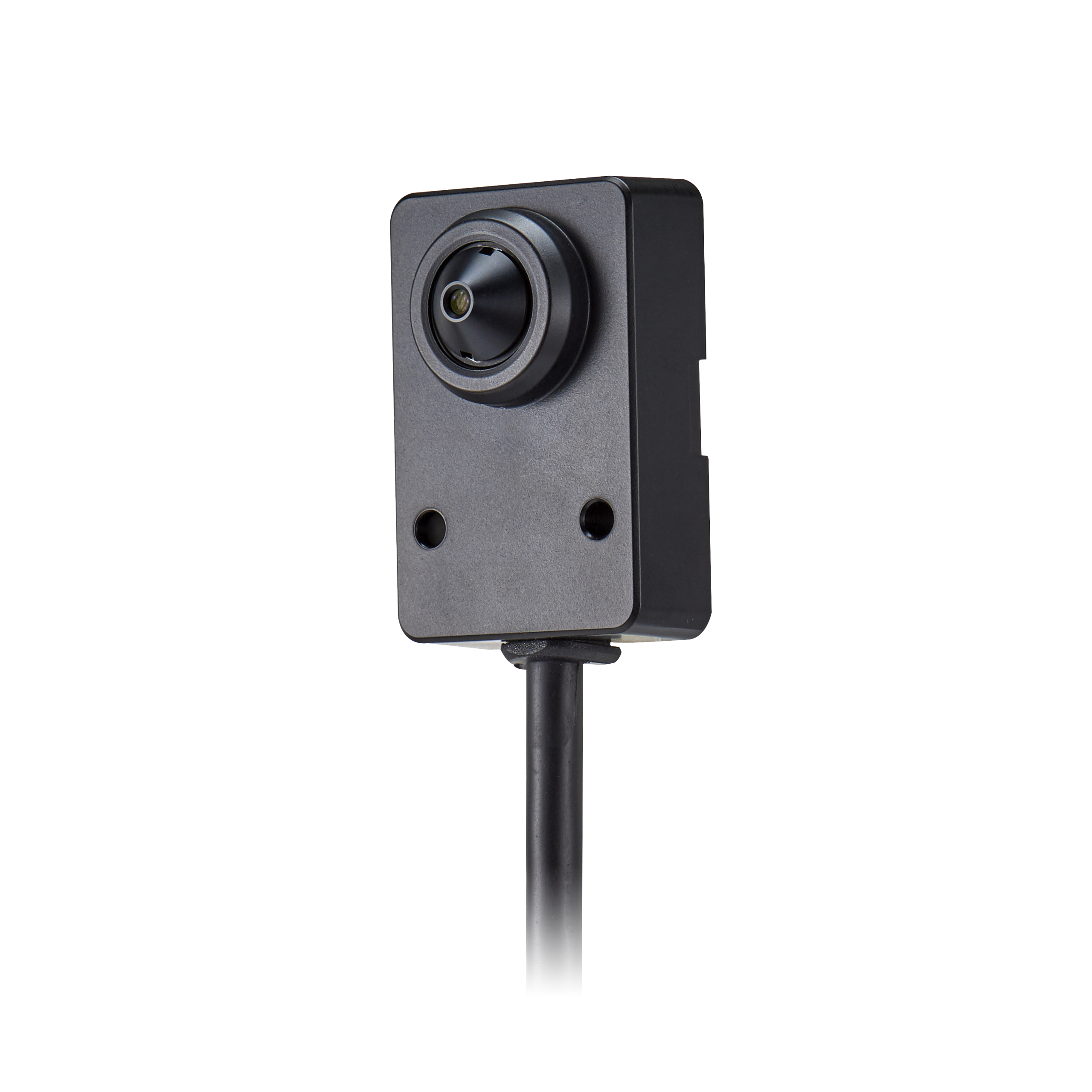

For installations where a standard camera form factor simply cannot be used, the Hanwha Vision SLA-T4680V provides a 2MP pinhole lens module that pairs exclusively with the Hanwha XNB-6001 modular camera system. The module is engineered for covert or space-restricted environments, allowing the lens head to be positioned separately from the main camera body via an RJ12 connection. Featuring a 4.6mm fixed pinhole lens, it delivers a 73° horizontal, 39° vertical, and 85° diagonal field of view, giving useful scene coverage without revealing the camera’s presence. With effective pixels of 1,945 x 1,109 and a minimum illumination of 0.06 lux at F2.5, it is well suited to controlled indoor spaces such as ATM enclosures, retail counters, reception desks, kiosks, and custom-built housings. At just 30 x 20.2 x 45mm, the SLA-T4680V is compact enough to integrate into tight panel cutouts or specialist enclosures where full camera bodies would not fit.
Key Capabilities
Pinhole Lens Design
The 4.6mm pinhole lens allows the module to be installed flush within panels, kiosks, or custom enclosures, keeping the camera entirely hidden from view. This is the defining feature for covert monitoring scenarios where a visible camera head would be impractical or inappropriate.
Separated Lens and Body Installation
The RJ12 connection allows the lens module to be mounted at a different location from the XNB-6001 main unit. This split-body architecture gives installers flexibility in routing cabling and concealing the recorder body inside a cabinet or wall cavity while only the tiny lens head is exposed.
2MP Full HD Resolution
With 1,945 x 1,109 effective pixels from a 1/2.8″ CMOS sensor, the module captures enough detail for counter monitoring, transaction recording, and access-point surveillance in well-lit indoor environments.
73° Horizontal Field of View
The fixed 73° horizontal angle covers a practical desk-width or counter-width scene without distortion, making it suitable for ATM bays, retail checkout points, and reception desks where a defined, localised view is needed rather than wide-angle coverage.
Best For
- ATM and Kiosk Enclosures: The 30 x 20.2 x 45mm footprint and pinhole lens allow integration directly into ATM fascias or kiosk panels where only a small aperture is available.
- Retail Counter Surveillance: The 73° horizontal field of view frames a checkout counter or service desk effectively, capturing transactions without a visible camera body above the counter.
- Reception and Front-of-House Monitoring: The split-body architecture lets installers route the lens discreetly into a reception desk or wall panel while keeping the XNB-6001 main unit hidden in a cabinet.
- Custom Enclosure Builds: Integrators building specialist housings for government, banking, or retail fit-outs can incorporate the SLA-T4680V into bespoke panels where conventional camera housings would not suit.
Why Choose the SLA-T4680V
The SLA-T4680V is purpose-built for scenarios that standard dome or bullet cameras cannot serve. Its pinhole lens design, compact 30 x 20.2 x 45mm body, and RJ12-connected split architecture allow the lens head to be concealed within a surface while the XNB-6001 main unit sits entirely out of sight. This is not possible with self-contained cameras, regardless of their resolution or form factor. The 0.06 lux minimum illumination at F2.5 means the module performs adequately in the controlled lighting typical of ATM bays, retail interiors, and reception areas without relying on IR or supplemental lighting. For integrators already deploying the XNB-6001 modular system, the SLA-T4680V is the only Hanwha-specified 4.6mm pinhole lens option confirmed for that platform. It is available through Security Wholesalers for projects requiring verified Hanwha modular system components.
Buyer Decision Tips
Compatibility is Non-Negotiable: The SLA-T4680V is confirmed compatible with the Hanwha XNB-6001 only. It is a lens module, not a standalone camera, and will not function with any other recorder, NVR, or camera body. Confirm that the XNB-6001 main unit is part of your project before ordering this module.
Discontinued Status: Hanwha Vision has listed the SLA-T4680V as discontinued, with the SLA-T4680VA noted as the successor product. Check current stock availability before committing this module to a project specification, particularly for multi-site deployments where ongoing supply is required.
Key Features & Technical Specifications
| Model |
SLA-T4680V |
| Product Type |
2MP Pinhole Lens Module |
| Compatible Camera |
Hanwha Vision XNB-6001 |
| Imaging Device Size |
1/2.8″ |
| Sensor Type |
CMOS |
| Effective Pixels |
1,945 x 1,109 (2.16MP) |
| Minimum Illumination |
0.06 lux at F2.5 |
| Focal Length |
4.6mm |
| Maximum Aperture |
F2.5 |
| Horizontal Field of View |
73° |
| Vertical Field of View |
39° |
| Diagonal Field of View |
85° |
| Focus Control |
Fixed |
| Mount / Connection |
RJ12 to XNB-6001 main unit |
| Dimensions |
30 x 20.2 x 45mm |
| Weight |
321g |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
Less than 90% RH |
| Material |
Plastic and metal |
| Colour |
Black |
Ideal Use Cases
ATM Enclosures
The pinhole lens and 30 x 20.2 x 45mm body fit within ATM fascia cutouts, allowing the camera to monitor transaction zones without any visible camera housing on the machine face.
Retail Checkout Counters
The 73° horizontal field of view frames a standard counter or point-of-sale station effectively, capturing cash handling and customer interactions without a camera body visible above the service area.
Reception Desks and Front-of-House
The split-body RJ12 design allows the lens to be routed through a desk panel or wall fascia while the XNB-6001 main unit is concealed in a service cavity, keeping the reception environment uncluttered.
Custom and Specialist Enclosures
Integrators building bespoke surveillance housings for banking, government, or retail fitouts can install the SLA-T4680V into panels, kiosks, or cabinetry where no standard camera form factor would be suitable.
Choosing the Right Model
- Choose this model if: You are deploying the Hanwha XNB-6001 modular camera system and require a discreet 4.6mm pinhole lens head for an enclosure, kiosk, ATM, or counter installation where the lens must be physically separated from the main camera body.
- Choose a different model if: You need a self-contained indoor camera without a separate main unit. A fixed-lens dome or turret camera will be simpler to install, does not require a modular host body, and is available with current production status. Also consider that the SLA-T4680V is listed as discontinued by Hanwha, so if long-term supply or warranty support is a project requirement, confirm availability before specifying this module.
FAQs
- Is the SLA-T4680V a complete, standalone camera?
No. The SLA-T4680V is a pinhole lens module only. It does not function independently and must be connected to a Hanwha XNB-6001 modular camera main unit via its RJ12 cable. Without the XNB-6001 host body, the module has no recording, networking, or power capability.
- What does the RJ12 connection do and how long can the cable run be?
The RJ12 connector links the SLA-T4680V lens module to the XNB-6001 main unit, carrying video signal and power between the two components. Hanwha’s product data does not specify a maximum cable run length for this connection. Contact Hanwha technical support or your installer for confirmed maximum distances before planning a long cable run between the lens and body.
- Why is the lens so small and what type of installation does that suit?
At 30 x 20.2 x 45mm, the SLA-T4680V is designed to fit into panel cutouts, ATM fascias, kiosk apertures, and custom enclosures where a conventional camera housing would be too large or visually obvious. The pinhole lens design means only a small aperture is visible at the installation surface, making the camera effectively undetectable in most built environments.
- Is the SLA-T4680V suitable for low-light or dark environments?
The module has a minimum illumination rating of 0.06 lux at F2.5, which is adequate for typical controlled indoor environments such as retail stores, reception areas, and ATM bays with standard artificial lighting. It does not include IR illumination, so performance in very low-light or unlit spaces will be limited. It is not rated for outdoor use.
- The SLA-T4680V is listed as discontinued. Can I still purchase it?
Hanwha Vision has listed the SLA-T4680V as discontinued and notes SLA-T4680VA as the successor product. Stock may still be available through Security Wholesalers, but availability cannot be guaranteed on an ongoing basis. If your project requires guaranteed future supply, confirm stock levels before committing this module to your specification.
- Does the 4.6mm focal length suit counter or desk-level monitoring?
Yes. The 4.6mm fixed lens delivers a 73° horizontal field of view, which frames a standard desk width or service counter at close range effectively. It is not a wide-angle lens, so it is better suited to defined, localised views such as a single checkout lane or ATM bay rather than broad room coverage.
