Product SKU: SBP-300PMW1
Product Overview

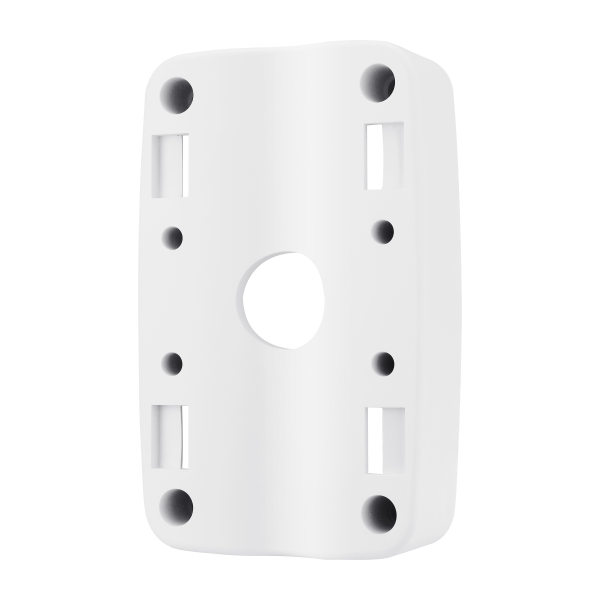

When a wall surface is not available or practical, the Hanwha Wisenet SBP-300PMW1 provides a straightforward solution for mounting compatible Hanwha wall mount brackets onto poles in outdoor environments. Designed to work with the SBP-300WMW, SBP-300WMW1, and SBP-390WMW2 wall mounts, this aluminium adapter bridges the gap between those brackets and a round vertical pole, enabling camera positioning in car parks, along driveways, at perimeter fence lines, and at entry points where structural walls are absent. Featuring stainless steel mounting straps and an M10 screw fixing, the SBP-300PMW1 is built to hold securely on poles with a minimum diameter of 80mm. The white aluminium finish blends with the Hanwha camera housings it supports, and the integrated conduit hole of 19.1mm allows cable management to remain tidy during installation. It is well suited to commercial and industrial sites where pole-mounted camera positions are a necessity.
Key Capabilities
Pole Mount Compatibility
Designed specifically to attach to poles with a minimum diameter of 80mm, this adapter allows the compatible Hanwha wall mount brackets to be positioned on round poles where no wall surface is available, expanding camera placement options on any site.
Aluminium Construction
The cast aluminium body keeps weight manageable at 760g while providing the structural rigidity required for outdoor pole installations. Aluminium resists corrosion, making this adapter suited to exposed environments including car parks and perimeter applications.
Stainless Steel Mounting Straps
Supplied stainless steel straps secure the adapter firmly around the pole. Stainless steel resists rust and maintains clamping tension over time, reducing the risk of the mount loosening due to outdoor weathering or temperature cycling.
Built-In Conduit Entry
A 19.1mm (M25) conduit hole is integrated into the adapter body, allowing cables to be routed cleanly through conduit from the pole into the bracket. This keeps wiring protected and the installation looking professional from the outset.
Best For
- Pole-Only Installation Sites: Car parks, driveways, perimeter fence lines, and entry points where no structural wall is positioned at the required camera location.
- Compatible Hanwha Bracket Users: Installers already using the SBP-300WMW, SBP-300WMW1, or SBP-390WMW2 wall mounts who need to transition a specific camera position to a pole.
- Commercial and Industrial Sites: Applications requiring a secure, corrosion-resistant pole mount in exposed outdoor conditions, where the stainless steel strap retention and aluminium body are practical advantages.
Why Choose the SBP-300PMW1
The SBP-300PMW1 is purpose-built for the Hanwha Wisenet bracket ecosystem, ensuring a direct and secure fit with the SBP-300WMW, SBP-300WMW1, and SBP-390WMW2 rather than relying on a generic third-party adapter. The aluminium body and stainless steel mounting straps are matched to outdoor conditions, avoiding the corrosion issues that affect lower-grade accessory mounts. At 185mm wide and 40mm deep, the profile is compact enough to suit standard lighting and CCTV poles from 80mm diameter upward, without adding excessive bulk to the installation. The integrated M25 conduit hole removes the need to improvise cable entry, which matters on commercial sites where cable protection and presentation standards apply. Available at Security Wholesalers, the SBP-300PMW1 is the recommended pole mounting solution for any installer working within the Hanwha Wisenet camera and bracket range.
Buyer Decision Tips
Buyer Tip: Confirm the pole diameter at your installation point before ordering. The SBP-300PMW1 requires a minimum pole diameter of 80mm, and the supplied stainless steel straps are designed to wrap around a round pole. Square or rectangular posts will require a different adapter. Also confirm which wall mount bracket you are using, as the SBP-300PMW1 is only listed as compatible with the SBP-300WMW, SBP-300WMW1, and SBP-390WMW2.
Key Features & Technical Specifications
| Model |
SBP-300PMW1 |
| Type |
Pole Mount Adapter |
| Compatible Brackets |
SBP-300WMW, SBP-300WMW1, SBP-390WMW2 |
| Material |
Aluminium |
| Colour |
White |
| Dimensions (W x D x H) |
185 x 115 x 40mm |
| Weight |
760g |
| Mount Screw Size |
M10 |
| Conduit Hole |
19.1mm (3/4 inch) – M25 |
| Minimum Pole Diameter |
80mm |
| Mounting Straps |
Stainless steel (included) |
| Brand |
Hanwha Wisenet |
Ideal Use Cases
Car Park Poles
Lighting poles and dedicated CCTV poles in car parks typically exceed 80mm diameter, making the SBP-300PMW1 a direct fit. The stainless steel straps provide secure retention on smooth round poles in open outdoor conditions.
Driveway Entry Points
Where a camera needs to be positioned at a driveway entrance but no wall is within range, a free-standing pole with this adapter allows the compatible Hanwha bracket and camera to be correctly positioned without structural modifications.
Perimeter and Fence Lines
Industrial and commercial perimeter monitoring often requires cameras spaced along a boundary where only poles are accessible. The corrosion-resistant aluminium body and stainless steel straps hold up in exposed perimeter environments.
Multi-Camera Pole Installations
On sites where multiple cameras are deployed from a central pole, using a purpose-built adapter like the SBP-300PMW1 ensures each bracket is mounted consistently and securely, with cable conduit access built in at each position.
Choosing the Right Model
- Choose this model if: You are using a SBP-300WMW, SBP-300WMW1, or SBP-390WMW2 wall mount bracket and need to attach it to a round pole with a minimum diameter of 80mm at an outdoor camera position.
- Choose a different model if: Your pole is smaller than 80mm in diameter, or you are using a Hanwha wall mount bracket not listed as compatible with this adapter. Square or flat-surface pole profiles will also require a different mounting solution rather than the strap-based fixing on this adapter.
FAQs
- Which wall mount brackets is the SBP-300PMW1 compatible with?
The SBP-300PMW1 is confirmed compatible with 3 Hanwha Wisenet wall mount brackets: the SBP-300WMW, SBP-300WMW1, and SBP-390WMW2. It is a pole adapter for those specific brackets and should not be assumed compatible with other Hanwha mounts outside this list.
- What is the minimum pole diameter this adapter will fit?
The SBP-300PMW1 is rated for poles with a minimum diameter of 80mm. The supplied stainless steel mounting straps are sized for round poles from that diameter upward. Poles smaller than 80mm will not provide a secure fitment with the included hardware.
- Are the mounting straps included in the box?
Yes, stainless steel mounting straps are supplied with the SBP-300PMW1. These straps wrap around the pole to secure the adapter body, and stainless steel is used to maintain strap integrity in outdoor conditions where standard steel would corrode over time.
- What is the conduit hole size and what is it used for?
The adapter includes a 19.1mm conduit hole, which is equivalent to a 3/4 inch or M25 conduit fitting. This allows a conduit carrying the camera cable to pass through the adapter body cleanly, keeping wiring protected from the pole up into the bracket without exposed cabling.
- Can the SBP-300PMW1 be used on square poles or flat surfaces?
No. The strap-based fixing is designed for round poles only. Square or rectangular poles do not allow the straps to wrap and clamp evenly, which would compromise the security of the mount. A different adapter type would be required for non-round pole profiles.
- Where can I purchase the SBP-300PMW1 in Australia?
The SBP-300PMW1 is part of the Security Wholesalers range of Hanwha Wisenet accessories, available for trade and professional installer purchase. It is stocked alongside the compatible SBP-300WMW and SBP-390WMW2 bracket range.
