Product SKU: SBV-140BW
Product Overview

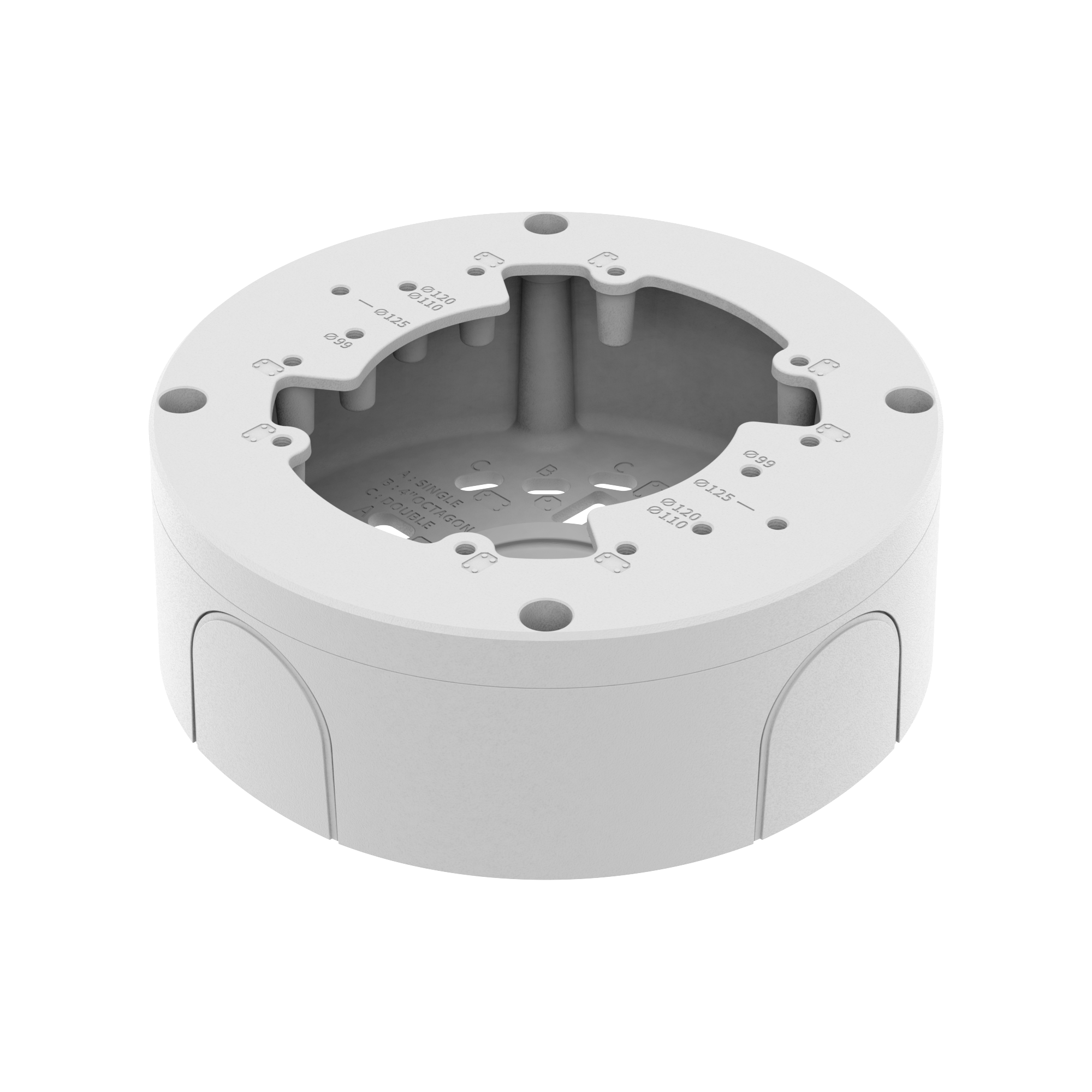

Installers working with Hanwha dome cameras on standard electrical and junction box rough-ins will find the SBV-140BW a practical addition to any professional deployment. This back box accessory bridges the gap between a pre-installed wall or ceiling junction box and the base of a compatible Hanwha dome camera, providing a secure mechanical mounting point while enclosing the wiring and camera base in a protected housing. Featuring a construction that complements the aesthetic of Hanwha’s dome camera range, the SBV-140BW keeps cable terminations tidy and shields internal connections from incidental physical contact and environmental exposure in both indoor and sheltered outdoor settings. It is compatible with a wide range of Hanwha QND, QNE, QNV and ANE series dome camera models. Downloadable resources including a datasheet, CAD drawings, and installation manual are available to support pre-installation planning.
Key Capabilities
Junction Box Compatibility
Designed to mount onto many standard electrical and junction boxes, the SBV-140BW integrates into existing rough-in conduit work without requiring custom hardware, simplifying the installation process on both new builds and retrofits.
Wiring and Component Protection
The enclosed back box housing shields the camera’s wiring terminations and base components from incidental contact and environmental exposure, reducing the risk of damage during and after installation in ceiling or wall-mounted positions.
Matched Dome Camera Aesthetic
Finished to complement Hanwha’s dome camera range, the SBV-140BW produces a uniform appearance across the completed installation, making it suitable for customer-facing and high-visibility indoor areas where visual consistency matters.
Broad Model Compatibility
Supports a range of Hanwha QND, QNE, QNV and ANE series dome cameras, meaning a single back box SKU can be used across multiple camera models within the same project or site, reducing the need to stock separate mounting accessories.
Best For
- Ceiling and Wall Dome Installations: Pairs with compatible Hanwha dome cameras to create a clean, enclosed mounting finish on pre-installed junction boxes in indoor ceilings or walls.
- Professional Trade Installations: Gives installers a factory-matched back box solution that maintains a consistent, polished appearance across multi-camera deployments in commercial or institutional buildings.
- Sheltered Outdoor Environments: Suitable for covered outdoor areas such as building soffits or covered walkways where the camera base needs additional protection from incidental contact and light environmental exposure.
Why Choose the SBV-140BW
The SBV-140BW is a Hanwha-specific back box engineered to pair with compatible QND, QNE, QNV and ANE series dome cameras, unlike generic aftermarket back boxes that may leave gaps in fitment or create visual mismatches at the camera base. Its construction encloses wiring terminations and protects camera base components in a way that a simple surface-mount without a back box cannot provide, and its aesthetic is specifically matched to Hanwha’s dome camera lineup for a uniform finished look. For installers running conduit through walls or ceilings with pre-installed junction boxes, the SBV-140BW removes the need to source a custom adapter or accept an untidy install. Available through Security Wholesalers, this accessory is straightforward to specify across projects using the supported camera models.
Buyer Decision Tips
Buyer Tip: Before ordering, confirm your camera model appears in the SBV-140BW compatibility list, which covers specific ANE, QND, QNE and QNV series cameras. Not all Hanwha dome cameras use the same base footprint, and using an incompatible back box may leave gaps or interfere with the camera’s mounting alignment. Also check whether your existing junction box is a standard size, as the SBV-140BW is designed for standard electrical and junction boxes.
Key Features & Technical Specifications
| Product Type |
Back box / junction box adapter for dome cameras |
| Brand |
Hanwha Vision (Wisenet) |
| Compatible Junction Box Types |
Standard electrical / junction boxes |
| Camera Compatibility |
ANE-L6012R, ANE-L7012L, ANE-L7012R, QND-6011, QND-6021, QND-8011, QND-8021, QNE-8011R, QNE-8021R, QND-6012R, QND-6022R, QND-6082R, QND-7012R, QND-7022R, QND-7032R, QND-7082R, QNV-C8011R, QNV-C8012, QNV-C8083R, QNV-C9011R, QNV-C9083R |
| Camera Series Supported |
Hanwha ANE, QND, QNE, QNV series |
| Primary Function |
Provides mechanical support and wiring protection for dome camera base |
| Wiring Protection |
Encloses camera base wiring and internal connections |
| Aesthetic Finish |
Matched to Hanwha dome camera styling for visual uniformity |
| Suitable Environments |
Indoor and sheltered outdoor |
| Documentation Included |
Datasheet, CAD drawings, installation manual (downloadable) |
Ideal Use Cases
Office and Commercial Interiors
Where dome cameras are ceiling-mounted in customer-facing or staff areas, the SBV-140BW’s matched aesthetic keeps the installation looking intentional and consistent with the surrounding fitout.
Retrofit Projects with Existing Conduit
Buildings with pre-installed junction boxes benefit from the SBV-140BW’s compatibility with standard box types, avoiding the need to cut and patch surfaces for new camera rough-ins.
Multi-Camera Commercial Installations
The broad compatibility across multiple supported Hanwha camera models allows the same back box to be specified across an entire site using mixed camera models, simplifying accessory procurement.
Covered Outdoor Locations
Under building eaves, covered carparks, or protected walkways, the back box adds a layer of protection to the camera’s wiring and base where incidental contact or light environmental exposure is a concern.
Choosing the Right Model
- Choose this model if: You are installing one of the confirmed compatible Hanwha QND, QNE, QNV or ANE series dome cameras onto a standard junction box and want a manufacturer-matched back box that encloses the wiring and complements the camera’s finished appearance.
- Choose a different model if: Your dome camera model is not included in the SBV-140BW compatibility list, or you are mounting directly to a flat surface without a pre-installed junction box, in which case a standard surface mount adapter or pendant arm would be more appropriate.
FAQs
- Which Hanwha cameras does the SBV-140BW support?
The SBV-140BW is compatible with the following Hanwha models: ANE-L6012R, ANE-L7012L, ANE-L7012R, QND-6011, QND-6021, QND-8011, QND-8021, QNE-8011R, QNE-8021R, QND-6012R, QND-6022R, QND-6082R, QND-7012R, QND-7022R, QND-7032R, QND-7082R, QNV-C8011R, QNV-C8012, QNV-C8083R, QNV-C9011R, and QNV-C9083R. Always verify your camera model against this list before ordering.
- Does the SBV-140BW work with standard electrical junction boxes?
Yes. The SBV-140BW is designed to mount onto many standard electrical and junction boxes, making it compatible with typical rough-in conduit work used in commercial and residential installations. This means it can be integrated into existing infrastructure without requiring custom mounting hardware.
- Can the SBV-140BW be used in outdoor installations?
The SBV-140BW is suitable for indoor and sheltered outdoor environments. It is not confirmed as rated for fully exposed outdoor conditions, so it should be used in covered locations such as building soffits, protected walkways, or covered carparks where direct rain exposure is avoided.
- What documentation is available for the SBV-140BW?
Hanwha provides downloadable documentation for the SBV-140BW including a datasheet, CAD drawings, and an installation manual. These resources are useful for pre-installation planning, ensuring the back box is correctly positioned relative to the junction box and the intended camera model. Security Wholesalers provides access to this product along with the supporting documentation from Hanwha.
- Does using the SBV-140BW affect the camera’s IP or IK rating?
The SBV-140BW protects the camera’s wiring and base components but does not alter the camera’s own IP or IK rating. The camera’s environmental protection rating applies to the camera unit itself. For fully weather-exposed deployments, ensure the camera model selected carries an appropriate IP rating independent of the back box.
