Product SKU: HAN-PNM-9022V
Product Overview

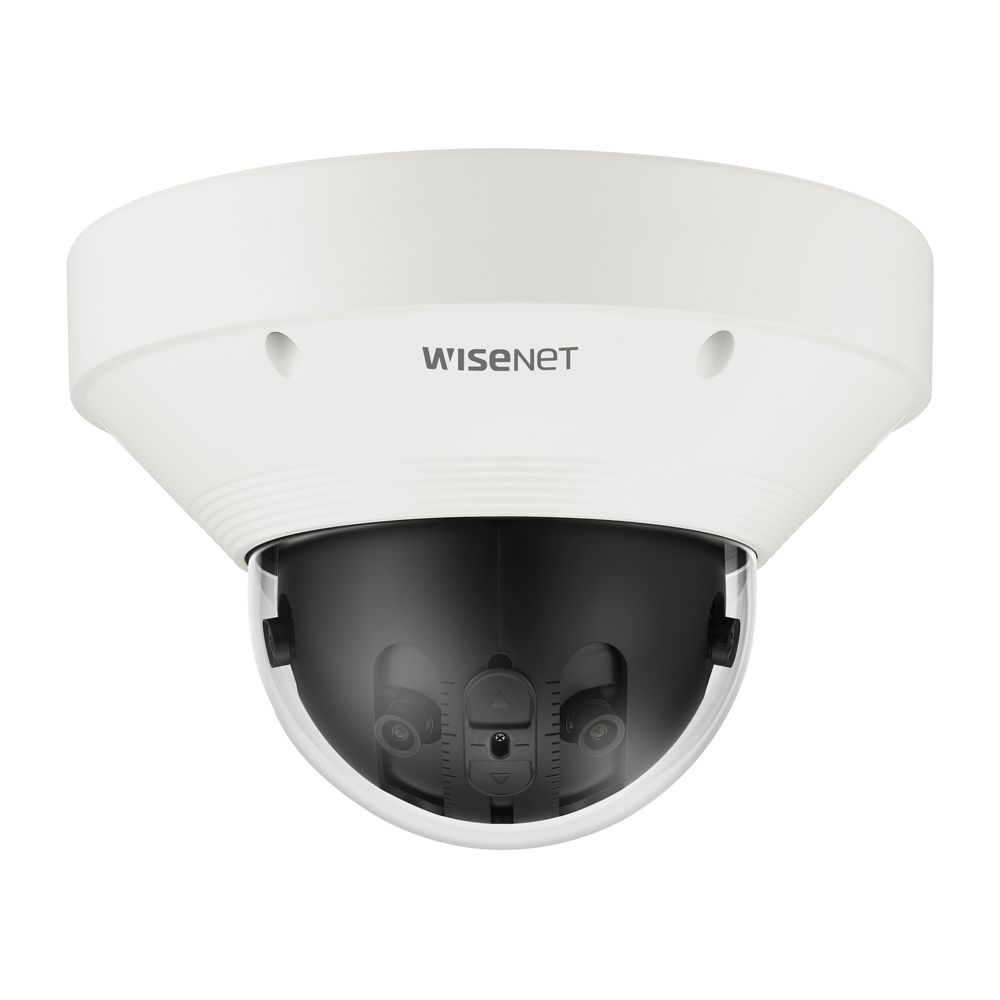

Wide-area monitoring across a car park, retail forecourt, or large open facility typically demands multiple cameras, multiple channels, and multiple VMS licences. The Hanwha Wisenet PNM-9022V addresses this directly by combining 4 independent 2MP sensors into a single outdoor multi-sensor panoramic camera that delivers up to 8.3MP of combined resolution across either a 180-degree or 209-degree field of view. Featuring a selectable panoramic mode, 2.8mm fixed lenses on all 4 sensors, and digital PTZ capability for post-capture zoom into regions of interest, it is built for installers and operators who need broad situational awareness without multiplying channel counts. Equipped with WiseStream II for bandwidth-efficient streaming, dual Micro SD card slots for up to 1TB of edge storage, and an IP66 and IK10 rating for outdoor and vandal-resistant deployment, this camera suits demanding environments across a wide operating temperature range of -40°C to 55°C. Please note this is a special order item with a 6-8 week lead time.
Key Capabilities
Selectable 180 or 209 Degree Panoramic Mode
Operators can switch between 180-degree flat panoramic and 209-degree wide-arc coverage from a single camera position, making it adaptable to open forecourts, lobby entries, and large retail floors without repositioning hardware.
4-Sensor Multi-Lens Design
Four discrete 2MP sensors with 2.8mm fixed lenses operate simultaneously to produce up to 8.3MP of combined panoramic output. Each sensor captures its own image field, reducing blind spots and delivering consistent detail across the full sweep.
Digital PTZ for Region of Interest
Digital PTZ functionality allows operators to zoom into specific zones within the panoramic frame during live monitoring or playback review, without the mechanical complexity or maintenance demands of a motorised PTZ unit.
WiseStream II Compression
WiseStream II dynamically adjusts encoding complexity based on scene activity, reducing bandwidth and storage consumption significantly compared to standard H.265 alone. This is particularly useful when streaming multiple sensor feeds across bandwidth-limited networks.
IP66 and IK10 Outdoor-Rated Enclosure
IP66 dust and water ingress protection combined with an IK10 vandal resistance rating allows the PNM-9022V to be installed in exposed outdoor locations including building facades, entry overhangs, and covered loading areas where weather and accidental impact are concerns.
Dual SD Card Edge Storage
Two independent Micro SD/SDHC/SDXC slots each support up to 512GB, providing up to 1TB of onboard edge storage. This supports local recording redundancy or failover recording when network connectivity to an NVR is interrupted.
Best For
- Reducing NVR Channel Count: A single PNM-9022V replaces up to 4 individual cameras, freeing up channels on an NVR and reducing per-camera VMS licence costs in managed systems.
- Wide-Open Outdoor Areas: The selectable 180 or 209-degree panoramic mode suits wide forecourts, entry plazas, open car parks, and large retail outdoor areas where multiple fixed cameras would otherwise create coverage overlap.
- Extreme Operating Environments: A rated operating range of -40°C to 55°C makes this suitable for cold-store access corridors, alpine facilities, and hot outdoor installations in northern Australian conditions.
- Sites With Limited Mounting Positions: Where ceiling or wall real estate is constrained, a single multi-sensor camera delivers broader coverage from one conduit run, one cable, and one camera position.
- Heatmap and Occupancy Analysis: Built-in heatmap analytics make this suited to retail environments tracking customer movement patterns or high-traffic zones over time.
Why Choose the Hanwha Wisenet PNM-9022V
The PNM-9022V stands apart from single-sensor wide-angle cameras because its 4-sensor array delivers genuine multi-directional detail across a panoramic field, rather than stretching a single lens to its optical limits and introducing distortion. The selectable 180 or 209-degree mode gives installers flexibility to match the coverage arc to the specific site layout, while digital PTZ allows post-event review of specific zones without a second camera deployment. WiseStream II compression keeps bandwidth consumption manageable even when all 4 sensors are streaming simultaneously. The IK10 and IP66 rating means it handles both weather and deliberate interference, and the dual SD card slots add a practical layer of local recording redundancy. For integrators and operators who need to reduce channel count without reducing situational awareness, this is a considered choice available through Security Wholesalers as a special order item.
Buyer Decision Tips
Panoramic Mode Selection: The choice between 180 and 209 degrees affects how the camera mounts and where it should be positioned. A 180-degree mode suits flat wall or facade mounting where coverage is needed in a straight horizontal sweep. The 209-degree mode captures slightly behind the mounting plane, making it more effective when mounted on a post, pillar edge, or corner position where some wrap-around coverage is needed. Confirm the site geometry before ordering, as the 2.8mm fixed lenses cannot be swapped for longer focal lengths.
Special Order Lead Time: The PNM-9022V is a special order product with a 6-8 week delivery lead time. Build this into project timelines before committing to installation dates. For projects with tight commissioning deadlines, confirm stock availability before finalising the camera specification or consider whether an alternative panoramic configuration from in-stock models can meet the site requirements.
Key Features & Technical Specifications
| Combined Resolution |
Max. 8.3MP (4 x 2MP sensors) |
| Panoramic Coverage Modes |
180 degrees or 209 degrees (selectable) |
| Lens |
2.8mm fixed lens x4 |
| Video Compression |
H.265, H.264, MJPEG |
| WiseStream II |
Supported |
| Digital PTZ |
Supported |
| Analytics |
Tampering detection, heatmap |
| Min. Illumination (Colour) |
0.03 lux (F1.6, 1/30sec) |
| Min. Illumination (B/W) |
0.003 lux (F1.6, 1/30sec) |
| Ingress Protection |
IP66 |
| Vandal Resistance |
IK10 |
| Edge Storage |
Dual Micro SD/SDHC/SDXC slots, up to 512GB per slot |
| Operating Temperature |
-40°C to 55°C |
| Dimensions |
253 x 165mm |
| Weight |
3.2kg |
| Availability |
Special order, 6-8 week lead time |
Ideal Use Cases
Large Retail Forecourts
The 209-degree wide-arc mode covers the full sweep of a retail entry or outdoor forecourt from a single mounting point, with heatmap analytics providing customer flow data to operators and loss prevention teams.
Open Car Parks and Parking Stations
Four simultaneous 2MP sensor feeds across a wide panoramic arc provide continuous coverage of vehicle lanes, pedestrian walkways, and stairwell entries from a single pole or ceiling mount, reducing cabling and installation cost.
Building Entry Plazas and Lobbies
A 180-degree mode mounted above a building entry provides a complete sweep of all pedestrian approaches in a single frame, reducing the number of cameras needed at a pinch point without creating coverage gaps between individual camera angles.
Warehouse Floors and Distribution Centres
The wide panoramic coverage reduces camera count across large internal floor areas, while WiseStream II compression keeps network load manageable when this camera operates alongside other IP devices on a shared infrastructure.
Outdoor Perimeter Walls and Fence Lines
IP66 and IK10 ratings combined with a -40°C to 55°C operating temperature range allow installation on exposed perimeter walls, fence posts, and building corners across varied Australian climate conditions.
VMS-Managed Multi-Site Installations
Replacing up to 4 individual camera channels with a single PNM-9022V reduces VMS licence costs at scale. For integrators managing large multi-site deployments, this translates directly into lower recurring software overhead per monitored location.
Choosing the Right Model
- Choose this model if: Your site requires wide panoramic coverage from a single mounting point and you need to reduce NVR channel count or VMS licence overhead. The IK10 and IP66 rating suits exposed outdoor installations, and the selectable 180 or 209-degree mode provides flexibility for different site geometries.
- Choose a different model if: Your application requires optical zoom to capture fine detail at distance, such as identifying faces or reading licence plates at range. The 2.8mm fixed lenses on the PNM-9022V are optimised for wide-area situational awareness rather than narrow long-range detail. A motorised varifocal or dedicated PTZ camera would be more appropriate for those scenarios.
- Consider lead time carefully: As a special order product with a 6-8 week lead time, this camera is not suited to projects requiring immediate deployment. If your installation timeline cannot accommodate this, consider whether an in-stock panoramic or multi-sensor option can meet the specification requirements.
FAQs
- What is the difference between the 180-degree and 209-degree modes on the PNM-9022V?
The 180-degree mode delivers a flat horizontal panoramic sweep suited to straight wall or facade mounting, covering everything directly in front of the camera. The 209-degree mode extends coverage slightly behind the camera’s mounting plane, making it useful for corner positions, pillar edges, or post mounts where some wrap-around visibility is needed. The mode is selectable in the camera settings rather than determined by physical lens configuration.
- How many NVR channels does the PNM-9022V consume?
The PNM-9022V connects to an NVR as a single IP camera and typically occupies a single channel, depending on how the NVR handles multi-sensor input. This means a single camera can replace the coverage of up to 4 individual cameras while consuming only 1 channel, which directly reduces both NVR channel requirements and per-camera VMS licence costs in managed video systems.
- Does the PNM-9022V have infrared night vision?
The product data does not confirm a built-in IR illuminator on this model. Minimum illumination is rated at 0.03 lux in colour and 0.003 lux in black and white, indicating useful sensitivity in low-ambient-light conditions. For sites with no ambient lighting at night, supplementary external illumination should be considered.
- Can the dual SD card slots be used for redundant recording?
The PNM-9022V includes 2 independent Micro SD/SDHC/SDXC card slots, each supporting up to 512GB of storage. This provides up to 1TB of total onboard edge storage capacity. The dual-slot configuration supports local recording as a failover option if the NVR connection is interrupted, reducing the risk of footage gaps during network outages.
- What does the heatmap analytic do on the PNM-9022V?
The heatmap analytic accumulates movement data over time across the camera’s field of view and generates a visual overlay showing which zones within the scene experience the highest foot or vehicle traffic. This is useful for retail operators tracking customer dwell patterns, facilities managers identifying congestion points, and security teams understanding where movement is concentrated during specific time periods.
- Is the PNM-9022V suitable for installation in extreme outdoor environments?
Yes. The camera carries an IP66 ingress protection rating, an IK10 vandal resistance rating, and a confirmed operating temperature range of -40°C to 55°C. This makes it suitable for exposed outdoor installations across a wide range of Australian climate conditions, including hot northern regions and cold alpine environments, as well as cold-store or refrigerated facility access areas.
- How long is the lead time and can it be expedited?
The PNM-9022V is a special order product with a 6-8 week lead time from time of order. This lead time should be factored into project planning before specifying the camera. For lead time queries or to check current stock position, contact Security Wholesalers directly at the time of enquiry, as availability can vary depending on supplier inventory cycles.
