Product SKU: QNE-8021R
Product Overview

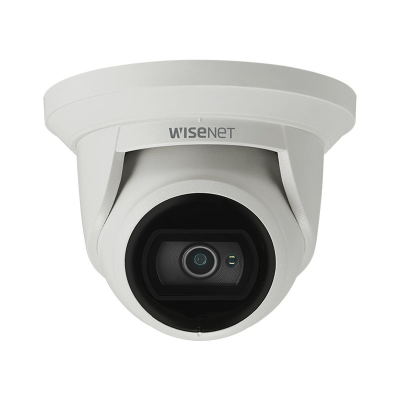

Built around a flat eye housing design, the Hanwha Wisenet QNE-8021R takes a different approach to outdoor dome installation by eliminating the conventional dome cover entirely. Without a curved bubble to scratch, fog, or collect grime, the camera maintains a consistently clean field of view across its 4mm fixed lens, even in high-traffic or dusty outdoor environments. Featuring 5MP (2592 x 1944) resolution at up to 30fps, 120dB Wide Dynamic Range, and a 20m infrared range, it delivers detailed coverage from dusk through to complete darkness at 0 Lux. Equipped with WiseStream II and H.265 encoding, bandwidth usage can be reduced by up to 75% compared to standard H.264, making it a practical choice for sites with constrained network capacity. It also integrates a hallway view mode, onboard SD card storage up to 128GB, and dual IP67 and IK10 ratings, suited to exposed outdoor wall mounting on shopfronts, building entries, and small commercial sites.
Key Capabilities
Flat Eye Housing
The flat eye design removes the dome bubble entirely, eliminating the scratching, fogging, and contamination issues common to conventional dome cameras. Installation is also faster as there is no dome cover to remove, align, or reseat during mounting.
5MP Resolution with 120dB WDR
The 2592 x 1944 sensor captures fine detail at up to 30fps. The 120dB Wide Dynamic Range manages scenes with strong backlight or high contrast lighting, such as glass entry doors, without blowing out or crushing the image.
WiseStream II and H.265 Efficiency
WiseStream II dynamically adjusts encoding complexity based on scene activity. Combined with H.265, bandwidth savings of up to 75% are achievable versus H.264, reducing strain on NVR storage and network infrastructure without sacrificing image quality.
20m Infrared Night Vision
The built-in IR illuminators extend coverage to 20m in complete darkness, operating at 0 Lux in black-and-white mode. The camera transitions automatically between colour and monochrome using its day/night ICR filter, maintaining usable footage around the clock.
IP67 and IK10 Protection with Onboard Storage
Full dust and water ingress protection to IP67 combined with IK10 impact resistance makes this camera suitable for unprotected outdoor walls and exposed mounting positions. The onboard Micro SD slot supports up to 128GB for edge recording independent of a network recorder.
Best For
- Outdoor Building Entrances: The flat eye housing and IK10 rating handle high-traffic entry points where dome cameras are prone to surface damage or contamination from hands and environmental exposure.
- Retail Shopfronts and Awnings: The 5MP sensor and 4mm fixed lens provide enough width and detail to cover a shopfront facade or awning-mounted position with clear recognition at approach distances.
- Corridor and Hallway Coverage: The built-in hallway view mode re-frames the image into a tall vertical crop, maximising the sensor across narrow indoor corridors and stairwells without wasted field of view on ceiling and floor.
- Sites with Limited Network Bandwidth: WiseStream II and H.265 combined reduce bandwidth by up to 75% versus standard H.264, making this model practical for sites where network capacity or NVR storage is constrained.
Why Choose the QNE-8021R
The QNE-8021R occupies a specific position in the Hanwha Wisenet outdoor camera range by combining a flat eye housing with a fully sealed IP67 and IK10-rated body. A standard outdoor dome camera at a similar price point typically uses a curved plastic bubble that deteriorates over time, blurring the image and complicating service visits. The flat eye design sidesteps that entirely, and the absence of a dome cover also means installation is completed in fewer steps. The 5MP sensor with 120dB WDR handles backlit and mixed-light scenes more cleanly than 2MP alternatives, and WiseStream II encoding means the additional resolution does not translate directly into proportionally higher storage costs. Onboard SD support up to 128GB adds a practical layer of redundancy. Available at Security Wholesalers, the QNE-8021R is a straightforward, well-specified outdoor camera for commercial and light-industrial installations where durability and ease of maintenance matter.
Buyer Decision Tips
Lens Coverage and Mounting Distance: The QNE-8021R ships with a 4mm fixed lens, which suits mounting heights of roughly 2.5m to 4m and provides a moderately wide field of view for entry points and facade coverage. If your installation requires a broader horizontal sweep from a higher mounting position, or a tighter field of view for identifying detail at greater distance, consider whether a different fixed focal length would better suit the specific scene before ordering, as the lens is not interchangeable on this model.
Key Features & Technical Specifications
| Model |
QNE-8021R |
| Resolution |
5MP (2592 x 1944) |
| Frame Rate |
Max. 30fps at 5MP |
| Lens |
4mm fixed |
| Minimum Illumination |
0.15 Lux (Colour), 0 Lux (B/W, IR LED on) |
| IR Range |
20m |
| Wide Dynamic Range |
120dB |
| Video Compression |
H.265, H.264, MJPEG |
| Streaming |
Multiple streaming supported |
| Bandwidth Optimisation |
WiseStream II |
| Day/Night |
True Day/Night (ICR) |
| Analytics |
Tampering detection, motion detection, defocus detection |
| Onboard Storage |
Micro SD / SDHC / SDXC up to 128GB |
| Hallway View |
Supported |
| Lens Distortion Correction |
LDC supported |
| Power |
PoE (IEEE 802.3af) |
| Weather Rating |
IP67 |
| Impact Rating |
IK10 |
| Housing Type |
Flat Eye (dome-free outdoor) |
Ideal Use Cases
Commercial Building Entries
The IK10 impact rating and IP67 sealing make this camera suitable for high-contact entry points where conventional dome bubbles are frequently scratched or fogged. The flat eye face resists surface degradation over time.
Retail Shopfronts
The 5MP sensor and 120dB WDR handle the mixed lighting conditions typical of shopfront facades, including strong daylight through glass and artificial lighting at night, capturing clear detail on customers at approach range.
Narrow Corridors and Stairwells
Hallway view mode re-orientates the 5MP sensor into a tall vertical crop, making it efficient for monitoring long, narrow indoor passages without wasting resolution on irrelevant ceiling and floor areas.
Sites with Constrained Network Infrastructure
WiseStream II combined with H.265 encoding can reduce bandwidth consumption by up to 75% versus H.264. This makes the QNE-8021R a practical fit for older network infrastructure or installations with limited NVR storage capacity.
Edge Recording Installations
The onboard Micro SD slot supports up to 128GB of local storage, providing an independent recording layer at the camera itself. This suits remote sites, network-redundancy setups, or locations where a centralised recorder is not in use.
Choosing the Right Model
- Choose this model if: You need a low-maintenance outdoor camera for an exposed wall or entry position where dome bubble degradation is a concern, and you want 5MP resolution with strong bandwidth efficiency via WiseStream II and H.265.
- Choose a different model if: Your installation requires a wider field of view than a 4mm fixed lens provides, a longer IR range than 20m for monitoring large open areas, or built-in colour night vision without relying on infrared illumination.
FAQs
- What is the flat eye design and why does it matter for outdoor installation?
The flat eye housing replaces the conventional curved dome bubble with a flush, flat optical face. This eliminates the fogging, scratching, and grime buildup that affects standard dome cameras over time. It also speeds up installation because there is no dome cover to remove and remount when adjusting the camera angle during commissioning.
- What resolution and frame rate does the QNE-8021R support?
The camera captures 5MP (2592 x 1944) video at up to 30 frames per second using either H.265 or H.264 compression. MJPEG is also supported for applications that require it. Multiple simultaneous streams can be configured for different recording and monitoring purposes.
- How does WiseStream II reduce storage and bandwidth requirements?
WiseStream II is Hanwha’s dynamic encoding technology that analyses scene complexity in real time and adjusts the bitrate accordingly. During low-activity periods, the bitrate drops significantly. When combined with H.265, total bandwidth and storage savings of up to 75% are achievable compared to standard H.264 recording at equivalent quality settings.
- Is the QNE-8021R suitable for monitoring in complete darkness?
Yes. The built-in IR illuminators provide coverage up to 20m and the camera operates at 0 Lux in black-and-white mode with the IR LEDs active. The automatic day/night ICR filter transitions the sensor between colour and monochrome based on available light, without requiring manual configuration.
- Can the QNE-8021R record locally without a network video recorder?
Yes. The camera includes a Micro SD card slot that supports Micro SD, SDHC, and SDXC cards up to 128GB. This allows edge recording directly at the camera, which is useful for network-redundancy setups, remote locations, or installations where a centralised NVR is not part of the system design.
- Is this camera compatible with third-party NVRs, or does it require a Hanwha recorder?
The QNE-8021R is an ONVIF-compliant IP camera, meaning it is broadly compatible with third-party NVRs and VMS platforms that support ONVIF. Full access to Hanwha-specific features such as WiseStream II and the camera’s built-in analytics is typically best achieved using a Wisenet-compatible recorder. This model is part of the Security Wholesalers range, and the team can advise on compatible recorder options for your installation.
