Product SKU: HAN-XNV-8080R
Product Overview

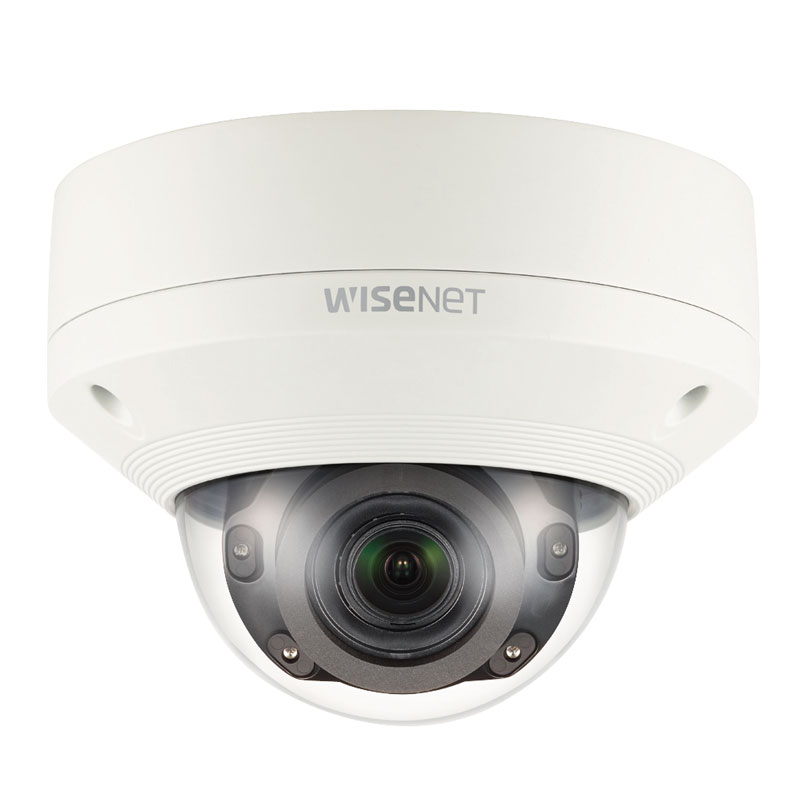

Installers working on commercial projects that require precise scene framing will find the HAN-XNV-8080R a practical dome camera choice for building entrances, covered perimeters, retail ceilings and corridor applications. Built within the Hanwha Wisenet X Series, this 5MP network dome camera features a 3.9-9.4mm motorised varifocal lens, allowing the viewing area to be adjusted during setup rather than fixed at a single angle. Equipped with 50m IR, 120dB WDR and day/night operation with ICR, it supports consistent imaging across scenes with changing or high-contrast lighting. WiseStream II combined with H.265 compression helps reduce bandwidth and storage demand across multi-camera systems. With IP66/IP67 weather protection, IK10 impact resistance and NEMA 4X environmental rating, this model is well suited to demanding outdoor and vandal-prone locations where durability is a core requirement alongside image detail and flexible coverage.
Key Capabilities
5MP Scene Detail
At 2560 x 1920, the 5MP sensor captures enough scene detail for reviewing activity at entrances, counters, corridors and vehicle access points. This is meaningful in commercial dome installations where identifying individuals or reading environmental context matters during playback.
Motorised Varifocal Lens
The 3.9-9.4mm motorised varifocal lens gives installers control over the field of view after the dome is mounted. This makes a real difference in scenarios where the distance to a doorway, counter or monitored zone cannot be confirmed until the camera is in position.
120dB Wide Dynamic Range
The 120dB WDR rating helps the camera handle scenes with strong brightness contrasts, such as an entrance door backlit by daylight. This is useful in retail, foyer and reception ceiling applications where lighting conditions vary throughout the day.
50m IR Night Coverage
With infrared visibility up to 50m and automatic day/night switching via ICR, this dome camera can monitor building perimeters, external walkways and access corridors after dark. It is a practical choice when a single camera needs to cover a longer outdoor approach.
Smart Event Analytics
Built-in analytics include loitering detection, directional detection, queue management, fog detection, sound classification and PTZ handover. These tools reduce reliance on constant manual monitoring by triggering alerts based on defined on-camera behaviours.
Best For
- Commercial building entrances: The IK10 dome housing and 5MP resolution suit main doors, foyers and reception ceilings where both image detail and physical durability are required.
- Retail ceiling installations: 120dB WDR helps manage backlit shopfront conditions, and the adjustable lens lets the installer frame the exact sales floor area needed.
- Exposed outdoor perimeters: IP66/IP67 and NEMA 4X protection support installation on building exteriors, covered walkways and access points subject to weather and environmental conditions.
- Warehouses and loading areas: The motorised varifocal lens is particularly useful where coverage needs to reach a specific bay, lane or dispatch point at a confirmed distance from the mounting position.
Why Choose the HAN-XNV-8080R
The HAN-XNV-8080R offers more installation flexibility than a standard fixed-lens outdoor dome by combining a motorised varifocal lens with confirmed durability ratings and a capable analytics feature set. The 3.9-9.4mm lens range means the coverage zone can be dialled in on-site, reducing the risk of a mismatched field of view after the camera is ceiling or wall mounted. The 120dB WDR, defog support and 50m IR address three common challenges in commercial dome installations: high-contrast lighting, haze and after-hours coverage. WiseStream II with H.265 compression also helps manage data load in larger systems, which matters when planning recorder capacity and network bandwidth. For buyers comparing professional Wisenet X domes available at Security Wholesalers, this model sits in the range where image quality, analytics and weatherproofing converge without requiring a step up to a full PTZ.
Buyer Decision Tips
Buyer Tip: If you are unsure whether to choose this model or a fixed-lens dome, consider whether the installer can determine the exact viewing distance before the camera is mounted. The motorised varifocal lens on the HAN-XNV-8080R is most valuable when that distance is uncertain or likely to change, or when coverage needs to be refined after initial installation without physically moving the camera.
Buyer Tip: The HAN-XNV-8080R includes bi-directional audio support, but audio setup depends on compatible connected hardware, cabling and local regulations around recording. Confirm what audio equipment is required for your system design and check compliance obligations for your state before relying on audio functionality as part of the installation brief.
Key Features & Technical Specifications
| Resolution |
5MP, maximum 2560 x 1920. |
| Camera Series |
Hanwha Wisenet X Series network dome camera. |
| Lens Type |
3.9-9.4mm motorised varifocal lens, 2.4x adjustment range. |
| Frame Rate |
Up to 30fps at full resolution using H.265 or H.264. |
| Video Compression |
H.265, H.264 and MJPEG with multiple stream support. |
| Bandwidth Optimisation |
WiseStream II compression support combined with H.265. |
| Wide Dynamic Range |
120dB WDR for high-contrast lighting environments. |
| Night Vision |
IR viewable length up to 50m. |
| Day/Night |
Automatic day and night switching with ICR. |
| Image Enhancement |
Defog, hallway view mode and lens distortion correction. |
| Video Analytics |
Loitering detection, directional detection, queue management, fog detection, tampering and motion detection. |
| Audio Analytics |
Audio detection and sound classification. |
| Audio Support |
Bi-directional audio support. |
| Tracking / Handover |
Digital auto tracking and PTZ handover support. |
| Edge Storage |
SD, SDHC and SDXC memory card slot, up to 512GB. |
| Power Input |
PoE, 24V AC and 12V DC. |
| Weather Protection |
IP66/IP67 rated for outdoor installation. |
| Impact Rating |
IK10 vandal-resistant dome housing. |
| Environmental Rating |
NEMA 4X rated for demanding and exposed environments. |
| Setup Connectivity |
USB and Wi-Fi connection support for setup with compatible mobile devices. |
Ideal Use Cases
Building Entrances and Foyers
The IK10 dome housing and 120dB WDR are well matched to main entry points where backlighting from glass doors and foot traffic near the camera are both factors in the installation design.
Retail Store Ceilings
The motorised varifocal lens allows scene framing to be adjusted for different retail layouts, while the vandal-resistant dome housing suits customer-facing areas where contact with the camera is possible.
Outdoor Covered Walkways
IP66/IP67 and NEMA 4X ratings support installation on external paths, undercover building access routes and side corridors where weather exposure is a regular condition throughout the year.
Warehouses and Loading Docks
Queue management and loitering detection analytics add value in distribution and logistics environments, while the varifocal lens lets the installer target a specific bay, lane or dispatch zone from the ceiling.
Strata and Common Areas
The IK10-rated dome housing is a suitable choice for shared lobbies, lift landings, stairwells and communal access areas where the camera must withstand contact and still operate in varying light conditions.
Choosing the Right Model
- Choose this model if: You need a 5MP outdoor dome with a motorised varifocal lens, 50m IR, 120dB WDR, IK10 and IP66/IP67 protection, WiseStream II compression and built-in event analytics including loitering and queue detection.
- Choose a different model if: You need mechanical pan and tilt control from a PTZ camera, a lower-cost fixed-lens dome for simple wide-area coverage, or a model with confirmed built-in active deterrence features such as a strobe light or siren.
FAQs
- Is the HAN-XNV-8080R suitable for ceiling mounting in outdoor or semi-outdoor areas?
Yes. The IK10 dome housing, IP66/IP67 rating and NEMA 4X protection make the HAN-XNV-8080R a practical choice for ceiling installation in covered outdoor areas, undercover walkways, building perimeters and exposed commercial locations. The dome profile also suits indoor ceiling mounting in retail, warehousing and public access areas.
- What is the varifocal range on the HAN-XNV-8080R and when does it matter?
The motorised varifocal lens covers 3.9-9.4mm, giving a 2.4x adjustment range. This matters when the installer needs to confirm coverage after the camera is mounted, particularly in commercial environments where the exact distance to the monitored zone changes based on ceiling height, room layout or access point design.
- How does the 120dB WDR benefit dome installations near windows or doors?
The 120dB WDR helps the camera handle scenes where bright daylight enters through glass doors or windows behind the subject being filmed. Without WDR, strong backlight can make faces or approaching individuals appear silhouetted. This is a common challenge in foyer and entrance dome applications where the HAN-XNV-8080R is frequently used.
- What event analytics does the HAN-XNV-8080R support?
Confirmed analytics include loitering detection, directional detection, queue management, fog detection, sound classification, tampering and motion detection, along with digital auto tracking and PTZ handover. These tools are useful in commercial environments where operators want the system to flag specific behaviours rather than review continuous footage manually.
- Does the HAN-XNV-8080R support edge recording?
Yes. The camera includes an SD, SDHC and SDXC memory card slot supporting cards up to 512GB. Edge storage can be useful as a backup recording option or for standalone deployments where a centralised recorder is not part of the system design. Most professional installations pair this camera with a compatible network video recorder for centralised storage and management.
- What power options are available for the HAN-XNV-8080R?
The HAN-XNV-8080R supports PoE, 24V AC and 12V DC power input. PoE is the most common choice for network dome installations as it delivers both data and power over a single Cat cable, simplifying cable runs and reducing the need for separate power supplies at each camera location.
- Who is the HAN-XNV-8080R intended for?
This camera suits security installers and commercial buyers who need a 5MP outdoor vandal dome with a motorised varifocal lens, 50m IR, 120dB WDR, a full durability rating set and on-camera analytics. It is part of the Security Wholesalers range and is best suited to projects where fixed-lens dome cameras cannot provide the framing control required for the installation environment.
Additional Information
No additional downloads available for this product.
