Product SKU: QNV-7012R
Product Overview

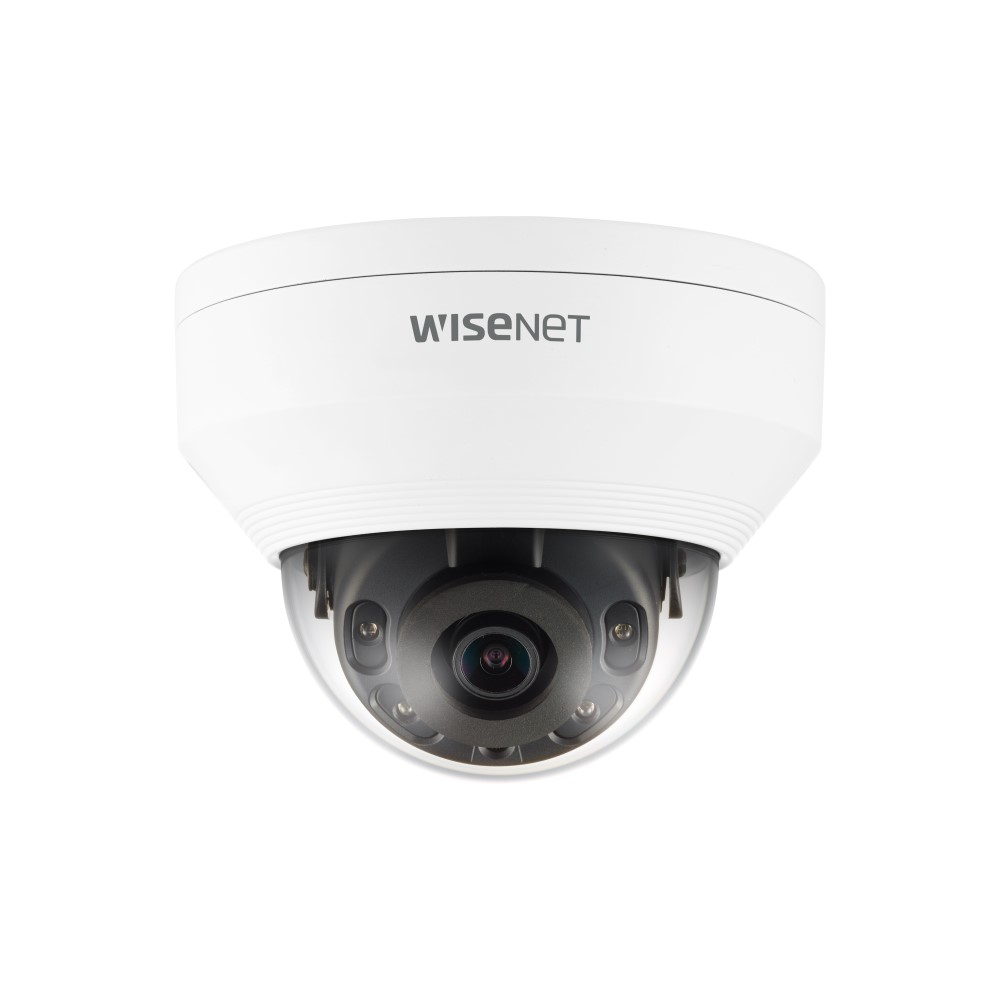

For installers fitting outdoor dome cameras across small to medium commercial sites, the Hanwha Wisenet QNV-7012R delivers a vandal-resistant, IP66-rated housing built to handle exposed wall and ceiling positions where both weather and tampering are genuine concerns. Featuring a 2.8mm fixed lens and 4MP resolution at up to 20fps, the QNV-7012R captures broad-angle views suited to building entrances, car parks, stairwells, and covered walkways. Equipped with 30m IR illumination and 120dB Wide Dynamic Range, it handles both low-light conditions and challenging backlit scenes without manual adjustment. Built with WiseStream compression alongside H.265, the camera can reduce bandwidth requirements by up to 75% compared to standard H.264 streams, keeping storage and network costs in check. It also integrates defocus detection, lens distortion correction, and hallway view mode, making it a well-rounded fixed dome for sites where cabling simplicity and edge storage flexibility through a 128GB microSD slot matter.
Key Capabilities
120dB Wide Dynamic Range
Entrance and lobby positions often combine bright outdoor light with shadowed interiors. The 120dB WDR capability of the QNV-7012R balances these extremes in a single frame, keeping detail visible across both bright and dark areas simultaneously.
30m IR Night Illumination
Built-in IR extends useful coverage to 30 metres in complete darkness, making this dome appropriate for car parks, rear access paths, and undercover areas where ambient lighting cannot be relied upon after hours.
WiseStream + H.265 Compression
WiseStream combined with H.265 encoding reduces bandwidth by up to 75% compared to H.264 alone. For multi-camera sites on constrained networks or recorders with limited storage, this directly reduces infrastructure costs without sacrificing resolution.
IP66 and IK10 Rated Housing
The QNV-7012R carries both IP66 weatherproofing and IK10 vandal resistance, making it suitable for externally mounted positions such as building facades, undercroft ceilings, and semi-exposed corridors where physical interference is a risk.
Defocus Detection and LDC
Defocus detection alerts operators when the image loses clarity due to deliberate interference or environmental fouling. Lens distortion correction automatically corrects wide-angle barrel distortion from the 2.8mm fixed lens, producing cleaner, more proportionate footage.
Best For
- Building Entrances and Lobbies: The 2.8mm wide-angle lens and 120dB WDR handle the contrast between bright outdoor environments and shaded entry areas without manual scene adjustment.
- Exposed Outdoor Wall and Ceiling Mounts: IP66 and IK10 ratings make the QNV-7012R appropriate for positions that face weather, dust, or potential physical contact, including undercover parking structures and external walkway ceilings.
- Bandwidth-Constrained Multi-Camera Sites: WiseStream and H.265 together reduce stream sizes significantly, which matters on sites running many cameras over a shared network or limited-capacity NVR storage.
- Corridor and Hallway Coverage: Hallway view mode rotates the aspect ratio to a vertical orientation, making the 4MP sensor far more efficient at covering long, narrow passages without wasting resolution on irrelevant background area.
Why Choose the QNV-7012R
The QNV-7012R replaces the QNV-7010R and brings confirmed 30m IR range to a compact vandal dome form that still fits standard junction boxes and surface mounts. Where a basic outdoor dome might offer H.264 only, the QNV-7012R delivers WiseStream-enhanced H.265, directly reducing the storage and bandwidth load that accumulates across multiple cameras running 24 hours a day. The 120dB WDR is a meaningful specification for entrance monitoring, where cheaper fixed domes frequently produce blown-out or silhouetted images. The combination of IK10 impact resistance and IP66 sealing means this camera can be mounted in externally exposed positions without requiring an additional housing or canopy. Local recording via the 128GB microSD slot adds edge backup capability if the primary recorder loses connectivity. Available through Security Wholesalers, the QNV-7012R suits system integrators and installers who need a reliable, well-specified fixed dome without stepping up to a higher-cost platform.
Buyer Decision Tips
Fixed Lens vs. Varifocal: The QNV-7012R uses a 2.8mm fixed lens, which provides a wide field of view appropriate for close-range coverage of entrances, counters, and corridors. If your mounting position is further from the subject area, or you need to fine-tune the angle of view after installation, a varifocal dome will give you more flexibility. For positions within 5 to 8 metres of the target area, the 2.8mm lens is generally the right choice.
Key Features & Technical Specifications
| Model |
QNV-7012R |
| Resolution |
4MP |
| Lens |
2.8mm fixed |
| Frame Rate |
Max 20fps at 4MP, Max 30fps at 2MP (H.265/H.264) |
| Video Codec |
H.265, H.264, MJPEG – multiple streaming supported |
| Compression |
WiseStream – up to 50% bandwidth reduction, up to 75% combined with H.265 |
| Wide Dynamic Range |
120dB |
| IR Range |
30m |
| Analytics |
Motion detection, tampering, defocus detection |
| Special Features |
Hallway view, Lens Distortion Correction (LDC) |
| Local Storage |
microSD/SDHC/SDXC – max 128GB |
| Power |
PoE / 12V DC |
| Weatherproof Rating |
IP66 |
| Vandal Rating |
IK10 |
| Replaces |
QNV-7010R |
Ideal Use Cases
Commercial Building Entrances
The 120dB WDR manages the high-contrast lighting typical of entry points, where outdoor brightness and interior shadows would otherwise produce unusable footage. The 2.8mm lens captures a broad view of the doorway and approach area.
Undercover Car Parks
IP66 and IK10 ratings allow ceiling mounting in undercover car park structures where the camera faces humidity, vehicle exhaust, and potential contact. The 30m IR range provides coverage through unlit bays after hours.
Stairwells and Corridors
Hallway view mode makes the QNV-7012R particularly well-suited to narrow vertical spaces. Rotating to a portrait aspect ratio focuses the 4MP resolution on the length of the corridor rather than wasting it on side walls.
Retail and Small Business Premises
The dome profile is unobtrusive in retail environments. WiseStream and H.265 keep network bandwidth and storage demands low across multi-camera shopfront installations where internet uplink speed may be limited.
External Wall Mounting on Exposed Facades
The IK10 vandal-resistant housing and IP66 weatherproofing allow direct outdoor mounting on building walls without a supplementary enclosure, reducing installation complexity and hardware costs on small to medium commercial projects.
Choosing the Right Model
- Choose this model if: Your mounting position is within approximately 5 to 8 metres of the subject, you need a wide field of view from a fixed 2.8mm lens, and the site benefits from IK10 vandal resistance and IP66 outdoor sealing without a separate enclosure.
- Choose a different model if: Your camera position is far from the subject area and you need to adjust the angle of view after installation – a varifocal dome would give you that flexibility without repositioning the mount. If your site requires longer IR reach beyond 30 metres, a bullet-style camera with a more powerful IR array would be more appropriate for that application.
FAQs
- What is the difference between the QNV-7012R and the QNV-7010R it replaces?
The QNV-7012R is the updated replacement for the QNV-7010R. The product name confirms a 30m IR range for the QNV-7012R. The QNV-7010R carried a 20m IR specification. The core form factor, lens options, and feature set of the product family remain consistent, making the QNV-7012R a direct upgrade path for existing installations.
- Is the QNV-7012R suitable for outdoor mounting without a separate weatherproof enclosure?
Yes. The QNV-7012R carries an IP66 weatherproof rating, meaning it is sealed against dust ingress and powerful water jets. Combined with IK10 vandal resistance, it can be mounted directly on exterior walls and undercover ceilings without requiring an additional protective housing.
- What does hallway view mode do on the QNV-7012R?
Hallway view rotates the camera’s output to a vertical aspect ratio, typically 9:16, instead of the standard 16:9 widescreen format. This concentrates the 4MP sensor resolution along the length of a narrow corridor or stairwell rather than capturing wide areas of wall on either side that contain no useful information.
- How much does WiseStream actually reduce storage requirements?
WiseStream dynamically adjusts the bitrate based on scene complexity, applying higher compression during periods of low motion and preserving detail when activity occurs. When combined with H.265, Hanwha states bandwidth savings of up to 75% compared to standard H.264. In practical terms, this can significantly extend how many days of footage a given storage device retains before overwriting.
- Can the QNV-7012R record locally without a network video recorder?
Yes. The camera includes a microSD/SDHC/SDXC card slot supporting cards up to 128GB. This allows edge recording directly on the camera, which is useful as a backup if the primary recorder loses connection, or as a standalone local recording solution for small single-camera applications.
- What power options does the QNV-7012R support?
The QNV-7012R supports both PoE (Power over Ethernet) and 12V DC power. PoE simplifies installation by carrying both data and power over a single Cat5e or Cat6 cable run, removing the need for a separate power supply at the camera position. This is the most common installation method used with compatible PoE switches or NVRs. The QNV-7012R is part of the Security Wholesalers range of Hanwha Wisenet cameras, supplied with full Australian distributor support.
