Hanwha Vision XNV-A6084R X-Series 2MP AI IR Vandal Dome Camera

$1,129.65

FREE DELIVERYWARRANTY GUARANTEED

SW ADVANTAGE✓ Trade-Price Verified✓ Priority Tech Support✓ Dedicated After-Sales Support✓ Easy Returns & Warranty

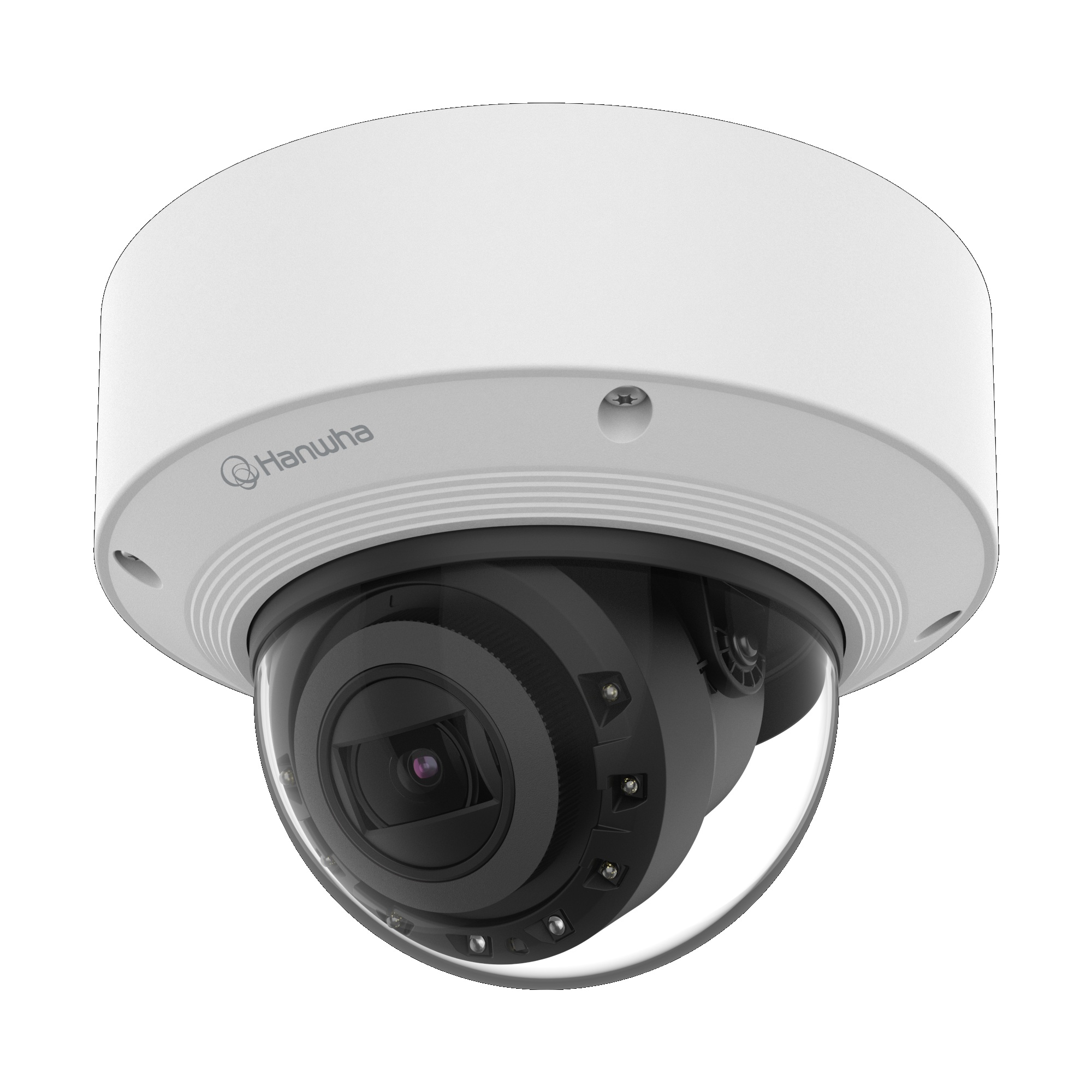

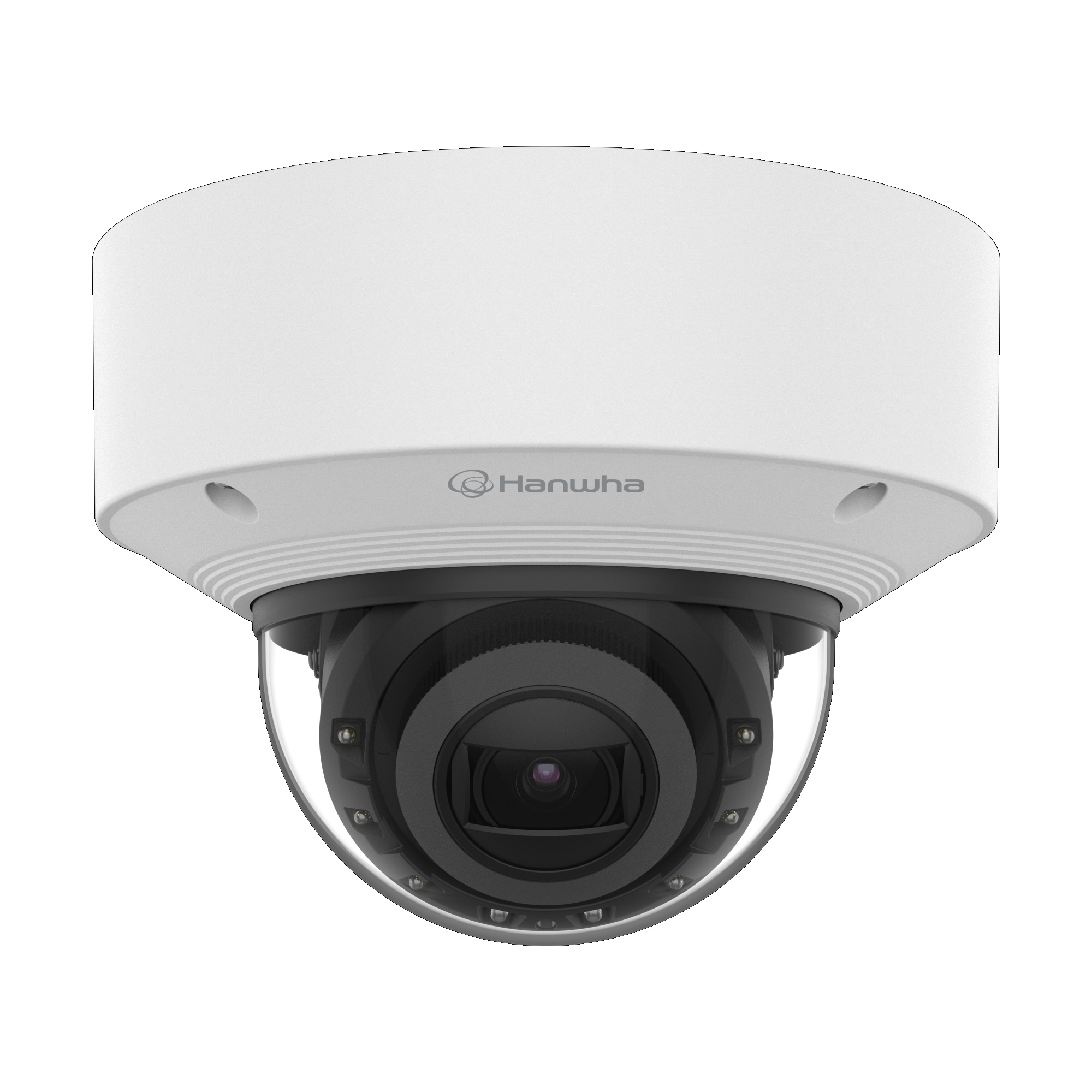

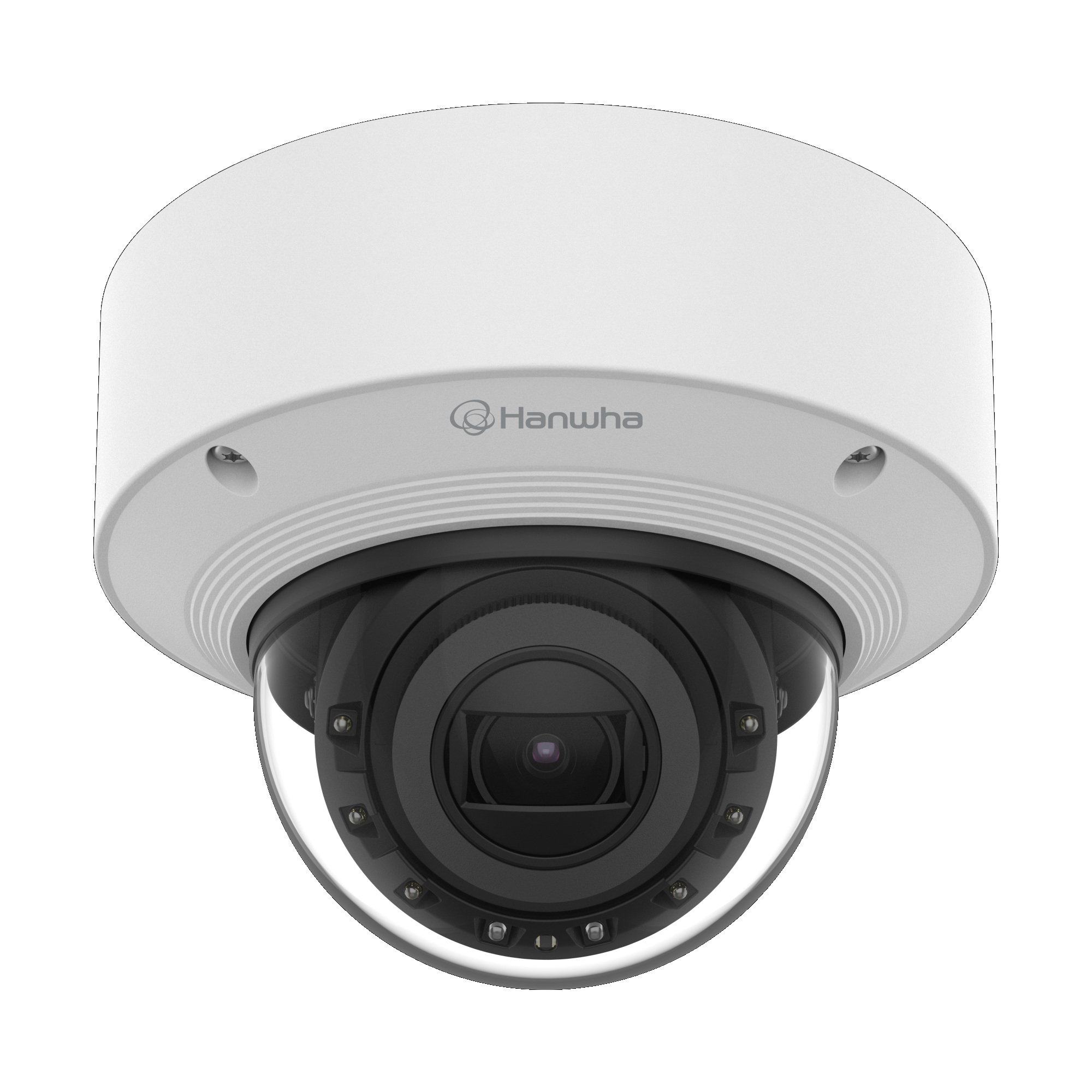

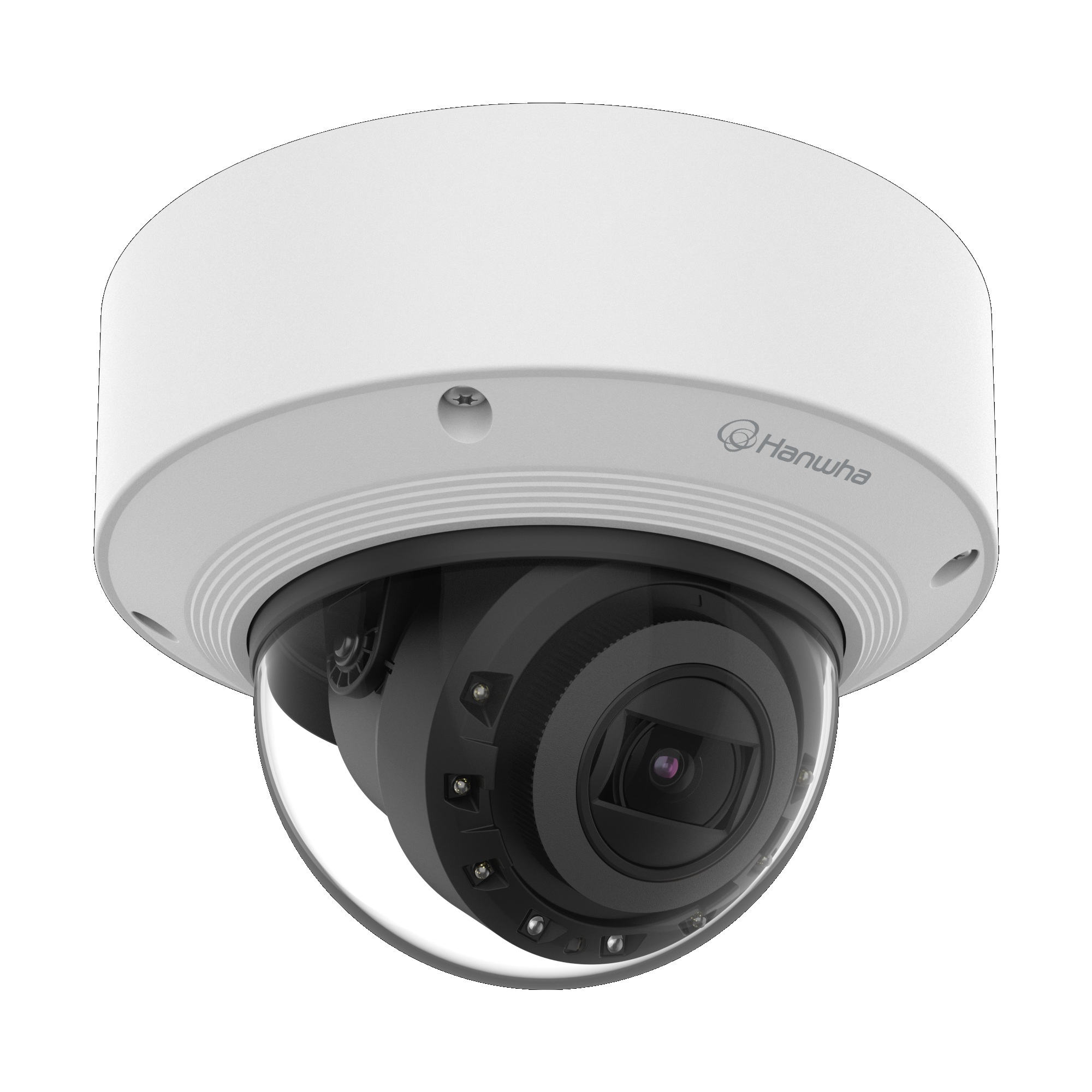

Hanwha Vision XNV-A6084R X-Series | 2MP AI IR Vandal Dome | 2.8-12mm Motorised Varifocal | 40m IR | IP67 IK10

The Hanwha Vision XNV-A6084R delivers a high-performance 2MP AI-powered vandal dome camera designed for advanced surveillance in commercial and critical infrastructure environments. Featuring a 2.8-12mm motorised varifocal lens, it provides a flexible field of view with clear Full HD video at up to 60fps. Powered by dual NPU technology, it supports AI-driven analytics including person, vehicle, face and licence plate detection, along with behavioural events such as intrusion, loitering and direction detection. WiseIR provides up to 40m infrared night vision, and the rugged IP66/IP67, IK10 and NEMA-rated housing ensures reliable operation in harsh outdoor conditions.

Key Features

2MP Full HD at 60fps: Captures sharp, detailed video at up to 60 frames per second for smooth motion reproduction.
Motorised Varifocal Lens: 2.8-12mm motorised zoom allows remote adjustment of the field of view without physical access to the camera.
Dual NPU AI Analytics: Detects people, vehicles, faces and licence plates, with behavioural analysis including intrusion, loitering and direction detection.
WiseIR Night Vision: Adaptive infrared illumination delivers up to 40m of clear night vision with reduced overexposure at close range.
Rugged Weatherproof Housing: IP66/IP67 and IK10-rated enclosure with NEMA certification suits demanding outdoor and industrial installations.
Vandal Resistant Construction: IK10 impact-rated dome housing withstands physical interference in high-risk or public-facing locations.

Additional Information

Hanwha Vision XNV-A6084R Datasheet

$1,129.65 inc GST +3 Year Warranty & Support

Description

Product SKU: XNV-A6084R

Product Overview

For commercial buildings, critical infrastructure sites and high-traffic corridors that demand more than basic motion detection, the XNV-A6084R from Hanwha Vision delivers AI-driven surveillance in a vandal-resistant dome housing. Built on the Wisenet 9 platform with a dual neural processing unit architecture, this 2MP camera separates image processing from analytics workloads so both operate at full capacity simultaneously. Featuring a 2.8-12mm motorised varifocal lens with 4.3x optical zoom, installers can dial in coverage from wide lobby views to narrower entrance monitoring without physically repositioning the camera. WiseIR provides infrared illumination to approximately 40m, and the 150dB WDR sensor handles challenging lighting conditions such as backlit doorways or mixed artificial and natural light. The housing carries IP66, IP67, IK10 and NEMA ratings, making this dome camera appropriate for exposed ceiling positions in both covered outdoor areas and demanding indoor environments where tampering or impact is a genuine concern.

Key Capabilities

Dual NPU Architecture

The Wisenet 9 platform uses 2 independent neural processing units, one dedicated to image quality and one to AI analytics. This means detection accuracy and video clarity are maintained concurrently without competing for processing resources, which matters in busy scenes.

AI Object and Behaviour Analytics

Classifies persons, vehicles, faces and licence plates, and supports behavioural event types including intrusion detection, loitering and direction detection. These event categories allow integrators to configure targeted alerts rather than relying on broad pixel-change triggers.

Motorised Varifocal Lens

The 2.8-12mm motorised lens with 4.3x optical zoom allows remote adjustment of field of view after installation. Installers working on ceiling-mounted dome positions in corridors or at building entrances can fine-tune zoom and focus from the management interface without ladder access.

WiseIR Night Illumination

Integrated infrared LEDs provide usable illumination to approximately 40m, with WiseIR technology adjusting IR intensity as subjects move closer to prevent overexposure, which keeps face and vehicle detail visible across the full IR range.

IK10 Vandal-Resistant Housing

The dome housing is rated IK10, meaning it withstands significant direct impact force. Combined with IP66 and IP67 weather sealing and a NEMA classification, the XNV-A6084R is suited to exposed ceiling positions in car parks, industrial facilities and public-facing building entries.

Best For

Commercial Building Corridors and Lobbies: The dome form factor mounts flush to ceilings and is difficult to manually redirect, while the motorised lens allows the field of view to be adjusted to suit corridor length or lobby width without disturbing the installation.
Retail and Shopping Centre Environments: AI classification of persons and vehicles, combined with loitering and intrusion detection, supports targeted event monitoring in large retail floor spaces, stockrooms and loading areas.
Industrial and Critical Infrastructure Sites: The IP67 and IK10 ratings allow ceiling or overhead mounting in areas subject to dust, moisture and physical impact, such as manufacturing floors, warehouse entries and utility facilities.
Covered Outdoor Positions: Eave-mounted or canopy-ceiling positions benefit from the combined weather and vandal ratings, with 40m WiseIR covering car park entries, loading docks and perimeter walkways that lack adequate artificial lighting at night.

Why Choose the XNV-A6084R

The XNV-A6084R stands apart from standard 2MP dome cameras by combining a dual NPU processor, a motorised varifocal lens and a full suite of AI behavioural analytics in a single IK10-rated housing. Most entry-level dome cameras at this resolution use single-core processors that force a trade-off between image processing and analytics performance. The Wisenet 9 platform eliminates that trade-off, making face detection and licence plate recognition usable alongside real-time video streaming at up to 60fps. The 150dB WDR capability also exceeds what most 2MP vandal domes offer, making it practical in high-contrast lighting conditions such as glazed building facades or mixed-light retail environments. Available through Security Wholesalers, the XNV-A6084R is suited to integrators and security managers who need verified AI analytics and installation flexibility without moving to a larger or more complex camera body.

Buyer Decision Tips

Lens Range and Scene Depth: The 2.8-12mm motorised varifocal range covers most corridor and lobby scenarios, but buyers monitoring very long approaches such as extended warehouse aisles or deep car parks beyond 30-40m should check that the narrower end of the zoom range still captures enough width at their target distance. At 12mm the field of view narrows significantly, so confirm scene geometry before specifying this camera for tight long-distance applications.

PoE Power Budget: The XNV-A6084R draws power over PoE at IEEE 802.3af standard (up to 15.4W per port). Verify that your NVR or PoE switch supplies 802.3af on every port this camera will occupy. If your switch only provides a subset of ports at full 802.3af budget, plan port allocation before installation rather than after.

Key Features & Technical Specifications

Resolution	2MP (1920 x 1080)
Image Sensor	1/2.8″ CMOS
Lens Type	Motorised varifocal
Focal Length	2.8-12mm (4.3x optical zoom)
Frame Rate	Up to 60fps
IR Night Vision Range	Up to approximately 40m (WiseIR)
Wide Dynamic Range	150dB
AI Platform	Wisenet 9 with dual NPU
AI Object Detection	Person, vehicle, face, licence plate
Behavioural Analytics	Intrusion detection, loitering, line crossing, direction detection
Video Compression	H.265, H.264, MJPEG
Power Supply	PoE IEEE 802.3af
Weather Rating	IP66, IP67, NEMA
Vandal Resistance	IK10
Housing Type	Vandal dome

Ideal Use Cases

Building Corridors and Stairwells

The ceiling-flush dome profile discourages manual tampering and the motorised varifocal lens can be adjusted remotely to match corridor length, while the IK10 housing protects against accidental or deliberate impact in shared building access areas.

Retail Stockrooms and High-Value Display Areas

AI classification of persons and vehicles, combined with loitering detection, allows targeted event alerts in retail environments where standard motion detection generates high volumes of irrelevant triggers from normal customer movement.

Car Park Entries and Covered Walkways

WiseIR reaching approximately 40m supports monitoring of parking entries and covered approaches without supplemental lighting. IP67 and NEMA ratings protect against water ingress in open-sided car park structures exposed to weather.

Industrial Facilities and Warehouses

The IK10-rated dome housing withstands the environmental demands of warehouse and manufacturing settings, while AI vehicle detection supports monitoring of forklift movement and access control compliance in operational areas.

Critical Infrastructure and Utility Sites

Intrusion detection and direction analytics allow security teams at utilities, substations and secure facilities to define virtual boundaries and receive directional movement alerts, reducing reliance on manual video review for perimeter compliance.

Choosing the Right Model

Choose this model if: You need AI object classification (person, vehicle, face, licence plate) and behavioural event detection in a vandal-resistant dome with motorised varifocal flexibility, where the ceiling-mount dome profile suits the installation and 2MP resolution at up to 60fps meets your recording and identification requirements.
Choose a different model if: Your application requires higher resolution than 2MP for long-distance facial identification or forensic-quality number plate capture at extended distances. A higher-megapixel dome or a camera with a longer fixed focal length may be better suited to those specific requirements.
Choose a different model if: You need wide-area panoramic coverage from a single ceiling point. A fisheye or multi-sensor camera would reduce the number of installation positions needed to cover a large open floor area compared to a single-lens varifocal dome.

FAQs

What is the difference between a single NPU and the dual NPU in the XNV-A6084R?
A single NPU must share processing capacity between image quality tasks and analytics, which can cause one to degrade the other in demanding scenes. The Wisenet 9 dual NPU in the XNV-A6084R assigns a dedicated processor to each workload, so AI detection accuracy and video clarity at up to 60fps both operate at full capacity simultaneously.
Can the motorised varifocal lens be adjusted after installation without accessing the camera physically?
Yes. The 2.8-12mm motorised lens supports remote zoom and focus adjustment through the camera’s management interface. This is particularly useful for ceiling-mounted dome positions in high or hard-to-reach locations, where physically repositioning the camera after installation would require additional labour.
What AI events can the XNV-A6084R detect?
The camera supports object classification for persons, vehicles, faces and licence plates. Behavioural analytics include intrusion detection, loitering detection, line crossing and direction detection. These event types can be configured to trigger alerts so operators receive targeted notifications rather than generic motion alerts.
How does the 150dB WDR benefit dome camera installations in commercial buildings?
Lobbies, reception areas and glazed building entrances often combine bright daylight from windows with darker interior zones in the same frame. The 150dB wide dynamic range balances exposure across these high-contrast areas so both the bright background and the darker foreground subjects remain visible and usable in the recorded footage.
Is the XNV-A6084R suitable for exposed outdoor ceiling positions?
Yes. The IP66 and IP67 ratings protect against dust ingress and water immersion, while the NEMA rating covers additional environmental exposure categories. Combined with IK10 vandal resistance, this dome is appropriate for covered outdoor positions such as eave mounting, open-sided car park ceilings and external building entry overhangs.
What PoE standard does this camera require?
The XNV-A6084R is powered by PoE to the IEEE 802.3af standard, which supplies up to 15.4W per port. Confirm that your NVR or PoE switch provides 802.3af on the specific ports allocated to this camera. Some budget switches only deliver full PoE budget on a subset of their total ports, which can cause under-powering if not checked before installation.
Where can I source the XNV-A6084R in Australia?
The XNV-A6084R is part of the Security Wholesalers range, supplied as part of the Hanwha Vision X Series product line. The datasheet is available for download from the product listing to support specification and tender documentation. Contact the Security Wholesalers team for pricing, availability and project quantity enquiries.
