Product SKU: XNP-C9253R
Product Overview

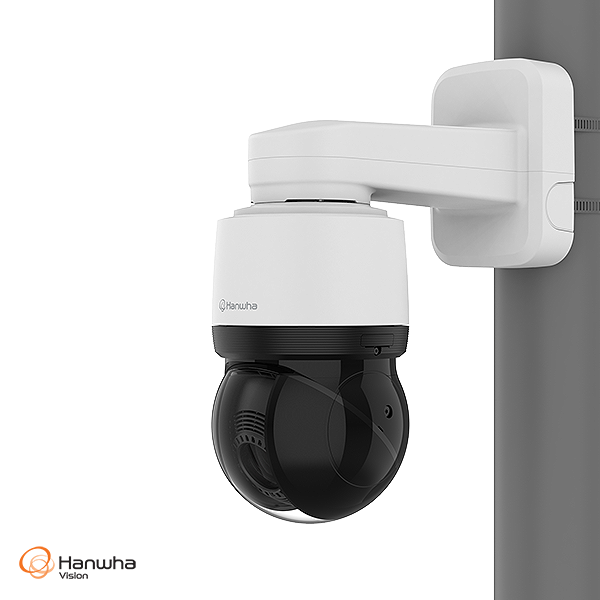

Large outdoor areas, sprawling campuses, and critical infrastructure perimeters demand more than a fixed camera can offer, and the Hanwha Vision XNP-C9253R is built specifically to meet that demand. This 8MP 4K PTZ camera combines 25x optical zoom across a 5-125mm lens range with 200m infrared illumination, enabling operators to shift instantly from wide-area surveillance to close-range identification without repositioning equipment. Featuring AI-based object detection for persons and vehicles, intelligent auto-tracking, and a full IVA analytics suite covering intrusion, loitering, line crossing, and directional detection, the XNP-C9253R moves beyond passive recording toward active perimeter management. Gyro-based digital image stabilisation maintains image integrity on pole or rooftop installations where vibration is a factor. Built to IP66, IK10, and NEMA 4X standards, it is engineered for Australian outdoor conditions including coastal and industrial environments. Dual microSD slots provide onboard edge recording as a backup or standalone option.
Key Capabilities
8MP 4K Resolution
At 3840 x 2160, the XNP-C9253R captures enough detail at distance to support identification of individuals and vehicles across wide outdoor areas. This resolution advantage becomes critical when zoomed into perimeter zones or entry points where recognition matters.
25x Optical Zoom (5-125mm)
The 25x optical zoom range lets operators move smoothly from a wide scene overview to tight close-ups without image degradation. Combined with up to 32x digital zoom, this camera covers everything from broad situational awareness to fine detail capture across a single unit.
200m Infrared Night Vision
High-power IR illumination reaches up to 200m, maintaining usable image quality in complete darkness across large open spaces. This range suits perimeter fence lines, industrial yards, and open car parks where ambient lighting is absent or unreliable.
AI Auto-Tracking
Once a person or vehicle is detected, the XNP-C9253R locks on and follows the target autonomously using its AI engine. This removes the need for a dedicated operator to manually steer the camera during an active incident, improving event capture in large outdoor environments.
IVA Analytics Suite
Onboard intelligent video analytics include intrusion detection, virtual line crossing, loitering detection, directional detection, and enter/exit area monitoring. These rules can be configured to trigger alerts based on specific behaviours, making the camera an active part of a site security response plan.
Triple-Rated Outdoor Protection
IP66 weatherproofing, IK10 impact resistance, and NEMA 4X corrosion protection combine to make this PTZ suitable for exposed rooftop, pole, and wall installations in harsh conditions including coastal salt-air environments common across Australian industrial and infrastructure sites.
Best For
- Large Perimeter Monitoring: The 25x optical zoom and 360-degree endless pan allow a single XNP-C9253R to patrol and inspect a wide perimeter without requiring multiple fixed cameras covering the same area.
- Unlit or Poorly Lit Outdoor Zones: With 200m IR range, this PTZ maintains effective night vision across large open areas such as industrial yards, transport depots, or open car parks where artificial lighting is limited.
- Active Incident Tracking: Sites requiring a camera that can autonomously follow detected persons or vehicles during an event benefit from the AI auto-tracking capability without needing a dedicated control room operator.
- Harsh and Coastal Environments: IP66, IK10, and NEMA 4X ratings make this camera appropriate for coastal facilities, industrial plants, and exposed infrastructure where standard cameras would be unsuitable.
- Council, Campus, and Public Infrastructure: The combination of 4K identification capability, AI detection, and wide PTZ coverage suits councils, schools, and transport authorities monitoring large public spaces with multiple access points.
Why Choose the XNP-C9253R
The XNP-C9253R separates itself from lower-tier PTZ cameras through the combination of 4K resolution and 25x optical zoom operating together. Many PTZ cameras at this zoom range use lower-resolution sensors that limit identification quality at full extension. Here, the 8MP sensor retains enough detail for person and vehicle identification even at maximum zoom distance. The AI auto-tracking and IVA analytics suite are onboard, not cloud-dependent, meaning they function without reliance on external processing infrastructure. The triple protection rating of IP66, IK10, and NEMA 4X goes beyond the minimum outdoor standard and addresses real-world demands of pole-mounted and rooftop installations in variable Australian climates. Dual microSD slots add recording resilience at the edge. For integrators and end users evaluating long-range PTZ options, the XNP-C9253R is available through Security Wholesalers as part of the Hanwha Vision Q Series range.
Buyer Decision Tips
PoE++ Power Requirement: The XNP-C9253R requires PoE++ to IEEE 802.3bt standard. Standard PoE (802.3af) and PoE+ (802.3at) switches will not supply sufficient power to operate this camera. Before ordering, confirm that your network switch or injector supports 802.3bt. If your existing infrastructure is 802.3at only, a dedicated 802.3bt injector will be required for each camera. This is one of the most common installation errors with this class of PTZ and should be resolved during planning rather than on site.
Mounting Position and IR Performance: For maximum 200m IR effectiveness, mount the XNP-C9253R so that the IR beam is not immediately reflected by nearby surfaces such as walls, signage, or vegetation within the first few metres. Pole and parapet wall mounts positioned with clear foreground space will deliver the most consistent night-time performance. In exposed environments, include surge protection at the cable entry point to protect both the camera and the PoE++ switch from transient voltage events.
Key Features & Technical Specifications
| Image Sensor |
1/2.8″ CMOS |
| Resolution |
8MP (3840 x 2160) |
| Optical Zoom |
25x |
| Digital Zoom |
Up to 32x |
| Focal Length |
5-125mm |
| IR Illumination Range |
Up to 200m |
| WDR |
Extreme WDR |
| Pan Range |
360° Endless |
| Tilt Range |
-20° to 90° |
| Video Compression |
H.265 / H.264 / MJPEG |
| Smart Codec |
WiseStream II |
| AI Detection |
Person / Vehicle |
| Video Analytics |
IVA suite – intrusion, line crossing, loitering, directional, enter/exit |
| Image Stabilisation |
Gyro-based Digital Image Stabilisation (DIS) |
| Weather Rating |
IP66 |
| Impact Rating |
IK10 |
| Corrosion Rating |
NEMA 4X |
| Power Input |
PoE++ (IEEE 802.3bt) |
| Local Storage |
Dual microSD slots |
Ideal Use Cases
Industrial Site Perimeters
Factories, refineries, and mining facilities with long open fence lines benefit from the 25x zoom and 200m IR, allowing a single camera to monitor extended boundary sections and zoom in on specific areas of interest without relocating the unit.
School and University Campuses
Large open grounds with multiple access paths are well suited to PTZ coverage. AI auto-tracking and IVA analytics allow the XNP-C9253R to flag after-hours intrusions and follow detected persons across campus grounds without constant manual oversight.
Transport Depots and Rail Yards
The 360-degree endless pan and 4K resolution make this PTZ appropriate for transport infrastructure where vehicles and personnel move across large areas. Loitering and directional detection analytics add a behavioural layer to monitoring busy depot environments.
Council and Public Space Monitoring
Parks, civic plazas, and public infrastructure benefit from a PTZ that can cover wide areas while delivering identification-quality footage when needed. The IVA analytics suite supports configurable alert zones without requiring dedicated staff to watch live feeds continuously.
Open Car Parks and Retail Precincts
Multi-level and open-deck car parks with poor lighting at night are served by the 200m IR range combined with AI detection. A single XNP-C9253R on a central pole can cover zones that would otherwise require several fixed cameras with overlapping fields of view.
Coastal and Harsh-Environment Installations
Marine facilities, coastal councils, and waterfront infrastructure expose cameras to salt-laden air and moisture. The NEMA 4X corrosion rating, combined with IP66 weather sealing and IK10 impact resistance, makes the XNP-C9253R one of the few PTZ options rated for these conditions.
Choosing the Right Model
- Choose this model if: Your site requires long-range PTZ coverage with 4K identification capability, AI auto-tracking, and triple-rated outdoor protection across a large perimeter, campus, or open industrial area where a fixed camera cannot provide both wide overview and close identification from a single mounting point.
- Choose a different model if: Your installation is a fixed indoor zone or a defined outdoor area that does not require pan-tilt movement. A fixed or varifocal turret or bullet camera will provide more cost-effective coverage for static fields of view, and will not carry the PoE++ power requirement that this PTZ demands.
- Choose a different model if: Your existing PoE infrastructure is 802.3af or 802.3at only and you cannot add 802.3bt injectors. This camera cannot be powered by standard PoE or PoE+ and will not operate with those power sources regardless of switch capability.
FAQs
- What PoE standard does the XNP-C9253R require, and why does it matter?
This camera requires PoE++ to the IEEE 802.3bt standard. Standard PoE (802.3af) delivers up to 15.4W and PoE+ (802.3at) delivers up to 30W, neither of which is sufficient for a motorised PTZ with IR illuminators at this scale. A 802.3bt-capable switch or a dedicated 802.3bt injector must be in place before installation. Confirming this during design phase avoids on-site delays.
- How does the AI auto-tracking work, and does it require operator input?
The XNP-C9253R uses its onboard AI engine to detect persons or vehicles within the scene and then automatically steers the PTZ to follow the target as it moves. Once tracking is engaged, the camera operates autonomously without needing a control room operator to manually pan or tilt. This is particularly useful during after-hours events where continuous staffed monitoring is not practical.
- What analytics rules can be configured on this camera?
The onboard IVA suite supports intrusion detection, virtual line crossing, loitering detection, directional detection, and enter/exit area monitoring. These rules are configured to specific zones within the camera’s field of view and can trigger alerts or recordings based on defined behaviours, rather than any motion event.
- Is the 200m IR range achievable in all installation conditions?
The 200m IR specification is achievable under optimal conditions, which include minimal foreground obstructions and no highly reflective surfaces close to the lens that could cause IR wash-out. Installing the camera with clear foreground space and ensuring the beam is directed across the area being monitored rather than toward nearby walls will deliver the most consistent night-time range.
- Does gyro-based image stabilisation make a practical difference on pole mounts?
Yes. Pole and rooftop mounts are exposed to wind loading and vibration from nearby machinery or traffic, which can cause noticeable image blur on cameras without stabilisation. The XNP-C9253R’s Digital Image Stabilisation compensates for this movement in real time, maintaining usable image quality without requiring the pole itself to be over-engineered to eliminate all vibration.
- Can the XNP-C9253R integrate with third-party NVRs and VMS platforms?
Yes. The camera supports ONVIF and standard video codecs including H.265 and H.264, enabling integration with most professional network video recorders and video management software platforms. For full access to AI analytics and WiseStream II codec optimisation, a Hanwha-compatible NVR or VMS is recommended, as third-party systems may not expose all onboard features through their interface.
- What does the dual microSD slot configuration provide in practice?
The 2 microSD slots allow for edge recording directly on the camera, independent of any NVR or network connection. This provides a fallback recording source if network connectivity is interrupted, or can be used as a primary recording method in remote locations where running cable to a centralised recorder is not feasible. Card capacity and recording duration will depend on resolution settings and compression applied. Security Wholesalers can advise on suitable card specifications for this camera.
