Product SKU: XNP-C8303RW
Product Overview

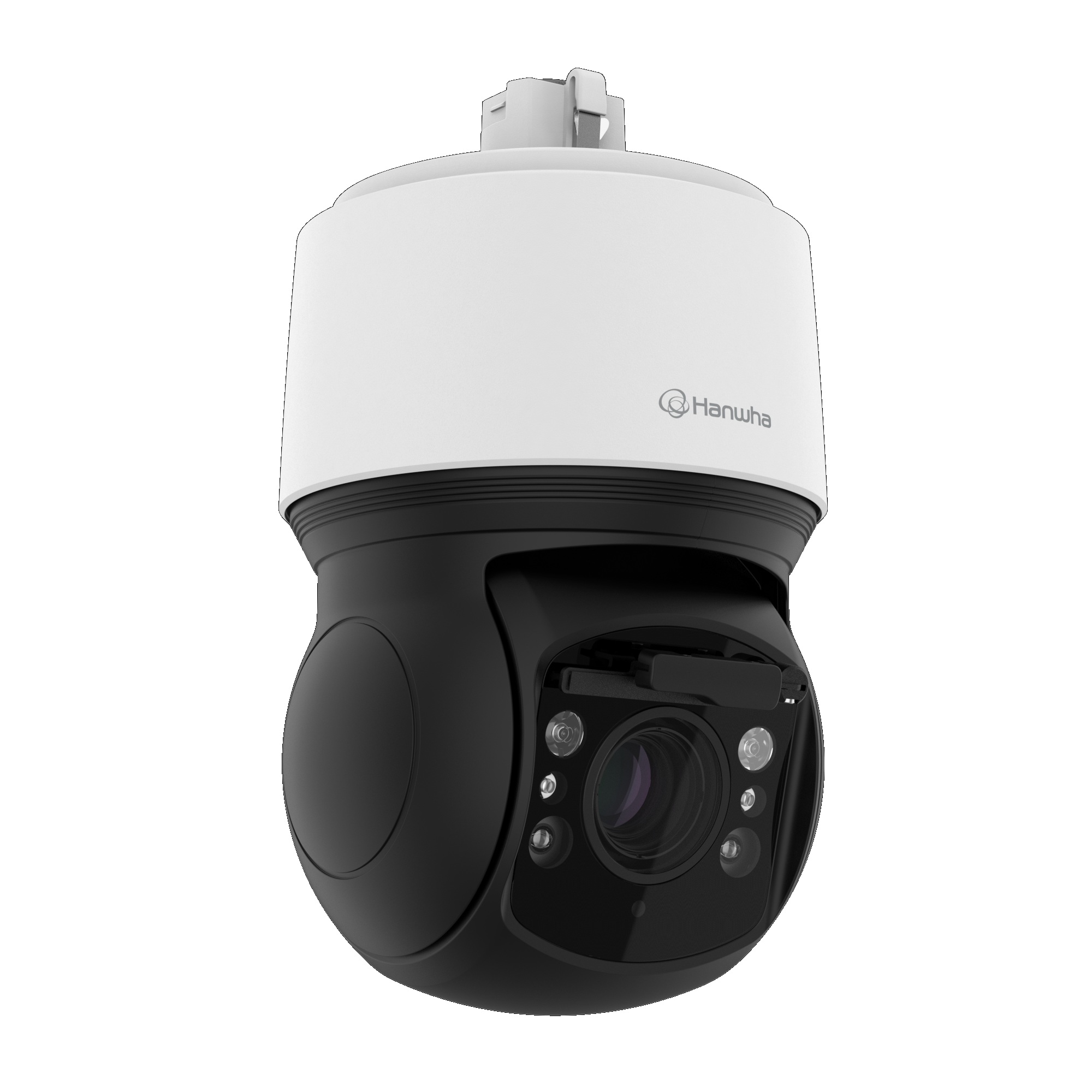

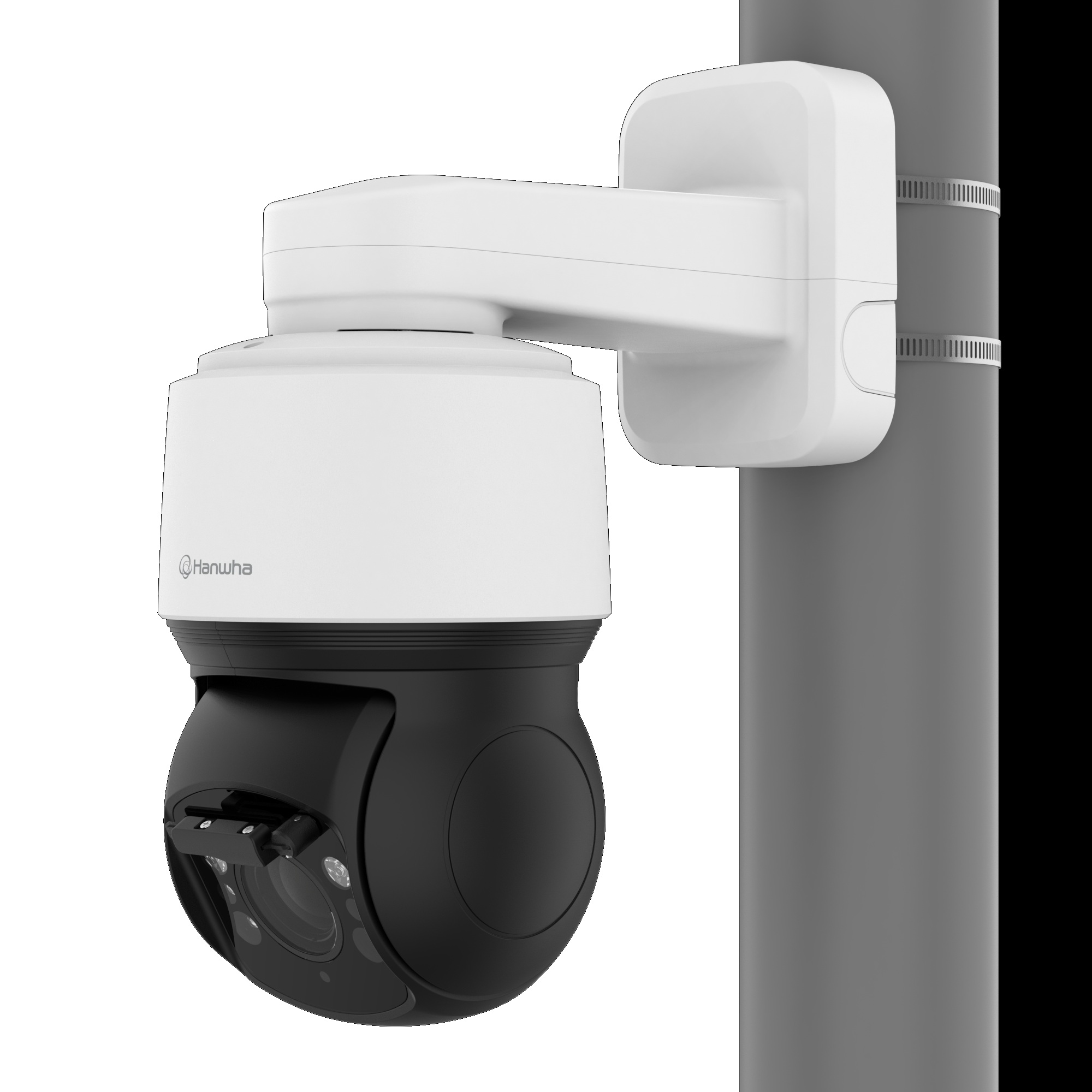

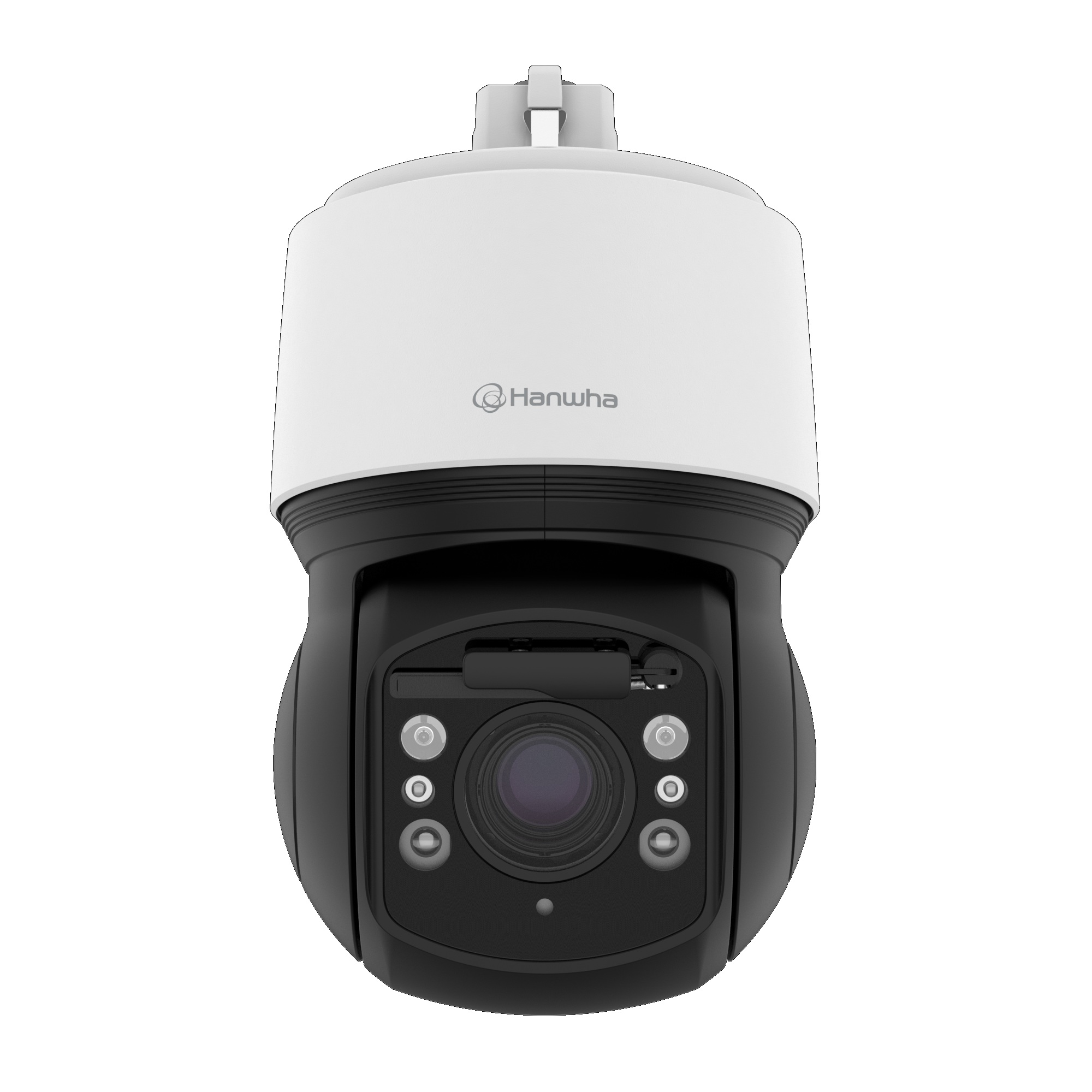

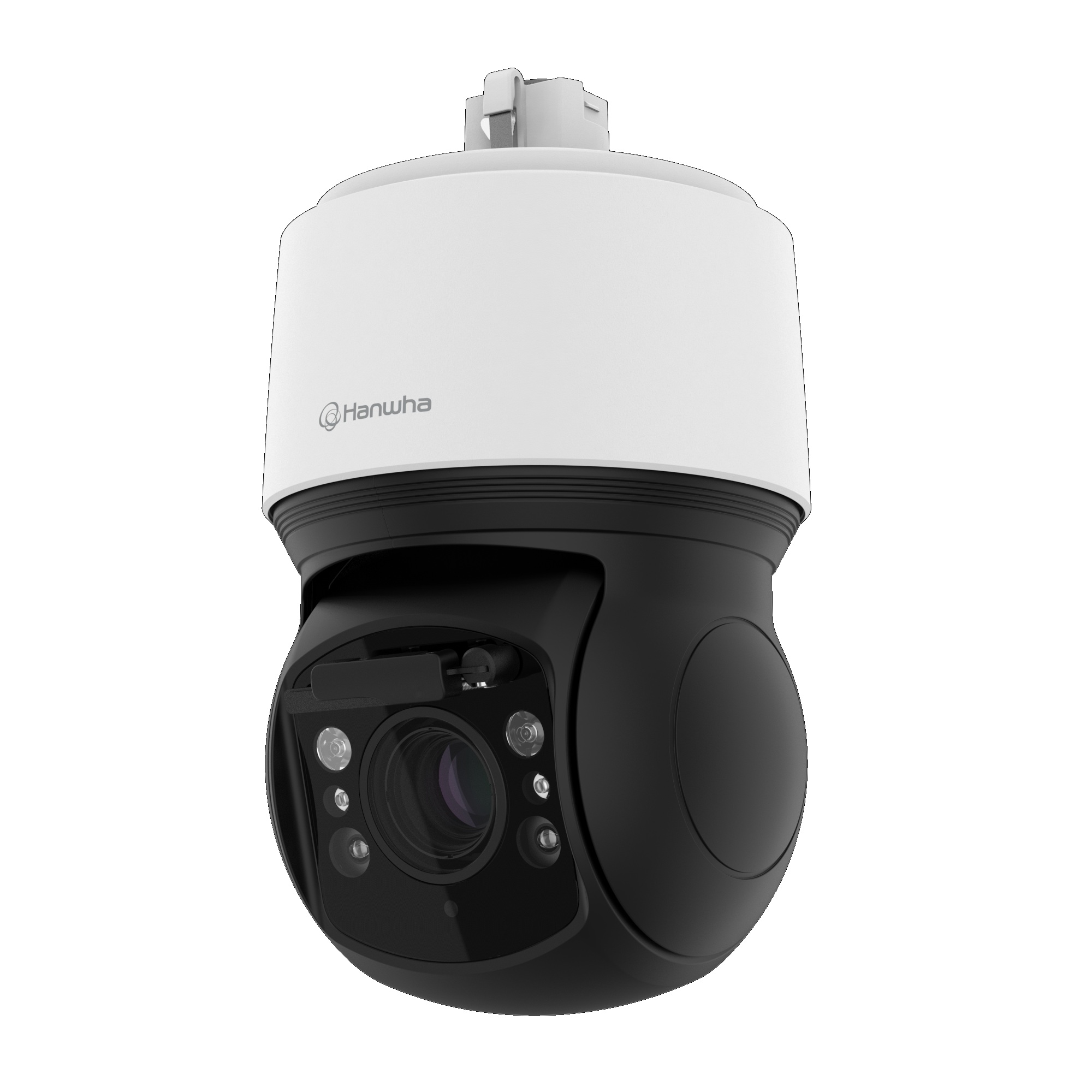

Large outdoor spaces that demand both panoramic sweep and pinpoint zoom require more than a fixed camera can deliver. The Hanwha Vision XNP-C8303RW is a 6MP AI PTZ camera powered by the Wisenet7 chipset, purpose-built for continuous outdoor surveillance in demanding environments such as industrial sites, transport hubs, city precincts and large commercial properties. Featuring a 30x optical zoom lens spanning 5 to 150mm, it enables operators to monitor broad open areas and then close in on specific activity with precision. Integrated infrared illumination reaches up to 200m in complete darkness, while a built-in wiper and lens heater maintain image clarity through rain, snow and heavy dust. AI analytics on board support detection and classification of people, vehicles, faces and licence plates, with intelligent auto-tracking and target lock tracking for real-time monitoring without constant manual input. The housing carries IP66, IK10 and NEMA4X ratings for long-term outdoor deployment.
Key Capabilities
30x Optical Zoom with Full PTZ Control
The 5 to 150mm motorised lens provides continuous 360-degree pan, vertical tilt and powerful optical zoom, allowing a single camera to cover large open areas and close in on specific targets without sacrificing image quality at distance.
6MP High-Resolution Imaging
Capturing video at 3328 x 1872 resolution on a 1/2.8″ CMOS sensor, the XNP-C8303RW produces detailed footage well suited to identifying people, vehicles and activity across wide surveillance zones, even when the camera is zoomed out to a broad overview angle.
AI Auto-Tracking and Target Lock
Wisenet7 AI analytics detect and classify people, vehicles, faces and licence plates in real time. Auto-tracking and target lock tracking allow the camera to follow a moving subject across its full PTZ range without requiring continuous operator input, which is critical in unmanned or partially staffed monitoring rooms.
Built-in Wiper and Lens Heater
The integrated wiper clears rain, condensation and debris from the lens surface, while the lens heater prevents fogging and icing in cold or damp conditions. This combination is essential for outdoor PTZ deployments where the lens must remain usable around the clock regardless of weather.
200m Infrared Night Vision
Integrated IR illumination supports visibility at distances up to approximately 200m in complete darkness. For a PTZ camera deployed across a large perimeter or open yard, this range means the camera can track subjects at night as it pans and tilts without relying on ambient lighting.
IP66, IK10 and NEMA4X Rated Housing
The enclosure meets IP66 dust and water ingress protection, IK10 impact resistance and NEMA4X corrosion resistance standards. This combination suits exposed outdoor installations where the camera may face driving rain, windborne debris or physical interference over extended periods.
Best For
- Large Perimeter and Outdoor Monitoring: The 30x zoom and 360-degree continuous pan allow a single XNP-C8303RW to cover perimeter fences, open yards and access roads that would otherwise require multiple fixed cameras.
- Harsh Weather Environments: The built-in wiper, lens heater, IP66 and NEMA4X ratings make this camera suited to coastal, industrial and high-rainfall sites where standard PTZ units may fail to maintain image clarity.
- Unmanned or Partially Staffed Control Rooms: AI auto-tracking and target lock tracking reduce the need for constant operator intervention, allowing the camera to follow detected subjects automatically during unattended periods.
- Licence Plate and Face Detection Applications: The combination of 6MP resolution and Wisenet7 AI analytics enables classification of faces and licence plates, supporting access verification and incident review at entry points, car parks and checkpoints.
- Transport Infrastructure and City Surveillance: Wide-area pan coverage, long IR range and AI classification make the XNP-C8303RW suitable for monitoring airports, rail precincts, intersections and public open spaces.
Why Choose the XNP-C8303RW
Where most outdoor PTZ cameras offer zoom and pan as primary features, the XNP-C8303RW adds three layers that matter in real deployments: a Wisenet7 AI chipset capable of classifying faces and licence plates at range, a built-in wiper and lens heater that keep the lens usable through weather events without manual cleaning, and a housing that carries IP66, IK10 and NEMA4X ratings simultaneously. The 6MP sensor at 3328 x 1872 resolution delivers meaningfully more detail than 2MP PTZ cameras when zoomed out to a wide overview, which reduces the trade-off operators usually accept between coverage width and subject detail. AI target lock tracking means the camera can stay on a moving person or vehicle through its full pan and tilt range independently. Available through Security Wholesalers, the XNP-C8303RW is a purpose-built choice for demanding outdoor PTZ applications where image quality, all-weather reliability and intelligent automation are all required together.
Buyer Decision Tips
PTZ Power and Network Requirements: PTZ cameras at this specification level draw significantly more power than fixed cameras and typically require a dedicated PoE++ (802.3bt) power source or a local 24VAC/12VDC supply. Confirm your NVR or switch provides adequate PoE wattage per port before installation. Also verify your NVR supports Hanwha Wisenet PTZ control protocols, including full PTZ command compatibility, to unlock AI auto-tracking and preset tour functions through your chosen VMS.
Zoom Range vs. Fixed Camera Coverage Planning: The 30x optical zoom (5 to 150mm) gives the XNP-C8303RW strong telephoto reach, but a single PTZ monitoring a large area can only point in one direction at a time. For sites where multiple zones must be recorded simultaneously and continuously, plan to supplement the PTZ with fixed overview cameras. The PTZ functions most effectively as an active tracking and inspection tool, while fixed cameras provide uninterrupted wide-area recording across the full scene.
Key Features & Technical Specifications
| Model |
Hanwha Vision XNP-C8303RW |
| Resolution |
6MP (3328 x 1872) |
| Image Sensor |
1/2.8″ CMOS |
| Lens |
5 to 150mm motorised zoom, 30x optical |
| Digital Zoom |
Up to 32x |
| Pan Range |
360-degree endless |
| Tilt Range |
-20° to 90° |
| IR Night Vision Range |
Up to approximately 200m |
| Frame Rate |
Up to 30fps |
| Video Compression |
H.265, H.264, MJPEG |
| AI Analytics |
People, vehicle, face and licence plate detection and classification; AI auto-tracking; target lock tracking |
| WDR |
Extreme WDR |
| Image Stabilisation |
Yes |
| Built-in Wiper |
Yes, with lens heater |
| Chipset Platform |
Wisenet7 |
| Protection Rating |
IP66, IK10, NEMA4X |
Ideal Use Cases
Industrial Sites and Perimeter Yards
Large manufacturing yards, storage facilities and perimeter fence lines benefit from the 30x zoom and 360-degree pan, which allow a single camera to actively scan and inspect multiple zones. The IP66, IK10 and NEMA4X housing withstands the dust, vibration and weather common on industrial sites.
Transport Hubs and Infrastructure
Airports, rail yards and port facilities require cameras that can track moving vehicles and people across large open aprons and platforms. The XNP-C8303RW’s AI auto-tracking and 200m IR range support continuous monitoring across these environments day and night.
City Surveillance and Public Precincts
The combination of 6MP resolution, licence plate and face detection, and long-range zoom makes the XNP-C8303RW suited to monitoring intersections, pedestrian zones and public gathering areas where subject identification at distance is a regular operational requirement.
Large Car Parks and Open Campuses
A single XNP-C8303RW positioned at height can sweep across a multi-level car park or open university or hospital campus, with AI tracking following individuals or vehicles between zones and PTZ presets enabling systematic patrols during low-activity periods.
Coastal and High-Rainfall Outdoor Installations
The built-in wiper, lens heater and NEMA4X corrosion resistance make the XNP-C8303RW a practical option for exposed coastal sites, marinas and outdoor venues in tropical or high-rainfall regions where lens fogging and water accumulation would degrade a standard PTZ camera’s image quickly.
Choosing the Right Model
- Choose this model if: You need a single outdoor PTZ camera with 6MP resolution, 30x optical zoom, Wisenet7 AI classification including faces and licence plates, active auto-tracking, and all-weather wiper and heater functionality in a single rugged housing rated to IP66, IK10 and NEMA4X.
- Choose a different model if: Your site requires simultaneous uninterrupted recording across multiple fixed angles rather than active PTZ monitoring. A PTZ camera can only point in one direction at a time, so sites that need continuous wide-area recording across all zones simultaneously will benefit from combining the XNP-C8303RW with fixed multi-sensor or panoramic cameras rather than relying on it alone.
- Choose a different model if: Your installation is indoors or in a sheltered environment where the wiper, lens heater and NEMA4X rating are not required. A fixed or motorised varifocal camera at lower cost may cover the same indoor zone more cost-effectively if active PTZ tracking is not a core operational requirement.
FAQs
- What does the built-in wiper actually do during operation?
The integrated wiper physically clears the external lens surface of rain droplets, condensation, dust and snow during adverse weather. Combined with the lens heater, which prevents ice and fogging from forming on the glass, the system maintains usable image quality through weather events that would otherwise require a technician to clean the lens manually. This is particularly valuable for PTZ cameras mounted at height where access is difficult.
- Can the XNP-C8303RW classify licence plates and faces, or does it only detect motion?
The Wisenet7 AI chipset on board supports detection and classification of people, vehicles, faces and licence plates. This goes beyond basic motion detection, allowing the camera to trigger alerts or tracking responses based on object type rather than any pixel-level movement, which reduces notifications from irrelevant events such as foliage movement or lighting changes.
- How does AI auto-tracking differ from standard motion-triggered PTZ presets?
Standard PTZ presets move the camera to a fixed position when motion is detected, then return to a home position after a set time. AI auto-tracking on the XNP-C8303RW continuously follows a classified subject (person or vehicle) in real time through the camera’s full pan and tilt range, maintaining framing on the target as it moves. Target lock tracking provides additional persistence on a selected subject even when multiple objects are in the scene.
- What power supply does the XNP-C8303RW require?
PTZ cameras of this specification typically require a higher power budget than fixed cameras. Confirm the exact power input requirements from the datasheet and verify that your PoE switch or injector meets those requirements per port. Standard PoE (802.3af at 15.4W) is unlikely to be sufficient; PoE+ (802.3at at 30W) or PoE++ (802.3bt at 60W+) or a local power supply is typically needed for a full-specification PTZ at this level.
- Does the 30x optical zoom affect image quality when zoomed out to a wide angle?
At wide-angle settings the 6MP sensor captures a broad scene at full 3328 x 1872 resolution, so the image quality does not degrade when the lens is at its widest 5mm setting. Image quality at the telephoto end (150mm) depends on lighting conditions and the camera’s electronic image stabilisation, which is built in to reduce motion blur caused by vibration or wind at high zoom levels.
- Is the XNP-C8303RW suitable for installation in coastal or salt-air environments?
The NEMA4X rating addresses corrosion resistance, which is relevant for coastal and salt-air environments where standard IP66-only housings may degrade over time. Combined with the IP66 dust and water ingress rating and IK10 impact resistance, the housing is engineered for prolonged outdoor exposure in demanding conditions including marine-adjacent sites.
- Which NVR or VMS platforms support the XNP-C8303RW’s AI features?
Full AI analytics, auto-tracking and PTZ control functions are best accessed through Hanwha Vision’s own Wisenet WAVE VMS or compatible Hanwha NVRs. Third-party VMS platforms that support ONVIF Profile S/G/T may provide basic PTZ control and video streaming, but AI classification events and auto-tracking functions may not be fully accessible outside the native Hanwha ecosystem. Confirm VMS compatibility before finalising your recording infrastructure. The XNP-C8303RW is available through Security Wholesalers, where product compatibility questions can be directed to the sales team.
