Product SKU: XNP-C8253R
Product Overview

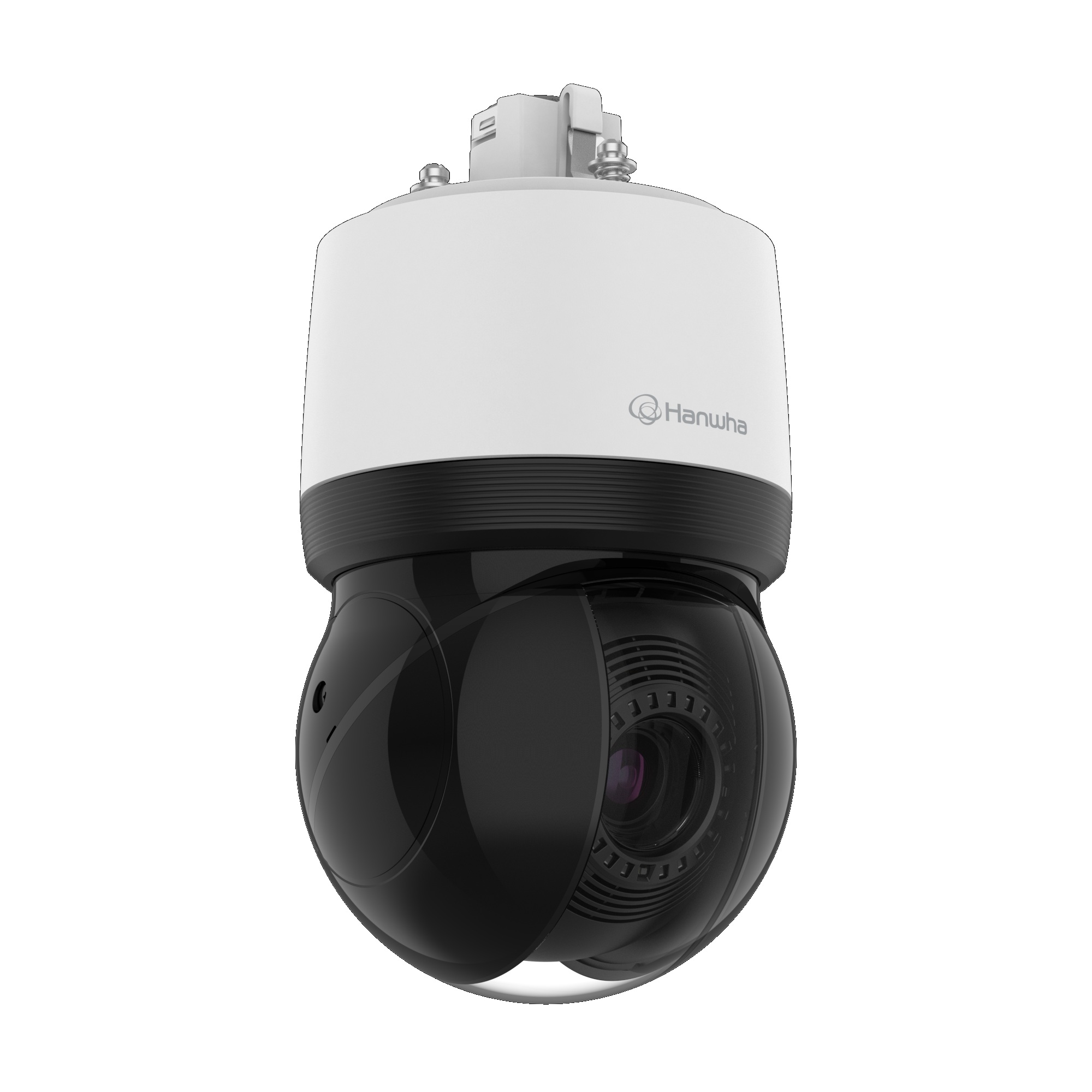

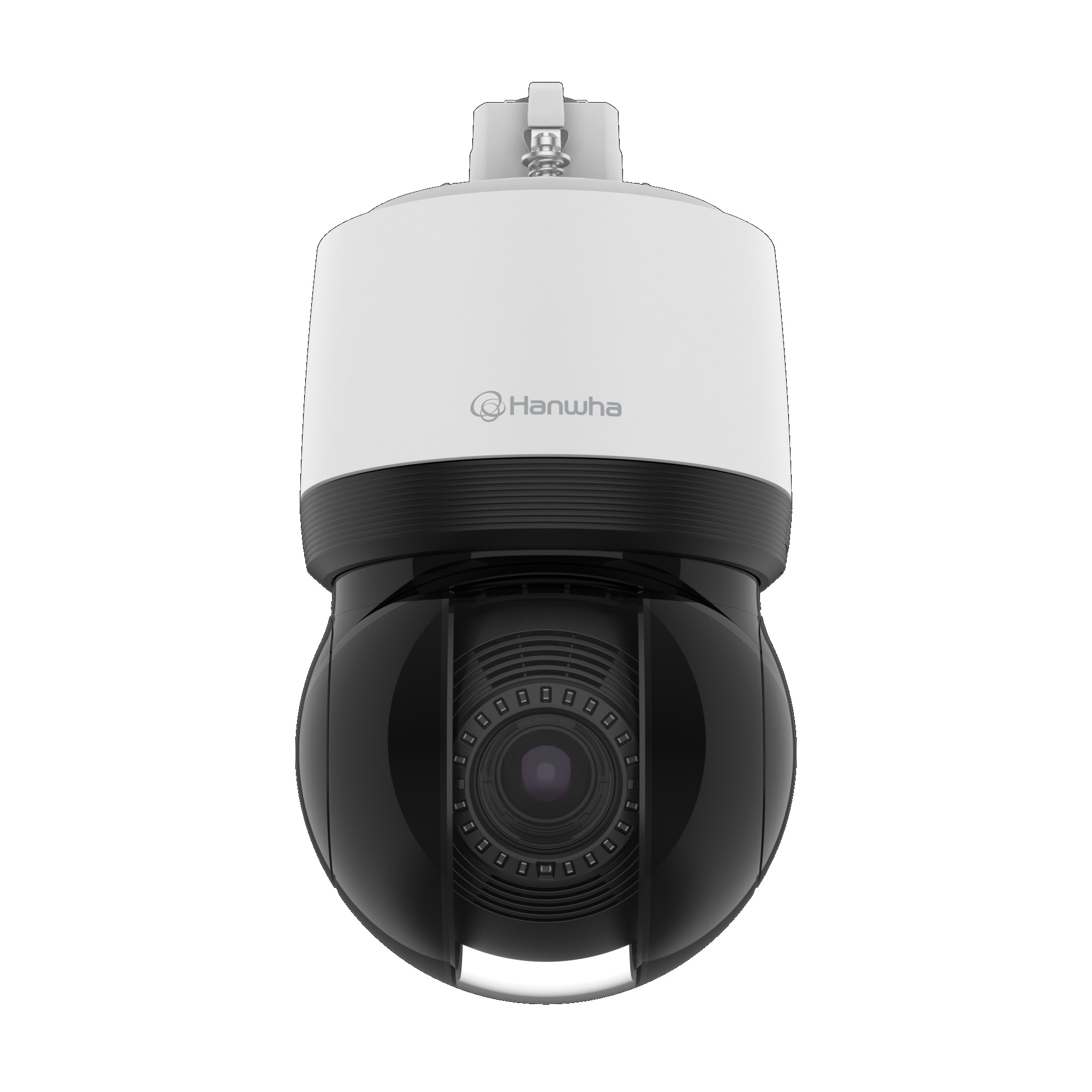

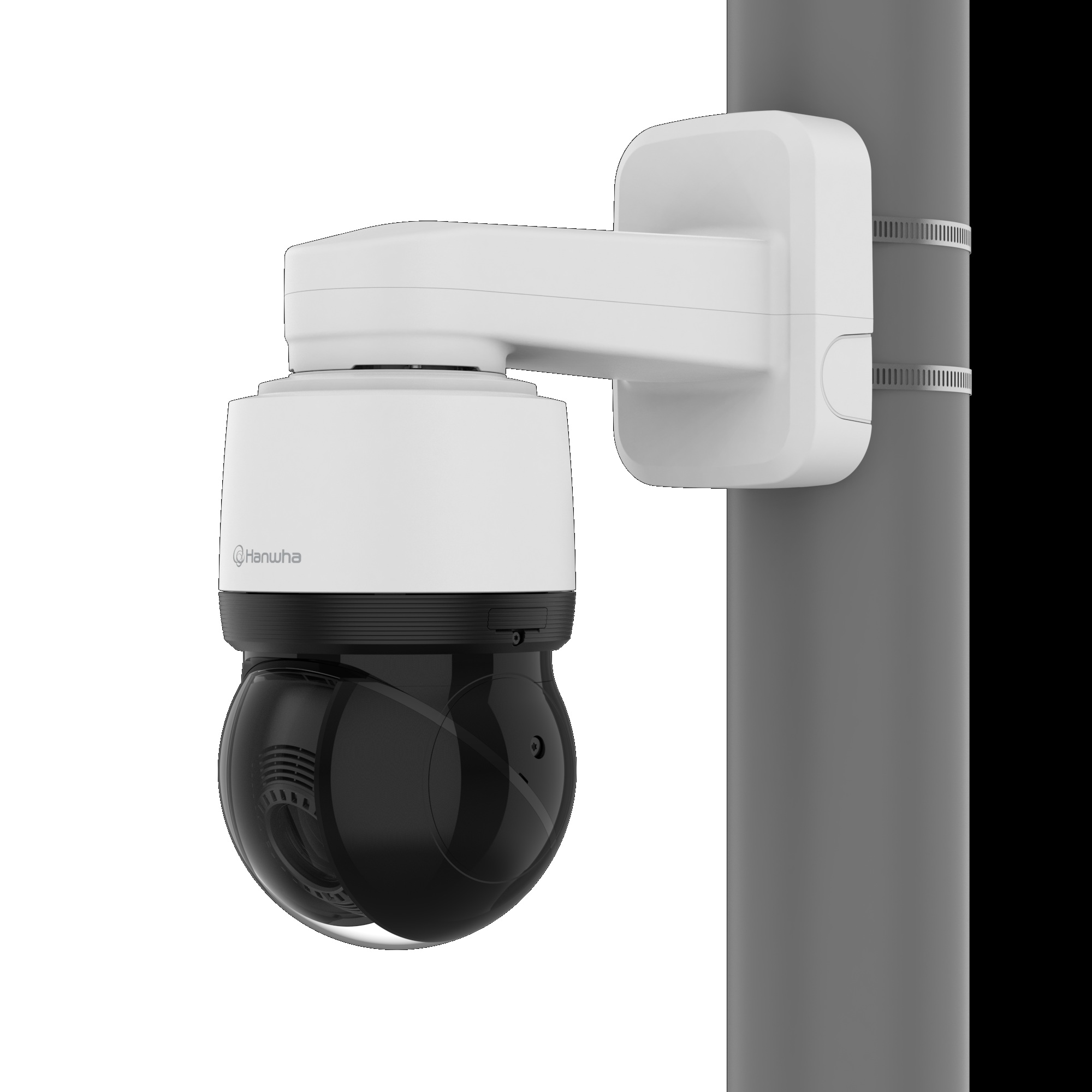

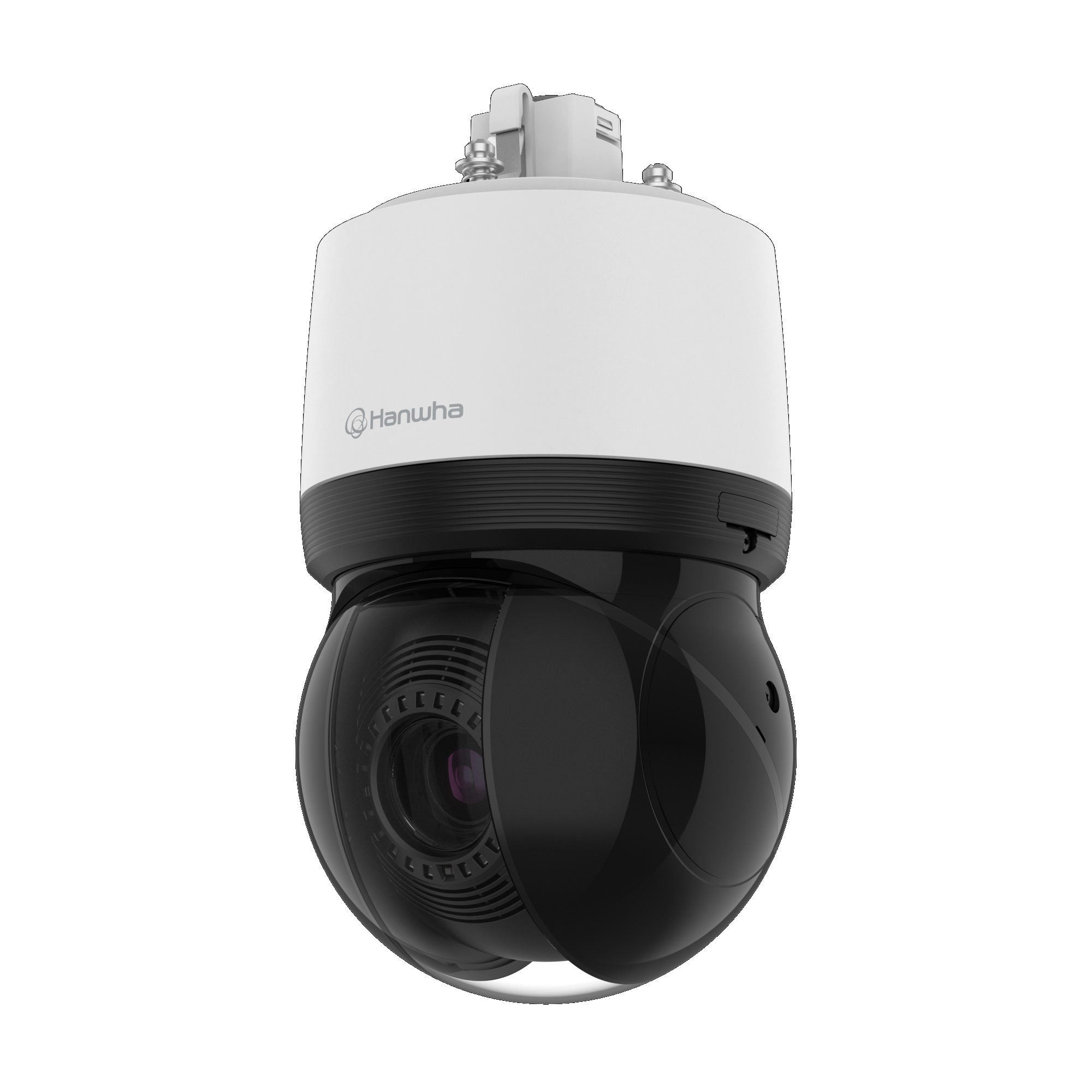

Wide-area monitoring across transport hubs, industrial sites and public spaces demands more than a fixed camera can offer. The Hanwha Vision XNP-C8253R is a 6MP AI PTZ camera powered by the Wisenet7 chipset, engineered for mission-critical environments where long-range identification, intelligent tracking and continuous outdoor operation are required simultaneously. Equipped with a motorised 5-125mm lens delivering 25x optical zoom and up to 800x total zoom, it can survey broad areas and immediately zoom in on activity of interest at distances that fixed cameras cannot reach. AI analytics onboard enable detection and classification of people, vehicles, faces and licence plates, with auto-tracking and target lock tracking reducing the reliance on manual operator intervention. Built-in IR covers up to 200m, while digital image stabilisation and gyro-based correction maintain imaging clarity even in high-vibration mounting environments. The IP66, IK10 and NEMA4X-rated housing ensures dependable operation across harsh outdoor conditions.
Key Capabilities
25x Optical Zoom with 800x Total Zoom
The 5-125mm motorised lens provides 25x optical zoom, extendable to approximately 800x with digital zoom. This range allows operators to shift between wide-area overviews and detailed close-up inspection of distant subjects without repositioning the camera or compromising optical quality.
Wisenet7 AI Analytics
The Wisenet7 chipset enables onboard AI classification of people, vehicles, faces and licence plates. This reduces the volume of irrelevant alerts and gives operators actionable, context-rich detections rather than basic motion triggers, improving response efficiency in high-traffic environments.
AI Auto-Tracking and Target Lock
Once a person or vehicle is detected, the XNP-C8253R can automatically follow the subject using AI-driven auto-tracking and target lock. This removes the requirement for continuous manual PTZ control, maintaining focus on moving subjects across large open areas.
360° Endless Pan and High-Speed PTZ Movement
Continuous 360° pan combined with a tilt range of -20° to 90° allows the camera to cover any direction without mechanical stops. High-speed movement enables rapid repositioning across large monitored zones, critical for tracking fast-moving subjects or switching between distant points of interest.
200m IR Range with Gyro Stabilisation
Built-in IR illumination extends visibility to 200m in low-light and zero-light conditions. Gyro-based image correction and digital stabilisation counteract vibration from wind, rooftop HVAC equipment or elevated industrial mounting points, maintaining stable and usable footage at extended zoom ranges.
IP66, IK10 and NEMA4X Outdoor Rating
Dual weather and impact protection ratings, combined with NEMA4X compliance for corrosive environment resistance, make this camera suited to exposed outdoor installations including coastal sites, industrial yards and public infrastructure where environmental conditions are demanding.
Best For
- Large Open Area Coverage: The 25x optical zoom and 360° endless pan allow a single camera to survey wide areas, reducing the number of fixed cameras needed across car parks, open yards and campuses.
- Automated Subject Tracking: AI auto-tracking and target lock follow detected people or vehicles without manual operator input, making this suited to security control rooms managing multiple camera feeds simultaneously.
- Long-Range Night Monitoring: The 200m IR range combined with the 25x zoom allows identification of subjects at distances where standard cameras cannot provide usable night-time imagery.
- Harsh Outdoor Environments: IP66, IK10 and NEMA4X ratings support deployment at coastal facilities, industrial plants and exposed infrastructure positions where weather and impact resistance are non-negotiable.
- Face and Licence Plate AI Classification: Onboard Wisenet7 AI detects and classifies faces and licence plates as confirmed object types, supporting access logging and incident review workflows at entry and exit points.
Why Choose the XNP-C8253R
The XNP-C8253R separates itself from standard PTZ cameras through the combination of the Wisenet7 AI chipset and a confirmed 25x optical zoom lens spanning 5-125mm, a pairing that delivers both wide-area coverage and meaningful subject identification at distance. Where basic PTZ cameras offer motorised movement without intelligence, this model classifies people, vehicles, faces and licence plates onboard, then tracks confirmed detections automatically using target lock functionality. The 200m IR range, gyro-based stabilisation and extreme 120dB WDR address real challenges faced in outdoor and elevated mounting positions, including vibration and uneven lighting that would degrade footage from lower-specified cameras. The IP66, IK10 and NEMA4X housing exceeds standard outdoor requirements, covering installations in industrial and coastal environments. Available through Security Wholesalers, the XNP-C8253R is suited to integrators and end users who need a single camera to provide broad coverage, automated tracking and forensic-level detail without compromising on outdoor durability.
Buyer Decision Tips
Confirm your VMS or NVR supports Wisenet7 AI metadata: The XNP-C8253R delivers AI classifications for people, vehicles, faces and licence plates onboard, but the full value of these analytics depends on a compatible video management system or recorder that can receive, display and act on Wisenet7 metadata. If your existing recorder is a basic H.265 model without AI integration, you will still receive the video stream, but AI-triggered alerts and searchable event logs may not function as intended. Confirm compatibility with your platform before finalising the installation design.
Plan your mounting position for effective IR and zoom range: The 200m IR range and 25x optical zoom are most effective when the camera is positioned with a clear line of sight and minimal obstructions such as poles, signage or vegetation at the focal zones. For elevated rooftop or mast mounting, the gyro-based stabilisation and digital image stabilisation will reduce vibration effects, but mounting rigidity still affects performance at maximum zoom. Choose a solid, vibration-isolated mounting point where possible to get the best out of the camera’s long-range capabilities.
Key Features & Technical Specifications
| Resolution |
6MP (3328 x 1872) |
| Image Sensor |
1/2.8″ CMOS |
| Lens Type |
Motorised varifocal, 5-125mm |
| Optical Zoom |
25x |
| Digital Zoom |
Up to 32x (approx. 800x total zoom) |
| Pan Range |
360° endless |
| Tilt Range |
-20° to 90° |
| Frame Rate |
Up to 30fps |
| IR Range |
Up to 200m |
| Wide Dynamic Range |
120dB |
| Video Compression |
H.265, H.264, MJPEG |
| AI Analytics |
People, vehicle, face and licence plate detection and classification; AI auto-tracking; target lock tracking |
| Image Stabilisation |
Digital image stabilisation with gyro-based correction |
| Chipset |
Wisenet7 |
| Weather Rating |
IP66 |
| Impact Rating |
IK10 |
| Additional Rating |
NEMA4X |
Ideal Use Cases
Transport Infrastructure
Airports, train stations and bus interchanges involve large footprints and high pedestrian and vehicle volumes. The 25x optical zoom, 360° pan and AI auto-tracking allow a single XNP-C8253R to monitor entry zones, platforms and transit lanes while automatically following individuals or vehicles of interest.
Industrial Facility Perimeters
Factories, refineries and logistics yards with extensive perimeter fencing benefit from the 200m IR range and NEMA4X-rated housing. The gyro stabilisation maintains image quality on elevated mounting structures subject to wind or equipment vibration.
Car Parks and Open Campuses
Multi-level or surface-level car parks and university or hospital campuses require dynamic coverage across shifting activity zones. AI tracking follows detected people and vehicles without manual operator repositioning, reducing the monitoring burden in control rooms managing large camera counts.
City and Public Safety Surveillance
Public open spaces, town squares and pedestrian precincts require cameras that can cover broad areas and identify specific individuals or incidents quickly. The 6MP sensor combined with 25x optical zoom supports detailed imagery at the distances typical in public surveillance deployments.
Critical Infrastructure and Utilities
Power stations, water treatment facilities and telecommunications infrastructure require cameras rated for harsh outdoor conditions and capable of detecting unauthorised access. The IP66, IK10 and NEMA4X ratings support deployment at exposed outdoor sites with demanding environmental conditions.
Port and Coastal Facilities
Marine and port environments expose cameras to salt air, moisture and strong winds. The NEMA4X rating specifically addresses corrosive environment resistance, while the 200m IR and 25x zoom provide long-range coverage across berths, loading areas and access roads in low-light conditions.
Choosing the Right Model
- Choose this model if: Your site requires wide-area PTZ coverage with onboard AI classification of people, vehicles, faces and licence plates, automated tracking of moving subjects and long-range IR visibility up to 200m, in an outdoor environment requiring IP66, IK10 and NEMA4X protection.
- Choose a different model if: Your coverage zone is fixed and does not change – a fixed-lens or motorised varifocal camera will provide consistent framing without the added complexity and cost of a full PTZ. Similarly, if your NVR or VMS cannot process Wisenet7 AI metadata, consider whether the full feature set of this camera will be accessible in your environment before committing to a PTZ at this specification level.
- Choose a different model if: Your application requires only indoor monitoring or lower environmental ratings – the XNP-C8253R is engineered for demanding outdoor use and its cost reflects this. An indoor PTZ or a fixed outdoor camera may be more appropriate for internal spaces or lower-risk outdoor positions.
FAQs
- What AI object types does the XNP-C8253R detect and classify?
The Wisenet7 chipset enables onboard detection and classification of people, vehicles, faces and licence plates. These are confirmed object types from the product data. This allows a VMS or recorder with Wisenet7 AI integration to generate accurate, context-specific alerts based on what the camera has identified rather than generic motion triggers.
- How does target lock tracking differ from standard auto-tracking?
Auto-tracking initiates camera movement to follow a detected subject. Target lock takes this further by locking the camera’s attention onto a specific subject even when other movement occurs in the frame. This is useful in crowded environments such as transport terminals where multiple people may be moving simultaneously and the operator needs to maintain focus on one individual.
- What is the practical benefit of gyro-based image stabilisation on a PTZ camera?
PTZ cameras mounted on rooftops, elevated poles or structures near industrial equipment are exposed to vibration from wind, nearby machinery and thermal expansion. Gyro-based correction detects this movement electronically and compensates in real time, preventing the footage from appearing shaky especially at higher zoom levels where even small vibrations are magnified significantly.
- What does NEMA4X add beyond the IP66 rating?
IP66 protects against dust and water ingress. NEMA4X adds protection against corrosive environments such as salt air, industrial chemical exposure and coastal moisture. For installations at port facilities, coastal infrastructure or chemical processing sites, NEMA4X is a meaningful additional specification that extends the operational lifespan of the camera in conditions that would degrade a standard IP66-only housing over time.
- Does the 6MP resolution affect zoom performance compared to lower megapixel PTZ cameras?
A higher resolution sensor retains more detail when zooming digitally beyond the optical range. With the XNP-C8253R producing 3328 x 1872 pixel images, the starting resolution before any zoom is applied is higher than a 2MP or 4MP sensor, meaning digital zoom clips result in a larger pixel count and more usable detail at equivalent digital zoom levels.
- Is the XNP-C8253R suitable for use as a standalone camera without a dedicated PTZ controller?
Yes. The camera supports network-based PTZ control through compatible NVRs and VMS software, meaning a dedicated PTZ joystick controller is not required. AI auto-tracking and preset tour functionality can also reduce the need for live manual control, with the camera moving automatically based on detection events or scheduled patrol patterns.
- Where can I access the technical datasheet for the XNP-C8253R?
The full technical datasheet for the XNP-C8253R is available in the Additional Information section of this page. Security Wholesalers provides documentation directly on product pages so integrators and specifiers can confirm installation requirements before purchasing. The datasheet includes full mechanical dimensions, electrical specifications and integration guidance relevant to system design.
