Product SKU: XNO-C8083R
Product Overview

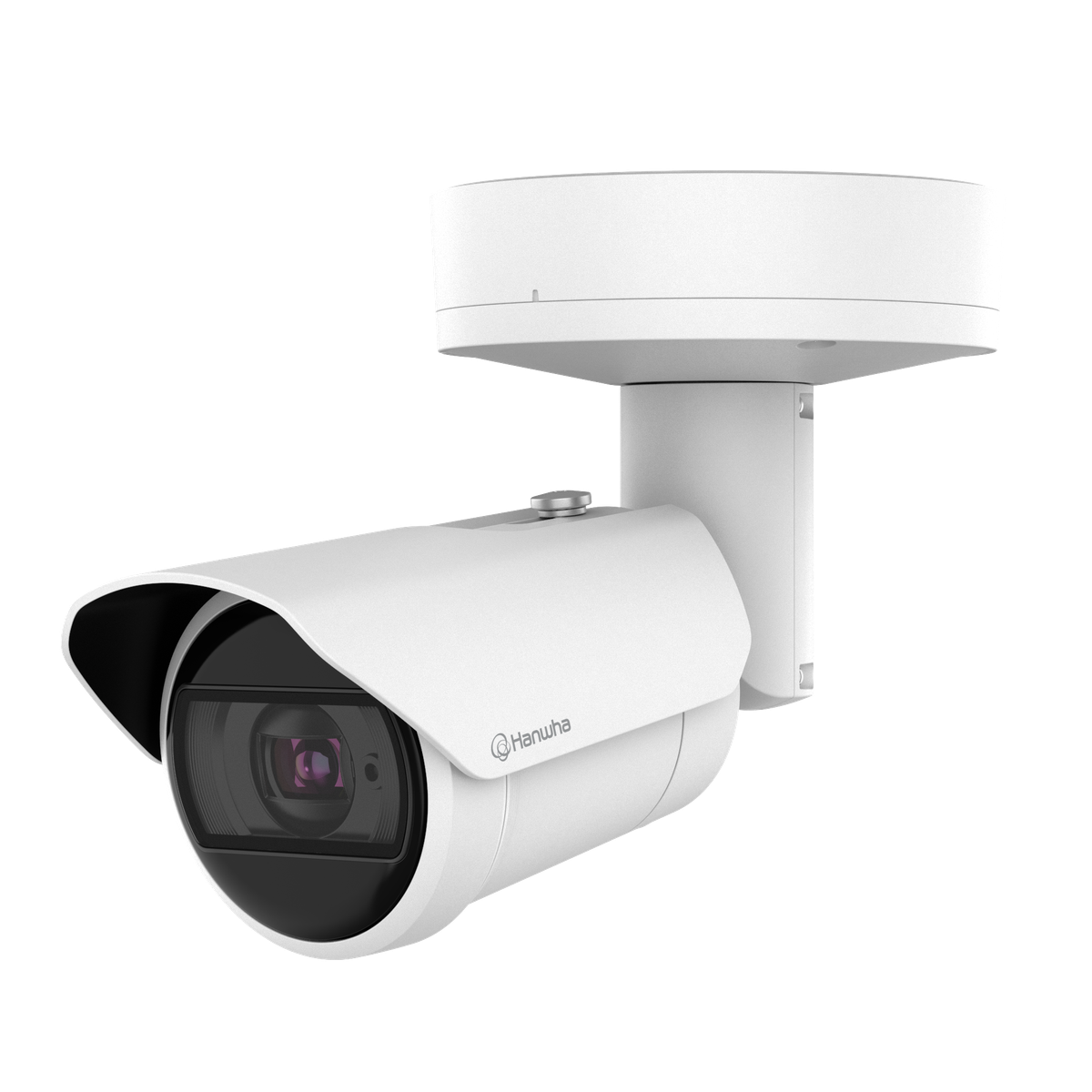

Built for demanding outdoor installations where adjustable coverage and accurate event detection matter, the Hanwha Vision XNO-C8083R is a 6MP AI IR bullet camera suited to perimeter walls, loading docks, warehouse exteriors, and long-approach driveways. Equipped with a 4.4-9.3mm motorised varifocal lens, installers can dial in the exact field of view from wide-area coverage at 113 degrees down to a tighter 47-degree frame without physically repositioning the camera. Featuring WiseIR adaptive illumination reaching up to 50m, the XNO-C8083R maintains usable night-time detail across extended outdoor distances. It also integrates Hanwha’s AI object detection engine, classifying people and vehicles to generate more targeted alerts from edge-based analytics including intrusion detection, virtual line crossing, loitering detection, and direction detection. With extreme WDR at 120dB, WiseStream III compression, and Digital Image Stabilisation using a built-in gyro sensor, this bullet camera is well suited to commercial and industrial sites where environmental conditions and lighting vary significantly throughout the day.
Key Capabilities
6MP Resolution at 30fps
Capturing at 3328 x 1872 pixels and up to 30 frames per second, the XNO-C8083R delivers the fine detail needed to identify individuals, read vehicle plates, and support forensic review across wide outdoor areas without sacrificing frame rate.
Motorised Varifocal Lens (4.4-9.3mm)
The 2.1x motorised varifocal lens lets installers remotely adjust the field of view between 47 and 113 degrees horizontal during commissioning. This removes the need to physically remount the camera when coverage needs to shift, saving time on multi-point outdoor installations.
WiseIR Adaptive Night Vision to 50m
WiseIR technology automatically adjusts IR intensity as subjects move closer or farther from the lens, preventing overexposure at close range while maintaining illumination across the full 50m distance. This is particularly useful on long driveways, loading bays, and open perimeter zones.
AI Object Detection and Edge Analytics
The built-in AI engine classifies detected objects as people or vehicles directly on the camera, enabling edge-based rules including intrusion detection, virtual line crossing, loitering detection, and direction detection without relying on server-side processing for every alert.
Extreme WDR at 120dB
The 120dB extreme Wide Dynamic Range rating allows the camera to handle scenes with simultaneous bright sunlight and deep shadow, such as a warehouse loading entrance facing an open yard, retaining legible detail in both the bright exterior and darker interior areas.
DIS with Gyro Sensor and WiseStream III
Digital Image Stabilisation with a built-in gyro sensor reduces vibration-induced blur common on exposed wall and pole mounts in high-wind environments. WiseStream III compression further reduces bandwidth and storage demands by up to 75% compared to standard H.264, without reducing scene detail.
Best For
- Perimeter and Fence Line Coverage: The bullet housing and 50m WiseIR range make this camera well suited to monitoring long perimeter runs at industrial yards, distribution centres, and commercial campuses where extended night-time visibility is essential.
- Loading Docks and Warehouse Entrances: The 120dB extreme WDR handles the high-contrast lighting typical of dock doors and roller shutters where bright outdoor light meets shaded internal areas, keeping vehicle and personnel detail usable throughout.
- Exposed Pole and Wall Mounts in Variable Conditions: With an IK10 impact rating, IP66/IP67 weatherproofing, an operating temperature range of -30°C to +55°C, and gyro-assisted DIS, the XNO-C8083R is built for sites where vibration, dust, moisture, and temperature extremes are routine.
- Sites Requiring Adjustable Coverage After Installation: The motorised varifocal lens allows field-of-view adjustment remotely, making this model practical for projects where coverage zones may need to be refined after the camera is physically mounted and cabled.
Why Choose the XNO-C8083R
The XNO-C8083R separates itself from fixed-lens bullet cameras through the combination of a motorised varifocal lens, on-board AI classification, and adaptive IR, all in a single outdoor housing rated to IK10 and IP66/IP67. A basic fixed-lens IR bullet may cover a similar physical area but cannot remotely adjust its frame, classify detected objects at the edge, or compensate for vibration with a gyro-assisted DIS system. The 1/1.8-inch CMOS sensor with a minimum illumination of 0.004 Lux in B/W mode means the camera retains usable detail in very low ambient light before the IR activates. WiseStream III compression reduces infrastructure costs on multi-camera deployments by lowering the storage and bandwidth load per channel. Available through Security Wholesalers, the XNO-C8083R suits commercial and industrial installers who need a configurable, AI-capable outdoor bullet camera that can handle harsh environmental conditions without compromise.
Buyer Decision Tips
Lens Zoom and Coverage Planning: The 4.4-9.3mm motorised varifocal lens provides a horizontal field of view between 47 and 113 degrees. At the wide end, it suits broad approach zones and car parks. At the tighter end, it captures more detail on a specific entry point or access gate from a greater distance. Confirm the mounting distance and the area width you need to cover before settling on a lens position, and use the motorised adjustment to fine-tune once the cable run is complete.
PoE Power Budget: The XNO-C8083R is powered via PoE to IEEE 802.3af/at standards. Confirm your switch or injector supports the at standard (up to 30W per port) if you are connecting at longer cable runs or using a PoE switch with multiple cameras active simultaneously. Standard af switches (15.4W) may be insufficient depending on the camera’s draw under full IR and motorised lens operation.
Key Features & Technical Specifications
| Image Sensor |
1/1.8″ CMOS |
| Resolution |
6MP (3328 x 1872) |
| Maximum Frame Rate |
30fps at 6MP |
| Minimum Illumination (Colour) |
0.04 Lux (F1.3) |
| Minimum Illumination (B/W) |
0.004 Lux |
| Minimum Illumination (IR On) |
0 Lux |
| Lens Type |
Motorised varifocal |
| Focal Length |
4.4-9.3mm (2.1x zoom) |
| Aperture |
F1.3-F2.15 |
| Field of View (Horizontal) |
113 degrees to 47 degrees |
| Field of View (Vertical) |
58 degrees to 26 degrees |
| IR Range |
Up to 50m (WiseIR adaptive) |
| Day/Night |
ICR removable IR cut filter with automatic switching |
| Wide Dynamic Range |
Extreme WDR 120dB |
| Noise Reduction |
WiseNR II |
| Image Stabilisation |
DIS with built-in gyro sensor |
| Compression |
H.265 / H.264 / MJPEG with WiseStream III |
| AI Analytics |
Person and vehicle detection; intrusion, virtual line crossing, loitering, direction detection |
| Edge Storage |
MicroSD / SDHC / SDXC |
| Weather and Impact Rating |
IP66 / IP67 / IK10 |
| Operating Temperature |
-30°C to +55°C |
| Power Supply |
PoE (IEEE 802.3af/at) |
Ideal Use Cases
Industrial Perimeter Monitoring
The IK10-rated bullet housing, 50m WiseIR range, and AI-based intrusion and virtual line crossing detection make this camera a practical choice for factory and warehouse perimeter walls where after-hours boundary breaches need to trigger targeted alerts rather than motion-based noise.
Car Parks and Open Access Roads
With a horizontal field of view as wide as 113 degrees and 6MP detail, the XNO-C8083R can cover wide access lanes and parking rows. The vehicle classification capability supports loitering and direction detection rules suited to controlled-access car park environments.
Loading Docks and Freight Zones
The 120dB extreme WDR handles the common challenge of roller door openings where bright outdoor light and darker interior areas exist in the same frame. At 6MP, the camera captures enough detail for vehicle identification and personnel monitoring across busy dock environments.
School and Campus Perimeters
Education campuses with extended fence lines and multiple entry gates benefit from the motorised varifocal lens, which allows coverage to be adjusted per mounting point without additional hardware. The AI analytics can be configured to flag after-hours person detection along boundary zones.
Exposed Wall and Pole Mounts in Harsh Climates
Rated to IP66/IP67 and operational from -30°C to +55°C, the XNO-C8083R is engineered for sites in regions with temperature extremes, coastal salt air, or high-dust environments. The gyro-assisted DIS further reduces the image blur introduced by wind loading on exposed pole-mount installations.
Choosing the Right Model
- Choose this model if: You need a 6MP outdoor bullet camera with a motorised varifocal lens for adjustable field of view, AI-based person and vehicle classification for edge analytics, 50m adaptive IR for extended night coverage, and a rugged housing rated to IK10 and IP66/IP67 for demanding outdoor environments.
- Choose a different model if: Your installation requires wide-area pan, tilt, and optical zoom across a large open site, in which case a PTZ camera would provide the repositioning capability this fixed-position bullet camera cannot. Alternatively, if the installation is indoors in a low-ceiling space where a compact dome or turret profile is preferred, a dome-format camera with a similar sensor would suit the placement better.
FAQs
- What is the difference between the motorised varifocal lens and a fixed lens on this type of bullet camera?
A fixed-lens camera has a set field of view that cannot be changed after manufacture. The XNO-C8083R uses a 4.4-9.3mm motorised varifocal lens that allows installers to adjust the horizontal field of view between 47 and 113 degrees remotely via software, without physically dismounting or repositioning the camera. This is especially useful when coverage zones are confirmed during or after installation.
- How does WiseIR technology improve night-time performance compared to standard IR?
Standard IR illuminators operate at a fixed intensity regardless of the subject distance. WiseIR automatically adjusts the IR output based on the distance of the subject to the camera lens, reducing overexposure when subjects are close while maintaining reach toward the 50m maximum. This produces more consistent, usable night-time images across the full depth of the monitored zone.
- What AI analytics does the XNO-C8083R support on-camera without a separate AI server?
The camera classifies detected objects as people or vehicles at the edge, and supports four intelligent event types: intrusion detection, virtual line crossing, direction detection, and loitering detection. These rules trigger alerts based on AI-classified objects rather than raw motion, reducing the volume of non-relevant notifications generated by environmental movement such as trees, shadows, or passing vehicles in adjacent zones.
- Is the XNO-C8083R suitable for installation in very cold or very hot climates?
Yes. The camera is rated to operate from -30°C to +55°C, covering the temperature range encountered across most Australian and international outdoor installation environments, including cold-room dock exteriors, exposed rooftop mounts in summer heat, and alpine or high-desert sites where overnight temperatures drop well below zero.
- What does the IK10 rating mean in practice for a bullet camera mounted outdoors?
IK10 is the highest rating in the EN 62262 impact protection scale, corresponding to resistance against 20 joules of impact energy. In practical terms, this means the camera housing is designed to withstand significant physical force, which is relevant for installations in publicly accessible locations such as car park columns, building exteriors at ground level, or industrial sites where accidental or deliberate impact is a realistic risk.
- How does WiseStream III compression affect storage and network planning?
WiseStream III combines H.265 compression with dynamic scene analysis, allocating more bitrate to areas of the frame with motion or detail and reducing bitrate in static areas. This lowers the overall file size and network bandwidth required per camera channel compared to fixed-bitrate H.264 streams. On a multi-camera installation, this can meaningfully reduce the storage capacity and switch bandwidth required across the system, which Security Wholesalers recommends factoring into NVR storage sizing calculations.
- Does the XNO-C8083R support local recording independent of the NVR?
Yes. The camera includes a MicroSD/SDHC/SDXC card slot for edge storage. This allows the camera to continue recording locally if the network connection to the NVR is interrupted, or to function as a standalone recording unit in smaller deployments where a full NVR installation is not required at every location.
