Product SKU: XNO-C6083R
Product Overview

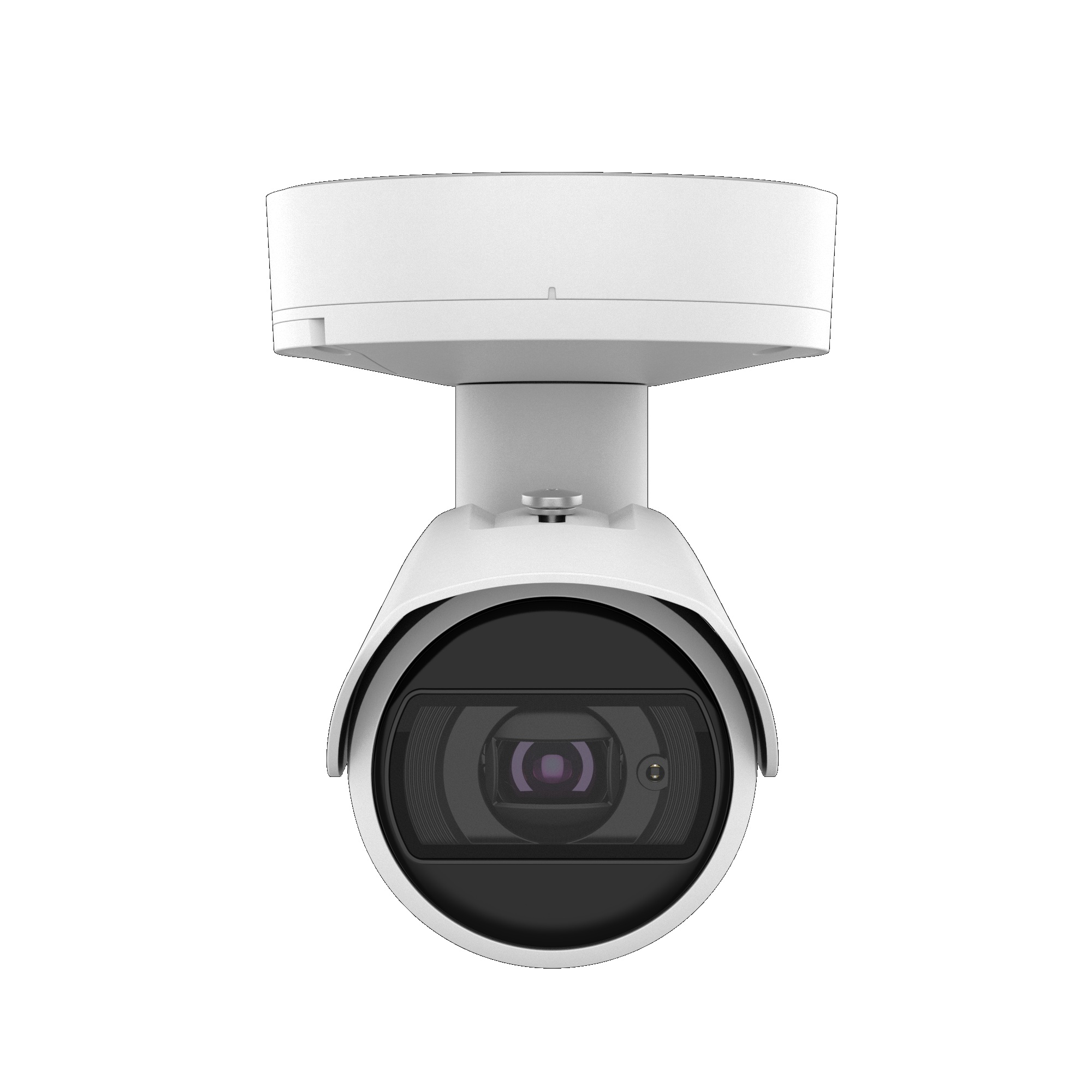

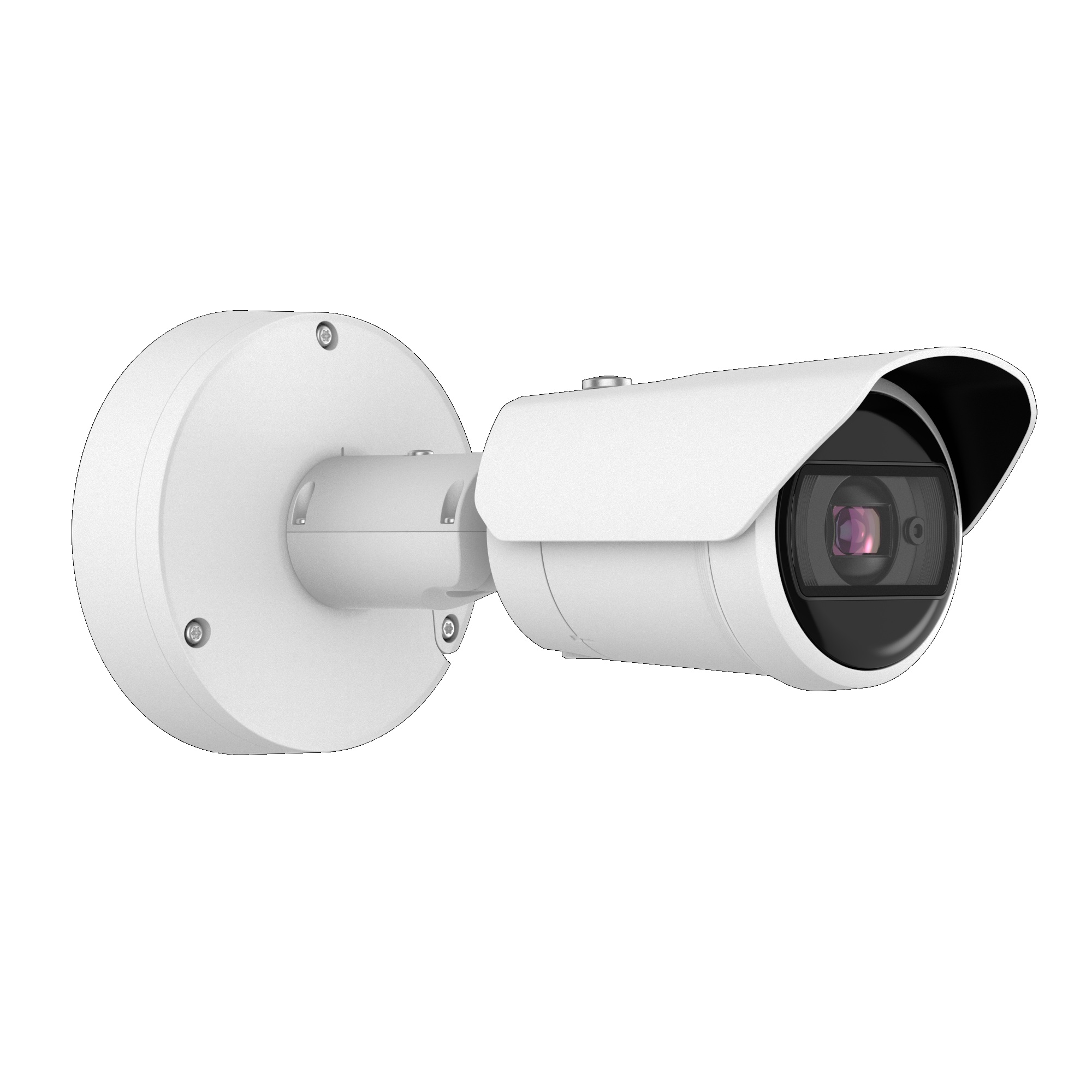

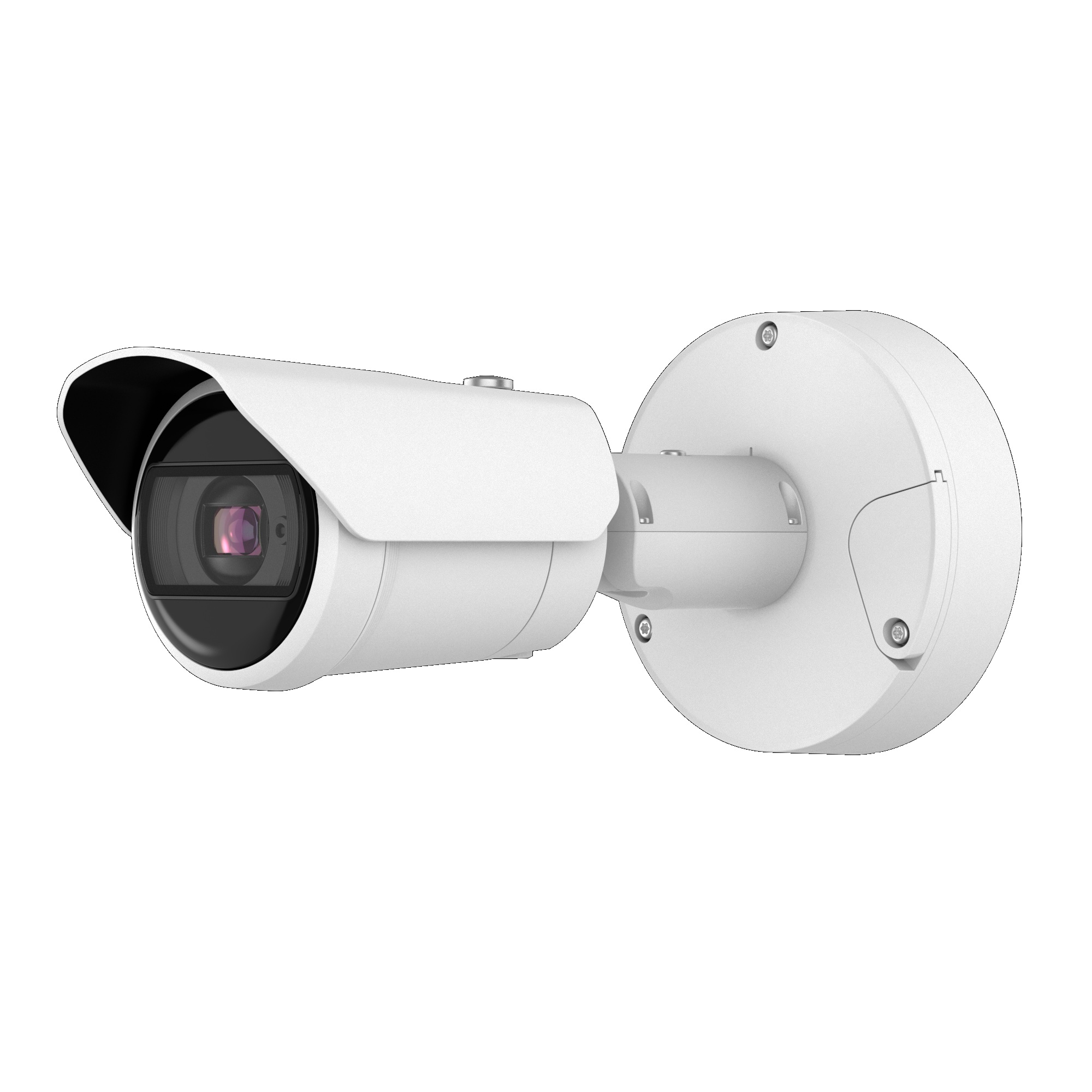

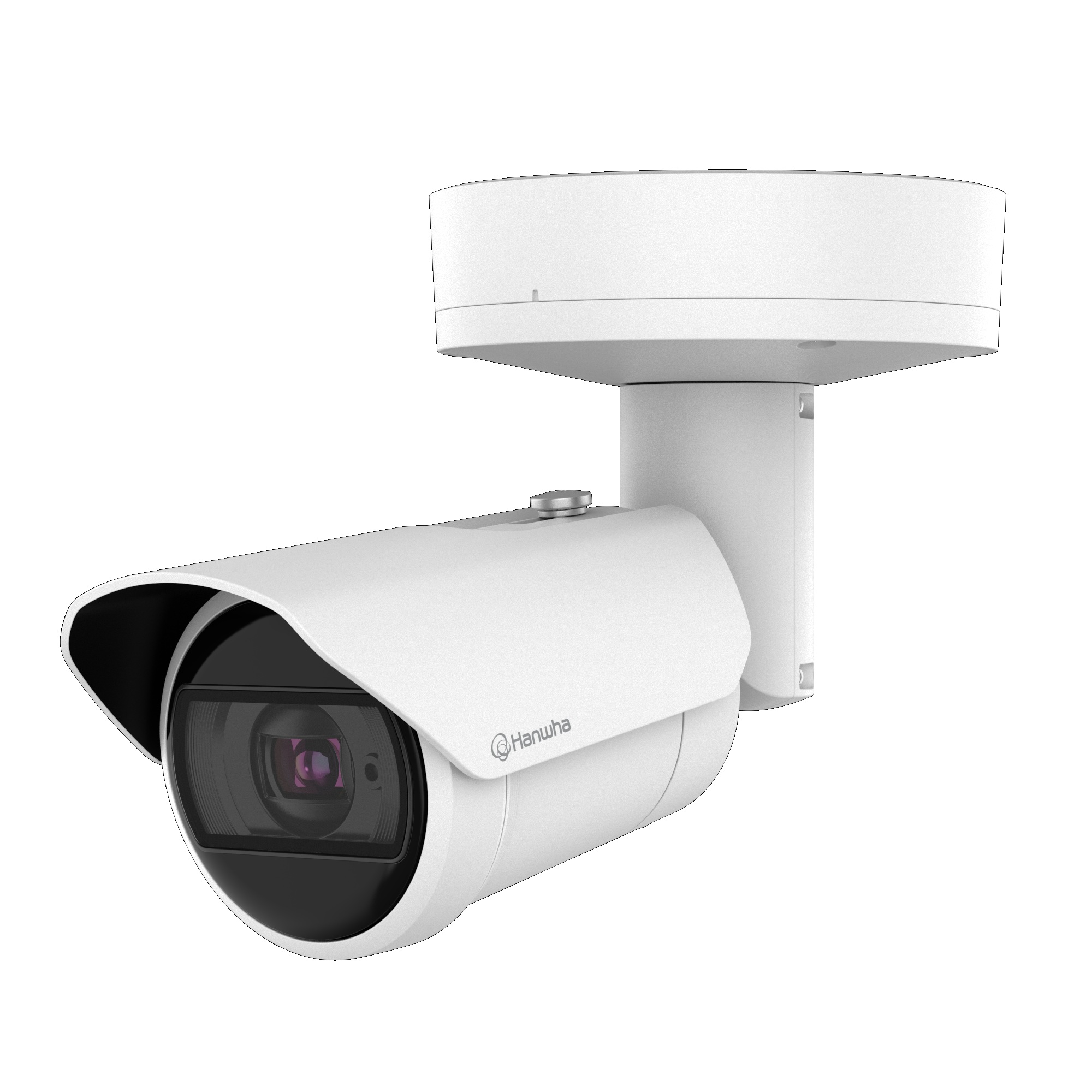

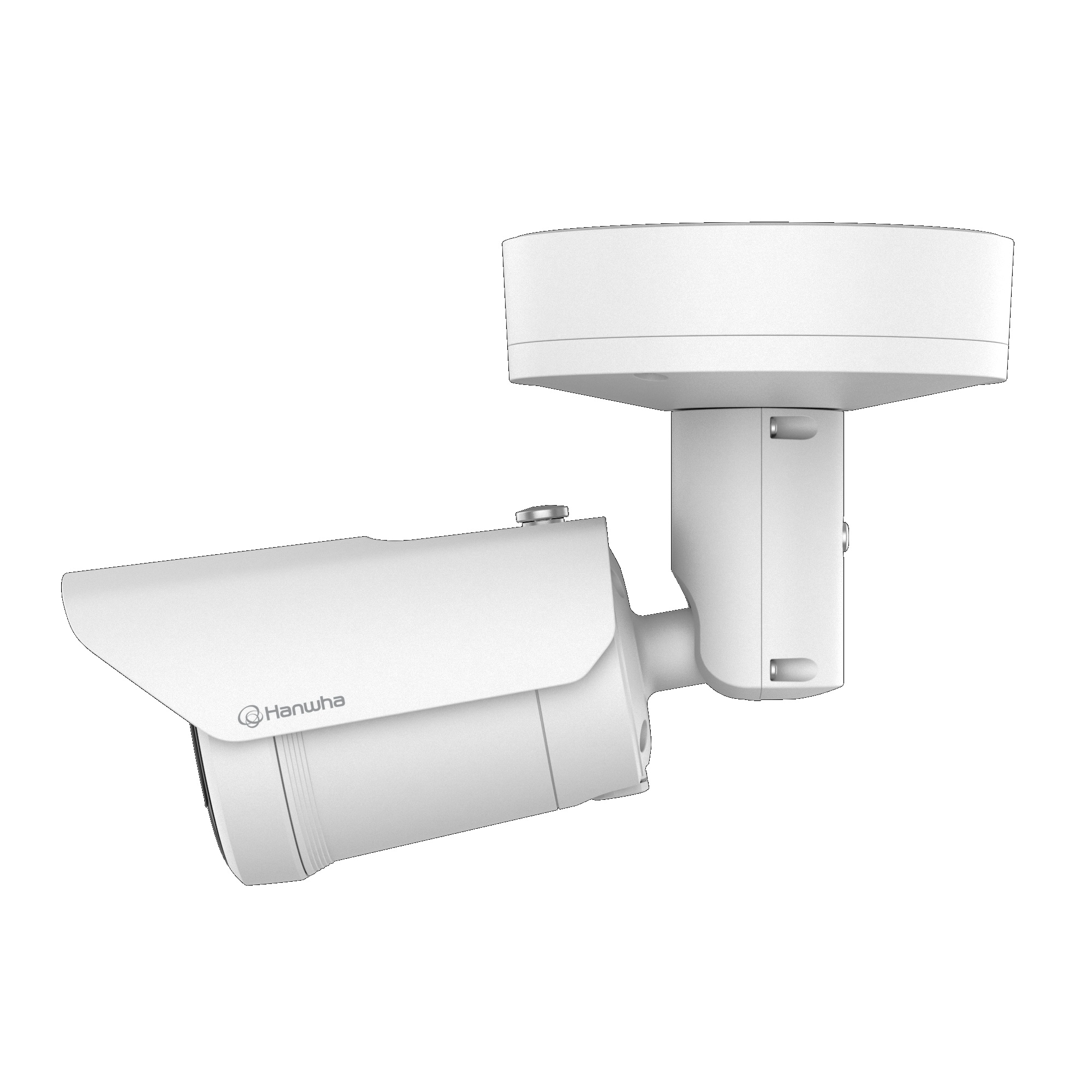

Built for directional outdoor coverage across perimeters, loading docks and commercial entry points, the Hanwha Vision XNO-C6083R X-Core is a 2MP AI bullet camera that combines intelligent object analytics with a 2.8-12mm motorised varifocal lens for flexible field-of-view framing. Featuring the Wisenet7 processing platform, it captures Full HD video at up to 60fps with smooth motion rendering suited to fast-moving scenes. WiseIR provides infrared illumination to approximately 40 metres, while extremeWDR at 150dB handles high-contrast environments such as backlit entry gates or sun-exposed car parks. AI analytics onboard classify people, vehicles and faces in real time, and support behavioural detection including intrusion, loitering and line crossing. With IP66, IP67, IK10 and NEMA4X ratings, the XNO-C6083R is built to withstand Australian outdoor conditions across industrial and commercial sites.
Key Capabilities
2.8-12mm Motorised Varifocal Lens
The 4.3x motorised zoom range lets installers frame coverage remotely, switching between wide-angle views of open yards and narrower fields for gates, doorways or fence-line approaches without physically repositioning the camera.
AI Object Classification
The onboard AI engine classifies people, vehicles and faces in real time, and detects behavioural events including intrusion, loitering and line crossing. This provides more targeted alerts than standard pixel-based motion detection.
WiseIR Night Vision to 40m
Integrated WiseIR adjusts IR intensity based on subject distance, reducing overexposure on nearby objects and maintaining consistent visibility along approaches and perimeter lines up to approximately 40 metres.
extremeWDR at 150dB
With 150dB wide dynamic range, the camera retains detail in both shadowed and brightly lit zones simultaneously, making it effective at backlit entry points, car park exits and sun-exposed outdoor walls.
60fps Full HD Recording
Recording at up to 60 frames per second at 1920 x 1080 ensures smooth capture of fast-moving people and vehicles, reducing motion blur in scenes where timing and detail are both critical.
IP67, IK10 and NEMA4X Housing
The rugged bullet housing carries IP66, IP67, IK10 and NEMA4X ratings, providing protection against full water immersion, heavy impact, dust ingress and corrosive environments typical of industrial and coastal outdoor sites.
Best For
- Perimeter and Fence-Line Monitoring: The directional bullet housing and 40m WiseIR range make this model suited to monitoring building boundaries, fence lines and outdoor approaches where consistent night coverage is needed.
- Commercial Entry Points and Gates: The 2.8-12mm motorised lens enables tight framing of entrance lanes or gate openings, with AI classification helping distinguish vehicles from pedestrians in high-traffic areas.
- Car Parks and Loading Docks: extremeWDR at 150dB handles the contrast between direct sunlight and shaded undercover areas, while 60fps reduces motion blur on vehicles moving through the frame.
- Industrial and Coastal Outdoor Installations: IP67 and NEMA4X ratings provide protection against moisture, dust and corrosive conditions, supporting deployment in demanding environments where standard outdoor cameras may degrade.
Why Choose the XNO-C6083R
The XNO-C6083R separates itself from basic 2MP bullet cameras through the combination of the Wisenet7 AI platform and a motorised varifocal lens, two capabilities that entry-level fixed-lens cameras cannot match. The AI engine classifies people, vehicles and faces onboard, supporting behavioural events such as intrusion and loitering without relying on cloud processing or an external analytics server. The 2.8-12mm motorised lens means installers can dial in the correct field of view during commissioning or remotely adjust framing as site requirements change. WiseStreamIII compression reduces storage and bandwidth demand without degrading image quality, which matters in multi-camera installations. WiseNRII handles low-light noise reduction while preserving scene detail that standard noise reduction can wash out. Available through Security Wholesalers, the XNO-C6083R is built for installations where AI-assisted detection accuracy and durable outdoor construction both matter.
Buyer Decision Tips
Motorised Varifocal vs Fixed Lens: The 2.8-12mm motorised lens gives you genuine remote framing flexibility, which is useful on sites where access for physical adjustments is difficult after installation. If your coverage zone is well-defined and unlikely to change, a fixed-lens model may suit the application. If you need to fine-tune zoom and focus during or after commissioning without ladder access, the motorised lens on the XNO-C6083R is a practical advantage.
AI Analytics and VMS Compatibility: The onboard AI analytics in the XNO-C6083R work at the camera level, meaning object classification and behavioural event detection function independently of the NVR or VMS. However, to make use of AI event filtering and search in your management software, confirm that your chosen NVR or VMS platform supports Hanwha Wisenet AI metadata. Not all third-party recorders expose these analytics fields.
Key Features & Technical Specifications
| Resolution |
2MP (1920 x 1080) |
| Image Sensor |
1/2.8″ CMOS |
| Lens Type |
Motorised varifocal, 2.8-12mm (4.3x zoom) |
| Frame Rate |
Up to 60fps at 1920 x 1080 |
| IR Night Vision Range |
Up to approximately 40m (WiseIR) |
| Wide Dynamic Range |
extremeWDR, 150dB |
| Video Compression |
H.265, H.264, MJPEG |
| Bandwidth Optimisation |
WiseStreamIII |
| Noise Reduction |
WiseNRII |
| AI Analytics |
Object detection and classification: people, vehicles, faces, licence plates; behavioural events: intrusion, loitering, line crossing |
| Platform |
Wisenet7 |
| Power |
PoE (IEEE 802.3af) / 12V DC |
| Ingress Protection |
IP66, IP67 |
| Impact Resistance |
IK10 |
| Additional Rating |
NEMA4X |
| Camera Type |
Outdoor IR bullet |
Ideal Use Cases
Building Perimeters
The directional bullet form factor and 40m WiseIR range are suited to wall-mounted positions covering building exteriors and side access paths, where long straight approaches benefit from focused IR throw.
Car Parks and Vehicle Zones
With 150dB extremeWDR and AI vehicle classification, the XNO-C6083R handles the high-contrast lighting of car parks and captures vehicle movement with reduced motion blur at 60fps.
Loading Docks and Warehouse Entries
Intrusion and line-crossing detection via the onboard AI engine makes this model useful at loading dock entries and warehouse access points where after-hours movement needs to trigger targeted alerts.
Industrial and Harsh Outdoor Sites
IP67 and NEMA4X ratings extend the XNO-C6083R into environments with dust, moisture and corrosive exposure, including manufacturing sites, outdoor processing areas and coastal installations.
Commercial Entry Gates
The motorised varifocal lens allows tight framing on entry lanes and boom gate zones, and the AI engine supports licence plate detection to assist with vehicle access monitoring at controlled entry points.
Choosing the Right Model
- Choose this model if: You need a motorised varifocal bullet camera with onboard AI classification, 60fps recording, 150dB WDR and IK10-rated outdoor housing for perimeter, car park or industrial site monitoring.
- Choose a different model if: Your application requires higher resolution beyond 2MP for wide-area coverage where subject detail at distance is critical, or if you need pan-tilt-zoom capability to reposition the camera remotely across a broad scene.
- Choose a different model if: The installation site is indoors only, where a dome or turret form factor offers a lower-profile ceiling or wall mount with a tidier appearance suited to occupied interior spaces.
FAQs
- What AI analytics does the XNO-C6083R support?
The camera uses the Wisenet7 AI engine to detect and classify people, vehicles, faces and licence plates. It also supports behavioural event detection including intrusion, loitering and line crossing. These analytics run onboard at the camera level, so they do not require an external analytics server to function.
- How does the motorised varifocal lens work in practice?
The 2.8-12mm motorised lens allows zoom and focus to be adjusted remotely through the camera’s web interface or a compatible NVR, without needing physical access to the camera itself. This is useful during initial commissioning and if coverage requirements change after installation.
- What does the IK10 rating mean for outdoor deployment?
IK10 is the highest impact resistance rating under international standards, indicating the housing can withstand 20 joules of impact energy. Combined with IP66 and IP67 ingress protection and NEMA4X certification, the XNO-C6083R is built to resist vandalism, heavy rain, dust and corrosive conditions in outdoor commercial and industrial environments.
- Why does the 150dB WDR matter for a bullet camera installation?
Bullet cameras mounted at entry points, car park exits and building perimeters frequently face scenes where sunlight and shadow appear in the same frame. extremeWDR at 150dB balances exposure across both bright and dark zones simultaneously, reducing washed-out or silhouetted areas that would otherwise obscure faces or number plates.
- Does the camera support PoE?
Yes. The XNO-C6083R supports IEEE 802.3af PoE, allowing it to receive power and transmit data over a single Cat5e or Cat6 cable. It also supports 12V DC power as an alternative, giving installers flexibility depending on the site infrastructure.
- How does WiseStreamIII affect storage requirements?
WiseStreamIII is Hanwha’s compression technology that combines H.265 encoding with dynamic bitrate control based on scene activity. In low-motion periods, the bitrate is reduced significantly, which can lower storage consumption compared to standard H.265 recording without affecting image quality during active scenes.
- Is the XNO-C6083R compatible with third-party NVRs?
The camera supports ONVIF Profile S and G for interoperability with third-party NVRs and VMS platforms. However, AI analytics metadata, WiseStreamIII compression benefits and advanced event integration are fully accessible only through Hanwha’s own Wisenet WAVE or SSM software. Security Wholesalers can advise on compatible recorder options for your installation. Confirm AI metadata support with your preferred platform before purchasing.
