Product SKU: XNO-A6084R
Product Overview

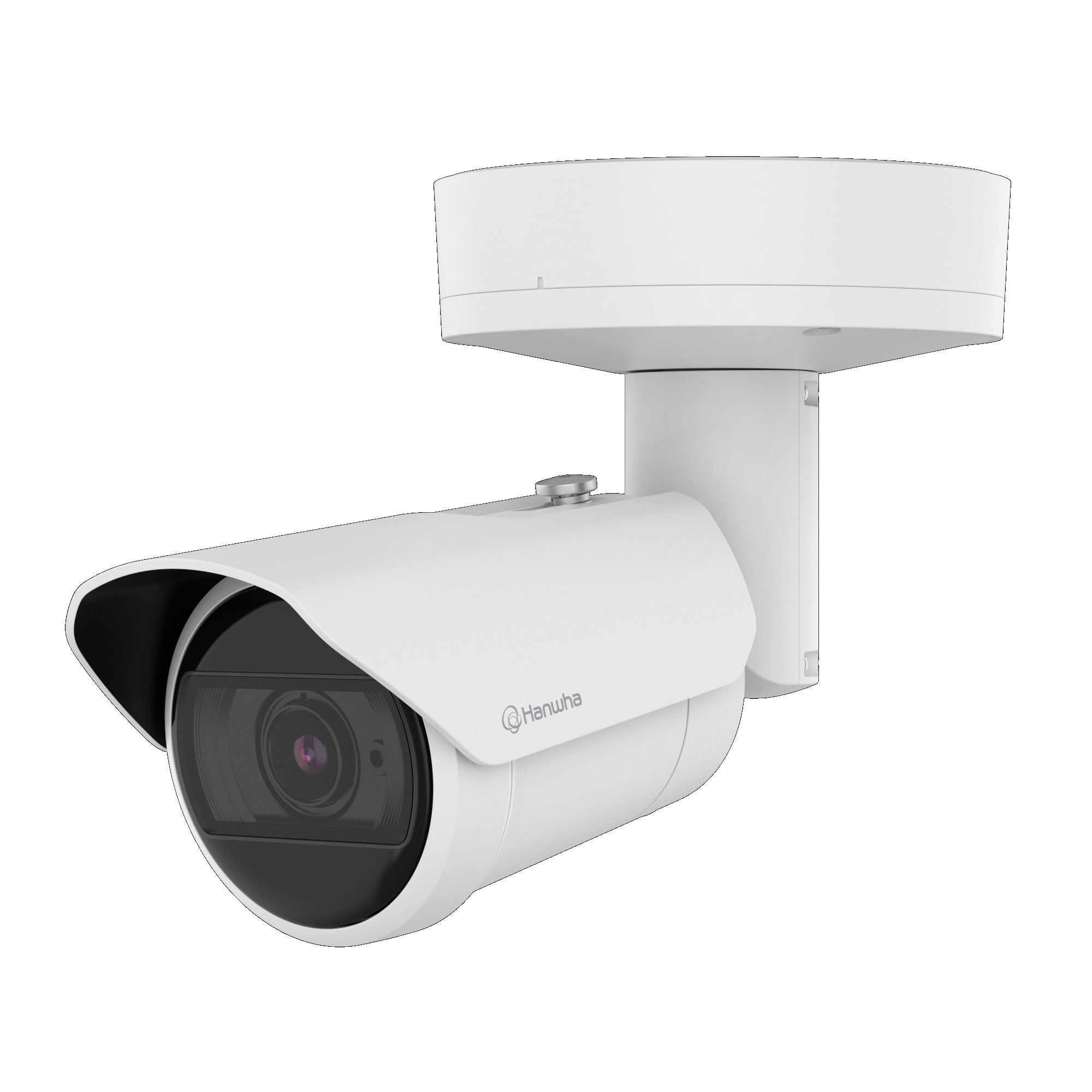

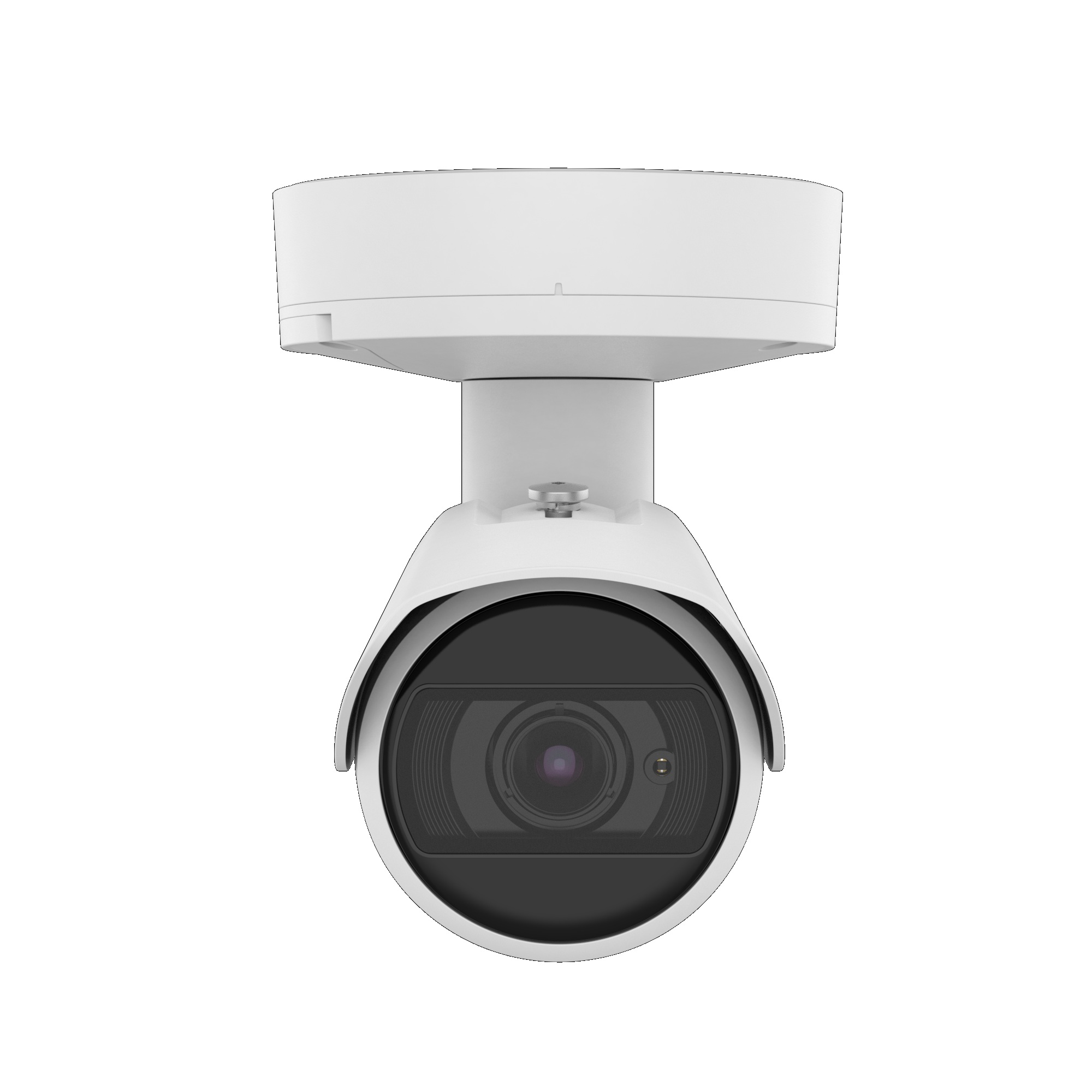

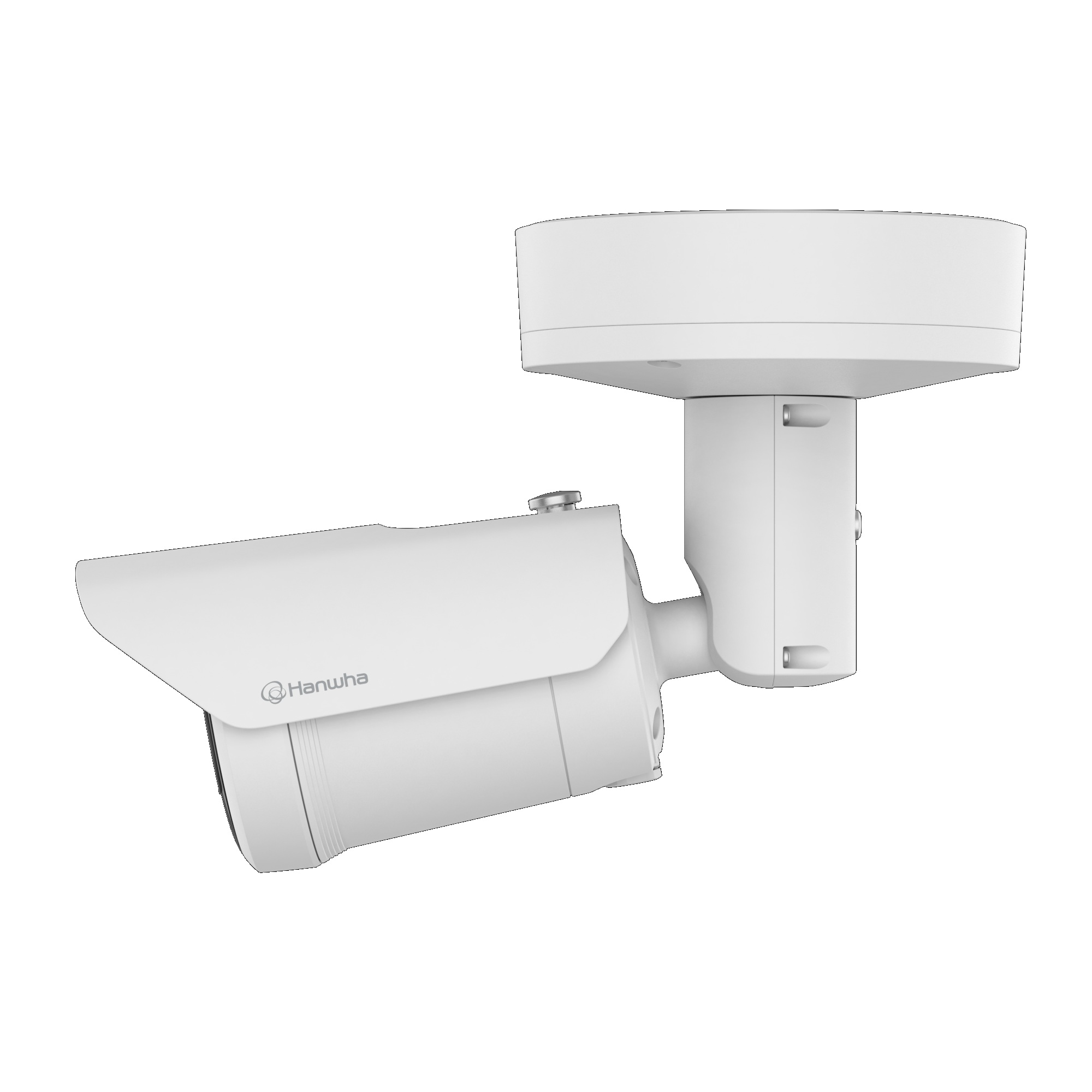

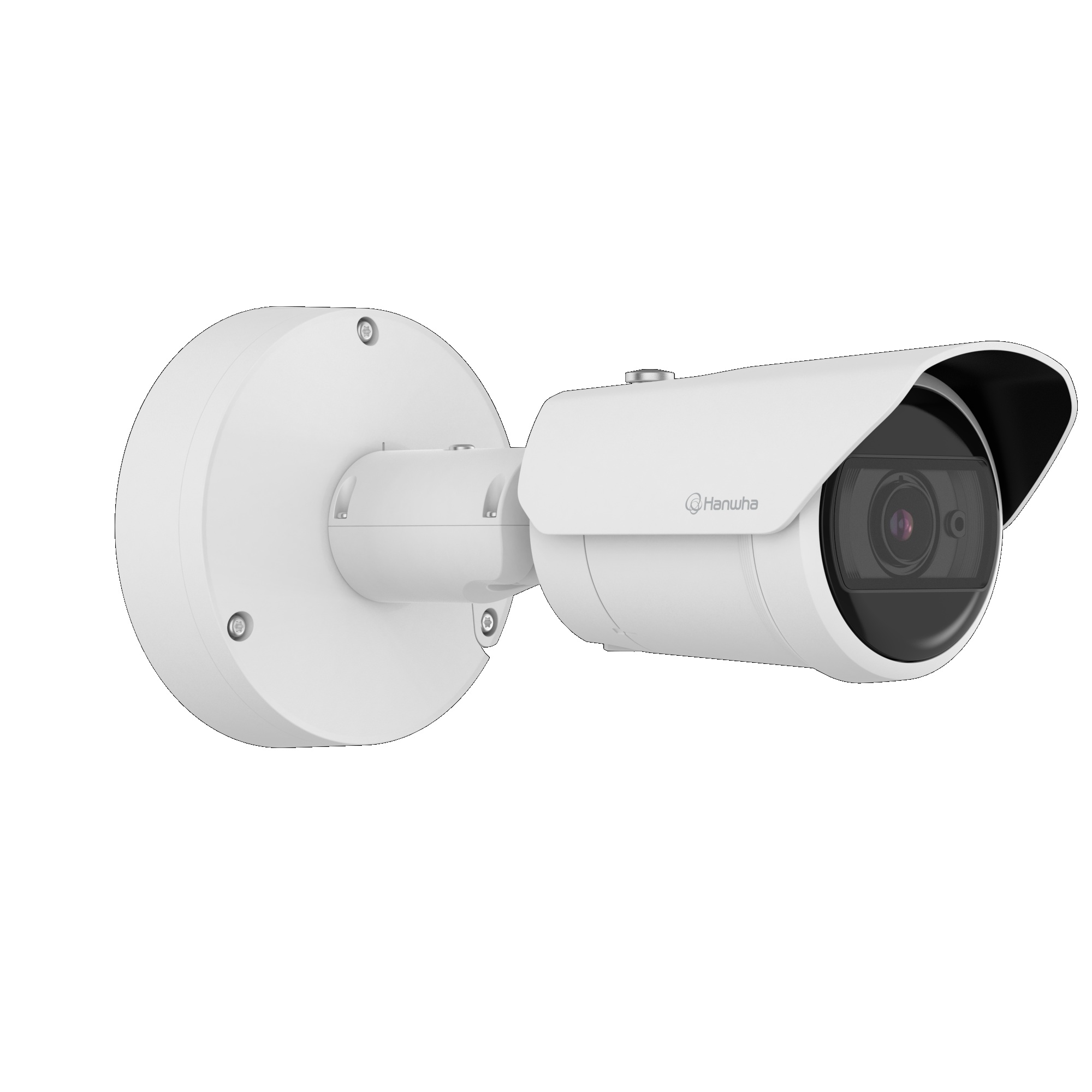

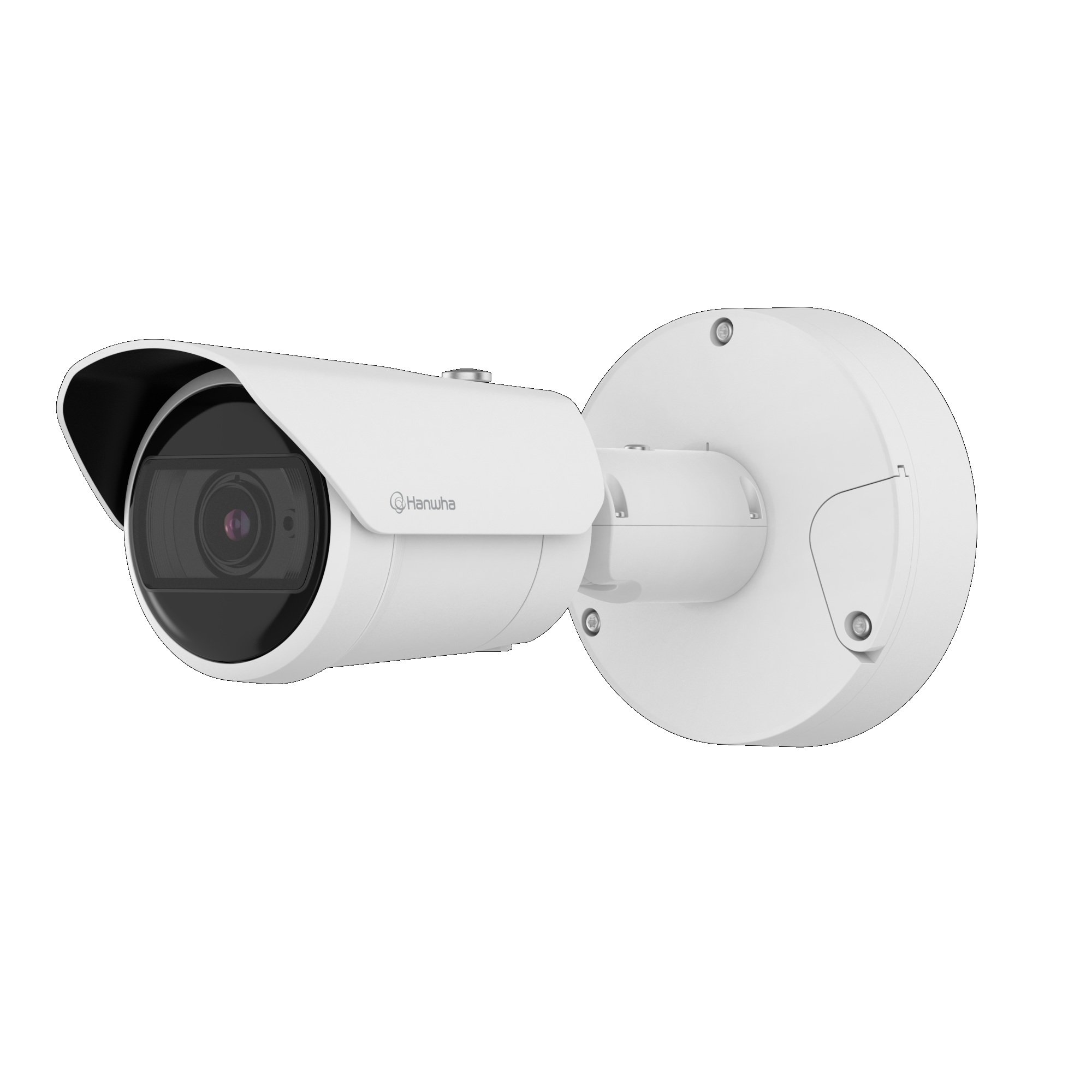

Combining a dual NPU AI engine with a motorised varifocal lens, the Hanwha Vision XNO-A6084R is built for perimeter and outdoor surveillance where detection accuracy and installation flexibility both matter. This IP bullet camera sits on the Wisenet 9 platform and captures Full HD 1920 x 1080 video at up to 60fps through a 2.8-12mm motorised varifocal lens, allowing remote zoom and focus adjustment to cover anything from wide approach zones to narrow entry points without climbing a ladder. WiseIR provides up to 50m of infrared night vision, and 150dB wide dynamic range keeps detail visible across challenging lighting transitions. The dual NPU architecture dedicates separate processing resources to imaging and analytics, enabling object classification across person, face, vehicle and licence plate categories alongside behavioural events including intrusion detection, loitering and line crossing. Housed in a rugged enclosure rated IP66/IP67, IK10 and NEMA, the XNO-A6084R is built to operate across demanding outdoor installations.
Key Capabilities
Dual NPU AI Processing
The Wisenet 9 platform uses separate neural processing units for imaging and analytics, so AI detection runs without degrading video quality. This separation improves classification accuracy across person, face, vehicle and licence plate categories in real operating conditions.
Motorised Varifocal Lens (2.8-12mm)
Remote zoom and focus adjustment through the motorised lens means installers can fine-tune the field of view from the NVR or software after mounting. This avoids repositioning the camera housing when coverage requirements change at a site.
Behavioural AI Analytics
Intrusion detection, loitering alerts and directional line crossing rules allow the camera to trigger on specific behaviours rather than any motion. This is significantly more useful at perimeters and access points where generic motion alerts produce high false alarm rates.
WiseIR Night Vision to 50m
Integrated WiseIR infrared illumination reaches up to 50m and adjusts automatically to reduce overexposure on close subjects. This maintains usable detail across the full IR range rather than washing out nearby objects while distant areas remain dark.
150dB Wide Dynamic Range
A 150dB WDR rating handles high-contrast scenes such as shaded entry points against bright outdoor backgrounds. Vehicles entering undercover car parks, gates at sunrise or lit signage against dark surroundings are common scenarios where this matters.
IP66/IP67, IK10 and NEMA-Rated Housing
The bullet enclosure carries dual water ingress ratings, a 10-joule impact resistance classification and NEMA certification, making it appropriate for exposed wall and pole mounts at industrial sites, loading docks and perimeter fencing where the environment is not controlled.
Best For
- Perimeter Fence and Wall Monitoring: The bullet housing, 50m IR reach and directional coverage make it suited to mounting on building exteriors or perimeter structures where a specific approach zone needs to be watched.
- Vehicle Entry and Car Park Coverage: Licence plate detection combined with the 2.8-12mm motorised lens allows installers to frame vehicle lanes precisely from a fixed mount, supporting both deterrence and post-event review.
- Industrial and Commercial Yards: IP67 and IK10 ratings mean the XNO-A6084R holds up in environments where dust, hose-down cleaning or impact risk is a consideration, including logistics yards, construction sites and waste facilities.
- Sites Requiring AI-Driven Alerting: Where operators need the camera to trigger on specific behaviours such as after-hours intrusion or extended loitering rather than general movement, the behavioural analytics on the Wisenet 9 platform are directly useful.
Why Choose the XNO-A6084R
The XNO-A6084R earns its place in professional installations through the combination of a dual NPU architecture and a genuinely motorised varifocal lens, two features that are often listed separately on lower-tier bullet cameras but rarely implemented together at this performance level. The dual NPU design on the Wisenet 9 platform means AI classification of persons, faces, vehicles and licence plates runs continuously without competing with the imaging pipeline, which keeps both video quality and detection accuracy at a consistent standard. The 2.8-12mm motorised lens removes the need to return to site for focus adjustments after the camera is mounted and cabled. The 150dB WDR and WiseIR illumination to 50m add further operational value in mixed-lighting environments. Available through Security Wholesalers, the XNO-A6084R is backed by Hanwha Vision’s local support and is well matched to commercial and industrial perimeter projects where analytics accuracy is a specification requirement, not an optional add-on.
Buyer Decision Tips
Motorised Varifocal vs Fixed Lens: The 2.8-12mm motorised lens on this model gives you remote zoom and focus control after the camera is mounted. If your installation has fixed, well-defined coverage zones that won’t change, a fixed-lens bullet at a lower price point may suffice. Choose the XNO-A6084R when the site requires framing flexibility at height, such as car park entrances, long fence lines or access roads where the exact frame needs to be confirmed during commissioning rather than estimated at the time of mounting.
AI Analytics and VMS Compatibility: The behavioural analytics on the XNO-A6084R, including intrusion, loitering and line crossing, run on-camera and do not require a separate AI server or licence in most standard configurations. Verify that your NVR or VMS supports Hanwha’s open API or ONVIF profile to receive and act on these event notifications. If your system is designed to handle AI event metadata from the camera edge, this model will deliver it without additional processing hardware.
Key Features & Technical Specifications
| Product Type |
AI IR Bullet Camera |
| Resolution |
2MP (1920 x 1080) |
| Image Sensor |
1/2.8″ CMOS |
| Lens Type |
2.8-12mm motorised varifocal |
| Frame Rate |
Up to 60fps |
| IR Night Vision Range |
Up to 50m (WiseIR) |
| Wide Dynamic Range |
150dB |
| Video Compression |
H.265, H.264, MJPEG |
| AI Platform |
Wisenet 9 with dual NPU |
| AI Object Detection |
Person, face, vehicle, licence plate |
| Behavioural Analytics |
Intrusion detection, loitering, line crossing |
| Power Input |
PoE (IEEE 802.3af) |
| Local Storage |
microSD card support |
| Weather Protection |
IP66/IP67, NEMA rated |
| Impact Resistance |
IK10 |
Ideal Use Cases
Building Perimeter and Fence Lines
The bullet housing mounts directionally on walls and poles to focus on specific perimeter zones. With WiseIR reaching 50m and intrusion detection running on-camera, the XNO-A6084R covers long fence lines and building exteriors after hours without relying on additional lighting.
Car Park Entries and Vehicle Lanes
Licence plate detection and the motorised varifocal lens allow the camera to be precisely framed on a vehicle lane during commissioning. The 150dB WDR maintains readable detail as vehicles move between shadowed and lit sections of the approach.
Industrial Yards and Loading Docks
IP67 and IK10 ratings make this camera appropriate for heavy-industry environments where pressure washing, dust exposure or accidental impact is possible. Loitering and line crossing analytics support after-hours monitoring of restricted loading areas.
Commercial Site Entrances and Gates
A visible bullet camera at a commercial gate communicates active surveillance and the motorised varifocal lens allows the frame to be adjusted to include both pedestrian and vehicle access paths from a single mount point.
Construction Sites
Construction environments change regularly and the motorised varifocal lens allows coverage to be redirected remotely as the site layout evolves. The rugged housing and microSD local storage provide resilience where network connectivity or power infrastructure may be temporary.
Choosing the Right Model
- Choose this model if: Your installation requires AI-driven behavioural analytics including intrusion, loitering and line crossing running on-camera, combined with a motorised varifocal lens for flexible coverage adjustment across outdoor perimeter, car park or industrial site locations.
- Choose a different model if: You need 4MP or higher resolution for detailed face or plate identification at greater distances. A fixed-lens bullet would also be more cost-effective if the coverage zone is already well defined and remote lens adjustment is not a commissioning requirement.
- Choose a different model if: The installation is indoors or in a controlled environment where IP67 and IK10 protection ratings add cost without benefit, and a dome or turret form factor would suit the ceiling or wall mounting position better.
FAQs
- What is the dual NPU architecture on the XNO-A6084R and why does it matter?
The Wisenet 9 platform in this camera uses 2 neural processing units assigned to different tasks: one handles image processing and the other runs AI analytics. This separation means the camera does not have to compromise video quality to support detection workloads. In practice, you get both clean 1080p imaging and accurate object classification running simultaneously without the frame rate or image quality drops that can occur on single-chip designs.
- What types of objects can the XNO-A6084R detect and classify?
The AI engine classifies persons, faces, vehicles and licence plates. It also supports event-based rules including intrusion detection (an object entering a defined zone), loitering (an object remaining in a zone beyond a set time threshold) and line crossing (an object moving across a defined boundary in a specified direction). These rules are configured through the camera’s web interface or a compatible VMS.
- How does the motorised varifocal lens work during installation?
Once the camera is physically mounted and cabled, you adjust zoom and focus through the camera’s web interface or via your NVR software rather than manually turning the lens barrel. This is especially useful when the camera is mounted high on a wall or pole. The 2.8-12mm range on the XNO-A6084R covers wide-area views at 2.8mm through to a narrower, more detailed frame at 12mm, which suits vehicle lane or gate monitoring from a single fixed mount.
- What is the IR range and does it adjust automatically?
The XNO-A6084R uses WiseIR illumination with a range of up to 50m. WiseIR adjusts the IR intensity automatically based on how close a subject is, which reduces the overexposure effect that occurs when a person or vehicle is directly in front of the camera at short range. This keeps detail visible at both close and mid-range distances rather than producing a washed-out bright area near the camera.
- What does the 150dB WDR rating mean for outdoor installations?
Wide dynamic range allows the camera to produce a balanced image when part of the scene is brightly lit and another part is in shadow. At 150dB, the XNO-A6084R can handle high-contrast scenarios such as a shaded loading dock entrance facing direct sunlight, a gate at sunrise, or a car park where fluorescent canopy lighting meets a dark exterior. Without sufficient WDR, these scenes produce either a blown-out bright area or an undetailed dark zone.
- Does the camera support local storage if the network goes down?
Yes. The XNO-A6084R includes a microSD card slot for local on-camera storage. This allows continuous recording to continue independently of the network, which is useful on construction sites or remote locations where network reliability is not guaranteed. Check the supported microSD card capacity in the current Hanwha datasheet for the maximum card size confirmed for this model.
- Is the XNO-A6084R suitable for use in areas with regular hose-down or heavy rain exposure?
Yes. The housing carries both IP66 (protection against high-pressure water jets) and IP67 (protection against temporary submersion) ratings, plus NEMA certification. This makes it appropriate for wash-down environments such as food processing exteriors, livestock facilities or industrial sites where cleaning with pressurised water occurs regularly. The IK10 rating adds protection against physical impact up to 20 joules. The XNO-A6084R is available through Security Wholesalers and is suited to these demanding installation conditions.
