Product SKU: XNO-6123R
Product Overview

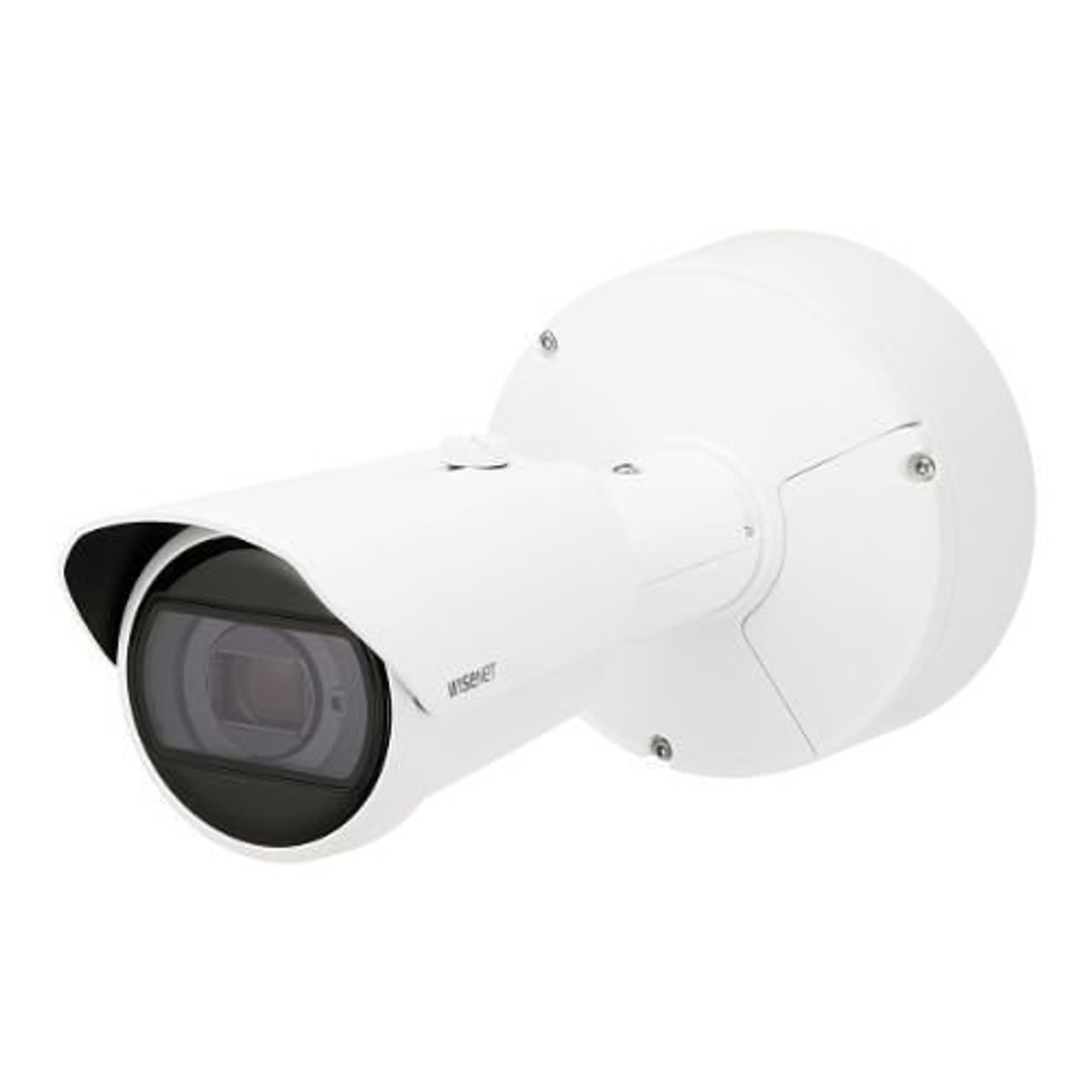

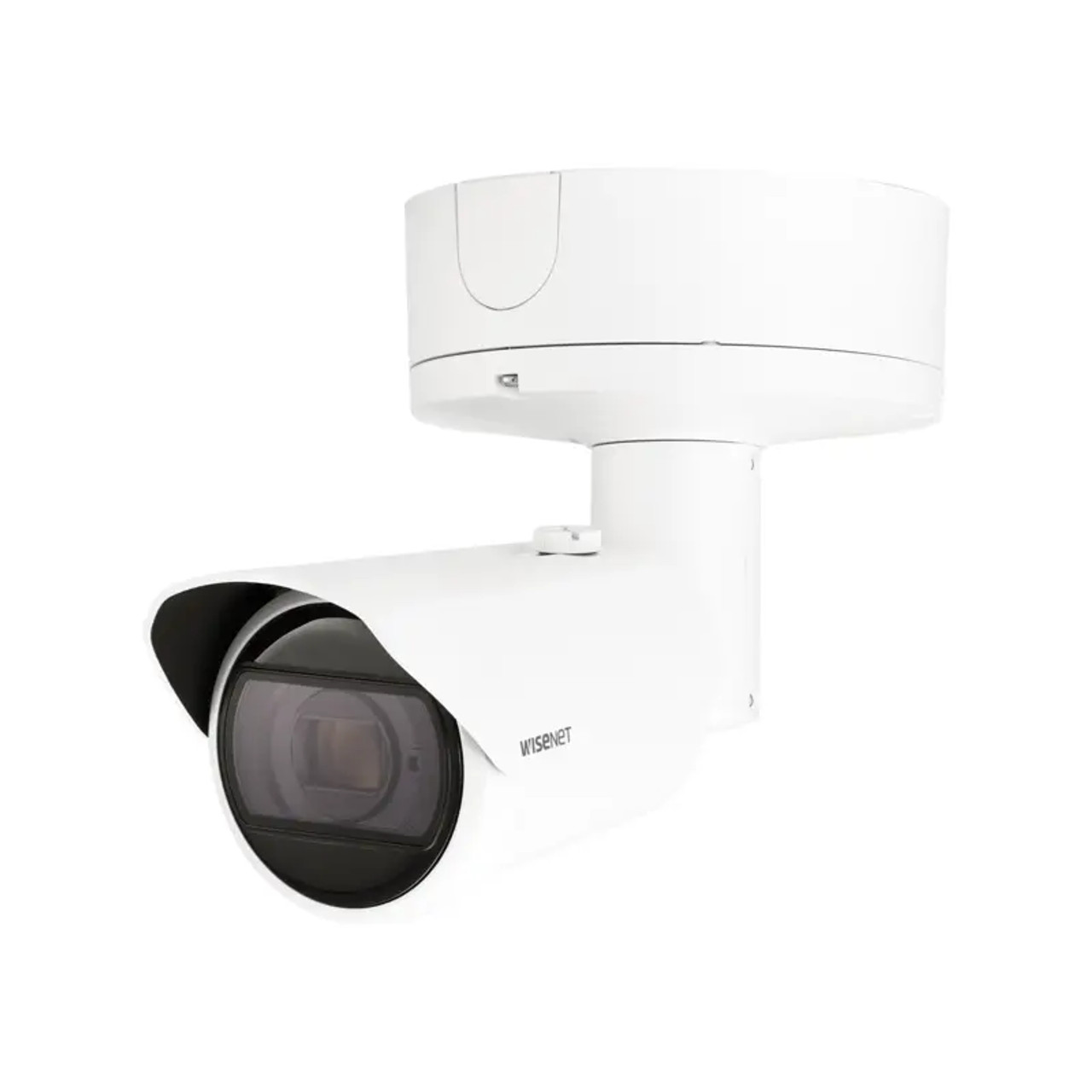

Built for perimeter surveillance and critical infrastructure monitoring, the Hanwha Vision XNO-6123R is a 2MP AI-powered outdoor bullet camera that combines a 12x motorised varifocal lens with long-range infrared and a dedicated Neural Processing Unit for on-camera analytics. Featuring a 5.2-62.4mm motorised zoom, it can shift from a broad 54.58-degree field of view down to a tight 5.30-degree view for detailed coverage across entry points, fence lines, traffic lanes, and loading zones. Equipped with WiseIR technology delivering up to 90 metres of IR illumination and extremeWDR rated at 150 dB, it handles both low-light conditions and high-contrast scenes such as backlit vehicle approaches. AI analytics including person, face, vehicle, and licence plate detection run on-board, supported by intrusion, loitering, and directional detection. With IP66, IP67, IK10, and NEMA4X ratings plus a verified operating range of -40 to +60 degrees Celsius, the XNO-6123R is engineered for continuous outdoor deployment in demanding environments.
Key Capabilities
12x Motorised Varifocal Zoom
The 5.2-62.4mm lens allows installers to remotely adjust framing across a wide range of distances without physically accessing the camera. This is particularly useful on poles, rooftops, or high mounting positions where repositioning the lens manually is impractical.
90m WiseIR Night Vision
WiseIR automatically adjusts IR intensity based on zoom level and subject distance, reducing overexposure on nearby subjects while maintaining sufficient illumination at range. This is critical for long-approach monitoring on driveways, perimeter fences, and access roads at night.
150 dB extremeWDR
A 150 dB wide dynamic range rating handles scenes where strong backlighting or direct sun would otherwise wash out faces or plates. Entry points with bright skylines, carpark exits, and vehicle barrier gates are typical applications where this level of WDR delivers consistent results.
On-Board AI Analytics via NPU
A dedicated Neural Processing Unit runs person, face, vehicle, and licence plate classification directly on the camera. Virtual line, area intrusion, loitering, and directional detection are also supported, reducing reliance on server-side processing and keeping analytics active even if network connectivity drops.
120fps High Frame Rate
At up to 120 frames per second, the XNO-6123R captures fast-moving subjects with minimal motion blur. This is relevant for traffic monitoring, vehicle entry lanes, and industrial environments where conveyor movement or fast-moving vehicles need to be recorded clearly.
IP66/IP67, IK10, NEMA4X Ratings
Combined dust and water ingress protection, impact resistance rated to IK10, and NEMA4X corrosion certification make this camera suited to coastal installations, industrial yards, and sites exposed to chemicals, salt air, or pressure washing. Operating temperature range is -40 to +60 degrees Celsius.
Best For
- Perimeter Fence Lines and Long Approaches: The 12x optical zoom and 90m IR range allow a single camera to monitor extended perimeter sections from a fixed mounting position, covering ground that would otherwise require multiple fixed-lens cameras.
- Vehicle Entry and Exit Points: On-board licence plate and vehicle classification analytics combined with 150 dB WDR make the XNO-6123R well suited to boom gate approaches, carpark exits, and facility entry lanes where lighting contrast is a constant challenge.
- Critical Infrastructure and Industrial Sites: NEMA4X corrosion resistance and the -40 to +60 degree operating range support continuous deployment in environments such as water treatment plants, power substations, mining sites, and coastal industrial facilities.
- Traffic and Transportation Monitoring: The 120fps capability and motorised zoom provide the frame rate and focal flexibility needed to capture moving vehicles clearly across multi-lane approaches, highway intersections, and transport depot access roads.
Why Choose the XNO-6123R
The XNO-6123R separates itself from standard varifocal bullet cameras through the combination of a true 12x optical zoom range, a dedicated NPU for on-board AI classification, and a 150 dB WDR rating that is rarely found at this resolution class. A basic motorised varifocal camera may offer zoom adjustment but lacks the processing hardware to run licence plate detection, person classification, and intrusion analytics simultaneously without offloading to a server. The 120fps frame rate and 90m WiseIR illumination further extend its capability beyond what fixed-lens or short-range IR bullets can offer. NEMA4X certification adds a level of environmental assurance that standard IP-rated cameras do not provide, making it appropriate for corrosive or chemically exposed outdoor locations. The XNO-6123R is available through Security Wholesalers and suits integrators specifying cameras for infrastructure, transport, or high-security commercial perimeters where analytics accuracy and long-range clarity are both required.
Buyer Decision Tips
Zoom Range and Mounting Distance: The 12x optical zoom means the XNO-6123R is most effective when mounted at a distance from the target zone rather than close up. At shorter mounting distances, the wide end of the lens (54.58 degrees) may be wider than needed, while close mounting wastes the camera’s long-range IR and zoom advantage. Plan mounting positions of at least 15-20 metres from the primary target area to take full advantage of the focal range and 90m IR capability.
Power Supply Planning: The XNO-6123R supports PoE+ (802.3at) and 12V DC. Standard PoE (802.3af) is not sufficient – confirm that your switch or injector provides PoE+ before ordering. For remote mounting positions where cable runs exceed standard PoE distance limits, a local 12V DC power supply with a separate data cable may be the more reliable option.
Key Features & Technical Specifications
| Model |
Hanwha Vision XNO-6123R |
| Resolution |
2MP Full HD (1920 x 1080) |
| Image Sensor |
1/2.8″ CMOS |
| Frame Rate |
Up to 120fps |
| Lens Type |
12x motorised varifocal |
| Focal Length |
5.2-62.4mm |
| Horizontal Field of View |
5.30 degrees to 54.58 degrees |
| IR Illumination |
WiseIR up to 90 metres |
| Wide Dynamic Range |
extremeWDR 150 dB |
| AI Analytics |
Person, face, vehicle, and licence plate detection and classification via NPU |
| Video Analytics |
Virtual line detection, area detection, loitering, intrusion, directional detection, audio detection, shock detection |
| Housing Type |
Outdoor bullet |
| Environmental Rating |
IP66, IP67, IK10, NEMA4X |
| Operating Temperature |
-40 to +60 degrees Celsius (-40 to +140 degrees Fahrenheit) |
| Power Supply |
PoE+ (802.3at), 12V DC |
| Lead Time |
Approximately 4-5 weeks |
Ideal Use Cases
Perimeter Fence and Boundary Monitoring
The 90m WiseIR range and 12x optical zoom allow the XNO-6123R to monitor extended boundary sections from elevated or distant mounting positions. On-board intrusion and directional detection triggers alerts when movement crosses defined virtual lines or enters restricted zones.
Vehicle Entry Gates and Boom Barriers
On-board licence plate detection and 150 dB extremeWDR make this camera directly applicable to access control approaches where vehicle registration capture is needed regardless of sun angle or headlight glare during night-time entry.
Industrial Yards and Warehousing
IK10 impact resistance and NEMA4X corrosion certification allow deployment in yards where equipment movement, dust, chemical exposure, or pressure cleaning would compromise a standard IP-rated camera over time.
Transportation and Traffic Monitoring
The 120fps frame rate reduces motion blur on fast-moving vehicles, while the motorised zoom allows focal adjustment for different lane widths or intersection distances without physically repositioning the camera housing.
Critical Infrastructure and Utilities
Substations, water treatment facilities, and communications infrastructure benefit from the verified operating temperature range of -40 to +60 degrees Celsius and the NEMA4X rating, which addresses corrosion resistance requirements common in utility site specifications.
Choosing the Right Model
- Choose this model if: Your application requires a long-range motorised zoom bullet with on-board AI analytics including licence plate and person classification, combined with a high frame rate for vehicle monitoring and environmental certifications beyond standard IP ratings.
- Choose a different model if: Your mounting position is close to the target zone (under 10 metres), where a fixed-lens or short-range varifocal bullet would provide simpler setup and lower cost without wasting the 12x zoom range. For wide-area overview coverage across an open yard or car park, a multi-sensor or panoramic camera may achieve broader situational awareness with fewer mounting positions than a single zoomed bullet.
FAQs
- What does the 12x optical zoom allow the XNO-6123R to cover in practice?
The 5.2-62.4mm motorised varifocal lens shifts the horizontal field of view from a broad 54.58 degrees down to 5.30 degrees. In practical terms, this means a single camera mounted at a gate entry can zoom in to capture a licence plate at 30 metres or pull back to show vehicle queuing across a wider approach, all without moving the camera housing.
- Does the XNO-6123R require a server to run its AI analytics?
No. AI classification for people, faces, vehicles, and licence plates runs on the camera’s dedicated Neural Processing Unit. Analytics including loitering detection, intrusion, and virtual line events are also processed on-board, which means they remain functional even if the network connection between the camera and the VMS is temporarily interrupted.
- What does NEMA4X certification add beyond IP66 and IP67?
IP66 and IP67 address water and dust ingress. NEMA4X adds corrosion resistance, which is relevant for installations near salt water, chemical storage, or sites subject to caustic cleaning agents. For coastal industrial sites or water treatment environments, NEMA4X provides a more complete weathering specification than IP ratings alone.
- What power supply does the XNO-6123R require and is standard PoE compatible?
The XNO-6123R requires PoE+ (IEEE 802.3at) or 12V DC. Standard PoE (IEEE 802.3af) does not supply sufficient power for this camera. Before installation, verify that the switch port or PoE injector supplying the camera is rated for 802.3at. Using a 12V DC adaptor with a separate network cable is a practical alternative for remote mounting positions.
- How does WiseIR improve night-time performance compared to standard IR?
Standard fixed-output IR illuminators can overexpose subjects at close range while underilluminating at the lens’s full zoom distance. WiseIR automatically adjusts IR intensity to match the current zoom level and distance of the subject in frame, which keeps exposure balanced whether the lens is at its wide end covering a broad scene or zoomed in on a specific point 60 or 70 metres away.
- Is the XNO-6123R suitable for outdoor installation in extreme cold or heat?
Yes. The confirmed operating temperature range is -40 to +60 degrees Celsius, making it suitable for cold-climate sites such as alpine infrastructure, cold-storage facilities, or remote northern locations, as well as hot environments including rooftop industrial installations in arid regions.
- Where can I purchase the XNO-6123R and what is the expected lead time?
The XNO-6123R is part of the Security Wholesalers range and carries an approximate 4-5 week lead time from order. This is a specialist AI varifocal bullet intended for commercial and infrastructure projects rather than off-the-shelf residential deployment, so confirming lead time before project scheduling is recommended.
Additional Information
No additional downloads available for this product.
