Product SKU: XND-A9085RV
Product Overview

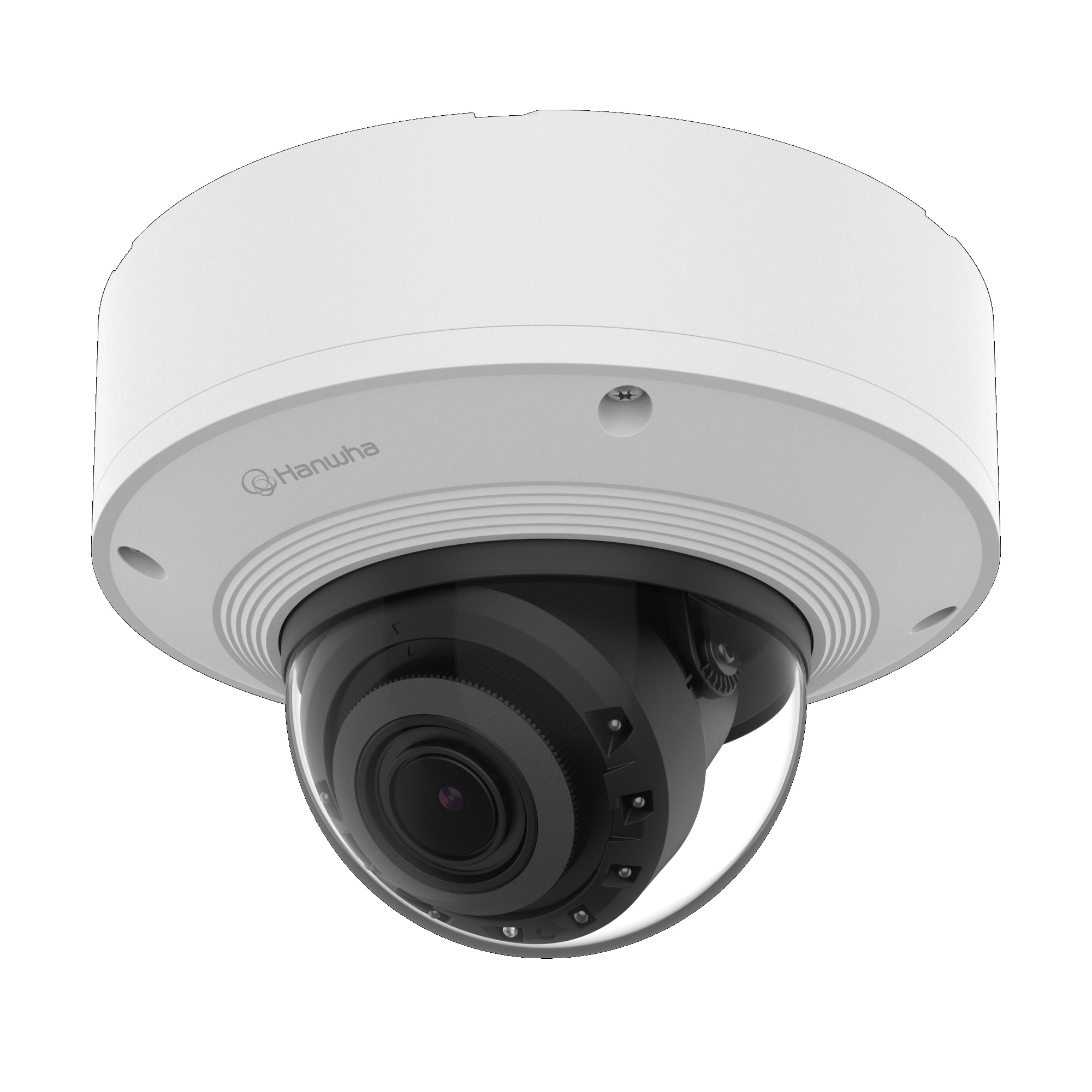

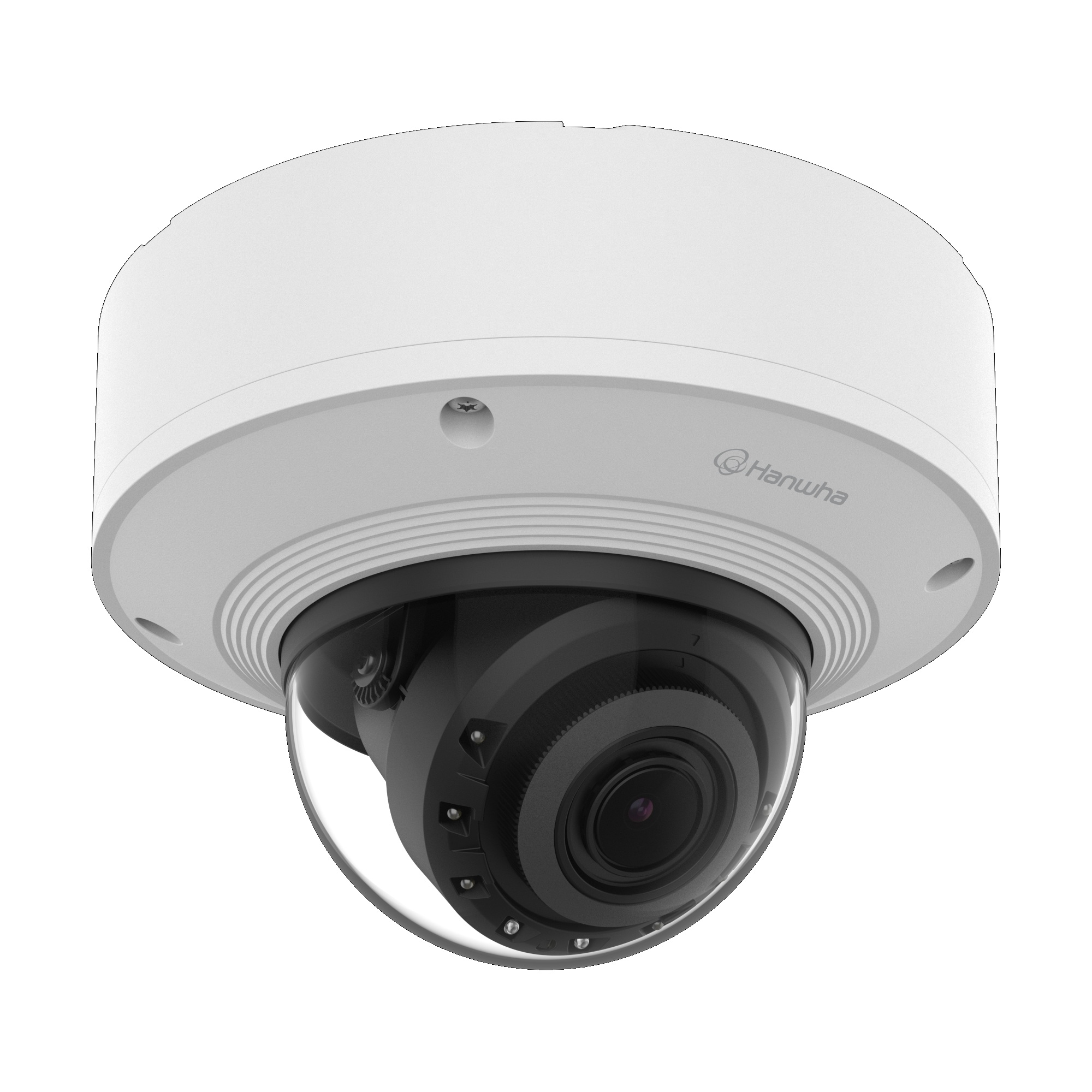

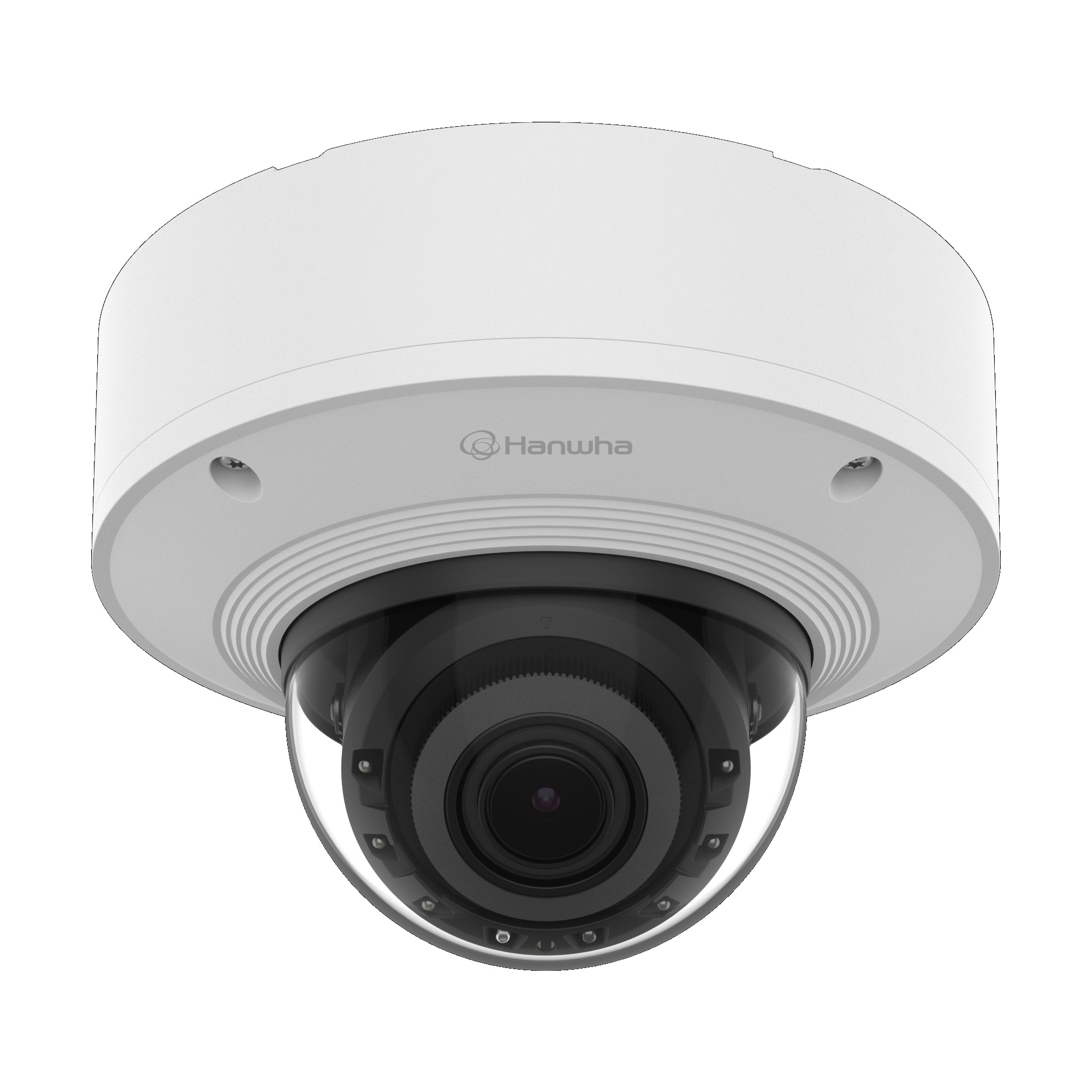

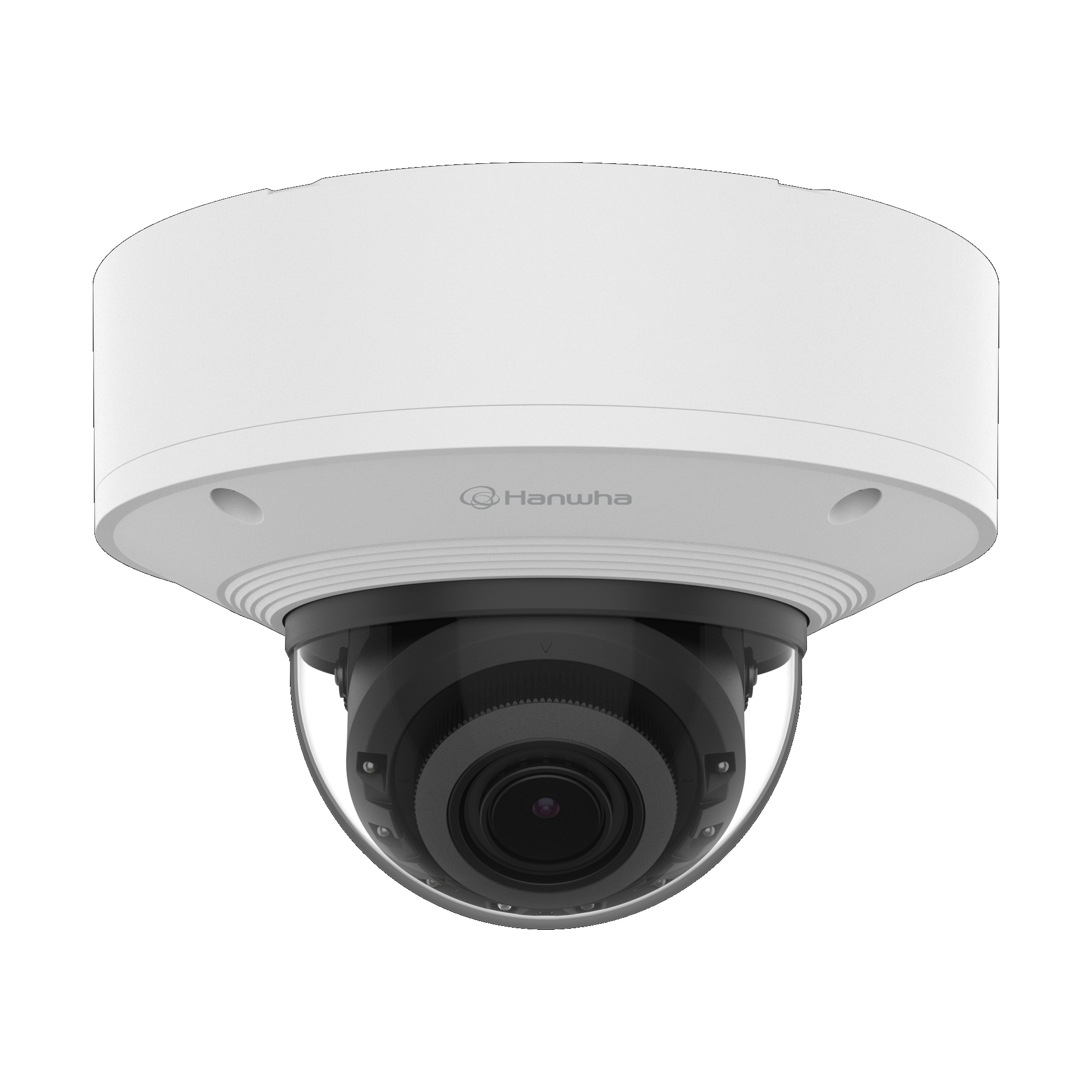

For commercial and institutional spaces that require more than basic motion detection, the Hanwha Vision XND-A9085RV delivers 8MP 4K imaging with genuine AI analytics built on the Wisenet 9 platform. This modular dome camera is designed for indoor ceiling installation in environments where forensic image detail and accurate event classification are both required. Featuring a 1/1.8″ CMOS sensor and a 4.4-9.3mm motorised varifocal lens, the XND-A9085RV captures 3840 x 2160 resolution video with remote zoom and focus control. Dual NPU processing runs image optimisation and AI analytics simultaneously, supporting detection of people, faces, vehicles and licence plates alongside behavioural events including intrusion, loitering and directional movement. WiseIR illumination extends visibility to approximately 50 metres in complete darkness. The IP52 and IK10-rated dome housing suits indoor or sheltered mounting, and the modular magnetic design significantly reduces installation and servicing time in professional deployments.
Key Capabilities
8MP 4K Resolution on a 1/1.8″ Sensor
The large-format 1/1.8″ CMOS sensor captures 3840 x 2160 video, providing the pixel density needed to identify faces, licence plates and fine detail across wide indoor spaces without relying on digital zoom.
Dual NPU AI Processing
Two dedicated neural processing units run image enhancement and AI analytics as separate workloads simultaneously. This prevents the performance trade-off common in single-processor cameras, where enabling analytics noticeably degrades image output.
AI Behavioural Analytics and Object Classification
Beyond basic motion detection, the XND-A9085RV classifies people, faces, vehicles and licence plates, and identifies behavioural events including intrusion, loitering and directional movement, reducing operator workload in busy commercial environments.
Motorised Varifocal Lens with Remote Adjustment
The 4.4-9.3mm motorised varifocal lens lets installers adjust zoom and focus remotely during commissioning, covering horizontal fields from approximately 113 degrees at wide angle down to 47 degrees for tighter, corridor-style coverage.
Modular Magnetic Dome Design
The magnetic modular mounting system allows the camera module to detach cleanly from the base without tools or disconnecting cables, cutting servicing time in tiled ceilings, ceiling voids and indoor commercial installations where access is awkward.
Dual MicroSD Redundant Storage
Two onboard microSD card slots provide local edge storage for continuous or event-triggered recording, offering a backup layer when network connectivity is interrupted and reducing reliance on centralised NVR storage alone.
Best For
- Corporate and Institutional Interiors: The IK10-rated dome housing and discreet ceiling profile suit office corridors, reception areas and shared workspaces where camera presence should be visible but unobtrusive.
- Retail Environments Requiring Behavioural Intelligence: People counting and heat mapping analytics provide operational data alongside security footage, making the camera useful for both loss prevention and traffic flow analysis in retail settings.
- Installers Handling Multi-Camera Commercial Projects: The modular magnetic mount reduces per-camera installation time across large projects, and the motorised varifocal lens eliminates the need to physically reposition the camera body when adjusting coverage.
- Environments Needing Licence Plate and Face Detection: The dual NPU and 4K sensor combination supports accurate licence plate and face classification at distance, suited to building entry points, car park ingress lanes and access-controlled lobbies.
Why Choose the XND-A9085RV
The XND-A9085RV stands apart from standard 8MP dome cameras through its dual NPU architecture on the Wisenet 9 platform, which processes image quality optimisation and AI analytics as independent tasks. A single-processor camera forced to run analytics alongside imaging typically degrades one or both outputs. Here, 4K detail and accurate object classification operate concurrently without compromise. The motorised varifocal lens removes the need for manual focus adjustment during installation, and the modular magnetic dome body allows camera modules to be swapped or repositioned without fully dismantling the ceiling mount. Dual microSD slots add a local redundancy layer that many competitors omit at this price point. For professional installers and end-users who need verifiable AI detection, not just motion alerts, the XND-A9085RV is a well-specified indoor dome available through Security Wholesalers as part of the Hanwha X-Series range.
Buyer Decision Tips
Check Your IP Rating Requirements Before Installing Outdoors: The XND-A9085RV carries an IP52 rating, which provides protection against dust ingress and dripping water at a fixed angle. It is not rated for direct rain exposure, pressure washing or fully exposed outdoor mounting. If your installation point is under a deep soffit or inside a covered car park ceiling, IP52 may be sufficient. For any location exposed to weather, a camera with IP66 or IP67 is the appropriate choice.
Understand What Dual MicroSD Slots Do and Do Not Provide: Two microSD slots support redundant or extended local storage, but this is not the same as RAID or failover storage. Edge recording is a useful backup when the network recorder is unavailable, not a replacement for centralised NVR storage in a professional system. Confirm your storage strategy before deployment, particularly in high-camera-count installations where edge cards require periodic management.
Key Features & Technical Specifications
| Resolution |
8MP (3840 x 2160) |
| Image Sensor |
1/1.8″ CMOS |
| Lens Type |
Motorised varifocal |
| Focal Length |
4.4-9.3mm (2.1x optical zoom) |
| Field of View (Horizontal) |
Approximately 113 degrees (wide) to 47 degrees (tele) |
| Frame Rate |
Up to 30fps |
| IR Night Vision Range |
Up to approximately 50m (WiseIR) |
| WDR |
Extreme WDR |
| Video Compression |
H.265, H.264, MJPEG |
| AI Processing |
Dual NPU (Wisenet 9 platform) |
| AI Object Detection |
Person, face, vehicle, licence plate |
| AI Behavioural Analytics |
Intrusion detection, loitering, line crossing, direction detection |
| Business Intelligence |
People counting, heat mapping |
| Local Storage |
Dual microSD card slots |
| Housing Design |
Modular magnetic dome |
| Ingress Protection |
IP52 |
| Vandal Resistance |
IK10 |
Ideal Use Cases
Corporate Office Corridors and Lobbies
The discreet dome form factor and IK10 rating suit ceiling installation in office corridors, lift lobbies and reception areas. AI person and face detection provides actionable alert classification rather than raw motion logs.
Retail Stores and Shopping Centres
People counting and heat mapping analytics give retail operators foot traffic data alongside security coverage. Behavioural alerts such as loitering detection support loss prevention in high-value merchandise areas.
Education and Healthcare Facilities
Schools, universities and hospitals benefit from the XND-A9085RV’s AI classification accuracy across busy indoor spaces, with privacy masking options and directional movement detection supporting both security and duty-of-care requirements.
Car Park Entry Points and Internal Lanes
When mounted at internal car park entry lanes or ground-floor ceiling positions protected from direct weather, the 4K sensor and licence plate detection capability support vehicle access monitoring without a separate ANPR camera.
Transport Hubs and Public Waiting Areas
Crowd flow analysis through people counting and heat mapping, combined with intrusion and loitering detection, makes the XND-A9085RV a practical ceiling-mounted option for airports, train stations and public concourses with sheltered ceiling infrastructure.
Choosing the Right Model
- Choose this model if: You need 4K AI analytics in an indoor or sheltered ceiling-mount position, require accurate classification of people, faces, vehicles and licence plates rather than generic motion alerts, and want the installation efficiency of a modular magnetic dome with motorised varifocal lens adjustment.
- Choose a different model if: Your installation point is fully exposed to weather, as the IP52 rating is not suitable for direct rain or outdoor conditions. In that case, a dome or bullet camera rated to IP66 or higher is required. If you need active deterrence with a built-in speaker and strobe, a TiOC or active deterrence variant would be more appropriate.
FAQs
- What is the difference between single NPU and dual NPU in the XND-A9085RV?
A single NPU camera shares processing capacity between image enhancement and analytics, meaning enabling complex AI features can reduce image quality or frame rate. The dual NPU design in the XND-A9085RV assigns these as separate tasks, so 4K imaging and full AI classification run concurrently at rated performance without either compromising the other.
- What does the modular magnetic mount actually mean for installation?
The camera module attaches to the ceiling base via a magnetic connector, allowing the imaging unit to be pulled away from the mount without tools and without disconnecting cabling at the roof void. This makes initial alignment faster and simplifies future servicing, lens swaps or camera replacements in tiled ceilings or suspended grid installations.
- Can the XND-A9085RV detect licence plates reliably at 8MP?
The 4K sensor and dual NPU processing provide the resolution and classification capacity for licence plate detection as a confirmed AI feature. Reliable plate capture in practice also depends on mounting angle, vehicle speed, lighting conditions and the distance between the camera and the vehicle at the point of capture. For dedicated ANPR applications, camera placement should be planned carefully around these variables.
- What does the IP52 rating mean in practical terms?
IP52 indicates protection against dust ingress and against vertically dripping water at angles up to 15 degrees. It is not rated for rain, splashing water or outdoor exposure. The XND-A9085RV is designed for indoor ceilings or deeply sheltered positions such as covered walkway soffits or internal car park ceilings, not external wall or eave mounting in weather-exposed locations.
- How do the dual microSD slots work for storage?
The 2 onboard microSD card slots allow local edge recording either as primary storage for standalone deployments or as a backup layer when the network recorder is unavailable. Cards are managed independently, providing options for extended capacity or a basic redundancy configuration depending on how the system is set up.
- What behavioural analytics does the XND-A9085RV support?
Confirmed AI behavioural events include intrusion detection, line crossing, loitering, and direction detection. The camera also supports business intelligence functions including people counting and heat mapping. These analytics are processed onboard by the Wisenet 9 dual NPU, meaning they do not require a separate server or additional software licence to operate in basic configurations.
- Where can I obtain the full datasheet for the XND-A9085RV?
The complete technical datasheet is available via the Additional Information section below. The XND-A9085RV is part of the Hanwha X-Series range supplied by Security Wholesalers, and technical specifications can be confirmed before purchase by contacting the sales team directly.
