Product SKU: SLA-T4680-1
Product Overview

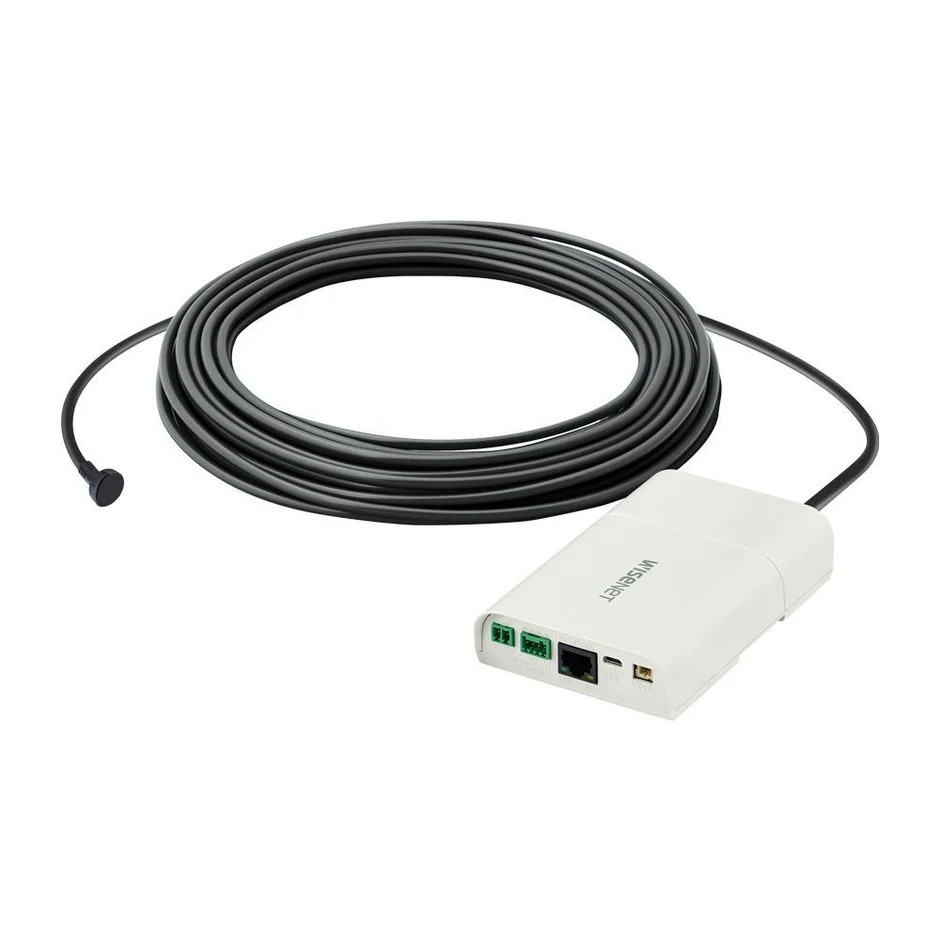

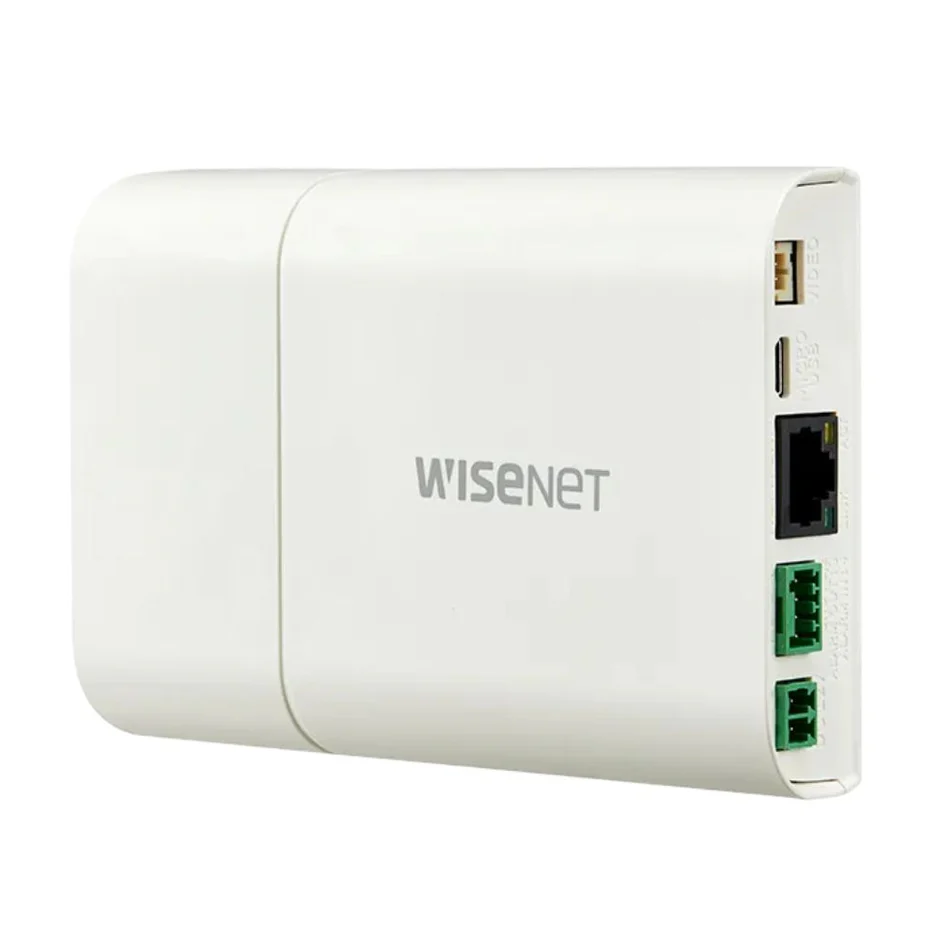

Covert installations with tight space constraints call for a fundamentally different approach to camera design, and the Hanwha Vision XNB-6001 delivers exactly that. This 2MP remote-head covert camera main module separates the camera body from the lens, allowing the lens module to be placed flush within a surface, housing, or enclosure while the XNB-6001 main unit sits out of sight nearby. Featuring Full HD 1920 x 1080 resolution at up to 60fps, H.265 compression with WiseStream II bandwidth reduction, and 120dB Wide Dynamic Range, the XNB-6001 is engineered for demanding locations such as ATM surrounds, retail checkout counters, reception desks, kiosks, and access-controlled doorways. It also supports a comprehensive analytics suite, edge storage via microSD up to 256GB, alarm input and output, audio input and output ports, and PoE or 12V DC power. Please note this is the main camera module only. A compatible Hanwha remote-head lens module must be purchased separately for operation.
Key Capabilities
Remote-Head Covert Architecture
The XNB-6001 operates as a split-body system where the lens module mounts separately from the camera unit. This allows the lens to be concealed within ATM fascias, countertops, door jambs, or custom enclosures where a conventional camera body would be impractical or too visible.
120dB Wide Dynamic Range
120dB WDR, combined with BLC, HLC, SSDR, and defog processing, helps maintain usable image quality in environments with strong backlighting, bright overhead lighting, or mixed natural and artificial light. This is particularly relevant for retail counters, lobbies, and doorway positions.
60fps Full HD Streaming
With H.265 or H.264 encoding, the XNB-6001 streams at up to 60fps at 2MP resolution. Smooth frame rates matter in transaction monitoring environments where fast hand movements at counters or keypads need to be captured clearly for review.
WiseStream II Compression
Hanwha’s WiseStream II dynamically adjusts compression based on scene complexity, reducing bandwidth and storage requirements without significantly degrading image detail. This is useful in multi-camera covert deployments where network capacity may be shared across several concealed units.
Onboard Analytics Suite
The XNB-6001 includes motion detection, tampering, loitering, directional detection, face detection, enter/exit, appear/disappear, virtual line, digital auto tracking, and defocus detection. These analytics support event-driven recording and notifications beyond what a basic covert module typically offers.
Best For
- ATM and Kiosk Surveillance: The split-body design allows the lens to be recessed into an ATM fascia or kiosk panel, capturing card insertion, keypad use, and user faces without an obvious camera housing present.
- Retail Checkout and POS Monitoring: Counter-top or under-shelf lens placement captures transaction activity at close range. The 120dB WDR handles the bright overhead lighting common at checkout environments.
- Reception Desks and Concierge Areas: Where a visible dome or bullet camera would be inappropriate or impractical, the XNB-6001 allows a concealed lens to monitor the counter area while the main unit is routed to a service void or cabinet.
- Custom Housing and Specialist Security Applications: Integrators building custom enclosures, props, or specialist surveillance fixtures can route any compatible Hanwha remote-head lens module to suit the installation geometry while keeping the camera electronics separate.
Why Choose the XNB-6001
Standard mini-dome or pinhole cameras require the entire camera body to be mounted at the point of capture. The XNB-6001 removes that constraint entirely by separating lens placement from the camera unit itself. This means a single camera body can be positioned in a service void, cabinet, or secure enclosure while a small lens module surfaces only at the point of view. The 120dB WDR and 60fps at Full HD resolution go well beyond what basic covert modules typically provide, and the onboard analytics including face detection, loitering, virtual line, and directional detection add meaningful event intelligence that a passive recording-only device cannot match. Edge storage up to 256GB via microSD provides a fallback recording path if the primary NVR connection is disrupted. Available through Security Wholesalers, the XNB-6001 suits integrators who need a technically capable covert solution for structured commercial and banking environments rather than a low-cost consumer pinhole camera.
Buyer Decision Tips
Lens Module is Not Included: The XNB-6001 cannot operate without a compatible Hanwha remote-head lens module. Before ordering, confirm which lens focal length suits your installation. Hanwha offers the SLA-T1080F fisheye (1.6mm), SLA-T2480 and SLA-T2480V fixed (2.4mm), and SLA-T4680 and SLA-T4680V pinhole (4.6mm) options. The correct lens choice depends on the required field of view and whether the lens is entering through a small aperture or mounted flush within a panel.
Audio Ports vs. Built-In Audio: The XNB-6001 provides an audio input (selectable mic in or line in) and an audio output (line out). These are external connection ports, not a built-in microphone or built-in speaker. External audio devices connected to these ports can extend audio capability, but the unit does not include integrated audio hardware of its own.
Key Features & Technical Specifications
| Model |
XNB-6001 |
| Product Type |
2MP Covert Camera Main Module (lens module required separately) |
| Resolution |
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720 and lower |
| Max Frame Rate |
H.265/H.264: up to 60fps (50fps); MJPEG: up to 30fps (25fps) |
| Video Compression |
H.265, H.264, MJPEG |
| Streaming Profiles |
Multiple streaming, up to 10 profiles |
| Wide Dynamic Range |
120dB |
| Day / Night |
Auto electrical |
| Image Enhancements |
BLC, HLC, WDR, SSDR, SSNR V, Defog, DIS, LDC |
| Motion Detection |
8 zones, 8-point polygonal zones |
| Privacy Masking |
32 zones |
| Analytics |
Motion detection, tampering, loitering, directional detection, face detection, enter/exit, appear/disappear, virtual line, digital auto tracking, defocus detection, fog detection |
| Audio Input |
Selectable mic in / line in (external connection) |
| Audio Output |
Line out (external connection) |
| Alarm I/O |
1 input / 1 output |
| Edge Storage |
microSD/SDHC/SDXC, 1 slot, up to 256GB |
| Network Interface |
RJ-45 10/100BASE-T |
| ONVIF |
Profile S/G/T |
| Power Input |
PoE IEEE 802.3af Class 3 or 12V DC |
| Power Consumption |
PoE max 6.5W / 12V DC max 6W |
| Operating Temperature |
-10°C to +55°C |
| Dimensions |
131.1 x 28 x 86mm |
| Weight |
245g |
| Colour / Material |
Ivory / Plastic |
Ideal Use Cases
ATM Surveillance
The remote-head design allows a 4.6mm pinhole lens module to be recessed into ATM fascia panels while the XNB-6001 main unit is secured inside the ATM cabinet. The 60fps frame rate captures card insertion and keypad interactions with minimal motion blur.
Retail Checkout and POS Counters
120dB WDR manages the bright overhead lighting typical at point-of-sale environments. The lens can be positioned under shelving or within counter housings to capture transaction activity without a visible dome overhead.
Reception and Concierge Desks
Where visible cameras would be considered intrusive or aesthetically unacceptable, the XNB-6001 allows a flush-mounted lens at desk level or within signage, with face detection analytics supporting identification at the point of entry.
Kiosks and Ticketing Machines
Self-service kiosks benefit from a concealed lens embedded in the fascia. The XNB-6001 provides loitering and appear/disappear analytics that can flag extended dwell time at unattended kiosk terminals.
Custom Security Housing Builds
Security integrators building bespoke enclosures for specialist applications can route a compatible Hanwha lens module to any surface position while housing the XNB-6001 main unit separately. The alarm I/O and edge storage via microSD add event-driven functionality within custom builds.
Choosing the Right Model
- Choose this model if: You need a covert camera solution where the lens must be physically separated from the camera body, such as ATM installations, counter-flush builds, or custom enclosures where no conventional camera housing can be accommodated.
- Choose a different model if: Your installation allows a standard mini-dome, pinhole dome, or fisheye camera to be mounted in a conventional position. A complete all-in-one unit will typically be faster to deploy, require no separate lens selection, and reduce total installation complexity.
- Choose a different model if: You require outdoor-rated surveillance. The XNB-6001 is designed for indoor, controlled-environment installations operating within -10°C to +55°C and carries no IP weather resistance rating.
FAQs
- Is the XNB-6001 a complete camera ready to install?
No. The XNB-6001 is the main camera electronics module only. It cannot capture any image without a compatible Hanwha remote-head lens module connected. You must purchase a lens module separately and confirm compatibility before installation.
- Which lens modules are compatible with the XNB-6001?
Hanwha lists the following compatible remote-head lens modules: SLA-T1080F (1.6mm fisheye), SLA-T2480 (2.4mm fixed), SLA-T2480V (2.4mm fixed), SLA-T4680 (4.6mm pinhole), and SLA-T4680V (4.6mm pinhole). Your selection should be based on the required field of view and the aperture size available at the lens mounting point.
- Can the XNB-6001 be used for ATM surveillance?
Yes, this is one of its primary intended applications. The remote-head design allows the pinhole lens module to be recessed into the ATM fascia panel while the main unit sits securely inside the ATM cabinet. The 60fps capture rate is well suited to recording hand movements and card interactions at close range.
- What frame rate does the XNB-6001 support?
Using H.265 or H.264 compression, the XNB-6001 supports up to 60fps at 2MP (1920 x 1080) resolution on a 60Hz system, or up to 50fps on a 50Hz system. MJPEG encoding is limited to 30fps or 25fps respectively.
- Does the XNB-6001 support edge recording if the NVR connection is lost?
Yes. The XNB-6001 includes a single microSD/SDHC/SDXC card slot supporting cards up to 256GB. This allows local edge recording to continue independently of any NVR or network recorder, providing a recording fallback in network-disruption scenarios.
- Is the XNB-6001 compatible with third-party VMS platforms?
The XNB-6001 supports ONVIF Profile S, G, and T. This means it is compatible with a wide range of third-party video management systems and NVRs that support ONVIF integration, in addition to Hanwha’s own Wisenet ecosystem. Confirm ONVIF profile requirements with your VMS vendor before deployment. The XNB-6001 is part of the Security Wholesalers range for integrators building Hanwha-based or mixed-platform covert surveillance systems.
- Does the XNB-6001 have a built-in microphone or speaker?
No. The XNB-6001 provides an external audio input port (selectable mic in or line in) and an audio output port (line out) for connecting external audio devices. It does not include a built-in microphone or built-in speaker as integrated hardware components.
Additional Information
No additional downloads available for this product.
