Product SKU: TNO-C3012TRA
Product Overview

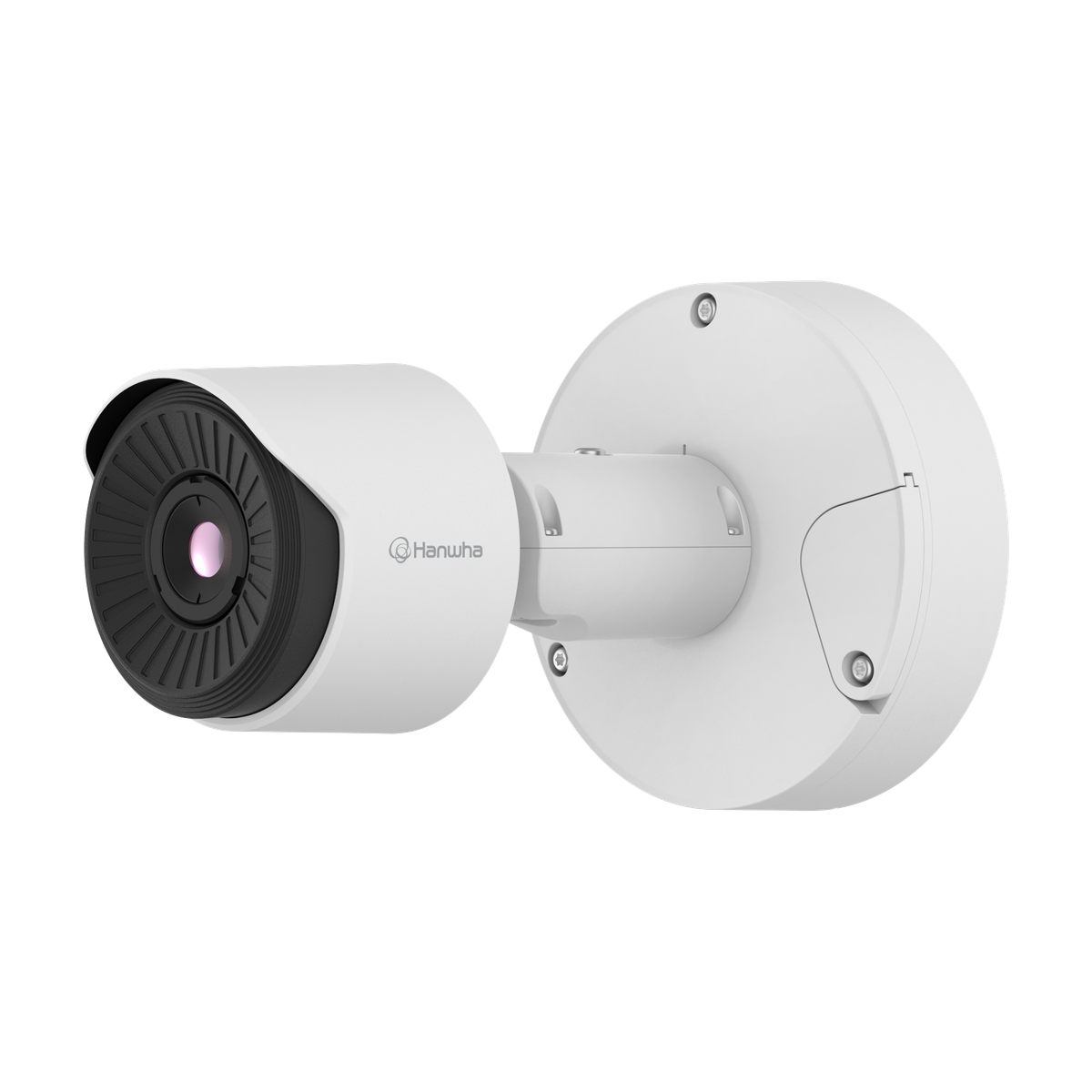

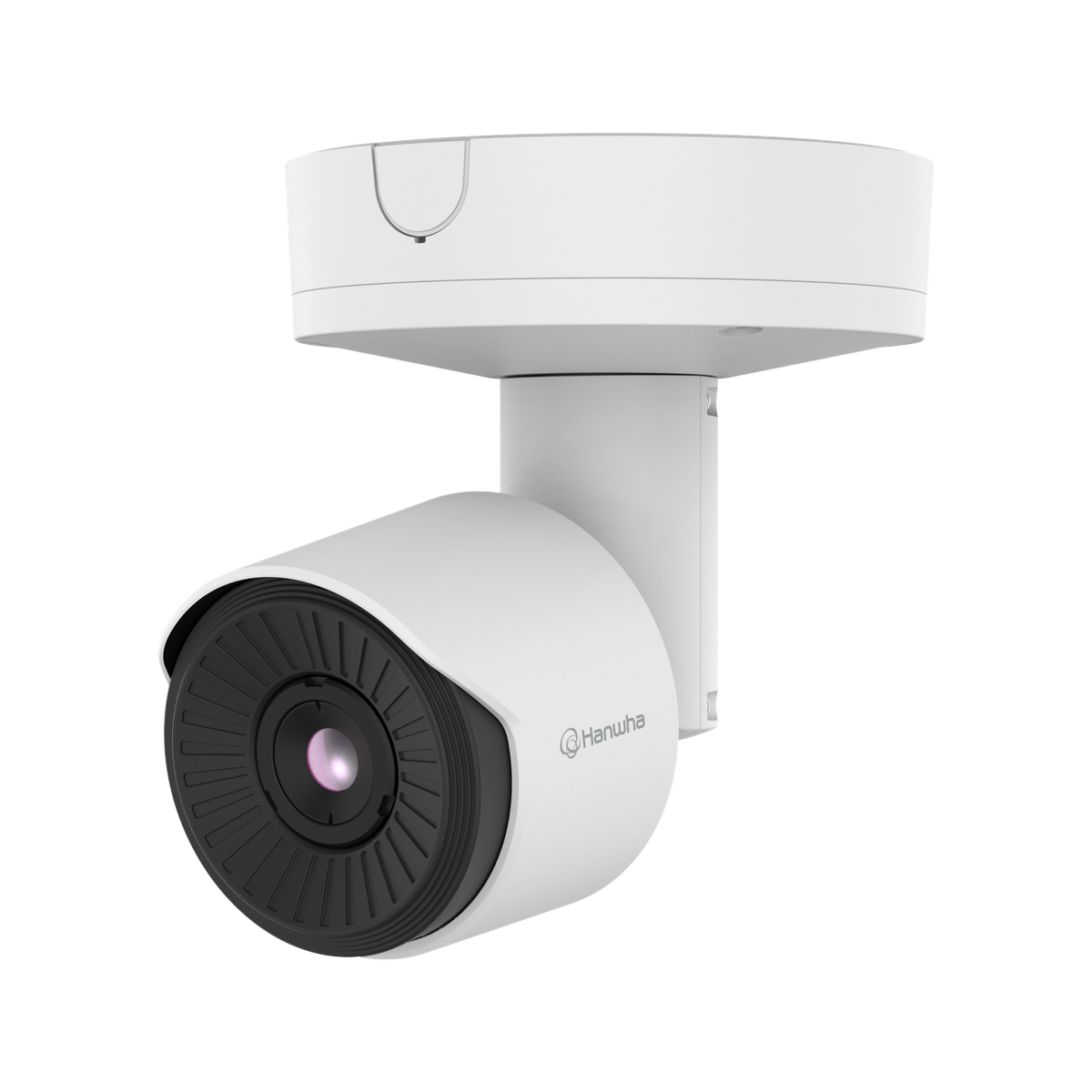

Built for industrial perimeter protection and critical infrastructure monitoring, the Hanwha Vision TNO-C3012TRA is a radiometric thermal bullet camera that operates independently of visible light. Where conventional cameras fail in complete darkness, dense smoke, or fog, this thermal camera reads heat signatures continuously, delivering consistent detection across hostile conditions. Featuring a 384 x 288 uncooled microbolometer sensor with NETD below 30mK, it resolves subtle temperature differences that indicate both intrusion and equipment anomalies. Radiometric temperature measurement spans -40°C to +550°C across up to 10 programmable ROI zones, enabling proactive fault detection before failures escalate. AI-based object classification distinguishes people and vehicles from environmental false triggers, while perimeter analytics including intrusion detection, line crossing, and loitering detection add actionable intelligence. Rated to IP66, IK10, and NEMA 4X, the TNO-C3012TRA is constructed for wall or pole mounting in the most demanding outdoor environments. Note: this is a special order item with a lead time of 6 to 11 weeks from date of order and payment.
Key Capabilities
Radiometric Temperature Measurement
Measures real temperatures from -40°C to +550°C with up to 10 configurable ROI zones. Alarm thresholds can be set per zone, allowing early detection of overheating equipment, electrical faults, or fire risk before they develop into incidents.
All-Condition Thermal Detection
The uncooled microbolometer sensor detects heat signatures in complete darkness, heavy fog, smoke, and rain without any supplemental lighting. This makes the TNO-C3012TRA suited to perimeter and yard monitoring where optical cameras cannot deliver reliable coverage.

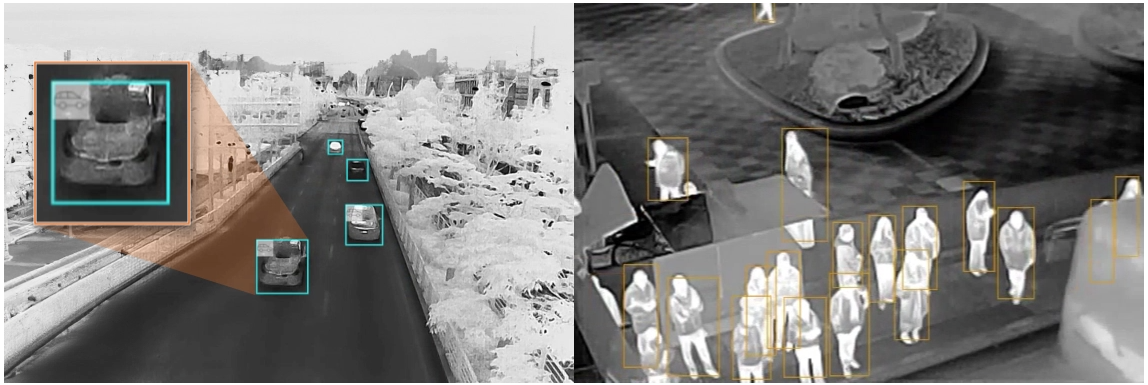

AI Object Classification
On-board AI classifies detected objects as people or vehicles, filtering out wildlife, vegetation movement, and environmental noise. This significantly reduces nuisance alerts on large outdoor perimeters where thermal sensitivity would otherwise trigger frequent false events.
Smart Perimeter Analytics
Intrusion detection, line crossing, loitering, directional detection, and tampering alerts are all built in. These analytics work at the edge without relying on a VMS to process events, reducing load on network infrastructure at remote sites.
Industrial-Grade Housing
Rated IP66 for full weather protection, IK10 for impact resistance, and NEMA 4X for industrial environments. The camera operates from -40°C to +60°C ambient, making it deployable on exposed perimeters, processing facilities, and remote outdoor infrastructure year-round.
Efficient Storage and Edge Recording
H.265 compression combined with WiseStream II and III adaptive bitrate technology keeps bandwidth and storage demands low. A MicroSD slot supports up to 1TB of edge recording, providing local backup at sites with limited or unreliable network connectivity.
Best For
- Industrial Plant Monitoring: The 10-zone radiometric ROI system allows temperature thresholds to be set across multiple pieces of equipment simultaneously, flagging overheating before it causes damage or downtime.
- Electrical Infrastructure and Substations: Continuous thermal scanning of transformers, switchboards, and high-voltage equipment identifies heat anomalies that indicate developing faults, supporting preventative maintenance programmes.
- Zero-Light Perimeter Security: With no dependence on IR illumination or visible light, the TNO-C3012TRA maintains detection capability across fencelines and open yards even in complete blackout conditions.
- Waste Facilities and Combustion Risk Sites: The wide -40°C to +550°C temperature range and heat anomaly alerts make this camera suited to waste processing, recycling, and landfill sites where spontaneous combustion risk requires early warning capability.
- Remote and Unmanned Critical Infrastructure: Edge recording via MicroSD and PoE power input support deployment at remote substations, pipeline facilities, and water treatment sites with limited on-site infrastructure.
Why Choose the TNO-C3012TRA
The TNO-C3012TRA occupies a distinct position in the thermal camera category by combining radiometric temperature measurement with AI-based object classification in a single industrial-rated bullet housing. A basic thermal camera can detect heat and trigger motion events, but cannot tell you whether that event involves a person, a vehicle, or a temperature threshold breach at a specific piece of equipment. The TNO-C3012TRA does all three simultaneously, with 10 configurable ROI zones each carrying independent temperature alarm thresholds. Its NETD below 30mK delivers fine-grained thermal sensitivity that lesser sensors miss. The NEMA 4X and IK10 ratings go beyond standard outdoor cameras, reflecting genuine industrial deployment requirements. ONVIF Profile S, G, T, and M support ensures integration with Hanwha Wisenet NVRs as well as third-party VMS platforms. Hanwha Vision backs this camera with a 5-year warranty, and it is available at Security Wholesalers as a special order item with a 6 to 11 week lead time from date of payment.
Buyer Decision Tips
Lead Time and Project Planning: The TNO-C3012TRA is a special order item with a lead time of 6 to 11 weeks from date of order and payment. If this camera is part of a staged installation or a project with a fixed commissioning date, confirm your order well in advance. Do not treat this as a stock item available for immediate dispatch.
Thermal vs. Optical Camera Selection: This camera produces thermal imagery, not conventional video footage. It will not capture facial detail, number plates, or colour-identifiable objects. If your application requires both thermal detection and visual verification, plan for a paired optical camera at the same location. The TNO-C3012TRA is the detection layer; a conventional camera provides the identification layer. Also confirm that your ROI zones are calibrated correctly post-installation, particularly in environments with reflective surfaces or ambient heat sources, as these affect radiometric accuracy.
Key Features & Technical Specifications
| Sensor Type |
Uncooled Microbolometer |
| Thermal Resolution |
384 x 288 (QVGA), upscaled to 768 x 576 |
| Pixel Pitch |
17μm |
| Thermal Sensitivity (NETD) |
Less than 30mK |
| Frame Rate |
Up to 8fps |
| Lens |
4.4mm Fixed |
| Field of View |
90° (H) / 65.3° (V) |
| Minimum Object Distance |
0.6m |
| Temperature Measurement Range |
-40°C to +550°C |
| Radiometric ROI Zones |
Up to 10 programmable zones |
| AI Analytics |
Person and vehicle classification, intrusion, line crossing, loitering, directional detection, tampering, heat anomaly alerts |
| Video Compression |
H.265 / H.264 / MJPEG with WiseStream II and III |
| Edge Storage |
MicroSD up to 1TB |
| Network |
10/100/1000 Base-T Ethernet, ONVIF Profile S/G/T/M, HTTPS, 802.1X, SUNAPI, MQTT |
| Power |
PoE (IEEE 802.3af Class 3) or 12VDC (power supply not included) |
| Ingress Protection |
IP66 |
| Impact Rating |
IK10 |
| Industrial Rating |
NEMA 4X |
| Operating Temperature |
-40°C to +60°C |
| Dimensions / Weight |
Ø93.8mm x 233.5mm / Approx. 1.7kg |
Ideal Use Cases
Industrial Plant and Machinery Monitoring
Up to 10 radiometric ROI zones can be assigned to individual motors, bearings, conveyor drives, or process equipment. Temperature threshold alerts flag overheating before it triggers shutdowns or causes structural damage.
Transformer and Switchboard Surveillance
Electrical assets operating under high load generate heat signatures that precede insulation failure. Continuous thermal scanning with programmable alarm thresholds supports scheduled maintenance planning and reduces unplanned outage risk.
Waste and Recycling Facility Fire Prevention
The -40°C to +550°C measurement range and heat anomaly alerts make the TNO-C3012TRA well suited to monitoring stockpiles and processing areas where spontaneous combustion or smouldering fires can develop undetected for hours before ignition.
Zero-Light Perimeter Security
AI person and vehicle classification, combined with intrusion and line crossing analytics, delivers actionable perimeter alerts across fencelines and open yards in complete darkness without IR illuminators or floodlights.
Oil, Gas, and Chemical Facilities
The NEMA 4X industrial rating, -40°C to +60°C operating range, and MicroSD edge recording support deployment at remote processing sites and pipeline infrastructure where network access may be intermittent and conditions are consistently harsh.
Remote Critical Infrastructure
Water treatment plants, communication towers, and remote substations benefit from the TNO-C3012TRA’s combination of ONVIF multi-profile support, MQTT integration, and local edge storage, enabling monitoring without continuous cloud or NVR connectivity.
Choosing the Right Model
- Choose this model if: Your site requires both perimeter intrusion detection and real-time radiometric temperature monitoring, particularly in environments where darkness, smoke, fog, or extreme temperatures make optical cameras ineffective. The 10-zone ROI system and -40°C to +550°C measurement range are specifically suited to industrial and infrastructure applications.
- Choose a different model if: Your application requires visual identification of individuals, number plate capture, or colour detail. Thermal cameras cannot provide this. Pair the TNO-C3012TRA with an optical bullet or turret camera at the same location if visual verification is also required. Additionally, if your project cannot accommodate a 6 to 11 week lead time, this special order camera is not suitable for urgent deployments.
FAQs
- Does the TNO-C3012TRA produce visible-light video footage?
No. This is a thermal camera that detects heat, not visible light. It produces greyscale thermal imagery based on temperature differences rather than reflected light. It will not capture facial features, colour, or number plates. It is designed specifically for detection, temperature monitoring, and perimeter analytics, not for visual identification.
- What does radiometric temperature measurement mean in practice?
Unlike a standard thermal camera that only indicates hot or cold areas visually, the TNO-C3012TRA assigns an actual temperature value to each pixel in the image. You can define up to 10 ROI zones across the scene and set independent temperature thresholds for each zone. When a threshold is exceeded, the camera triggers an alarm, allowing you to respond before a fault becomes a failure.
- Is this camera suitable for outdoor wall and pole mounting at an industrial site?
Yes. The bullet housing is designed for directional wall or pole mounting. The IP66 rating protects against water ingress and dust, IK10 provides impact resistance, and the NEMA 4X rating meets industrial enclosure standards. The operating temperature range of -40°C to +60°C means it remains functional in extreme cold or heat exposure without additional enclosures.
- Can the TNO-C3012TRA integrate with non-Hanwha NVRs or VMS platforms?
Yes. The camera supports ONVIF Profiles S, G, T, and M, which covers live streaming, edge storage, metadata, and analytics integration. It also supports SUNAPI and MQTT, making it compatible with a broad range of third-party video management systems and IoT platforms that can consume temperature data alongside video.
- What happens if network connectivity is lost at a remote site?
The MicroSD slot supports cards up to 1TB, providing local edge recording when the network is unavailable. H.265 compression and WiseStream II and III adaptive bitrate technology ensure that storage is used efficiently. This is particularly relevant for remote infrastructure sites where network uptime cannot be guaranteed.
- How should ROI zones be calibrated to ensure temperature measurement accuracy?
Correct calibration requires that ROI zones avoid reflective surfaces, ambient heat sources, or areas of direct sunlight, as these can skew radiometric readings. Installers should follow Hanwha’s commissioning guidelines for placement geometry and confirm that the minimum object distance of 0.6m is respected. For industrial compliance applications, consult the datasheet for measurement accuracy tolerances across the full temperature range. Security Wholesalers can provide the product datasheet to support your installation planning.
- What is the lead time for the TNO-C3012TRA and how should I plan my order?
The TNO-C3012TRA is a special order item with a lead time of 6 to 11 weeks from the date of confirmed order and payment. This is not a stocked item. If this camera forms part of a staged installation, a system upgrade, or a project with a fixed commissioning date, your order should be placed with sufficient lead time built into the project schedule to avoid delays.
