Product SKU: SBP-300WMW
Product Overview

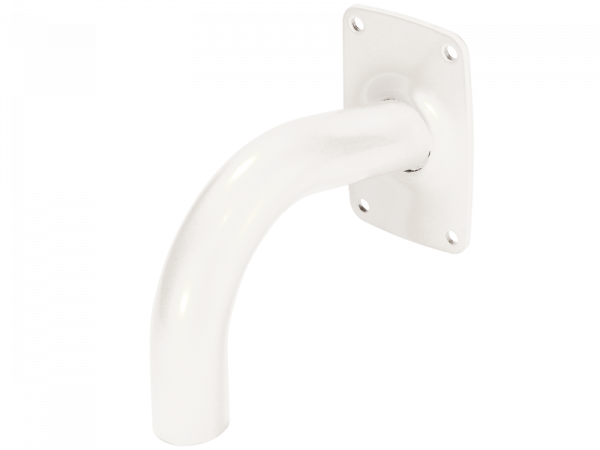

For Hanwha Vision installations where a camera or mount needs to sit away from a vertical wall surface, the SBP-300WMW provides a purpose-built gooseneck wall mount solution. Finished in white RAL9003, it is designed to visually match compatible white Hanwha Vision cameras and mounting accessories, keeping installations looking tidy and coordinated. Built from aluminium, the SBP-300WMW is lightweight without sacrificing structural support, with a maximum load rating of 10kg to accommodate selected Hanwha Vision camera and mount combinations. Its gooseneck profile creates a practical offset from the mounting surface, which improves camera positioning angles and provides a cleaner cable management pathway compared to flush wall brackets. Measuring 276.5 x 112 x 183mm and weighing approximately 730g, it is confirmed compatible with SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1, with additional compatible models available through Hanwha Vision’s official compatibility resources. Compatibility should always be verified before ordering.
Key Capabilities
White RAL9003 Finish
The SBP-300WMW uses the same RAL9003 white specification as selected Hanwha Vision cameras and mounting accessories, giving wall-mounted installations a consistent, coordinated appearance rather than a mismatched finish.
Gooseneck Wall Offset Design
The gooseneck profile positions the camera away from the wall surface, allowing for better directional adjustment of the camera head, improved sightlines, and a neater cable entry pathway behind the mount body.
Aluminium Construction
Aluminium gives the SBP-300WMW a strong, corrosion-resistant body without adding unnecessary weight to the installation. At approximately 730g, it keeps total wall-load manageable while supporting up to 10kg of combined camera and mount weight.
10kg Load Capacity
With a confirmed maximum load rating of 10kg, the SBP-300WMW can accommodate the combined weight of compatible Hanwha Vision pendant mounts and camera housings, making it suitable for mid-weight professional camera setups.
Best For
- Wall-Mounted Hanwha Vision Installations: Specifically designed for use with compatible Hanwha Vision pendant mounts and camera housings where the camera must be mounted from a vertical wall surface rather than a ceiling or flat surface.
- Installations Requiring Camera Offset: The gooseneck design provides a practical standoff from the wall, useful where flush mounting would restrict camera angle or create cable management issues.
- Colour-Matched White Installations: The RAL9003 white finish makes this mount the correct choice when the rest of the camera assembly uses white Hanwha Vision components and visual consistency matters.
Why Choose the SBP-300WMW
The SBP-300WMW is a genuine Hanwha Vision accessory built specifically for use within the Hanwha Vision mounting ecosystem. Unlike generic third-party wall brackets, it is engineered to the RAL9003 white specification used across Hanwha’s compatible mount range, ensuring a finish that does not stand out against the camera housing or pendant cap. Its aluminium body delivers a 10kg load capacity in a compact 276.5 x 112 x 183mm form factor, keeping wall fixings manageable without compromising structural support. The gooseneck offset is a practical advantage on building facades and corridor walls where a flat bracket would limit camera positioning. Confirmed compatibility includes SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. The SBP-300WMW is available through Security Wholesalers as part of the broader Hanwha Vision mounting accessory range, alongside the compatible pendant mounts and camera housings it is designed to support.
Buyer Decision Tips
Confirm Compatibility Before Ordering: The SBP-300WMW is not a universal wall mount. It is designed for use with specific Hanwha Vision pendant mounts including SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Always check the camera model, intermediate mounting accessories, and total combined weight against the 10kg load limit before placing an order. Use Hanwha Vision’s Toolbox compatibility tool or consult the relevant product datasheets if your mount combination is not listed above.
Mount Screw Sizing Discrepancy: The SBP-300WMW product data references both a PF 1 1/2″ mount screw size in the key features section and an M10 specification in the mechanical section of the Hanwha Vision datasheet. Before installation, verify which screw specification applies to your specific mounting accessory combination to avoid fitment issues on site.
Key Features & Technical Specifications
| Model |
SBP-300WMW |
| Product Type |
Gooseneck wall mount |
| Brand |
Hanwha Vision |
| Colour |
White |
| RAL Code |
RAL9003 |
| Material |
Aluminium |
| Product Dimensions |
276.5 x 112 x 183mm |
| Weight |
Approx. 730g |
| Mount Screw Size |
PF 1 1/2″ (key features) / M10 (noted in datasheet mechanical specifications) |
| Maximum Load Capacity |
10kg |
| Listed Compatible Mounts |
SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1 |
| Accessory Type |
Genuine Hanwha Vision mounting accessory |
Ideal Use Cases
External Building Facades
The gooseneck offset positions the camera away from the wall, making it suitable for external facade mounting where the camera needs to be angled downward along a building perimeter without the mount body obstructing the field of view.
Warehouse and Industrial Walls
With a 10kg load capacity and aluminium body, the SBP-300WMW is suitable for warehouse and industrial wall installations where compatible Hanwha Vision camera and mount combinations need a stable, professional wall anchor point.
Commercial Entrances
At commercial entry points where aesthetics and camera positioning both matter, the RAL9003 white finish and gooseneck profile deliver a clean, professional look while allowing the camera to be directed toward pedestrian or vehicle flow.
Corridor and Internal Wall Installations
Where ceiling mounting is not practical, the SBP-300WMW allows a compatible Hanwha Vision camera assembly to be positioned from an internal corridor or room wall, with the gooseneck design helping to achieve a more useful camera angle than a flat wall bracket.
Choosing the Right Model
- Choose this model if: You are installing a compatible Hanwha Vision pendant mount on a vertical wall surface and need a white RAL9003 gooseneck bracket to match the camera assembly and provide a wall offset. The combined weight of the camera and mount must fall within the 10kg load rating.
- Choose a different model if: Your installation requires a black-finish wall mount, a flat or straight wall arm without a gooseneck offset, a higher load capacity, or a mount designed for ceiling or pole mounting rather than a vertical wall surface. Also consider a different model if the camera or mount in your assembly is not listed as compatible with the SBP-300WMW.
FAQs
- Which Hanwha Vision mounts are confirmed compatible with the SBP-300WMW?
Hanwha Vision lists SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1 as supported products for the SBP-300WMW. Additional compatible models may exist and should be confirmed through Hanwha Vision’s official Toolbox compatibility tool or product datasheets before ordering.
- Why does the datasheet list two different mount screw sizes?
The SBP-300WMW product data references a PF 1 1/2″ mount screw size in the key features section and an M10 specification in the mechanical section of the Hanwha Vision datasheet. This discrepancy should be clarified against the specific pendant mount or mounting accessory being used in the installation to ensure correct fitment on site.
- What is the maximum weight the SBP-300WMW can support?
The SBP-300WMW has a confirmed maximum load capacity of 10kg. This covers the combined weight of the camera housing, camera body, and any intermediate mounting accessory attached to the bracket. Always calculate total combined weight before installation and ensure wall fixings are appropriate for the load and surface type.
- Is the SBP-300WMW suitable for outdoor installations?
The product data does not confirm a specific IP or weather resistance rating for the SBP-300WMW itself. Its aluminium construction provides inherent durability, but suitability for outdoor exposure should be assessed based on the installation environment and whether the camera housing and any intermediate mounts provide sufficient weatherproofing for the assembly.
- Why use a gooseneck mount instead of a flat wall bracket?
A gooseneck design creates an offset between the wall surface and the camera head, which improves directional adjustment of the camera, allows for better downward or lateral angling, and provides a cleaner pathway for cabling to enter behind the mount rather than running visibly along the wall face.
- Where can I check compatibility and order the SBP-300WMW?
Compatibility can be checked through Hanwha Vision’s official Toolbox or product compatibility documentation. The SBP-300WMW is available through Security Wholesalers alongside compatible Hanwha Vision pendant mounts and camera housings. Contact the team if you need assistance confirming which mounts are suitable for your specific camera model and installation setup.
Additional Information
No additional downloads available for this product.
