Product SKU: SBP-156HMW
Product Overview

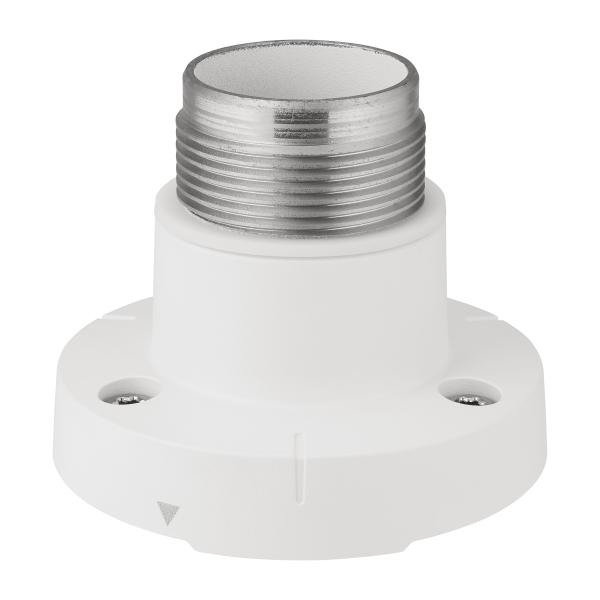

Installers working with Hanwha Vision PTZ cameras on pendant-style or suspended mounting arrangements will find the SBP-156HMW to be an essential genuine accessory for a tidy, manufacturer-matched result. This white hanging mount provides the mechanical interface between compatible Hanwha Vision PTZ camera models and a standard 1.5″ PF mounting connection, using the 3-pin twist connector found on supported camera housings. Constructed from aluminium with a RAL9003 white finish, the SBP-156HMW is designed to colour-match selected Hanwha Vision camera accessories and produce a clean, professional appearance in commercial, government, education, retail, and industrial CCTV installations. It is suited to configurations where the camera is positioned below a ceiling mount, parapet mount, pole arm, or other compatible supporting hardware. Hanwha lists supported models as the XNP-9250, XNP-8250, XNP-6400, XNP-9250R, XNP-8250R, and XNP-6400R. Compatibility should always be confirmed before ordering.
Key Capabilities
3-Pin Twist Connector Interface
The SBP-156HMW is engineered specifically for Hanwha Vision cameras using the 3-pin twist connector, providing a secure mechanical and alignment fit that generic third-party mounts cannot replicate for these camera housings.
Standard 1.5″ PF Mount Connection
With a standard 1.5″ PF male thread connection, this mount integrates into a wide range of compatible mounting hardware including ceiling mounts, pole mounts, parapet mounts, and pendant arms used in professional CCTV projects.
Aluminium Construction with RAL9003 Finish
The aluminium body keeps the mount lightweight at approximately 200g while providing durability suited to professional installations. The RAL9003 white finish is colour-matched to selected Hanwha Vision accessories for a consistent, polished result.
Compact Pendant-Style Profile
At approximately Φ95.5 x 84.0mm, the SBP-156HMW maintains a compact mechanical profile that keeps the overall camera assembly neat when deployed in hanging or suspended mounting configurations on-site.
Best For
- Pendant and Suspended PTZ Installations: Provides the correct mechanical interface for hanging supported Hanwha Vision PTZ cameras below ceiling mounts, parapet mounts, or pole arms using a standard 1.5″ PF connection.
- Colour-Matched Professional Fit-Outs: The RAL9003 white finish aligns with selected Hanwha Vision white camera housings and accessories, keeping the installation visually consistent in high-visibility environments such as retail atriums, building lobbies, and education campuses.
- Genuine OEM Accessory Requirements: Suited to projects or procurement specifications requiring genuine manufacturer accessories rather than third-party alternatives, ensuring correct mechanical fit for the 3-pin twist connector cameras listed as compatible.
Why Choose the SBP-156HMW
Generic mounting hardware is rarely engineered to the same tolerance as the camera housing it supports. The SBP-156HMW is a genuine Hanwha Vision accessory built to interface directly with cameras using the 3-pin twist connector, including the XNP-9250, XNP-8250, XNP-6400, XNP-9250R, XNP-8250R, and XNP-6400R. A third-party hanging adapter may accept a similar thread size but will not replicate the connector alignment, finish match, or dimensional fit that Hanwha Vision has engineered for these camera models. The aluminium construction keeps the mount at approximately 200g while remaining robust enough for long-term commercial deployment. With a 1.5″ PF connection, it fits into a broad selection of compatible mounting hardware without adaptation. Available at Security Wholesalers, the SBP-156HMW is a straightforward choice for integrators who need a manufacturer-specified hanging mount for supported Hanwha Vision PTZ cameras.
Buyer Decision Tips
Confirm Camera Compatibility Before Ordering: The SBP-156HMW is designed for Hanwha Vision cameras with a 3-pin twist connector. Hanwha Vision lists supported models as the XNP-9250, XNP-8250, XNP-6400, XNP-9250R, XNP-8250R, and XNP-6400R. If you are installing a different Hanwha Vision PTZ model, verify compatibility using Hanwha Vision’s official Toolbox or compatibility documentation before purchasing. The mount will also need to pair with a compatible supporting bracket or ceiling/parapet mount that accepts the standard 1.5″ PF connection.
Key Features & Technical Specifications
| Model |
SBP-156HMW |
| Product Type |
Hanging mount |
| Colour |
White |
| RAL Code |
RAL9003 |
| Material |
Aluminium |
| Camera Connector Type |
3-pin twist connector (for compatible cameras only) |
| Mount Connection |
Standard 1.5″ PF |
| Dimensions |
Φ95.5 x 84.0mm (feature section also notes Φ95.5 x 77.0mm) |
| Weight |
Approx. 200g |
| Supported Camera Models |
XNP-9250, XNP-8250, XNP-6400, XNP-9250R, XNP-8250R, XNP-6400R |
| Power Required |
None |
| Brand |
Hanwha Vision |
Ideal Use Cases
Commercial Building Lobbies
The RAL9003 white finish and aluminium construction give the SBP-156HMW a professional appearance suited to public-facing spaces where camera installations are visible and presentation matters.
Industrial and Warehouse Ceilings
When supported Hanwha Vision PTZ cameras need to be suspended from ceiling-mounted drops or structural brackets in large open-span facilities, the SBP-156HMW provides the 1.5″ PF interface required for the hanging arrangement.
Education and Government Campuses
Projects requiring genuine OEM accessories to meet procurement or maintenance standards benefit from the SBP-156HMW as a Hanwha Vision-specified hanging mount for compatible PTZ camera deployments.
Retail and Shopping Centre Installations
Pendant-style PTZ camera placements in retail environments benefit from the compact Φ95.5mm profile of the SBP-156HMW, keeping the mounting assembly tidy and visually unobtrusive above high-traffic areas.
Choosing the Right Model
- Choose this model if: You are installing one of the confirmed compatible Hanwha Vision PTZ cameras (XNP-9250, XNP-8250, XNP-6400, XNP-9250R, XNP-8250R, or XNP-6400R) in a pendant or hanging arrangement and require a genuine manufacturer accessory with a standard 1.5″ PF connection and a white RAL9003 finish.
- Choose a different model if: Your Hanwha Vision camera does not use a 3-pin twist connector, or you require a black-finish hanging mount. A different Hanwha Vision mounting accessory suited to your specific camera model and colour requirement should be selected instead.
- Choose a different model if: Your installation does not use a pendant or hanging configuration. Wall mounts, surface mounts, or ceiling flush mounts are separate accessory types and will require the appropriate Hanwha Vision bracket for the camera model being installed.
FAQs
- Which Hanwha Vision cameras is the SBP-156HMW compatible with?
Hanwha Vision lists the following models as supported: XNP-9250, XNP-8250, XNP-6400, XNP-9250R, XNP-8250R, and XNP-6400R. These are all PTZ camera models that use the 3-pin twist connector interface. If you are working with a different Hanwha Vision camera, confirm compatibility via Hanwha Vision’s official Toolbox or documentation before ordering.
- What type of mounting thread does the SBP-156HMW use?
The SBP-156HMW connects to a standard 1.5″ PF mounting thread. This is a common thread size used across a wide range of professional CCTV mounting hardware, including ceiling mounts, parapet mounts, pole mounts, and pendant arms, making it straightforward to integrate into most compatible mounting setups.
- Is the SBP-156HMW suitable for outdoor use?
The product data provided by Hanwha Vision does not include a specified weather or IP rating for the SBP-156HMW. Its suitability for outdoor exposure will depend on the supporting bracket and enclosure arrangement used. For outdoor deployments, confirm the full mounting assembly provides adequate weather protection for your site conditions.
- What are the dimensions and weight of the SBP-156HMW?
Hanwha Vision lists the dimensions as approximately Φ95.5 x 84.0mm, with the feature section of the product documentation also noting Φ95.5 x 77.0mm. The weight is approximately 200g. The compact profile keeps the overall camera assembly neat in pendant-style installations.
- Is the SBP-156HMW a genuine Hanwha Vision product?
Yes. The SBP-156HMW is a genuine Hanwha Vision accessory, not a third-party compatible mount. Using a genuine accessory ensures the 3-pin twist connector interface is correctly engineered for the supported camera housings and that the RAL9003 white finish matches the Hanwha Vision accessory range. It is available through Security Wholesalers as part of the Hanwha Vision accessories range.
Additional Information
No additional downloads available for this product.
