Product SKU: QNV-C8083R
Product Overview

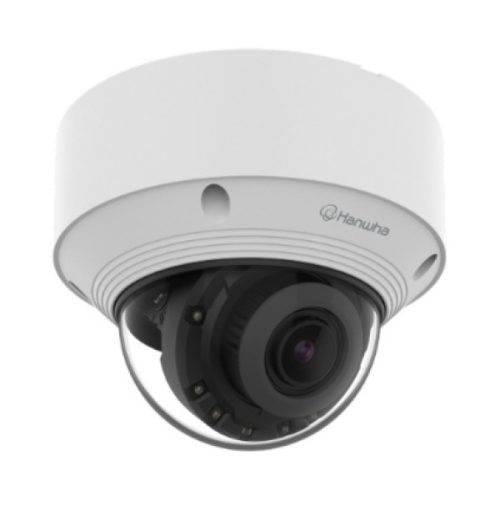

For commercial installations where ceiling-mounted coverage needs to be both adaptable and tamper-resistant, the Hanwha Vision QNV-C8083R delivers a capable 5MP vandal dome solution suited to indoor and outdoor use. Featuring a motorised varifocal lens spanning 3.2 to 10.2mm, installers can dial in the precise field of view during commissioning without physically repositioning the camera. Built-in AI analytics classify people and vehicles to improve the relevance of motion-triggered events, while integrated infrared illumination extends monitoring to approximately 30 metres in darkness. Wide dynamic range performance up to 120dB helps retain usable detail across scenes with strong backlighting or mixed lighting conditions. The QNV-C8083R also includes a microSD card slot for on-device recording, adding a local backup option alongside network storage. It is well suited to building entrances, retail floors, corridor intersections, and covered outdoor areas where ceiling or surface mounting is the standard installation approach.
Key Capabilities
Motorised Varifocal Lens
The 3.2-10.2mm motorised varifocal lens allows remote focus and zoom adjustment during installation, giving site teams flexibility to frame coverage accurately across wide open areas or tighter entry points without repositioning the dome.
5MP Resolution at 30fps
At 2592 x 1944 pixels and up to 30 frames per second, the sensor captures sufficient detail for face and number plate recognition at appropriate distances, supporting incident review in retail, commercial and institutional environments.
AI People and Vehicle Classification
The built-in AI engine distinguishes between people and vehicles in the scene, helping filter out motion from irrelevant sources and making event-triggered alerts more actionable for operators monitoring multiple feeds.
Infrared Night Vision to 30m
Integrated IR LEDs illuminate scenes in low-light and total darkness up to approximately 30 metres, maintaining monitoring capability in unlit corridors, car parks, loading areas and covered outdoor zones throughout the night.
120dB Wide Dynamic Range
WDR up to 120dB allows the camera to handle scenes where bright windows, skylights or doorways create strong contrast with shadowed interiors, preserving legible detail in both the bright and dark areas of the same frame.
Best For
- Building Entrances and Lobbies: The motorised varifocal lens and 5MP resolution combine to capture recognisable detail at access points where both wide situational views and closer facial detail matter.
- Retail Floors and Checkout Areas: AI people classification helps separate genuine occupancy events from environmental motion, keeping alert queues manageable across busy sales floors.
- Covered Outdoor Areas and Undercover Car Parks: The vandal-resistant dome housing and IR range of approximately 30 metres suit installations under roof overhangs, walkways and car park ceilings where tampering risk and low-light conditions are both present.
- Corridor and Stairwell Monitoring: Ceiling mounting in a dome form factor keeps the camera profile low and unobtrusive in tight passages, while the varifocal range allows tighter framing along longer corridors.
Why Choose the QNV-C8083R
The QNV-C8083R stands apart from basic fixed-lens dome cameras through the combination of a motorised varifocal lens, embedded AI classification and 120dB WDR in a single vandal-resistant housing. A fixed-lens alternative at the same resolution cannot be adjusted post-installation if the framing needs to change, whereas the 3.2-10.2mm motorised lens on this model allows coverage to be refined without remounting. The AI analytics engine goes beyond motion detection by separating people from vehicles, which is meaningful for sites where accurate event categorisation reduces manual review time. Infrared illumination to approximately 30 metres covers most indoor and undercover zones without needing supplementary lighting. The included microSD slot provides on-device recording redundancy that simpler cameras often omit. Available through Security Wholesalers, the QNV-C8083R suits professional installers specifying Hanwha Vision equipment for commercial, institutional and mixed-use projects.
Buyer Decision Tips
Varifocal vs Fixed Lens: If the installation site has confirmed camera positions and predictable coverage angles, a fixed-lens dome will be simpler and slightly more cost-efficient. Choose the QNV-C8083R when the mounting height, room dimensions or coverage zones may require field-of-view adjustment after initial installation, or when a single camera model needs to serve different framing scenarios across multiple locations in the same project.
Key Features & Technical Specifications
| Resolution |
5MP (2592 x 1944) |
| Frame Rate |
Up to 30fps |
| Lens Type |
Motorised varifocal |
| Focal Length |
3.2-10.2mm |
| IR Illumination Range |
Approximately 30m |
| AI Analytics |
People and vehicle classification |
| Wide Dynamic Range |
Up to 120dB |
| Housing Type |
Vandal-resistant dome |
| Environmental Rating |
Weather and vandal resistant |
| Local Storage |
MicroSD card slot |
| Installation Type |
Indoor and outdoor ceiling/surface mount |
| Camera Type |
Network IP camera |
Ideal Use Cases
Commercial Building Entrances
The 5MP sensor and motorised varifocal lens allow the camera to cover a broad foyer view or zoom in on a door frame and intercom area, capturing recognisable detail of individuals entering and leaving the building.
Retail Floors and Checkout Zones
AI people classification filters out non-human motion sources, keeping event logs focused on genuine occupancy activity across checkout lanes, aisles and service counters in retail environments.
Undercover Car Parks
IR illumination to approximately 30 metres and AI vehicle classification make this camera suited to covered parking structures where lighting is limited and distinguishing vehicle movement from other activity is useful for operators.
Institutional Campuses and Facilities
Schools, hospitals and government facilities benefit from the varifocal flexibility of the QNV-C8083R, where different zones across a campus may require different framing angles from a standardised camera model.
Warehouses and Storage Areas
The combination of wide-angle capability at the short end of the varifocal range and AI people detection helps monitor large floor areas while still alerting operators to human presence in restricted sections of the facility.
Choosing the Right Model
- Choose this model if: You need a vandal-resistant dome with a motorised varifocal lens for ceiling installations where field-of-view adjustments may be required after mounting, combined with AI people and vehicle classification and 120dB WDR for mixed-lighting environments.
- Choose a different model if: Your project requires IR illumination beyond approximately 30 metres, in which case a long-range IR bullet or turret camera in the same resolution class would be more appropriate for open outdoor approaches or perimeter fence lines where distance matters.
- Choose a different model if: Coverage zones are fixed and confirmed prior to installation with no likelihood of adjustment, as a fixed-lens dome at the same resolution may offer a more straightforward and cost-effective solution for those specific positions.
FAQs
- What does the motorised varifocal lens mean for installation of the QNV-C8083R?
The 3.2-10.2mm motorised varifocal lens allows the zoom and focus to be adjusted remotely through the camera interface rather than manually at the dome head. This is useful when the camera is ceiling-mounted at height, as it avoids the need to climb and reposition the unit if the initial framing needs to be refined after cabling is complete.
- How does the AI analytics function work on this camera?
The built-in AI engine analyses motion events and classifies detected objects as either people or vehicles. This means that when an event is triggered, the system can tell operators whether the cause was a person or a vehicle rather than simply flagging motion, which helps prioritise responses and reduces the volume of non-critical alerts that operators need to review.
- What is the effective IR range of the QNV-C8083R in a real installation?
The integrated IR LEDs are rated to approximately 30 metres. In practice, the effective range depends on the scene reflectivity, mounting angle and whether the varifocal lens is set to a wider or narrower field of view. Tighter focal settings concentrate IR output further, while wider settings spread illumination across a broader area at shorter effective distances.
- Is the QNV-C8083R suitable for outdoor installation?
Yes. The housing is rated as weather and vandal resistant, making it appropriate for covered outdoor locations such as undercover walkways, building entrances, car park ceilings and external corridor overhangs. For fully exposed outdoor positions with no overhead shelter, confirm the specific IP rating against the installation environment requirements before specifying.
- Does the camera support local recording without a network recorder?
Yes. The QNV-C8083R includes a microSD card slot that supports local on-device recording. This is useful as a backup recording path in network outage scenarios or for installations where a standalone recording option is preferred alongside central NVR storage.
- Why does the 120dB wide dynamic range matter in commercial environments?
Many commercial spaces have scenes where bright exterior light enters through windows or doorways while interior areas remain dimly lit. Without WDR, a camera exposes for one condition and loses detail in the other. The 120dB WDR in the QNV-C8083R, part of the Security Wholesalers Hanwha Vision range, allows the sensor to balance both bright and shadowed areas simultaneously, retaining usable detail across the full width of the frame in high-contrast scenes.
