Product SKU: QNV-C8023R
Product Overview

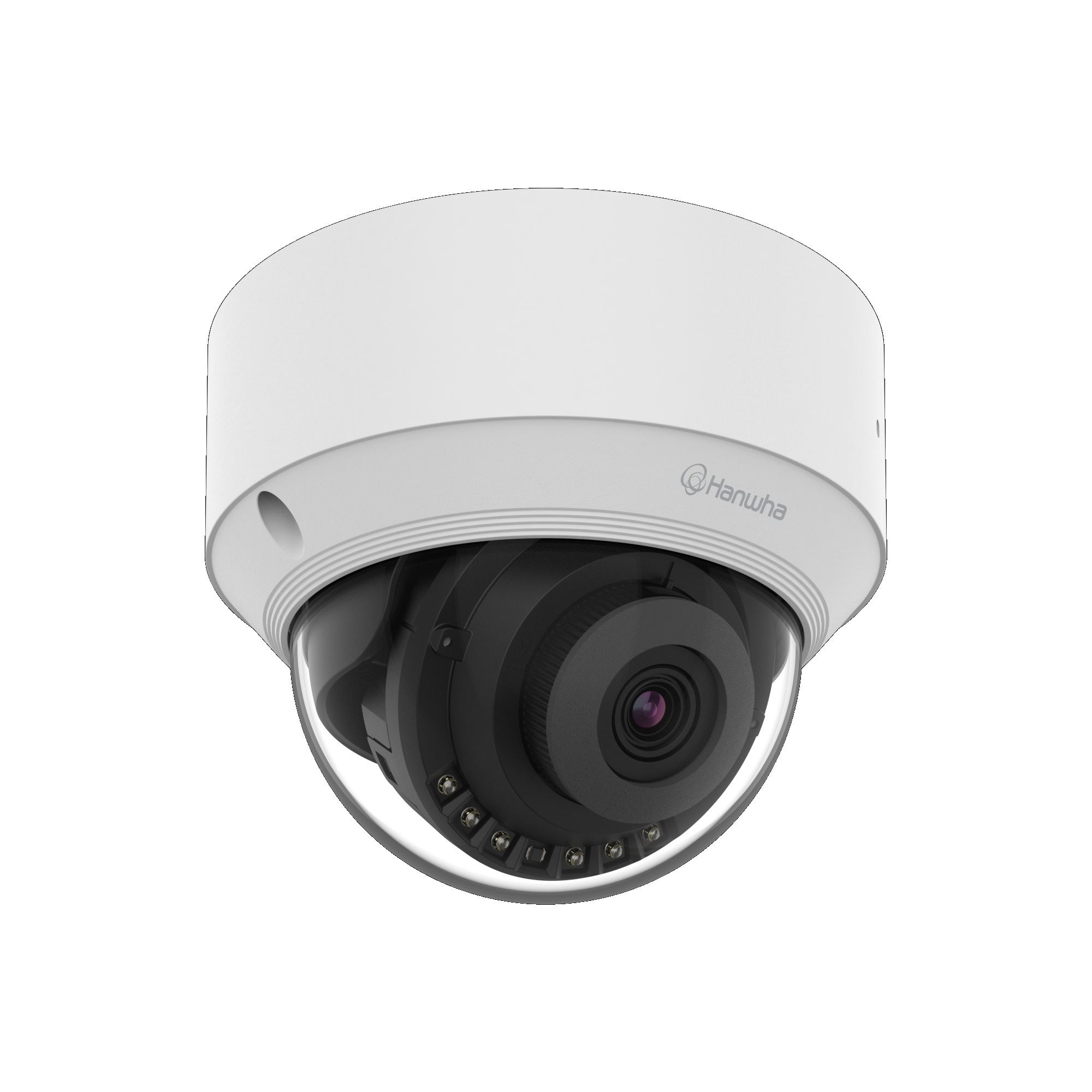

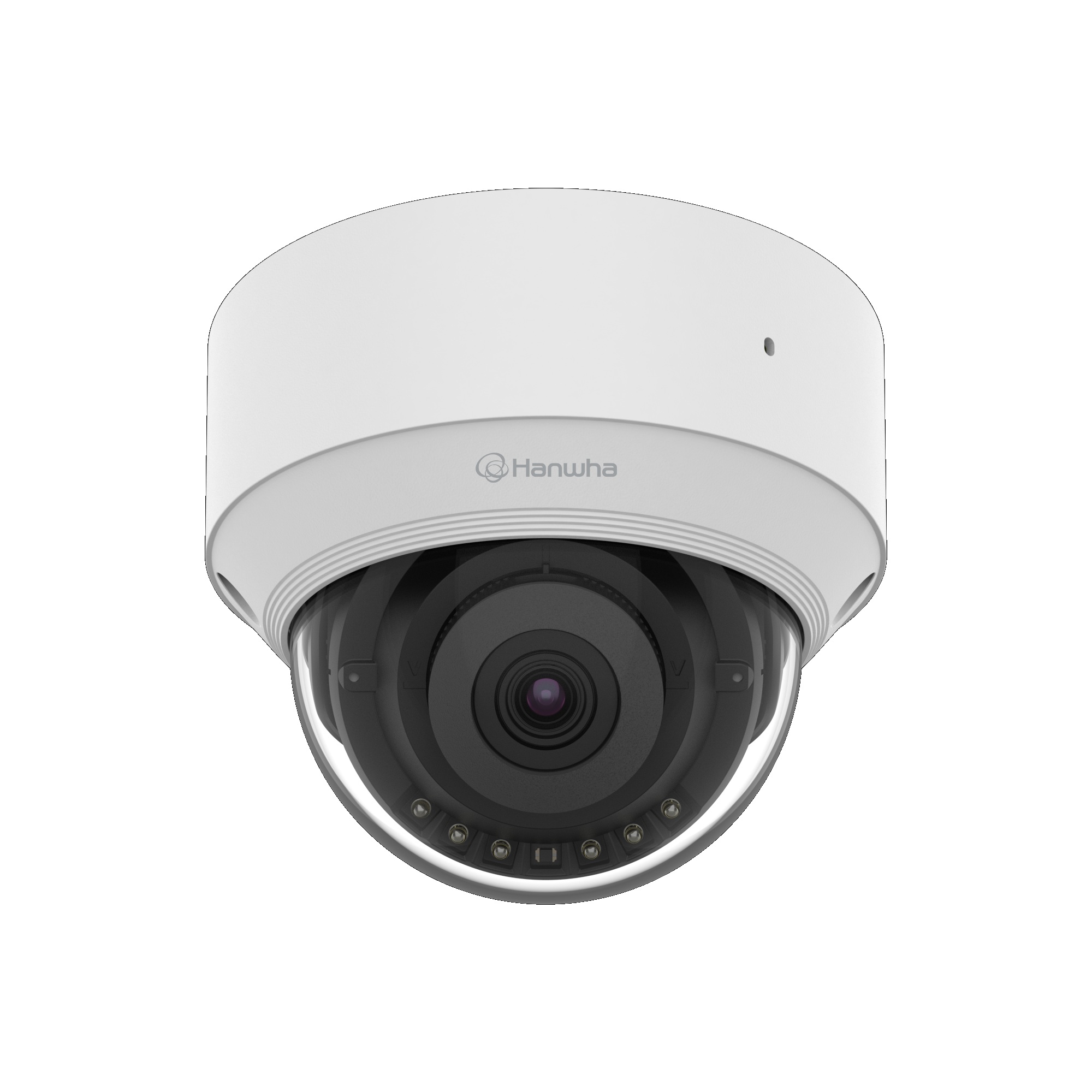

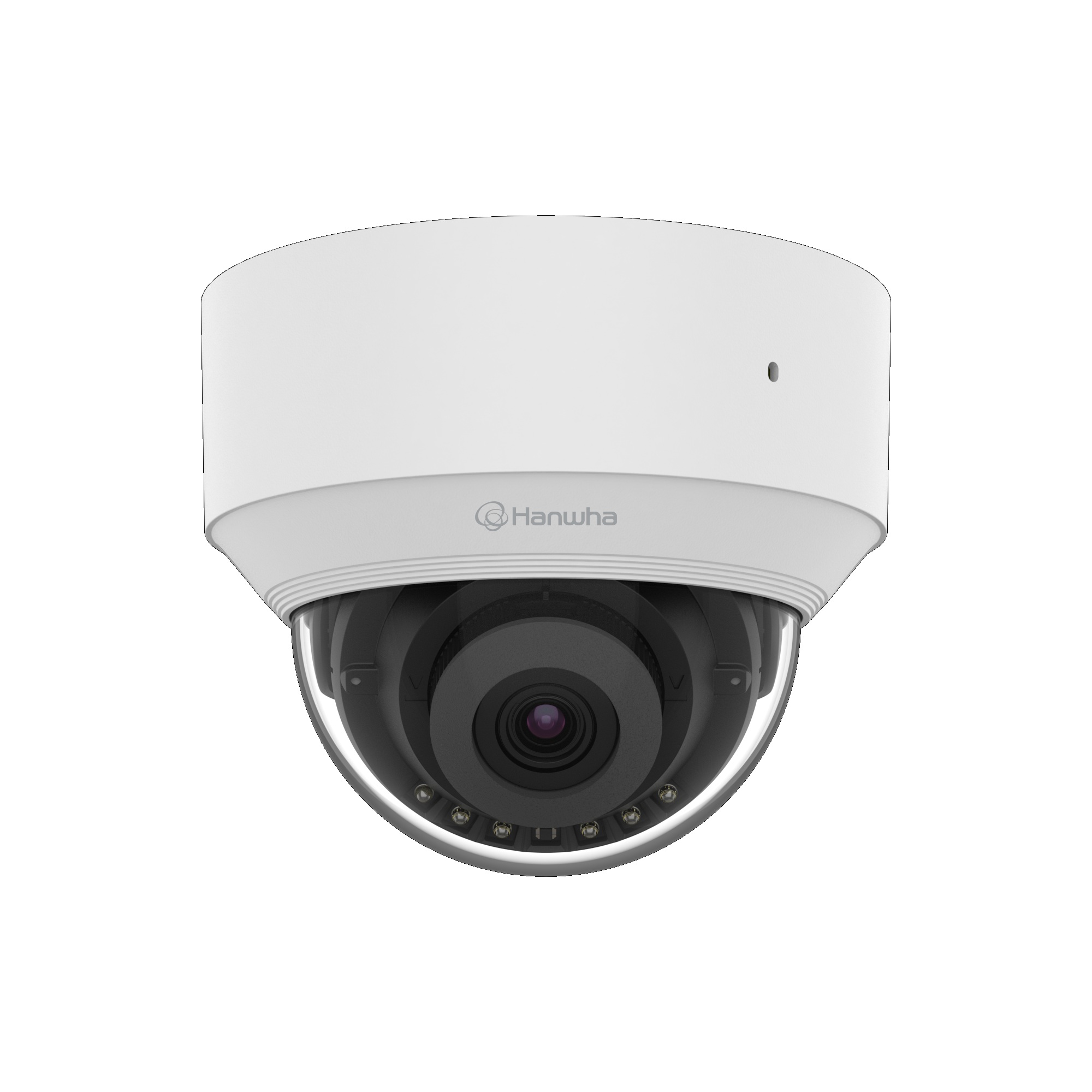

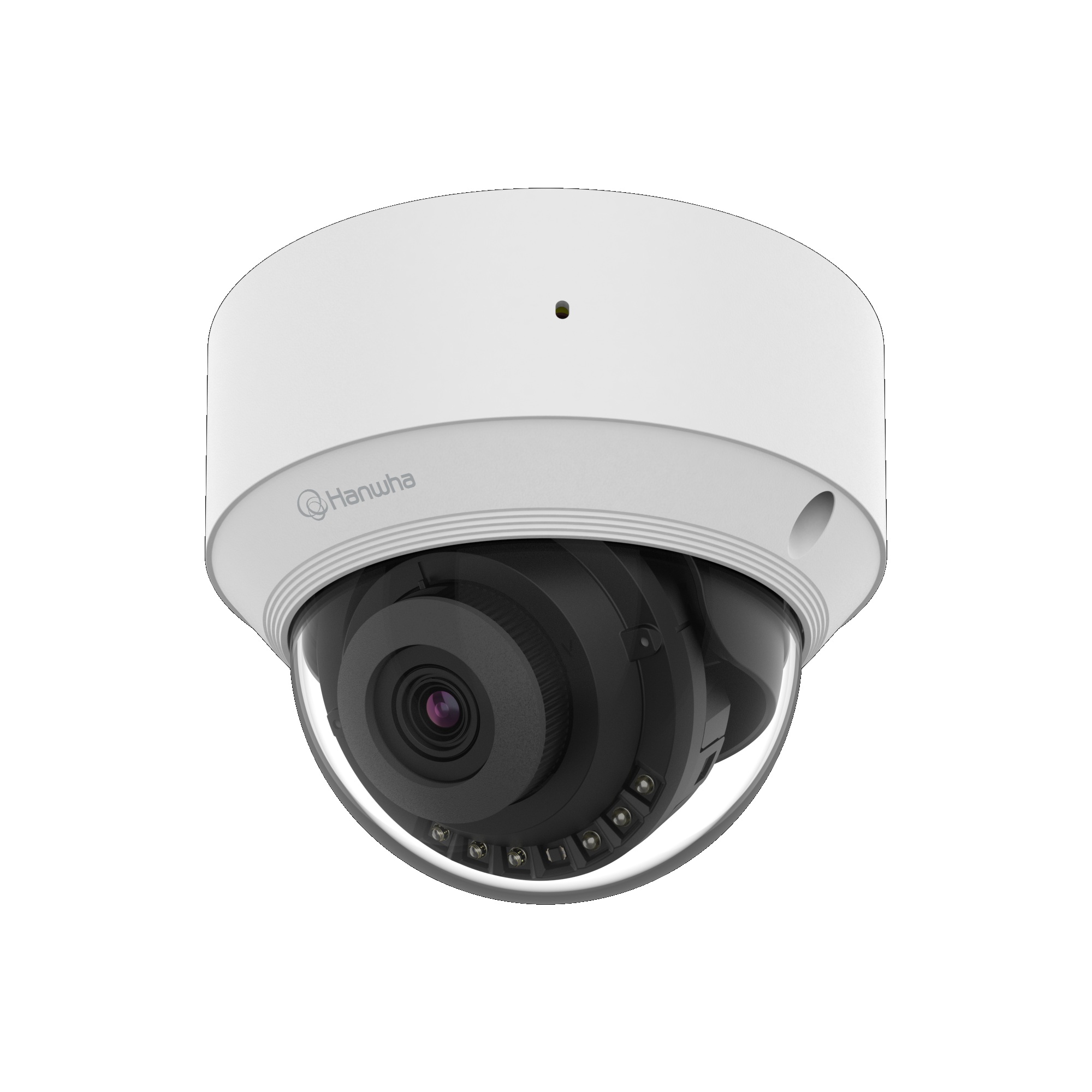

Built as a ceiling or wall-mounted vandal dome for outdoor locations that must withstand both harsh weather and deliberate impact, the QNV-C8023R sits within Hanwha Vision’s Q-Core platform and brings 5MP AI-assisted monitoring to commercial entrances, covered walkways, perimeter walls, and industrial exteriors. Featuring a 4mm fixed lens with an approximate 80-degree horizontal field of view, it captures 2592 x 1944 resolution footage at up to 30fps, with built-in infrared illumination extending visibility to around 30 metres in complete darkness. Equipped with AI-based person and vehicle classification, the camera supports virtual line crossing, intrusion, and loitering detection to flag meaningful events rather than every environmental trigger. WiseStream III compression, WiseNRII noise reduction, and 120dB wide dynamic range maintain image quality across high-contrast outdoor scenes, while the IP66 and IK10-rated housing ensures the unit holds its ground in demanding installation conditions.
Key Capabilities
5MP Resolution at 30fps
Delivering 2592 x 1944 pixel imagery at a full 30 frames per second, the QNV-C8023R captures enough detail for accurate post-event review at entrances, car parks, and covered walkways where subject identification matters.
IK10 Vandal-Resistant Dome Housing
The hard-coated dome and IK10-rated housing resist deliberate impact, making this camera suitable for mounting in exposed public-facing positions where tampering or accidental strikes are a real concern.
AI Person and Vehicle Classification
Onboard AI analytics distinguish between people and vehicles, filtering out irrelevant motion from wind, foliage, or passing animals. Intrusion detection, loitering detection, and virtual line crossing add structured event monitoring without a separate analytics server.
WiseIR Night Vision to 30m
Built-in infrared illumination with WiseIR technology automatically adjusts IR intensity to avoid overexposure at close range, maintaining balanced night imagery across the full 30-metre coverage distance.
120dB WDR and WiseStream III
The 120dB wide dynamic range handles high-contrast outdoor scenes such as doorways backlit by sunlight. WiseStream III compression reduces bandwidth and storage requirements by up to 75 percent compared to standard H.265, supporting practical long-term recording deployments.
Best For
- Outdoor Entrance and Doorway Monitoring: The 4mm fixed lens produces an approximately 80-degree horizontal field of view well suited to framing a single entrance, gate, or doorway without optical adjustments after install.
- Perimeter and Boundary Walls: IP66 weatherproofing and IK10 impact resistance allow reliable mounting on exposed exterior walls where both rain and physical interference are likely.
- Car Parks and Loading Areas: AI vehicle classification combined with 30m IR range supports after-hours monitoring of vehicle movement in unlit or poorly lit outdoor areas.
- Commercial and Industrial Exteriors: The Q-Core platform’s AI analytics and durable housing make the QNV-C8023R a practical fit for sites where event-based alerts need to be dependable and false triggers kept low.
Why Choose the QNV-C8023R
The QNV-C8023R separates itself from basic 5MP dome cameras through the combination of onboard AI classification, WiseStream III compression, and a genuinely impact-resistant IK10 housing rather than a standard dome shell. Where a conventional motion-triggered camera would alert on wind or a passing car on an adjacent road, the QNV-C8023R uses its AI engine to filter events to confirmed person and vehicle detections, reducing alarm fatigue for operators and security staff. The 120dB WDR and WiseNRII noise reduction ensure the sensor produces usable footage in the backlit entrances and low-light corridors that challenge lower-spec units. H.265 with WiseStream III keeps storage costs manageable across multi-camera deployments. Available through Security Wholesalers, the QNV-C8023R is a well-specified outdoor vandal dome for integrators and end users who need AI analytics and durable construction without stepping up to a larger platform.
Buyer Decision Tips
Fixed Lens Placement: The 4mm fixed lens on the QNV-C8023R cannot be adjusted after installation, so position the camera before cabling is finalised. At typical ceiling mounting heights of 2.5 to 3.5 metres, the approximately 80-degree horizontal field of view frames a single entrance, corridor junction, or bay entry clearly. If the monitored zone is wider or at a longer standoff distance, consider whether a varifocal or wider-angle lens option suits the layout better before committing to this fixed focal length.
Key Features & Technical Specifications
| Resolution |
5MP (2592 x 1944) |
| Image Sensor |
1/2.8″ CMOS |
| Lens |
4.0mm fixed (F1.6) |
| Field of View |
Approx. 80-degree horizontal |
| Frame Rate |
Up to 30fps |
| IR Night Vision Range |
Up to approx. 30m (WiseIR) |
| Wide Dynamic Range |
120dB |
| Video Compression |
H.265, H.264, MJPEG |
| Bandwidth/Storage Compression |
WiseStream III |
| Noise Reduction |
WiseNRII |
| AI Analytics |
Person and vehicle detection, intrusion detection, loitering detection, virtual line crossing |
| Weatherproof Rating |
IP66 |
| Vandal Resistance |
IK10 |
| Platform |
Hanwha Q-Core |
Ideal Use Cases
Building Entrance Monitoring
The 4mm fixed lens and approximately 80-degree FOV frame a standard doorway or gate entry clearly. AI person detection logs verified arrival and departure events, supporting both live monitoring and retrospective access review.
Outdoor Car Parks
AI vehicle classification and 30m WiseIR coverage allow the QNV-C8023R to track vehicle movement in unlit or low-light car parks after hours, with loitering detection flagging stationary persons near vehicles.
Industrial Site Perimeters
IK10 impact resistance and IP66 weatherproofing allow the camera to operate on factory walls, under eaves, and at boundary fence lines in environments with dust, moisture, and the risk of equipment contact.
Retail and Commercial Exteriors
The vandal dome profile mounts flush against exterior ceilings and soffits at commercial premises. Virtual line crossing and intrusion detection allow operators to define specific alert zones around loading docks, bin areas, or after-hours access points.
Choosing the Right Model
- Choose this model if: You need a 5MP outdoor vandal dome with confirmed AI person and vehicle classification, IK10 housing, and a straightforward 4mm fixed lens for monitoring a defined entrance, walkway, or perimeter zone at a mounting height of roughly 2.5 to 4 metres.
- Choose a different model if: The monitored area is wide, variable in depth, or requires the lens to be adjusted after installation. A motorised varifocal or zoom-capable dome would offer the framing flexibility a fixed 4mm lens cannot provide. If indoor-only installation with no vandal risk is the priority, a standard non-IK10 dome may deliver the same image quality at a lower cost.
FAQs
- What does the Q-Core platform mean for the QNV-C8023R?
Q-Core is Hanwha Vision’s designation for cameras built on a standardised AI-capable hardware and firmware platform. For the QNV-C8023R, this means the onboard AI analytics, WiseStream III compression, and WiseNRII noise reduction are processed within the camera itself, without relying on an external analytics server or specialised NVR to deliver person and vehicle classification.
- What specific AI analytics does this camera support?
The QNV-C8023R supports AI-based person and vehicle detection, virtual line crossing, intrusion detection, and loitering detection. These analytics are processed onboard and can generate alerts when configured through a compatible VMS or NVR, allowing operators to respond to defined event types rather than generic motion triggers.
- Can this camera be installed outdoors in Australian weather conditions?
Yes. The IP66 weatherproof rating confirms the housing is sealed against dust ingress and water jets from any direction, making it suitable for exposed outdoor mounting in Australian conditions including rain, humidity, and dusty environments. The IK10 impact rating adds protection against physical strikes up to 20 joules of energy.
- How does 120dB WDR affect image quality at backlit entrances?
Wide dynamic range processing balances exposure across bright and dark areas simultaneously within the same frame. At 120dB, the QNV-C8023R can retain usable detail on a person standing in a doorway even when strong sunlight is directly behind them, which is a common challenge for standard dome cameras at building entrances and reception areas.
- What does WiseStream III do and does it affect image quality?
WiseStream III is Hanwha Vision’s adaptive bitrate compression technology that works alongside H.265 to reduce file sizes during low-activity periods while preserving detail when movement is detected. It can reduce bandwidth and storage consumption by up to 75 percent compared to conventional H.265 encoding without lowering configured resolution or frame rate.
- Is the QNV-C8023R compatible with third-party NVRs?
The QNV-C8023R supports ONVIF Profile S and Profile G, which allows integration with a broad range of third-party NVRs and VMS platforms. Full access to Hanwha-specific features such as WiseStream III compression and onboard AI event outputs is typically best achieved through Hanwha’s own Wisenet NVR or WAVE VMS. Buyers can confirm compatibility with their specific recorder before purchase through Security Wholesalers.
