Product SKU: QNV-C8011R
Product Overview

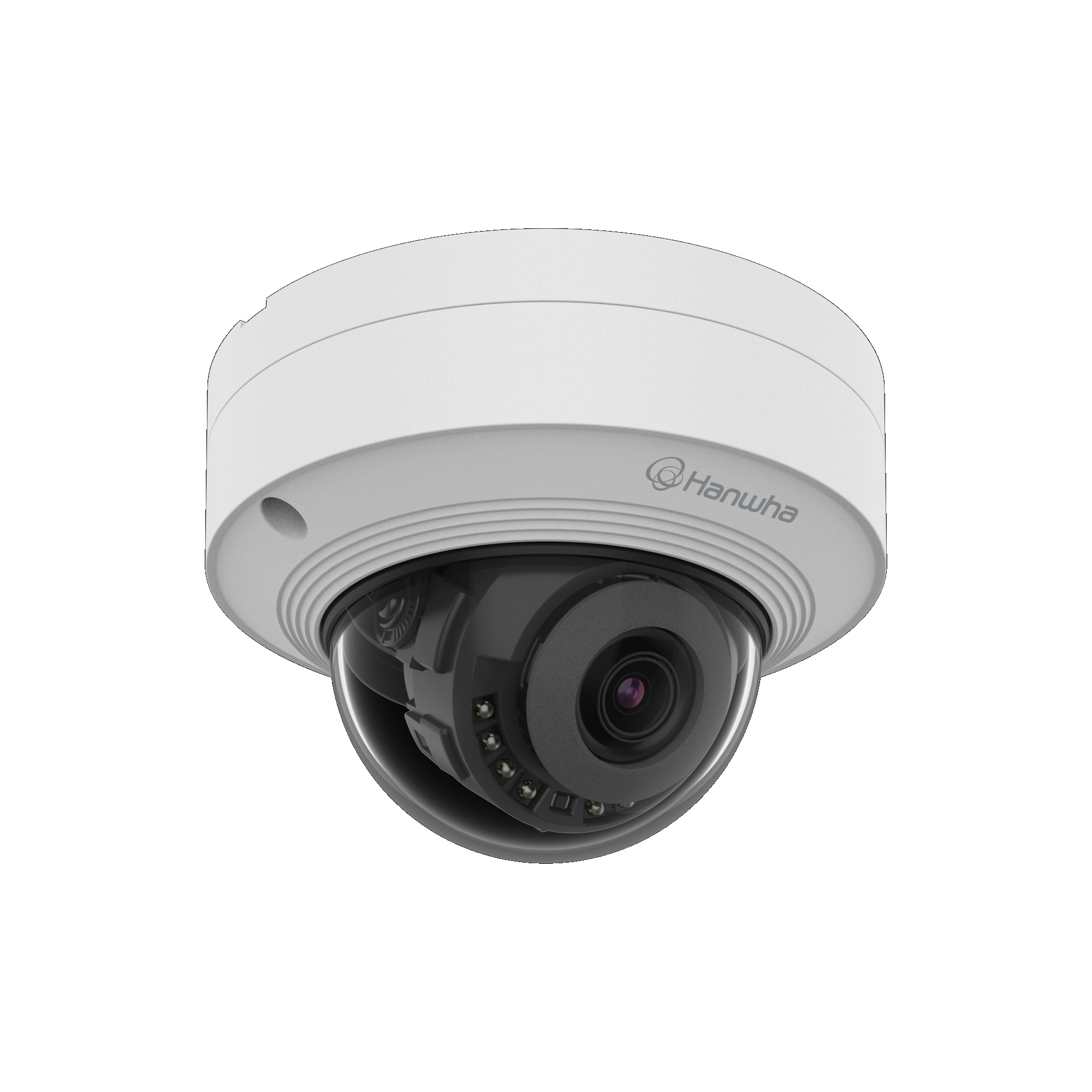

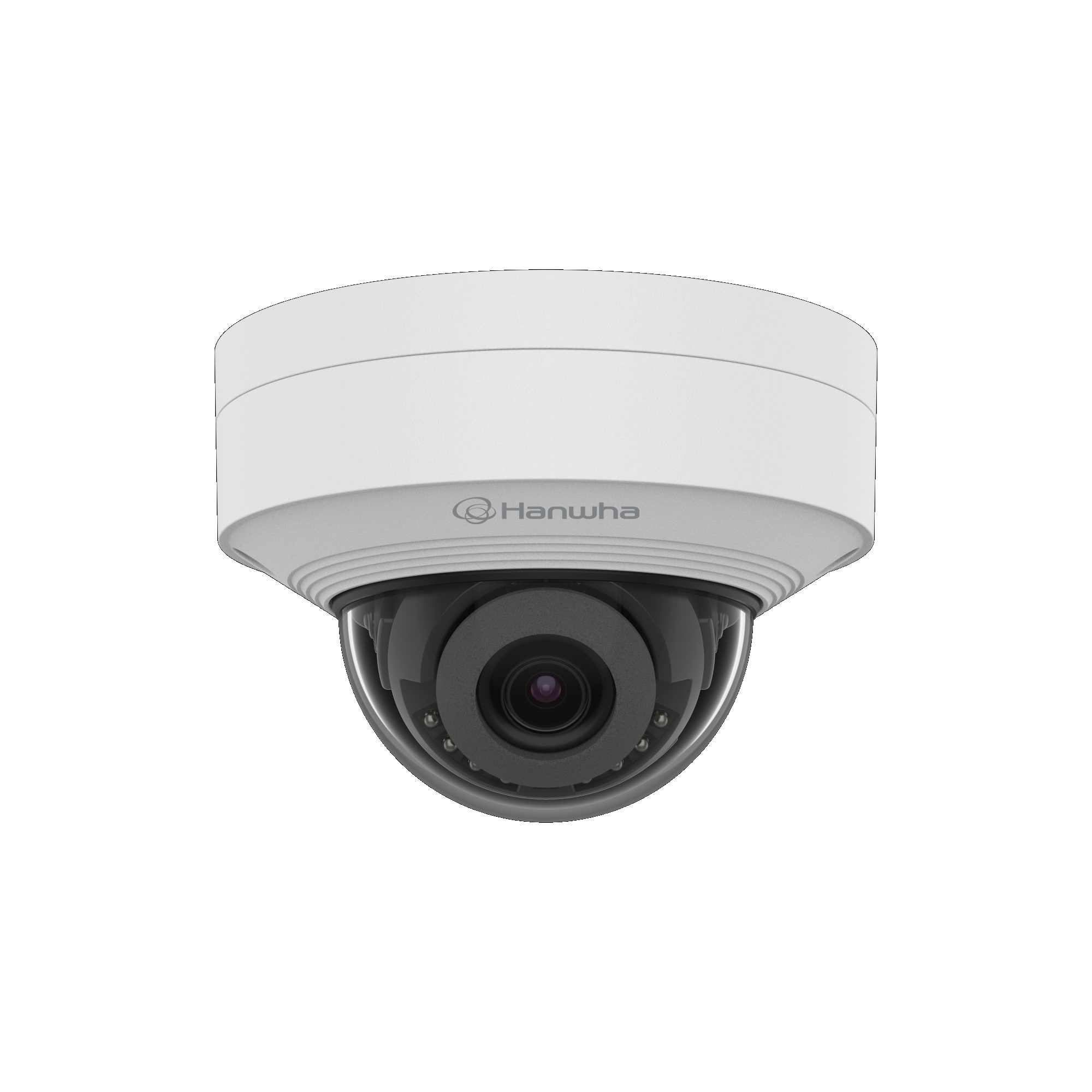

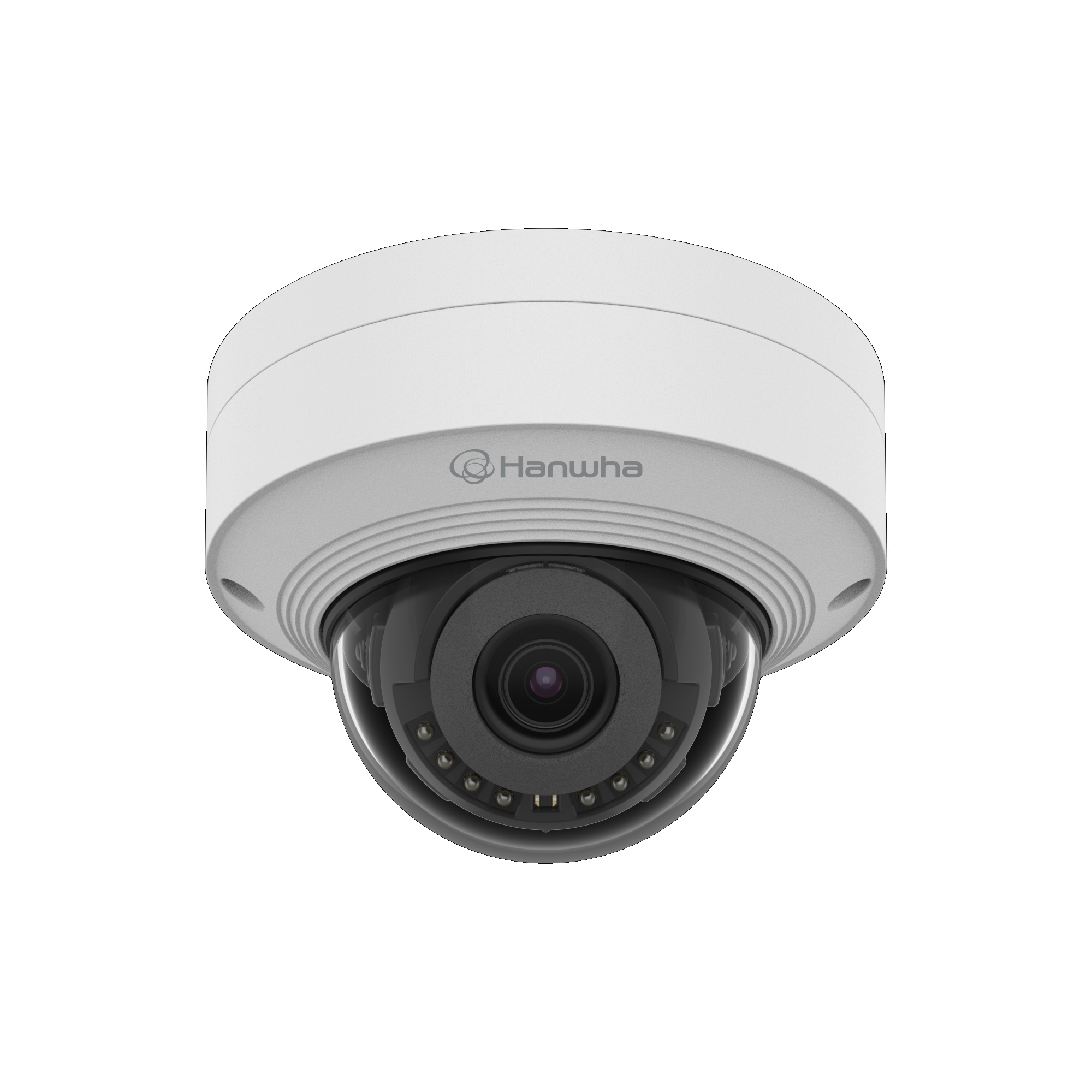

For building entrances, outdoor walkways and perimeter walls where a low-profile, tamper-resistant camera is needed, the Hanwha Vision QNV-C8011R delivers 5MP imaging within a compact vandal dome housing. Built on the Q-Core platform, this dome camera captures 2592 x 1944 resolution footage at up to 30fps using a 3.0mm fixed lens that provides approximately 100 degrees of horizontal coverage without any manual zoom adjustment. Equipped with a built-in AI engine, the QNV-C8011R classifies detected objects as people or vehicles, supporting virtual line crossing, intrusion detection and motion detection to sharpen alert accuracy. Integrated infrared illumination extends night visibility to approximately 20 metres, while 120dB wide dynamic range preserves detail across strongly contrasted scenes. H.265 compression combined with WiseStream III and WiseNRII keeps bandwidth and storage demands manageable. An IP66, IK10 and NEMA4X-rated housing ensures the camera operates dependably in exposed outdoor conditions and high-traffic locations where tampering is a risk.
Key Capabilities
5MP Resolution at 30fps
The 2592 x 1944 sensor captures enough detail to distinguish individuals and read vehicle details in real time, making recordings genuinely useful for post-incident review at entrances and perimeter zones.
AI Object Classification
The built-in AI engine differentiates between people and vehicles, filtering out irrelevant triggers such as foliage movement. This reduces unnecessary alerts and focuses attention on events that genuinely warrant a response.
IK10 Vandal-Resistant Dome Housing
The IK10-rated dome casing withstands deliberate impact, making the QNV-C8011R appropriate for locations such as stairwells, external corridors and car parks where cameras may be exposed to interference.
120dB Wide Dynamic Range
At building entrances where bright outdoor light meets shaded interior areas, the 120dB WDR engine prevents overexposure and dark crushing so both zones remain visible in the same frame.
WiseStream III and WiseNRII Compression
Hanwha’s WiseStream III dynamically adjusts bitrate based on scene complexity, and WiseNRII reduces noise in low-light footage. Together they cut storage and bandwidth consumption without compromising usable detail.
Best For
- Outdoor Entrances and Doorways: The 3.0mm wide-angle lens covers the full width of a doorway or gatehouse approach, and the 120dB WDR handles the contrast between bright daylight and shadowed entry zones.
- Perimeter Walls and Walkways: IP66 weatherproofing and 20m infrared range support year-round outdoor monitoring along building exteriors and access pathways after dark.
- Car Parks and Loading Areas: AI vehicle detection and 5MP resolution allow the camera to record vehicle presence and movement with enough detail for incident review.
- High-Traffic Public Zones: IK10 vandal resistance makes the QNV-C8011R suitable for areas such as stairwells, lift lobbies and external corridors where tampering is a known concern.
Why Choose the QNV-C8011R
The QNV-C8011R sits within Hanwha’s Q-Core range as a fixed-lens vandal dome that combines genuine AI analytics with practical outdoor durability at a compact form factor. Unlike basic 5MP domes without on-board intelligence, this camera actively classifies people and vehicles through its AI engine, supporting virtual line crossing and intrusion detection rules that a standard motion-detection camera cannot provide. The 120dB WDR performance handles the contrast conditions commonly found at building entrances, and the IK10-rated housing adds a layer of physical protection that a standard IP66-only dome lacks. H.265 with WiseStream III keeps recorder storage requirements lower than older compression formats, which matters across multi-camera installations. Available through Security Wholesalers, the QNV-C8011R is a considered option for installers who need dependable AI-assisted detection in a low-profile dome format without moving to a larger or more complex camera body.
Buyer Decision Tips
Fixed Lens Placement: The 3.0mm lens on the QNV-C8011R provides a wide field of view suited to close-range to mid-range coverage, typically 3 to 8 metres from the camera. Before mounting, confirm the installation height and angle will place the detection zone where people and vehicles actually move. If the monitored area is a long narrow corridor or a driveway stretching beyond 10 metres, a longer focal length or varifocal model may produce better-framed footage for AI detection accuracy.
Key Features & Technical Specifications
| Resolution |
5MP (2592 x 1944) |
| Image Sensor |
1/2.8″ CMOS |
| Lens Type |
3.0mm fixed lens |
| Horizontal Field of View |
Approximately 100 degrees |
| Frame Rate |
Up to 30fps |
| IR Night Vision Range |
Up to approximately 20m |
| Wide Dynamic Range |
120dB |
| Video Compression |
H.265, H.264, MJPEG |
| Bandwidth and Storage Optimisation |
WiseStream III, WiseNRII |
| AI Analytics |
Person and vehicle detection and classification, virtual line crossing, intrusion detection, motion detection |
| Ingress Protection |
IP66 |
| Vandal Resistance |
IK10 |
| Additional Rating |
NEMA4X |
| Platform |
Hanwha Q-Core |
Ideal Use Cases
Building Entrances
The 3.0mm wide-angle lens combined with 120dB WDR captures the full width of an entry point while handling the contrast between bright outdoor light and interior shadow – a common challenge at shopfronts and foyer doors.
Outdoor Corridors and Stairwells
The IK10 dome housing resists deliberate impact, making the QNV-C8011R appropriate for semi-enclosed public spaces where cameras face a higher risk of interference or vandalism.
Retail and Commercial Exteriors
AI person and vehicle classification allows the camera to generate alerts based on meaningful activity rather than background movement, reducing the volume of events that staff need to review after hours.
Car Parks and Access Roads
5MP resolution at 30fps records vehicle movement with enough detail for post-incident review, and the 20m infrared range maintains visibility across unlit parking areas overnight.
Multi-Camera Commercial Installations
WiseStream III compression reduces per-camera storage and bandwidth consumption, which helps manage total recording costs when the QNV-C8011R is deployed across a network of multiple cameras on a shared NVR or recorder.
Choosing the Right Model
- Choose this model if: You need a compact vandal dome with confirmed AI person and vehicle classification, a wide-angle 3.0mm fixed lens for close-range to mid-range coverage, and IP66 plus IK10 protection for exposed outdoor or high-traffic locations.
- Choose a different model if: The monitored area is a long driveway, fence line or large open space where a longer focal length or varifocal lens would provide better-framed subject detail, or if the site requires active deterrence features such as a built-in siren or warning light.
FAQs
- What does the Q-Core platform mean for the QNV-C8011R?
Q-Core is Hanwha’s entry-tier camera platform designed to deliver AI analytics and H.265 compression in a compact, cost-effective form. For the QNV-C8011R, it means the AI object classification engine runs on the camera itself rather than relying on server-side processing, which reduces the load on the recorder and keeps alert response faster.
- How does AI object classification differ from standard motion detection on this camera?
Standard motion detection triggers on any pixel change, including shadows, tree movement or headlight sweeps. The AI engine in the QNV-C8011R analyses the shape and movement pattern of detected objects and categorises them as a person or vehicle before generating an alert, resulting in a much lower rate of irrelevant notifications.
- Is the 3.0mm fixed lens suitable for all outdoor installations?
The 3.0mm lens provides approximately 100 degrees of horizontal field of view, which works well for entrances, walkways and areas where subjects pass within 3 to 8 metres of the camera. For longer distances or narrow corridors where a tighter field of view is needed, a camera with a longer focal length or motorised varifocal lens would be more appropriate.
- What does the IK10 rating mean in practice for this dome camera?
IK10 is the highest level of the international impact protection scale, indicating the camera housing can withstand a 20-joule impact. For a vandal dome installed in a stairwell, car park or public corridor, this means the outer casing is resistant to strikes from a hand, fist or small object that would damage a standard camera.
- Does WiseStream III affect video quality when reducing bitrate?
WiseStream III applies higher compression selectively to static or low-detail areas of the frame while preserving bitrate in regions with motion or important subject detail. In practice, recorded footage of people and vehicles remains at full quality, and the bitrate savings occur in background areas of the scene that carry less investigative value.
- Where can I find the datasheet and purchase the QNV-C8011R?
The full technical datasheet for the QNV-C8011R is available in the Additional Information section below. The camera is part of the Security Wholesalers range and can be ordered directly through the product listing. For assistance with compatibility or installation planning, the Security Wholesalers team can advise on recorder pairing and network requirements for the Q-Core platform.
