Product SKU: QNV-C6083R
Product Overview

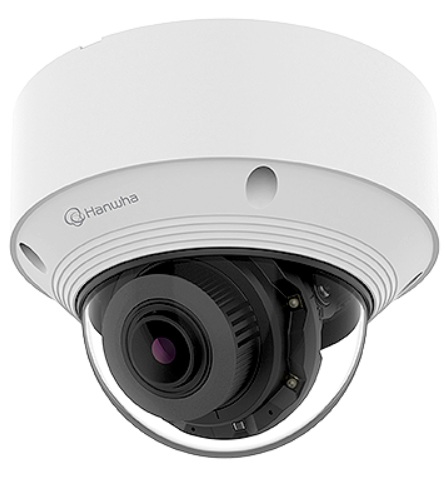

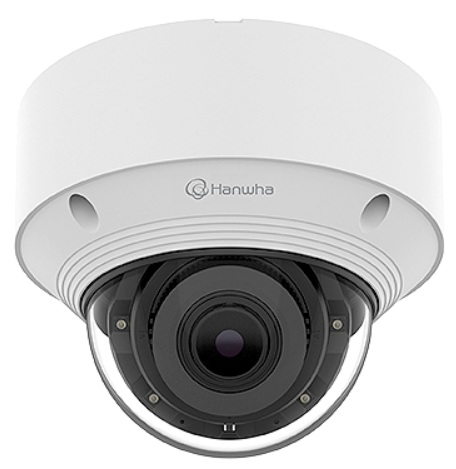

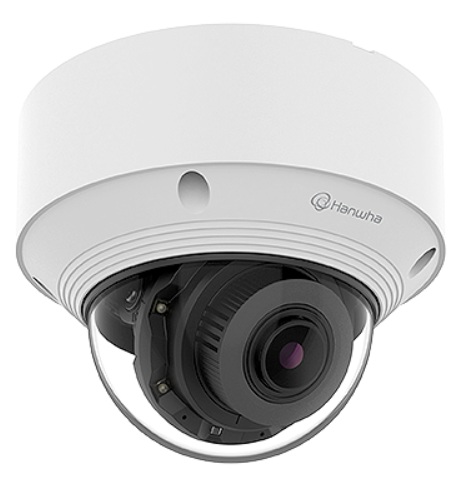

The Hanwha Vision QNV-C6083R is a 2MP Q Series AI vandal-resistant dome camera designed for outdoor commercial surveillance where flexible scene framing, reliable night coverage and intelligent event filtering are required. Its 3.2–10.2 mm motorised varifocal lens provides approximately 3.2× optical zoom, allowing the field of view to be adjusted from a broad 102° horizontal view to a tighter 32° view without changing the lens. Built-in infrared illumination provides visibility up to 40 metres, while 120 dB WDR helps balance scenes containing strong highlights and darker areas. AI-based person and vehicle classification supports more meaningful event detection, and the IP66, IK10 aluminium housing with hard-coated dome suits exposed and vandal-prone locations. PoE power, edge storage and multiple analytics functions make the QNV-C6083R a practical choice for shops, offices, warehouses, entrances, car parks and building perimeters.
Key Capabilities
2MP AI Surveillance
The camera records at up to 1920 × 1080 and uses an AI engine to distinguish people and vehicles, helping operators focus on relevant activity rather than treating every movement as the same type of event.
3.2–10.2 mm Motorised Varifocal Lens
Approximately 3.2× optical zoom lets installers choose between wider scene coverage and a tighter view, making the camera more adaptable than a fixed-lens dome when the final framing needs adjustment.
40 Metre Infrared Night Vision
Integrated infrared illumination provides a stated viewable distance of up to 40 metres, allowing the camera to continue monitoring dark areas without depending on visible lighting.
AI Event Filtering
AI-assisted analytics support events including virtual line crossing, direction, loitering, intrusion, entering and exiting, helping reduce irrelevant alerts and improve event review.
120 dB Wide Dynamic Range
WDR helps retain useful detail when bright and dark areas appear in the same image, such as entrances, loading bays, covered walkways and areas facing windows or strong daylight.
Outdoor Vandal-Resistant Housing
IP66 weather protection and IK10 impact resistance combine with an aluminium housing and hard-coated dome for installations where the camera may be exposed to weather and physical interference.
Best For
- Building Entrances: The motorised lens and 120 dB WDR help frame entry points where changing daylight can make faces and surrounding details difficult to balance.
- Car Parks: AI vehicle classification, 40 metre IR and flexible focal length suit general vehicle and pedestrian monitoring across parking areas.
- Retail and Commercial Sites: People counting, heatmap and queue-management functions can support both security monitoring and selected business-intelligence applications.
- Warehouses and Loading Areas: The varifocal lens can be adjusted for wide general coverage or a narrower view of access points and operational areas.
- Vandal-Prone Locations: The IK10 hard-coated dome provides stronger physical protection than a standard non-vandal camera enclosure.
Why Choose the QNV-C6083R
The QNV-C6083R is a practical step up from a basic fixed-lens 2MP camera when the installation needs flexible framing, stronger analytics and a vandal-resistant outdoor housing. Its 3.2–10.2 mm motorised varifocal lens lets the installer tailor the viewing area after mounting, while the AI engine distinguishes people and vehicles and supports more targeted event rules. The 40 metre IR range also makes it useful for locations that remain dark after hours. Available through Security Wholesalers, this model is especially well suited to commercial projects where 2MP resolution is sufficient but reliable event filtering, configurable field of view, edge recording and rugged outdoor construction matter more than simply choosing the highest megapixel count.
Buyer Decision Tips
Buyer Tip: Use the wide end of the 3.2–10.2 mm lens when broad area coverage is the priority, and zoom toward the tele end when the camera needs to concentrate more pixels on a smaller area. The narrower setting does not increase the camera’s 2MP resolution; it changes how much of the scene fills the image.
Buyer Tip: The camera supports audio I/O and alarm I/O through an optional SPP-C7400 cable. Do not assume these connections are available directly from the standard camera body, and do not treat audio I/O support as a built-in microphone or built-in speaker.
Key Features & Technical Specifications
| Resolution |
Up to 2MP, 1920 × 1080. |
| Camera Type |
Q Series outdoor AI vandal dome network camera. |
| Image Sensor |
1/2.8-inch CMOS. |
| Maximum Frame Rate |
Up to 30 fps/25 fps with H.265 or H.264. |
| Lens |
3.2–10.2 mm motorised varifocal lens. |
| Optical Zoom |
Approximately 3.2×. |
| Maximum Aperture |
F1.6 wide to F3.1 tele. |
| Horizontal Field of View |
Approximately 102° wide to 32° tele. |
| Vertical Field of View |
Approximately 55° wide to 18° tele. |
| Minimum Object Distance |
1.2 metres. |
| Minimum Illumination |
Colour 0.04 lux and black-and-white 0.004 lux at F1.6, 1/30 sec; 0 lux with IR on. |
| Infrared Range |
Up to 40 metres. |
| Day & Night |
Auto ICR. |
| Wide Dynamic Range |
120 dB. |
| AI Object Classification |
Person and vehicle classification, including car, bus, truck, motorcycle and bicycle vehicle types. |
| AI Analytics |
Virtual line crossing and direction plus virtual-area loitering, intrusion, enter and exit events. |
| Business Intelligence |
People counting, vehicle counting, heatmap and queue management. |
| Image Processing |
WiseNR II, SSNR V, BLC, SSDR, lens distortion correction and Hallway View. |
| Video Compression |
H.265, H.264 and MJPEG with WiseStream III. |
| Edge Storage |
1 × microSD/SDHC/SDXC slot, up to 256GB for conventional edge storage. |
| Audio / Alarm I/O |
Supported through optional SPP-C7400 cable. |
| Installation Video Output |
Micro USB Type-B, 1280 × 720. |
| HDMI Output |
1080p at 30/25 fps through optional SPP-C1900 cable. |
| Power |
PoE, IEEE 802.3af Class 3. |
| Power Consumption |
Maximum 9.8 W, typical 4.0 W. |
| Weather Rating |
IP66. |
| Impact Rating |
IK10. |
| Operating Temperature |
-40°C to 55°C. |
| Material |
White aluminium housing with hard-coated dome. |
| Dimensions |
Ø140 × 110.2 mm. |
| Weight |
Approximately 850 g. |
Ideal Use Cases
Building Entrances
Use the motorised lens to frame entrances accurately while 120 dB WDR helps manage bright exterior light behind people entering the building.
Car Parks
AI person and vehicle classification plus up to 40 metres of IR make the camera useful for general after-hours monitoring of parking areas.
Retail Stores
People counting, queue management and heatmap functions can complement security monitoring in compatible retail deployments.
Warehouse Access Points
The adjustable lens can concentrate coverage around loading doors, pedestrian entrances or vehicle access points without changing camera hardware.
External Walkways
IP66 weather protection and IK10 resistance suit exposed walkways where the camera may encounter both weather and physical interference.
Office and Commercial Sites
A flexible choice for general-purpose surveillance where AI event filtering, vandal resistance and adjustable coverage are required in one dome camera.
Choosing the Right Model
- Choose this model if: You need a 2MP outdoor vandal dome with a motorised 3.2–10.2 mm lens, AI person and vehicle classification, 40 metre IR and 120 dB WDR.
- Choose a higher-resolution model if: The installation requires more pixels for digital enlargement or finer detail across a wide scene than a 2MP camera can provide.
- Choose a fixed-lens model if: The required viewing angle is already known and the flexibility of a motorised varifocal lens is unnecessary.
- Plan optional accessories if: The project requires audio I/O, alarm I/O or direct HDMI output, as these functions use optional connection cables rather than standard exposed interfaces on the camera body.
FAQs
- Is the Hanwha Vision QNV-C6083R suitable for outdoor commercial surveillance?
Yes. The QNV-C6083R is rated IP66 and IK10, giving it weather protection and vandal resistance for exposed commercial installations. Its aluminium body, hard-coated dome and -40°C to 55°C operating range suit entrances, car parks, building perimeters and other outdoor locations. Correct mounting, sealing and network design are still important when installing the camera in exposed environments.
- What lens does the QNV-C6083R use?
The QNV-C6083R uses a 3.2–10.2 mm motorised varifocal lens with approximately 3.2× optical zoom. Its horizontal field of view adjusts from about 102° at the wide end to 32° at the tele end. This gives installers flexibility to choose broader scene coverage or a tighter view without changing the lens.
- How far can the QNV-C6083R see with infrared at night?
The QNV-C6083R provides infrared illumination up to 40 metres and can operate at 0 lux when the IR LEDs are active. This makes it suitable for entrances, perimeters, car parks and other areas that need black-and-white night surveillance without relying on visible lighting. Final night performance still depends on scene conditions, mounting and reflective surfaces.
- What AI detection features are built into the QNV-C6083R?
The QNV-C6083R uses an AI engine to classify people and vehicles and supports analytics such as virtual line crossing, direction, loitering, intrusion, entering and exiting. It also supports people counting, vehicle counting, heatmap and queue management. These functions can help reduce irrelevant motion events and make event review more useful in compatible surveillance systems.
- Does the QNV-C6083R support local microSD recording?
Yes. The QNV-C6083R has one microSD/SDHC/SDXC slot supporting up to 256GB for conventional edge storage. This can provide local recording or event storage alongside a compatible NVR, depending on the system configuration. For Security Wholesalers projects, storage capacity should be planned around recording duration, bitrate and the role of edge recording in the wider system.
- What power does the QNV-C6083R require?
The QNV-C6083R is powered by PoE using IEEE 802.3af Class 3. Maximum stated PoE consumption is 9.8 W, with typical consumption around 4.0 W. This makes it straightforward to integrate with a suitable PoE switch, provided the switch has enough available power budget and network capacity for the full camera installation.
- Does the QNV-C6083R support audio and alarm connections?
Yes, audio I/O and alarm I/O are supported through the optional SPP-C7400 cable. These interfaces are not built into the standard camera body as exposed terminals, so buyers who need audio or alarm integration should confirm the optional cable is included in the installation plan. Do not assume two-way audio unless suitable external audio devices are also provided.
- What should I check before choosing the QNV-C6083R?
Choose the QNV-C6083R when you need a 2MP outdoor vandal dome with a 3.2–10.2 mm motorised varifocal lens, 40 metre IR, AI person and vehicle classification, 120 dB WDR and PoE power. If the project needs higher resolution, longer IR, built-in microphone or a different form factor, another model may be a better fit.
