Product SKU: QNO-C8083R
Product Overview

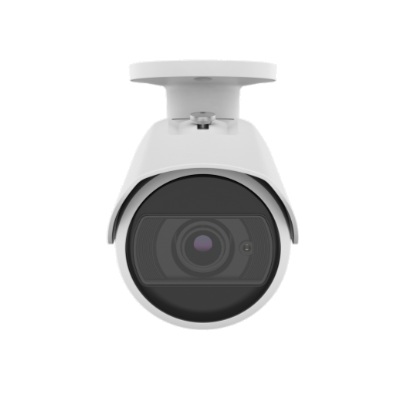

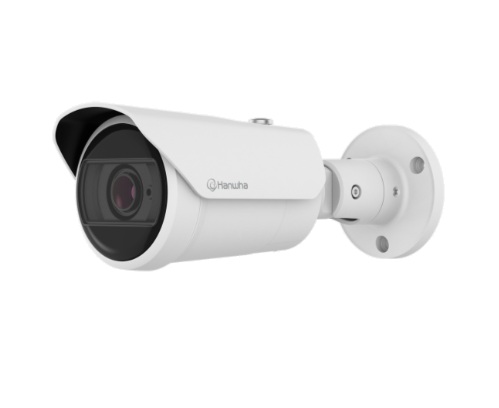

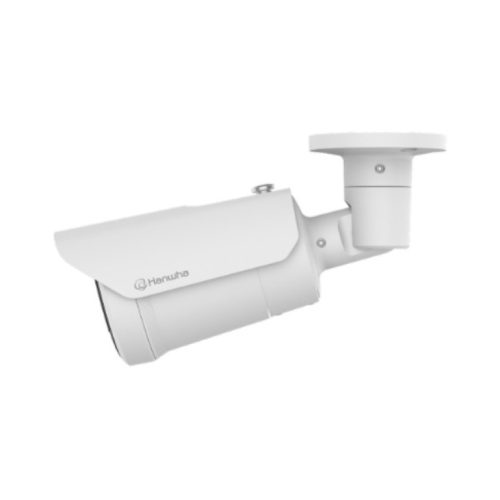

Built for perimeter and outdoor directional monitoring, the Hanwha Vision QNO-C8083R is a 5MP IR bullet network camera designed for wall and pole mounting across commercial sites, industrial yards, and public-facing locations. Featuring a 2592 x 1944 resolution sensor, this bullet camera captures fine scene detail that supports accurate review of activity across entrances, loading areas, and boundary lines. Equipped with integrated AI analytics, the QNO-C8083R automatically classifies detected objects as people or vehicles, reducing nuisance alerts and allowing security teams to focus on genuine events. Built-in infrared LEDs extend reliable coverage into low-light and night-time conditions, while the wide dynamic range processing handles challenging mixed-lighting scenes. Its weather-resistant bullet housing is built to withstand exposed outdoor environments, making it well suited to installations that require consistent day and night coverage using built-in infrared illumination rated up to 30m.
Key Capabilities
5MP Resolution Imaging
5MP imaging supports detailed incident review. Identification depends on framing, distance, lighting and subject movement.
AI People and Vehicle Detection
Integrated AI analytics classify detected motion as people or vehicles rather than triggering on general movement. This reduces alert fatigue on busy outdoor sites and helps operators prioritise response to relevant incidents.
Infrared Night Coverage
Built-in infrared LEDs provide effective illumination in low-light and full-dark conditions, allowing the camera to maintain continuous surveillance of outdoor areas throughout the night without visible light output.
Wide Dynamic Range
WDR processing balances exposure across bright and shadowed areas within the same frame, preserving usable detail in scenes such as gated entrances, loading dock openings, and areas with direct sunlight.
Weather-Resistant Bullet Housing
The bullet-form enclosure is engineered for long-term outdoor installation, handling exposure to weather and environmental variation with IP66 weather protection and IK10 impact resistance.
Best For
- Perimeter Monitoring: The directional bullet design and 5MP resolution work together to cover fence lines, boundary walls, and entry roads where identifying individuals or vehicles at distance matters.
- Car Parks and Loading Docks: AI classification separates vehicle movement from pedestrian activity, reducing unnecessary alerts across high-traffic outdoor areas during and after business hours.
- Commercial Building Exteriors: Wall or pole mounting positions the camera to cover approaches, signage areas, and building-side activity with consistent high-resolution detail day and night.
- Sites with Mixed Lighting Conditions: WDR processing handles scenes where direct sunlight and deep shadow appear in the same frame, such as canopied entrances and gated access points.
Why Choose the QNO-C8083R
The QNO-C8083R combines outdoor monitoring features by pairing its 5MP sensor with embedded AI analytics that actively classify detected objects. Where a basic bullet camera records motion indiscriminately, this model filters events by object type, returning person and vehicle detections rather than broad motion alerts triggered by tree movement or changing light. Infrared illumination supports night monitoring within its rated range; analytics performance depends on the scene and configuration. The bullet housing is purpose-built for outdoor wall and pole mounting, allowing the installer to aim the camera at the required monitoring area. For installers and site managers who need high-resolution outdoor coverage combined with meaningful, filtered alerting, available at Security Wholesalers, the QNO-C8083R offers a consolidated solution rather than requiring a separate analytics layer on top of a standard camera.
Buyer Decision Tips
Lens and Scene Coverage: The 3.2–10.2mm motorised varifocal lens allows adjustment between wider coverage and a tighter view. Set the framing to suit the target area, then verify recorded detail at the required distance. This camera is not a PTZ; lens adjustment does not provide remote directional movement.
Key Features & Technical Specifications
| Model |
Hanwha Vision QNO-C8083R |
| Resolution |
5MP (2592 x 1944) |
| Camera Type |
AI IR Bullet Network Camera |
| AI Analytics |
People and vehicle detection and classification |
| Night Vision |
Built-in infrared LEDs, up to 30m |
| Wide Dynamic Range |
120dB |
| Housing |
IP66 weather protection; IK10 impact resistance |
| Mounting |
Wall mounting; pole mounting with suitable accessories |
| Environment |
Outdoor |
| Network Interface |
IP network camera |
| Brand |
Hanwha Vision |
| Lens |
3.2–10.2mm motorised varifocal, 3.2x optical zoom |
| Maximum Frame Rate |
30fps at 5MP (60Hz); 25fps (50Hz), H.265/H.264 |
| Compression |
H.265, H.264, MJPEG; WiseStream III |
| Power |
IEEE 802.3af PoE, maximum 12W |
Ideal Use Cases
Industrial Yard Perimeters
The bullet housing and directional mounting allow the QNO-C8083R to be aimed along fence lines and site boundaries, with AI classification filtering after-hours vehicle intrusions from general environmental motion.
Loading Dock Monitoring
5MP resolution captures vehicle type and individual detail across dock areas. AI analytics separate truck movements from pedestrian activity, supporting both operational oversight and incident review.
Commercial Car Parks
Infrared night coverage combined with WDR processing maintains usable footage across car park rows at all hours, handling the contrast between lit aisles and dark perimeter zones.
Building Entry Approaches
Pole or wall-mounted along an approach road or driveway, the QNO-C8083R uses its 5MP sensor to record vehicle and pedestrian entry detail at the point before individuals reach a building entrance.
Public Spaces and Plazas
Weather-resistant construction supports deployment in exposed outdoor public areas. The AI people-detection capability helps identify relevant activity in open spaces without generating excessive motion-based alerts.
Choosing the Right Model
- Choose this model if: You need an outdoor bullet camera with 5MP resolution and embedded AI analytics to monitor a specific directional scene such as a driveway, fence line, loading bay, or building approach, and you require infrared night coverage within the rated infrared range.
- Choose a different model if: Your scene requires a wide panoramic sweep rather than directional coverage, in which case a multi-sensor or PTZ camera would provide adjustable framing across broader areas. If the installation site needs the camera to visually blend into a ceiling or soffit without a protruding barrel, a dome or turret housing would be a more appropriate form factor.
FAQs
- What does the AI analytics on the QNO-C8083R actually detect?
The integrated AI analytics classify detected objects as either people or vehicles. This means rather than generating a motion alert every time something moves in the scene, the system identifies whether the trigger is a person or a vehicle, helping security teams and VMS platforms respond to relevant events without sifting through footage caused by environmental movement.
- How does the bullet design affect installation compared to a dome or turret?
The mounting bracket allows manual aiming, while the motorised varifocal lens adjusts scene coverage. Wall mounting suits building exteriors; pole installations require suitable mounting accessories.
- Does the QNO-C8083R produce colour footage at night?
The camera can record colour when sufficient light is available. When it switches to infrared night mode, footage is monochrome. Built-in IR is rated up to 30m; this is an illumination specification, not a guaranteed identification distance.
- What does the 5MP resolution mean for footage usability at distance?
5MP resolution provides additional detail compared with lower-resolution cameras, but digital zoom cannot recover detail that was not captured. For faces or number plates, confirm framing, shutter settings, lighting and subject distance using sample recordings.
- Is the QNO-C8083R compatible with third-party VMS platforms?
Hanwha Vision cameras are widely supported by major video management software platforms through ONVIF compliance. For specific integration confirmation with your VMS, check your software’s camera compatibility list or refer to the datasheet linked in the Additional Information section below. Security Wholesalers can assist with queries about Hanwha Vision camera compatibility.
- What mounting options does the QNO-C8083R support?
The QNO-C8083R is designed for wall or pole mounting in outdoor environments. The bullet housing includes a mounting bracket that allows angular adjustment when positioning the camera to aim at the intended scene. Ensure the mounting surface is solid enough to hold the camera firmly, as vibration from wind or nearby machinery can affect image stability over time.
