Product SKU: PNV-A9082RZ
Product Overview

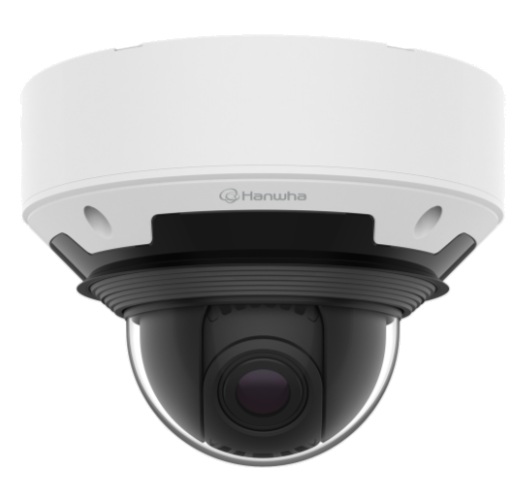

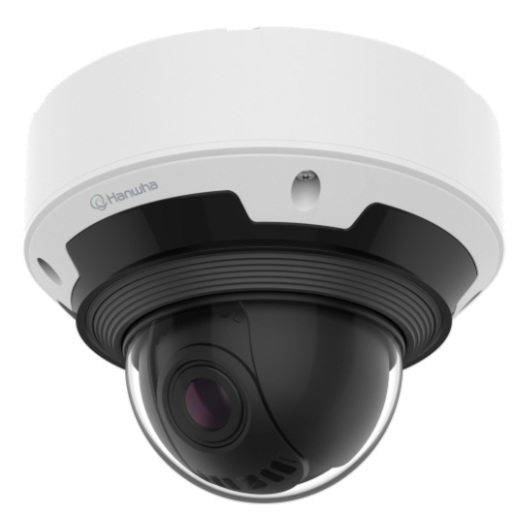

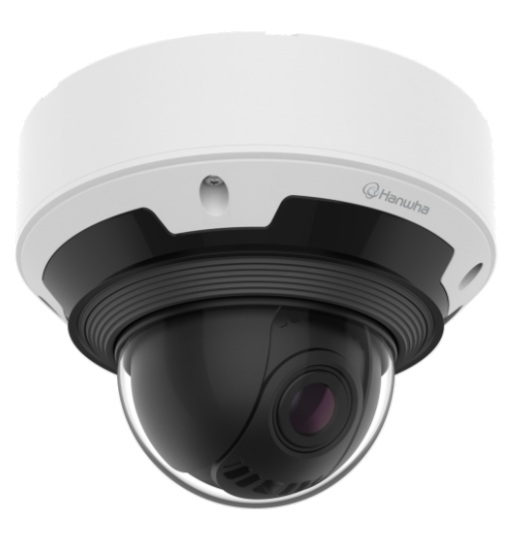

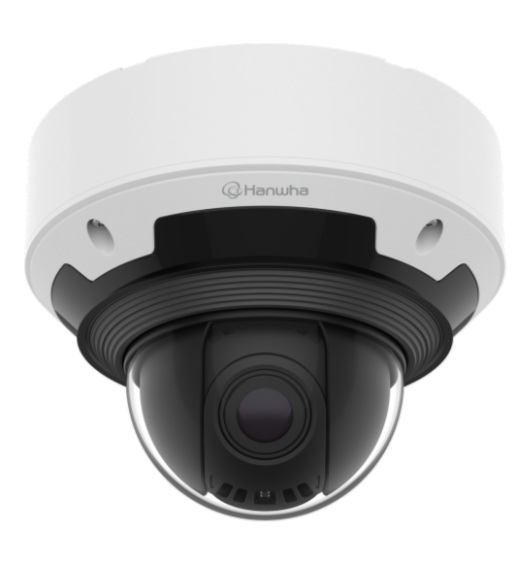

Built for exposed outdoor installations that demand both precision coverage and exceptional physical resilience, the Hanwha Vision PNV-A9082RZ is an 8MP AI vandal dome camera engineered for commercial, industrial, and public-facing environments. Its 5.9-13.3mm motorized varifocal lens provides adjustable field-of-view framing to suit a range of site layouts, from wide entry courts to focused gate approaches, without requiring physical repositioning. Featuring a dual NPU AI engine, the camera supports a comprehensive analytics suite including object detection for persons, faces, vehicles, and licence plates, along with IVA events, business intelligence functions, and additional detection modes such as slip and fall and crowd monitoring. WiseIR extends infrared coverage to 50 metres for dependable after-hours visibility, while extremeWDR and WiseNR II improve image usability in mixed-lighting scenes. The housing carries IP66, IP67, IP6K9K, IK11, NEMA 4X, and NEMA-TS 2 ratings, making it one of the more comprehensively protected dome cameras available for demanding site deployments.
Key Capabilities
8MP Imaging with Large 1/1.2″ Sensor
The 8MP resolution combined with a 1/1.2″ sensor delivers detailed scene coverage useful for identifying individuals, reading vehicle plates, and capturing activity across wide outdoor areas in both day and low-light conditions.
Motorized Varifocal Lens with PTRZ
The 5.9-13.3mm motorized varifocal lens allows installers to refine framing remotely, while PTRZ support and a magnetic modular design simplify on-site setup and camera adjustment without requiring a ladder return or physical dismounting.
Dual NPU AI Analytics
Powered by a dual NPU engine, the camera supports AI image enhancement alongside object detection, IVA events, business intelligence functions, and additional detection modes covering a broader range of operational and security scenarios than single-NPU alternatives.
50m WiseIR Night Performance
WiseIR illumination reaching up to 50 metres supports consistent after-hours monitoring across larger outdoor zones, with adaptive IR intensity helping maintain balanced exposure rather than washing out foreground subjects.
ExtremeWDR and WiseNR II
ExtremeWDR manages scenes with simultaneous bright and dark zones, such as entrances with direct sunlight and shaded interiors, while WiseNR II applies AI-based noise reduction to maintain usable image quality in low-light outdoor conditions.
IK11 Vandal and Multi-Standard Environmental Protection
The housing carries IK11 impact resistance alongside IP66, IP67, IP6K9K, NEMA 4X, and NEMA-TS 2 ratings. This combination is designed for high-risk outdoor placements where physical interference and extreme weather conditions are both genuine concerns.
Best For
- Industrial Perimeter Monitoring: The IK11 rating and multi-standard IP protection make this camera suitable for perimeter dome positions on industrial facilities, logistics yards, and utility sites where physical damage risk is elevated.
- Commercial Entry and Access Points: AI-based person, face, vehicle, and licence plate detection support smarter monitoring at gates, boom gates, and facility entry roads where subject identification matters.
- Public Spaces with Crowd Oversight: Business intelligence functions including people counting, crowd counting, queue management, and heatmap analysis add operational value beyond standard security recording in high-traffic public environments.
- Sites Needing Flexible Scene Framing: The motorized varifocal lens and PTRZ support benefit installations where coverage requirements may evolve or where camera adjustment post-installation is a practical need.
- Dual-Purpose Safety and Security Applications: Slip and fall detection, face mask detection, and social distancing detection extend the camera’s value into workplace health and safety monitoring beyond traditional surveillance functions.
Why Choose the PNV-A9082RZ
The PNV-A9082RZ distinguishes itself from standard 8MP dome cameras through a combination of dual NPU AI processing, motorized varifocal flexibility, and a protection specification that goes beyond typical outdoor ratings. Where a conventional dome may carry IP66 and IK10, this model adds IP67, IP6K9K, IK11, NEMA 4X, and NEMA-TS 2, positioning it for environments where durability is a primary selection factor. The dual NPU allows AI image enhancement to run in parallel with analytics rather than drawing from the same processing resource, supporting broader and more reliable analytics performance. PTRZ with twice-daily preset support and a magnetic modular design also reduce installation effort on sites where access to elevated mounting positions is limited. Available through Security Wholesalers, the PNV-A9082RZ suits buyers who need a vandal dome that performs across a wide range of AI functions without sacrificing outdoor toughness.
Buyer Decision Tips
Lens Range and Installation Height: The 5.9-13.3mm motorized varifocal lens suits installations where coverage needs to be dialled in after mounting, such as high-ceiling industrial positions or perimeter poles where returning to adjust a fixed lens is impractical. At 5.9mm the field of view is wider and better suited to broader area coverage, while 13.3mm provides tighter framing for focused zones like gates or doorways. Confirm your mounting height and required coverage width before selecting the zoom position, as this also affects how much of the 50m WiseIR range is practically usable in your scene.
Analytics Licensing and NVR Compatibility: Some of the more advanced AI functions on the PNV-A9082RZ, including business intelligence features such as queue management and heatmap, may require compatible NVR or VMS software to fully leverage recorded data and analytics outputs. Confirm that your recording platform supports Hanwha Vision AI event data and that the analytics functions you need are accessible through your chosen management software before finalising your system design.
Key Features & Technical Specifications
| Resolution |
8MP |
| Image Sensor |
1/1.2″ |
| Lens Type |
Motorized varifocal |
| Focal Length |
5.9-13.3mm |
| IR Illumination |
WiseIR up to 50m |
| Minimum Illumination |
Colour 0.015 Lux / B/W 0.0015 Lux |
| Wide Dynamic Range |
ExtremeWDR |
| Noise Reduction |
WiseNR II (AI-based) |
| AI Processing |
Dual NPU AI image enhancement and analytics |
| AI Object Detection |
Person, face, vehicle, licence plate |
| IVA Analytics |
Virtual line, virtual area, enter, exit, loitering, direction, intrusion detection |
| Business Intelligence |
People counting, vehicle counting, crowd counting, queue management, heatmap |
| Additional AI Events |
Slip and fall detection, face mask detection, social distancing detection |
| Installation Features |
PTRZ support, magnetic modular design, twice-daily PTRZ preset support |
| Edge Storage |
Dual SD card slots |
| Protection Rating |
IP66, IP67, IP6K9K, IK11, NEMA 4X, NEMA-TS 2 |
Ideal Use Cases
Industrial Facility Perimeters
The IK11 vandal rating and IP6K9K, NEMA 4X, and NEMA-TS 2 certifications make the PNV-A9082RZ well suited to perimeter dome positions on industrial sites where exposure to physical impact and severe weather is a long-term operational reality.
Logistics and Transport Yards
Vehicle counting, licence plate detection, and 50m WiseIR make the camera practical for monitoring truck entry zones, loading bays, and vehicle marshalling areas where both daytime AI classification and after-hours visibility are needed.
Public Spaces and Town Centre Monitoring
People counting, crowd counting, queue management, and heatmap analytics support operators managing public plazas, transport hubs, and retail precincts where footfall data and event detection both contribute to site management decisions.
Commercial Entry Points and Gates
The motorized varifocal lens allows framing to be tightened on gate lanes or doorways without repositioning the dome housing, and AI person and face detection support more targeted event recording at controlled access points.
Workplace Safety Applications
Slip and fall detection, face mask detection, and social distancing detection extend the camera’s role into occupational health and safety monitoring, making it relevant to manufacturing floors, construction zones, and healthcare facilities requiring compliance oversight.
Choosing the Right Model
- Choose this model if: Your site requires an outdoor vandal dome with confirmed IK11 impact resistance, multi-standard environmental protection including NEMA 4X and IP6K9K, a motorized varifocal lens for flexible post-installation framing, and a broad AI analytics suite covering both security events and business intelligence functions.
- Choose a different model if: Your installation is fully indoors with no physical interference risk and does not require NEMA or IP6K9K-level protection – a lighter vandal dome without the premium protection stack would provide comparable imaging at a lower cost. If you need 360-degree panoramic coverage from a single mounting point rather than directional dome coverage, a fisheye or multi-sensor camera would be a more appropriate choice.
FAQs
- What does the dual NPU in the PNV-A9082RZ actually do differently to a single-NPU camera?
A dual NPU architecture allows AI image enhancement and AI analytics to operate in parallel rather than sharing the same processing resource. On the PNV-A9082RZ this means the camera can apply WiseNR II and image quality improvements while simultaneously running object detection, IVA events, and business intelligence functions without one task degrading the other’s performance.
- What does PTRZ mean and how does it help during installation?
PTRZ stands for Pan, Tilt, Roll, and Zoom. On the PNV-A9082RZ it allows the camera’s orientation and lens position to be adjusted remotely after the housing is fixed to the mounting surface. Combined with the magnetic modular design and twice-daily PTRZ preset support, this reduces the need to physically access and reposition a mounted camera when fine-tuning coverage angles.
- What is the difference between IP66, IP67, and IP6K9K, and why does this camera carry all three?
IP66 covers protection against powerful water jets, IP67 covers immersion up to 1 metre for 30 minutes, and IP6K9K covers high-pressure, high-temperature wash-down conditions. Carrying all three alongside NEMA 4X means the PNV-A9082RZ is rated for a wider range of environmental exposures than cameras with only a single IP rating, making it suitable for sites where water ingress risks vary across installation conditions.
- How does WiseIR differ from standard fixed IR illumination?
WiseIR adapts the intensity of the infrared illumination based on subject distance and the current zoom level of the lens. This helps prevent nearby subjects from appearing overexposed while maintaining usable visibility further into the scene, which is particularly useful with a varifocal lens where the field of view and effective IR range shift as the zoom position changes.
- Does the PNV-A9082RZ support licence plate recognition as a built-in function?
The camera supports AI-based licence plate detection as part of its object classification, identifying that a licence plate is present in the scene. Whether full licence plate recognition is available and to what accuracy depends on factors including mounting height, angle, lighting conditions, and the NVR or VMS platform being used. Confirm your recording system’s LPR capabilities before relying on this function for access control or evidence purposes.
- What does the dual SD slot configuration provide for this camera?
Dual SD slots allow the camera to record locally to edge storage independently of the network recorder, which is useful for maintaining recording continuity during network interruptions. The two slots also allow for extended local storage capacity or redundancy configurations depending on how the camera and NVR are set up.
- Where can I confirm technical specifications and access the datasheet for the PNV-A9082RZ?
The full datasheet for the PNV-A9082RZ is available via the Additional Information link on this product page at Security Wholesalers. It covers detailed optical specifications, analytics event lists, electrical ratings, and dimensional drawings useful for system design and NVR compatibility planning.
