Product SKU: PNV-A7082RZ
Product Overview

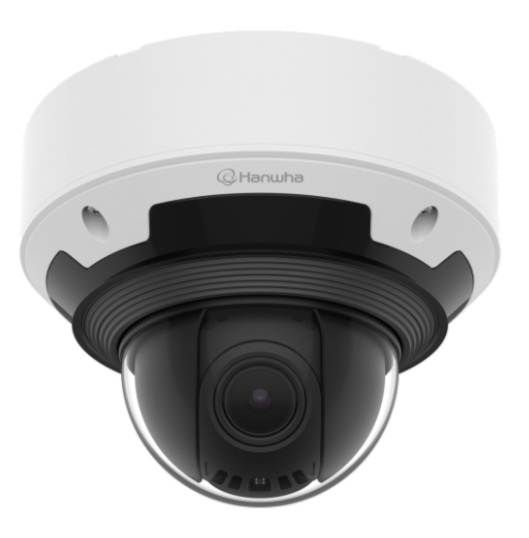

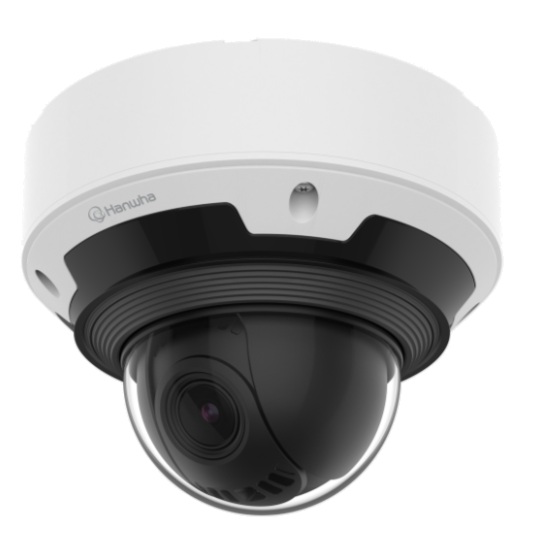

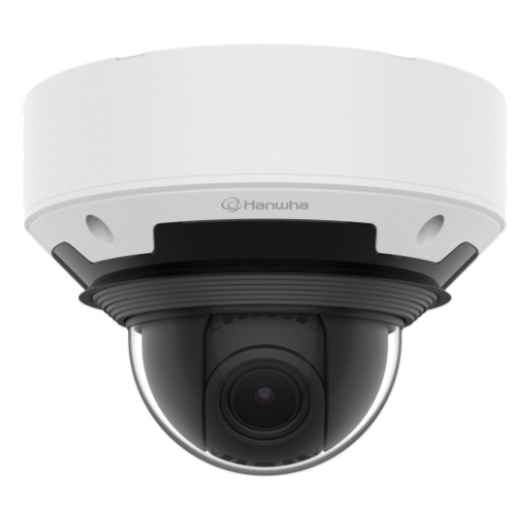

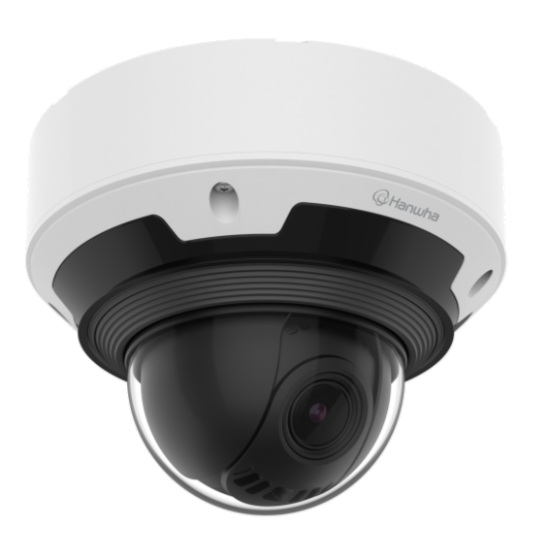

Built for demanding outdoor ceiling and wall installations, the Hanwha Vision PNV-A7082RZ is a 4MP AI vandal dome camera engineered for commercial, industrial, and public-facing environments where environmental durability and analytics depth are both required. Featuring a 4.6-9.35mm motorized varifocal lens with PTRZ support and a magnetic modular design, it gives installers flexible framing control without repositioning the housing. Equipped with a dual NPU AI engine, the camera supports object detection for person, face, vehicle, and licence plate, alongside IVA analytics, business intelligence functions, and specialised event detection including slip and fall and social distancing. It also integrates extremeWDR, WiseNR II, and 30m WiseIR for improved scene handling across mixed-lighting and low-light conditions. With IP66, IP67, IP6K9K, IK11, NEMA 4X, and NEMA-TS 2 ratings, the PNV-A7082RZ is well suited to exposed rooftop, facade, and perimeter locations where both impact resistance and all-weather protection are non-negotiable.
Key Capabilities
Motorized Varifocal with PTRZ
The 4.6-9.35mm motorized lens with PTRZ adjustment and magnetic modular construction lets installers dial in pan, tilt, rotation, and zoom from a single point. Twice-daily PTRZ preset support helps maintain framing accuracy over time without manual re-entry.
Dual NPU AI Image Enhancement
Two dedicated neural processing units handle both analytics and image quality simultaneously, improving scene detail and event accuracy without trading one off against the other – a meaningful step above single-NPU designs.
Broad AI Analytics Suite
Object detection covers person, face, vehicle, and licence plate. IVA functions include virtual line, virtual area, enter, exit, loitering, direction, and intrusion. Business intelligence adds people counting, vehicle counting, crowd counting, queue management, and heatmap.
IK11 Vandal and Multi-Standard Weather Protection
IK11 impact resistance exceeds the standard IK10 rating found on most vandal domes, while IP66, IP67, IP6K9K, NEMA 4X, and NEMA-TS 2 ratings cover dust, sustained submersion, high-pressure wash, and traffic cabinet environments.
extremeWDR and WiseNR II
extremeWDR manages scenes with strong backlight or mixed contrast, such as entry points with bright outdoor light behind subjects. WiseNR II uses AI-based processing to control noise in low-light footage without softening subject detail.
Dual SD Edge Storage
Two SD card slots provide local recording redundancy and edge storage flexibility, supporting continued capture if network or recorder connectivity is interrupted – useful for sites with intermittent uplinks or critical footage retention requirements.
Best For
- Exposed Outdoor Ceilings and Facade Mounts: The IK11 housing and full weather suite handle rooftop, soffit, and external wall positions where vandalism risk and environmental exposure are both elevated.
- Entry Points with Variable Lighting: extremeWDR and the 1/1.8″ sensor with 0.03 Lux colour sensitivity manage backlit scenes at gates, reception canopies, and building entrances where lighting changes throughout the day.
- Commercial Sites Requiring Business Intelligence: People counting, vehicle counting, queue management, and heatmap functions extend the camera’s value beyond security into operational monitoring for retail, transit, and venue management.
- Industrial Perimeters and Logistics Areas: Long-range 30m WiseIR, IVA analytics, and IK11 durability support reliable monitoring of loading docks, yards, and access corridors where conditions are demanding.
- High-Compliance and Regulated Environments: NEMA 4X and NEMA-TS 2 ratings satisfy requirements for traffic, utility, and infrastructure sites where standardised environmental ratings are specified.
Why Choose the PNV-A7082RZ
The PNV-A7082RZ sits above standard 4MP vandal domes by combining a dual NPU architecture with an exceptionally broad analytics suite – a combination that allows AI image enhancement and analytics processing to run in parallel rather than competing for resources. The motorized varifocal lens with PTRZ and magnetic modular design reduces installation time on ceiling and wall mounts where precise framing is difficult to achieve with fixed-lens alternatives. The IK11 rating, IP6K9K, NEMA 4X, and NEMA-TS 2 certifications go beyond what most dome cameras in this class carry, making this a more appropriate choice for high-exposure or regulated site types. Dual SD slots add local recording flexibility that single-slot models cannot match. Available through Security Wholesalers, the PNV-A7082RZ is suited to installers and end users who need a premium outdoor dome with analytics capability that scales beyond basic motion detection.
Buyer Decision Tips
Lens Range and Scene Distance: The 4.6-9.35mm focal range suits medium to longer viewing distances from a ceiling or wall position. For very wide-area coverage at close range – such as a small indoor lobby or compact reception – a shorter fixed or varifocal lens starting at 2.8mm or lower will provide a wider field of view. Confirm your target scene width and camera-to-subject distance before specifying the PNV-A7082RZ for tight or short-range indoor positions.
Analytics Activation and NVR Compatibility: Not all analytics functions activate automatically – confirm which features require edge processing only versus NVR or VMS integration to unlock full capability. The PNV-A7082RZ supports a wide analytics set, but verify your recorder or software platform supports the specific functions such as queue management, heatmap, and slip and fall detection that are relevant to your site before installation.
Key Features & Technical Specifications
| Resolution |
4MP |
| Image Sensor |
1/1.8″ |
| Lens Type |
Motorized varifocal |
| Focal Length |
4.6-9.35mm |
| IR Illumination |
WiseIR up to 30m |
| Minimum Illumination |
Colour 0.03 Lux, B/W 0.003 Lux |
| Wide Dynamic Range |
extremeWDR |
| Noise Reduction |
WiseNR II (AI-based) |
| AI Processing |
Dual NPU AI image enhancement and analytics |
| AI Object Detection |
Person, face, vehicle, licence plate |
| IVA Analytics |
Virtual line, virtual area, enter, exit, loitering, direction, intrusion detection |
| Business Intelligence |
People counting, vehicle counting, crowd counting, queue management, heatmap |
| Specialised AI Events |
Slip and fall detection, face mask detection, social distancing detection |
| Installation Features |
PTRZ adjustment, magnetic modular design, twice-daily PTRZ preset support |
| Edge Storage |
Dual SD card slots |
| Environmental Protection |
IP66, IP67, IP6K9K, IK11, NEMA 4X, NEMA-TS 2 |
| Housing Type |
Outdoor vandal dome |
Ideal Use Cases
Exposed Rooftop and Facade Positions
The IK11 housing and IP6K9K plus NEMA 4X ratings handle rooftop and exterior facade mounts where direct weather exposure, cleaning regimes, and potential impact require a housing rated beyond standard outdoor dome specifications.
Transport and Infrastructure Sites
NEMA-TS 2 certification and the full weather protection suite meet the requirements of traffic monitoring cabinets, transit stations, and utility infrastructure locations where standardised environmental ratings are commonly specified.
Retail and Venue Operations Monitoring
People counting, queue management, crowd counting, and heatmap functions allow the PNV-A7082RZ to contribute to store layout decisions and operational planning alongside its core security monitoring role.
Industrial Yards and Loading Dock Approaches
30m WiseIR and licence plate detection support after-hours monitoring of vehicle movements at loading docks and logistics yards where identifying specific vehicles during access events is operationally important.
High-Risk Public-Facing Perimeters
IVA functions including loitering, intrusion, and virtual line detection help flag unauthorised access behaviour at perimeter boundaries, building entries, and restricted zone edges in public-facing commercial settings.
Occupational Safety Monitoring
Slip and fall detection and social distancing detection make the PNV-A7082RZ a functional choice for environments where workplace safety compliance monitoring is required alongside standard surveillance.
Choosing the Right Model
- Choose this model if: Your installation is in an exposed outdoor position requiring IK11 impact resistance, multiple weather certifications including NEMA 4X and NEMA-TS 2, and you need analytics coverage that spans security events, IVA functions, and business intelligence from a single dome camera with a motorized varifocal lens.
- Choose a different model if: Your coverage zone is a compact indoor space where a short focal length fixed-lens dome would provide a wider field of view at lower cost, or if your site requires full-colour night-time imaging without IR and would benefit from a camera with a white-light illuminator rather than the WiseIR illumination this model carries.
- Choose a different model if: Your analytics needs are basic motion detection or simple object classification only, as a simpler AI dome would deliver those functions at a lower price point without the additional analytics suite.
FAQs
- What does the PTRZ feature do and why does it matter for installation?
PTRZ stands for pan, tilt, rotation, and zoom – all 4 axes of adjustment are controllable during setup. Combined with the magnetic modular design, this allows the installer to fine-tune camera framing from the body of the unit rather than physically repositioning the mount. The twice-daily PTRZ preset support also helps maintain consistent framing if the dome housing is adjusted during maintenance.
- What does IK11 mean and how does it differ from the standard IK10 rating?
IK10 is the highest standard rating on the IEC 62262 scale, certifying resistance to 20 joules of impact energy. IK11 is a supplementary rating used by some manufacturers to indicate resistance beyond 20 joules. For the PNV-A7082RZ, this means the dome housing is designed to handle more severe physical impact than a standard IK10 vandal dome, making it more appropriate for genuinely high-risk outdoor positions.
- What does NEMA-TS 2 certification mean for this camera?
NEMA-TS 2 is a standard specific to traffic control equipment and related infrastructure. It covers requirements around temperature cycling, humidity, vibration, and power disturbances relevant to roadside and traffic monitoring deployments. The PNV-A7082RZ carrying this rating means it is appropriate for traffic camera positions and infrastructure enclosures that specify this certification.
- How does the 1/1.8″ sensor affect image quality compared to smaller sensors?
The 1/1.8″ sensor is physically larger than the 1/2.8″ sensors common in standard 4MP dome cameras. A larger sensor captures more light per pixel at the same resolution, which translates to improved low-light sensitivity – confirmed at 0.03 Lux colour and 0.003 Lux B/W – and generally better dynamic range handling across challenging lighting conditions.
- Can the business intelligence functions like people counting and queue management be used without a connected VMS?
The PNV-A7082RZ processes business intelligence analytics at the edge using its dual NPU, so basic counting and heatmap functions can operate without a dedicated VMS. However, retrieving data reports, setting thresholds, and displaying analytics dashboards typically requires a compatible NVR, VMS, or Hanwha software platform. Confirm your management software compatibility before relying on these functions in a standalone edge-only configuration.
- Does the PNV-A7082RZ have a built-in microphone or speaker?
The confirmed product data does not specify a built-in microphone or built-in speaker for this model. Two-way audio capability is not confirmed for this camera. If audio capture or communication is required at the installation point, verify audio hardware support before specifying this model.
- Where can I source the PNV-A7082RZ in Australia and is technical documentation available?
The PNV-A7082RZ is available through Security Wholesalers, part of the Hanwha Vision camera range offered to integrators and installers. The full product datasheet is available via the Additional Information link on this product page and covers detailed technical specifications, connection diagrams, and accessory compatibility references.
