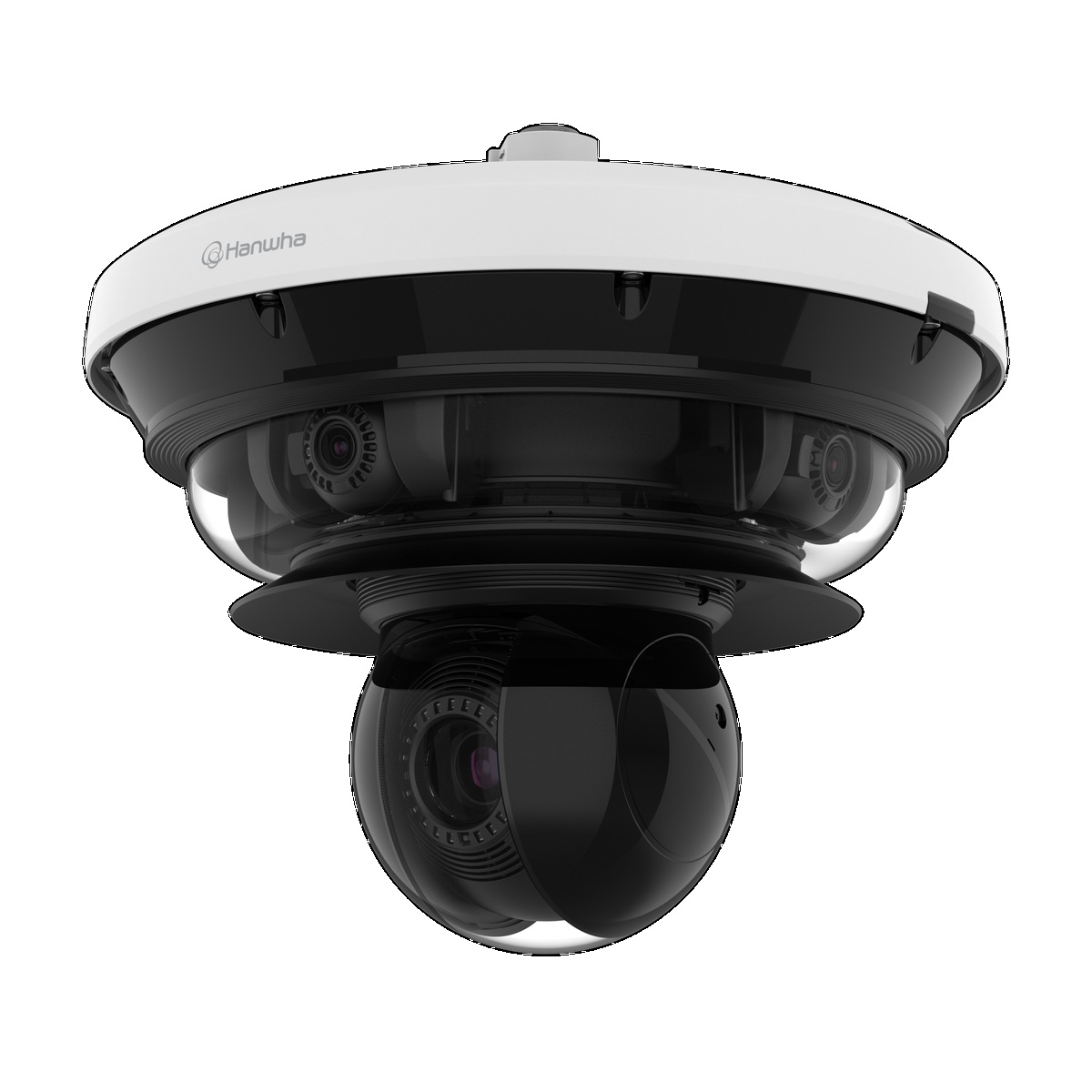

Hanwha Vision PNM-C34404RQPZ 4K 4Ch PTRZ + 2MP 40x PTZ AI Camera

Product SKU: PNM-C34404RQPZ

Product Overview

Wide-area monitoring across a transport hub, campus or large industrial perimeter normally requires a network of separate cameras working in concert. The Hanwha Vision PNM-C34404RQPZ consolidates that task into a single outdoor-mounted unit by combining four independent 4K PTRZ sensors with a dedicated 2MP PTZ module delivering 40x optical zoom. The four panoramic channels cover the full scene simultaneously, while the integrated PTZ can be directed toward specific events for close-range inspection and tracking without sacrificing overview coverage. Built-in AI analytics detect and classify people and vehicles across both the panoramic and PTZ streams, enabling smarter alerting and reducing unwanted triggers. Integrated IR illumination supports monitoring across all channels in low-light and night-time conditions. The rugged outdoor housing is built to withstand the exposure demands of external perimeter, infrastructure and critical-site installations where uptime is non-negotiable.

Key Capabilities

Best For

• Large Perimeter Monitoring: The 4 independent 4K PTRZ sensors deliver full 360-degree coverage of expansive boundaries, while the 40x PTZ enables long-range inspection of fence lines, access points and approach roads from a single mounting position.
• Transport Hubs and Terminals: Simultaneous panoramic overview of platforms, concourses and vehicle areas combined with PTZ tracking of specific passengers or vehicles makes this unit well suited to high-throughput transport environments.
• Critical Infrastructure Sites: Facilities requiring continuous, uninterrupted wide-area recording alongside rapid incident investigation benefit from the always-on panoramic channels and independently controlled PTZ.
• University and Hospital Campuses: Multi-building outdoor areas with varied activity benefit from the AI classification of people and vehicles, reducing unnecessary alerts across a large monitored footprint.
• Industrial Yards and Logistics Facilities: The rugged outdoor housing and 360-degree coverage suit freight yards, marshalling areas and access roads where both overview and detailed vehicle inspection are required.

Why Choose the PNM-C34404RQPZ

The PNM-C34404RQPZ addresses a genuine gap in large-area surveillance: the need for seamless 360-degree overview at high resolution and simultaneous long-range detail investigation from a single installation point. A conventional PTZ alone sacrifices scene coverage the moment an operator begins tracking. A fixed panoramic camera alone cannot inspect distant subjects with clarity. This unit resolves both constraints by pairing four 4K PTRZ sensors with a 40x optical zoom PTZ module in one outdoor housing, reducing infrastructure complexity and cabling overhead on large sites. The AI analytics layer adds practical value by driving smart zoom automation and improving detection reliability across both the panoramic and PTZ streams. For integrators and end users evaluating this model, the PNM-C34404RQPZ is available through Security Wholesalers as part of the broader Hanwha Vision professional surveillance range.

Buyer Decision Tips

Key Features & Technical Specifications

Product Model	Hanwha Vision PNM-C34404RQPZ
Panoramic Sensor Count	4 independent channels
Panoramic Resolution	4K UHD per channel
Panoramic Sensor Type	PTRZ (Pan-Tilt-Roll-Zoom)
Panoramic Coverage	360 degrees
PTZ Module Resolution	2MP
PTZ Optical Zoom	40x
Total Video Channels	5 (4 panoramic + 1 PTZ)
AI Analytics	Deep learning-based detection and classification of people and vehicles
Smart Zoom	Analytics-triggered automatic PTZ repositioning to events of interest
IR Illumination	Integrated IR for 360-degree low-light and night-time coverage
Housing Type	Rugged outdoor dome
Installation Environment	Outdoor
Primary Application	Large perimeter, transport, campus and industrial surveillance

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your site requires simultaneous 360-degree 4K panoramic recording and long-range PTZ investigation from a single mounting point, and your VMS or NVR platform supports Hanwha multi-sensor cameras with 5 concurrent channels.
• Choose a different model if: Your monitoring requirement is a single directional zone rather than full 360-degree coverage. A high-resolution fixed or motorised varifocal bullet or turret camera will deliver equivalent or greater detail in a targeted corridor or approach at lower system cost and complexity.
• Choose a different model if: Your NVR or VMS cannot handle 5 simultaneous streams from a single device or does not carry the required Hanwha multi-sensor licence. A standalone PTZ camera with a separate panoramic camera may be a simpler fit for that recording platform.
• Choose a different model if: Budget is the primary constraint. A multi-sensor unit combining 4K panoramic and 40x PTZ in one housing represents a premium investment. Sites with moderate coverage requirements may be better served by a smaller multi-sensor panoramic without an integrated PTZ module.

FAQs

1. What does PTRZ mean on the panoramic sensors of the PNM-C34404RQPZ?
   PTRZ stands for Pan-Tilt-Roll-Zoom and refers to the adjustability of each of the 4 panoramic sensor heads. Unlike fixed multi-sensor cameras, the PTRZ design allows each sensor to be independently repositioned during installation to eliminate gaps or overlaps in coverage, giving installers precise control over how the 360-degree field is divided across the 4 channels.
2. Does the panoramic recording continue when the PTZ is tracking an event?
   Yes. The 4 panoramic 4K channels and the PTZ module operate independently. When the PTZ redirects to track a subject or responds to an analytics trigger, all 4 panoramic channels remain in continuous recording mode. This is a core advantage of the integrated multi-sensor plus PTZ design compared to a standalone PTZ that leaves the wider scene unrecorded during zoom operation.
3. How many channels does the PNM-C34404RQPZ require on an NVR?
   The camera outputs 5 simultaneous video streams: 4 from the individual 4K PTRZ panoramic sensors and 1 from the 2MP PTZ module. Your NVR or VMS must have at least 5 available licensed channels to record all streams. Confirm channel availability and storage capacity before purchasing, as under-provisioning is a common planning oversight with multi-sensor units of this type.
4. Can the PTZ module zoom automatically to detected objects?
   Yes. The smart zoom integration allows the PTZ to automatically reposition based on AI analytics triggers. When the analytics classify a person or vehicle in a defined zone or detect a specified event, the PTZ can be directed to that location for close-range inspection without requiring manual operator input, supporting faster response in unmanned or low-staffed monitoring environments.
5. What types of objects can the AI analytics detect and classify?
   The built-in deep learning analytics are confirmed to detect and classify people and vehicles. This classification supports more accurate event alerting across both the panoramic and PTZ channels, reducing unwanted triggers caused by environmental movement such as vegetation or lighting changes.
6. Is the PNM-C34404RQPZ suitable for 24-hour outdoor operation?
   Yes. The camera includes integrated IR illumination supporting low-light and night-time capture across all 4 panoramic channels and the PTZ unit, and it is housed in a rugged outdoor-rated enclosure designed for continuous external operation in exposed conditions including perimeter fences, rooftops and facility exteriors.
7. Where can I access the datasheet and technical documentation for this camera?
   The official Hanwha Vision datasheet for the PNM-C34404RQPZ is available in the Additional Information section below. This document contains detailed specification tables, dimensional drawings and integration notes. The camera is also listed through Security Wholesalers, where product support and procurement enquiries can be directed to the sales team.
8. What mounting options are suitable for the PNM-C34404RQPZ on a large site?
   This camera is designed for outdoor installation and is suited to pole mounting, parapet wall mounting, or roof-top installation at elevated positions that maximise the panoramic field of view and extend the effective range of the 40x PTZ. Higher mounting positions generally improve PTZ engagement distance and reduce the likelihood of foreground obstructions affecting the panoramic channels. Confirm bracket compatibility with your specific mounting surface before installation.

Additional Information

• DataSheet PNM-C34404RQPZ
