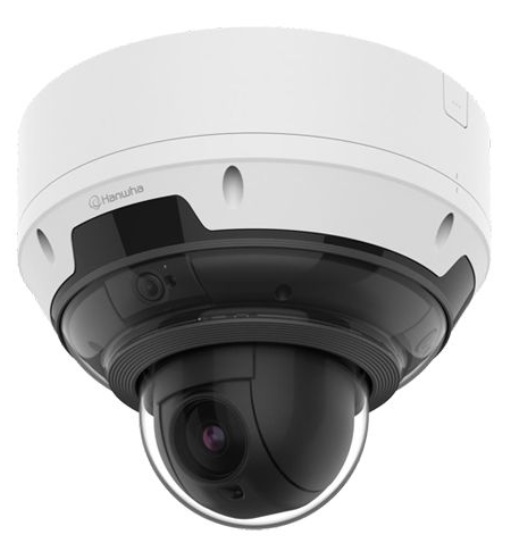

Hanwha Vision PNM-C19183RVTP 5MP 3CH + 4MP PTZ Outdoor AI Multi-Directional Camera with 18x Zoom IP66 IK10 15m IR 2.4mm & 5.42-98.29mm

Product SKU: PNM-C19183RVTP

Product Overview

The Hanwha Vision PNM-C19183RVTP is a hybrid multi-directional AI camera that combines three 5MP fixed channels with a separate 4MP PTZ channel using 18x optical zoom. This design gives operators simultaneous wide-area coverage from the three fixed 2.4 mm lenses while the PTZ can move in for closer inspection of activity across the scene. AI-based analytics support people, vehicle, face and licence plate detection, while Smart Zoom and Advanced Handover can use events from the fixed channels to direct the PTZ toward relevant activity. The fixed channels include infrared illumination up to 15 metres, while the PTZ provides 5.42–98.29 mm optical zoom for detailed observation. IP66, IK10 and NEMA 4X protection, PoE++ power and up to 2TB of edge storage make the PNM-C19183RVTP well suited to demanding commercial and infrastructure surveillance applications.

Key Capabilities

Best For

• Large Car Parks: The fixed channels can maintain broad coverage while the PTZ zooms toward vehicles or activity requiring closer inspection.
• Warehouses and Logistics Sites: Suitable for monitoring loading areas, access roads, perimeter zones and large operational spaces from one mounting location.
• Transport and Infrastructure: Continuous multi-direction coverage combined with PTZ detail is useful at roadways, depots, terminals and other high-activity environments.
• Commercial Building Perimeters: Wide 2.4 mm fixed views can monitor several directions while the zoom channel investigates specific incidents.
• Sites Requiring Automated Handover: Smart Zoom can link AI events from the overview channels with PTZ positioning for more efficient investigation.

Why Choose the PNM-C19183RVTP

The PNM-C19183RVTP is designed for installations that need both persistent wide-area visibility and the ability to inspect activity at distance. Three 5MP fixed channels maintain contextual coverage while the integrated 4MP PTZ provides 18x optical zoom, avoiding the compromise of using a conventional PTZ that can only look in one direction at a time. Smart Zoom, object auto tracking and AI event detection further connect the overview and detail functions into one system. Available through Security Wholesalers, this model is particularly well suited to complex outdoor sites where camera consolidation, AI-assisted monitoring and automated PTZ handover can simplify surveillance without sacrificing the ability to examine important events closely.

Buyer Decision Tips

Key Features & Technical Specifications

Camera Type	AI multi-directional camera with three fixed channels and integrated PTZ.
Fixed Camera Resolution	5MP × 3 channels, up to 2592 × 1944 per channel.
PTZ Resolution	4MP, up to 2592 × 1520.
Image Sensor	1/2.8-inch CMOS.
Maximum Frame Rate	Up to 30 fps/25 fps with H.265 or H.264.
Fixed Lenses	2.4 mm fixed focal lenses, F2.0.
Fixed Horizontal Field of View	123° per fixed channel.
Fixed Vertical Field of View	91° per fixed channel.
PTZ Lens	5.42–98.29 mm adaptive P-iris lens.
PTZ Optical Zoom	18x optical zoom.
PTZ Digital Zoom	Up to 32x.
PTZ Horizontal Field of View	53.1° wide to 3.39° tele.
PTZ Vertical Field of View	31.75° wide to 1.98° tele.
Minimum Illumination	Fixed channels: colour 0.08 lux, black-and-white 0.008 lux; PTZ: colour 0.05 lux, black-and-white 0.005 lux.
Infrared Illumination	Up to 15 metres on fixed channels; 10 metres when installed below 3 metres height. PTZ has no built-in IR.
IR Wavelength	850 nm.
Wide Dynamic Range	120 dB on fixed channels.
AI Object Detection	People, vehicles, faces and licence plates.
AI Analytics	Object detection, virtual line crossing and direction, loitering, intrusion, entering, exiting and motion detection.
PTZ Tracking	Object auto tracking for people and vehicles plus target-lock tracking.
Smart Zoom	Advanced Handover supported between overview detection and PTZ inspection.
Business Intelligence	People counting, vehicle counting, queue management and heatmap on fixed channels.
Video Compression	H.265, H.264 and MJPEG with WiseStream.
Network Interface	Metal-shielded 10/100/1000BASE-T RJ45.
Edge Storage	2 × microSD/SDHC/SDXC slots, up to 1TB each for up to 2TB total.
Audio	Audio input and output supported through optional I/O box.
Power	PoE++ IEEE 802.3bt Type 3 Class 6.
Maximum Power Consumption	42 W.
Outdoor Protection	IP66, IK10 and NEMA 4X.
Operating Temperature	-40°C to 55°C; startup above -35°C.
Housing	White aluminium housing with hard-coated dome.
Dimensions	Ø251.4 × 212 mm.
Weight	Approximately 4.8 kg.

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need three simultaneous 5MP overview views plus an integrated 4MP PTZ with 18x optical zoom and AI-assisted handover.
• Choose separate fixed cameras if: The required overview areas are too far apart to be covered effectively from one mounting position.
• Plan external lighting if: You need PTZ zoom detail in complete darkness, because the fixed channels have IR illumination but the PTZ channel does not.
• Confirm PoE++ capacity if: The network switch or injector is already heavily loaded. This model requires IEEE 802.3bt Type 3 Class 6 and can draw up to 42 W.

FAQs

1. How many camera channels does the Hanwha Vision PNM-C19183RVTP provide?
   The PNM-C19183RVTP combines three 5MP fixed channels with one 4MP PTZ channel in a single housing. The fixed channels provide broad multi-direction coverage, while the PTZ channel adds 18x optical zoom for closer inspection of selected areas. This combination is useful where a site needs both continuous overview coverage and the ability to investigate activity in greater detail from one camera system.
2. What lenses are used on the PNM-C19183RVTP?
   The three fixed channels each use a 2.4 mm lens with a 123° horizontal field of view, while the PTZ channel uses a 5.42–98.29 mm lens with 18x optical zoom. This gives the camera a useful split between wide contextual coverage and long-range detail. The PTZ also supports up to 32x digital zoom in addition to its optical zoom capability.
3. How far does the PNM-C19183RVTP see with infrared at night?
   The three fixed channels provide infrared illumination up to 15 metres, using 850 nm IR LEDs. For installations below 3 metres in height, the stated IR viewing distance is 10 metres. The PTZ channel does not include its own IR illumination, so night-time PTZ performance depends on available ambient or external lighting in the scene.
4. What AI features are built into the PNM-C19183RVTP?
   The camera supports AI-based object detection for people, vehicles, faces and licence plates, together with event rules such as virtual line crossing, direction, loitering, intrusion, entering and exiting. The fixed channels also support business-intelligence functions including people counting, vehicle counting, queue management and heatmaps. These tools can help operators filter events and search recorded footage more efficiently.
5. What is Smart Zoom or Advanced Handover on the PNM-C19183RVTP?
   Smart Zoom, also described as Advanced Handover, allows activity detected by the fixed multi-sensor channels to trigger the PTZ channel to move toward the relevant area for a closer view. The PTZ supports object auto tracking for people and vehicles and target-lock tracking. This helps combine continuous wide-area monitoring with automated detailed inspection from the zoom channel.
6. Is the PNM-C19183RVTP suitable for exposed outdoor locations?
   Yes. The PNM-C19183RVTP is rated IP66, IK10 and NEMA 4X, with an aluminium housing and hard-coated dome. Its operating range is -40°C to 55°C, with startup specified above -35°C. For systems supplied through Security Wholesalers, mounting, sealing, network cabling and PoE design should still be matched to the site conditions and installation requirements.
7. What PoE power does the PNM-C19183RVTP require?
   The PNM-C19183RVTP requires PoE++ using IEEE 802.3bt Type 3 Class 6 and has a maximum stated power consumption of 42 W. The selected network switch or injector must therefore support PoE++ and have enough available power budget for the camera. Standard PoE or PoE+ should not be assumed to provide the required power for this model.
8. Does the PNM-C19183RVTP support edge recording?
   Yes. The PNM-C19183RVTP provides two microSD/SDHC/SDXC slots, each supporting up to 1TB for a total of up to 2TB of edge storage. This can provide local recording alongside a compatible NVR or NAS, depending on the system design. Storage requirements should still be calculated around recording duration, bitrate, channel count and event-recording strategy.

Additional Information
