Product SKU: PNM-A13022RV
Product Overview

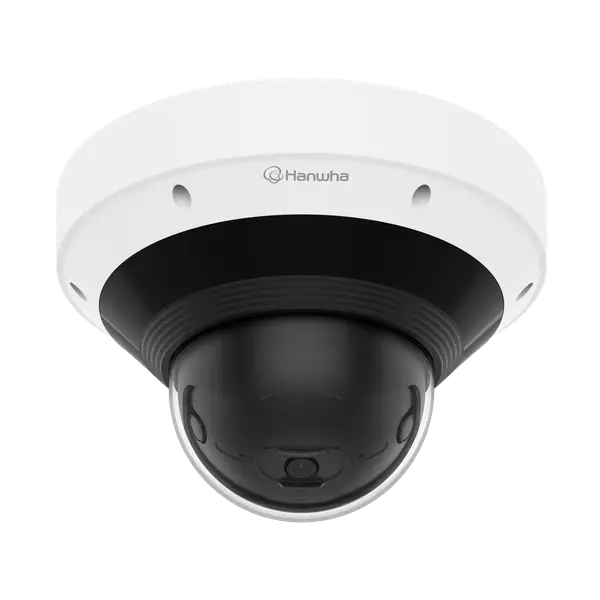

Wide-area monitoring across a car park, warehouse floor, campus courtyard or building frontage typically demands multiple cameras. The Hanwha Vision PNM-A13022RV reduces that camera count with a single 13MP AI IR panoramic housing, delivering a stitched image of up to 5120 x 2592 across a 194° horizontal and 93° vertical field of view. Equipped with a built-in AI engine, it supports object detection for people, faces, vehicles and licence plates alongside AI business intelligence including people counting, vehicle counting, crowd counting, queue management and heatmap. Incorporating WiseIR night vision up to 20m with 4 individually adjustable IR zones, 120dB WDR and WiseNRII, the camera handles challenging lighting conditions across its panoramic scene. With IP66, NEMA4X and IK10 protection plus FIPS 140-3 level 3 and CC EAL6+ certified cybersecurity, the PNM-A13022RV is built for demanding commercial and outdoor professional deployments.
Key Capabilities
13MP Panoramic Stitched Image
A maximum resolution of 5120 x 2592 across 194° horizontal and 93° vertical gives operators broad situational awareness from a single mounting point. This replaces multiple narrower cameras in locations where overall scene coverage is the priority, reducing cabling, mounting infrastructure and licensing costs.
AI Object Detection and Analytics Events
The onboard AI engine classifies people, faces, vehicles and licence plates, and supports analytics events including virtual line, virtual area, loitering, intrusion, direction detection, face mask detection, social distancing detection and slip and fall detection. Classification-based alerting reduces unwanted triggers from shadows, rain or plant movement.
AI Business Intelligence
Beyond security detection, the PNM-A13022RV supports people counting, vehicle counting, crowd counting, queue management and heatmap. For retail, transport and public facility operators, these functions provide operational data on traffic flow and space usage when paired with a compatible VMS or analytics platform.
WiseIR with 4 Individual IR Zones
WiseIR provides night visibility up to 20m across the panoramic scene. With 4 individually adjustable IR zones and automatic or manual illumination level control, the camera distributes IR light more evenly across its wide field of view, reducing overexposure in close zones and underexposure at longer ranges.
120dB WDR and Intelligent Image Processing
120dB WDR helps retain detail in scenes with strong contrast, such as entrance areas with glass doors, sunlit yards or covered loading docks. WiseNRII uses the AI engine for noise reduction, while WiseStream manages bandwidth and storage without simply compressing the stream uniformly across the whole frame.
Dual Edge Storage and Cybersecurity Certification
Two microSD/SDHC/SDXC slots support up to 1TB each, providing up to 2TB total edge storage capacity. The camera carries FIPS 140-3 level 3 and CC EAL6+ cybersecurity certification, with secure boot, signed firmware, device certificate, encrypted storage and secure element protection included as standard.
Best For
- Wide Outdoor Spaces: Car parks, courtyards, loading zones and external perimeters where broad scene coverage from one camera is more practical than multiple narrow fixed cameras.
- Building Entrances and Frontages: The 194° horizontal view covers multiple approach paths, entry doors and forecourt areas from a single mounting position, with 120dB WDR managing backlight from glass facades.
- Warehouses and Logistics Sites: Large internal spaces, dispatch bays, roller door areas and forklift zones where operators need to understand the full scene from one camera view.
- Retail and Commercial Business Intelligence: People counting, queue management and heatmap functions support customer flow analysis and operational reporting in retail, hospitality and transport environments.
- Secure and Compliance-Sensitive Projects: FIPS 140-3 level 3 and CC EAL6+ certification makes the camera appropriate for government, critical infrastructure and enterprise deployments with formal cybersecurity procurement requirements.
Why Choose the Hanwha Vision PNM-A13022RV
The PNM-A13022RV combines a 13MP panoramic image with a genuinely capable AI engine in a single outdoor housing. Where a basic panoramic camera provides only wide-angle video, this model adds object-level AI detection, attribute capture, BestShot metadata and a full suite of business intelligence functions that a simple wide-angle camera cannot provide. The dual 1TB edge storage slots, PoE+ power support and aluminium hard-coated dome construction set it apart from lighter-duty panoramic options. The camera’s FIPS 140-3 level 3 and CC EAL6+ certified cybersecurity make it one of the stronger choices for project environments where network device certification is assessed during procurement. Available through Security Wholesalers, the PNM-A13022RV suits professional integrators who need a single camera to deliver both situational awareness and analytics data across large commercial or civic spaces.
Buyer Decision Tips
Panoramic Coverage vs Identification: The PNM-A13022RV is designed to give operators a full-scene overview. It is not a substitute for a narrow-angle identification camera where clear face capture or number plate character recognition is needed at distance. On sites where both outcomes are required, plan for supplementary fixed or LPR cameras alongside this panoramic camera.
PoE+ Budget and Mounting Position: The camera draws up to 22.3W on PoE+, so the supplying switch must support IEEE 802.3at Class 4 with adequate per-port and total power budget, especially when multiple cameras share the same switch. Mounting position also affects analytics accuracy. Obstructions such as beams, signage or roof overhangs within the field of view will reduce coverage effectiveness and may affect AI counting accuracy.
Key Features & Technical Specifications
| Model |
PNM-A13022RV |
| Product Type |
13MP AI IR panoramic network camera |
| Maximum Resolution |
5120 x 2592 |
| Image Sensor |
1/2.8″ CMOS |
| Lens |
3.06mm fixed lens, F1.6 |
| Field of View |
194° horizontal, 93° vertical |
| Minimum Object Distance |
5m |
| Maximum Frame Rate |
H.265/H.264 up to 30fps/25fps, MJPEG up to 30fps |
| Video Compression |
H.265, H.264, MJPEG |
| Day/Night |
Auto ICR |
| Minimum Illumination |
Colour 0.1 lux, black and white 0.01 lux |
| IR Distance |
WiseIR up to 20m, 4 individually adjustable IR zones |
| Wide Dynamic Range |
120dB WDR |
| Digital Noise Reduction |
WiseNRII (AI engine), SSNRV |
| Smart Codec |
WiseStream (AI engine), Manual |
| AI Object Detection |
Person, face, vehicle, licence plate |
| AI Analytics Events |
Object detection, virtual line, virtual area, motion detection, face mask detection, social distancing detection, slip and fall detection |
| Business Intelligence |
People counting, vehicle counting, crowd counting, queue management, heatmap |
| Attributes |
Person clothing colour, gender, bag; vehicle type, colour; face age, gender, face mask, glasses |
| Audio |
Selectable mic in/line in, line out |
| Alarm I/O |
2 configurable I/O ports, optional extra alarm I/O via I/O box |
| Edge Storage |
2 x microSD/SDHC/SDXC slots, up to 1TB per slot, 2TB total |
| Network Interface |
RJ-45 10/100/1000BASE-T |
| ONVIF |
Profiles S, G, T, M |
| Power Input |
PoE+ IEEE 802.3at Class 4 or 12VDC |
| Power Consumption |
PoE+ max 22.3W, typical 11.5W. 12VDC max 20.0W, typical 10.0W. |
| Operating Temperature |
-40°C to +55°C |
| Weather and Impact Rating |
IP66, NEMA4X, IK10 |
| Housing Material |
Aluminium, hard-coated dome |
| Colour |
White, RAL9003 |
| Dimensions |
253mm diameter x 170mm |
| Weight |
2.8kg |
| Cybersecurity |
Secure boot, signed firmware, device certificate, encrypted storage, secure element, FIPS 140-3 level 3 / CC EAL6+ certified |
Ideal Use Cases
Car Parks and Vehicle Areas
The 194° field of view covers pedestrian movement, vehicle access and general activity across wide car park areas from a single mounting point. AI vehicle counting and object detection provide both security alerting and usage data. Pair with a dedicated LPR camera where number plate recognition is required.
Warehouses and Distribution Centres
Large internal warehouse floors, dispatch bays and loading dock areas benefit from a single panoramic view rather than multiple fixed cameras with overlapping coverage gaps. The WiseIR illumination with 4 independent zones helps manage uneven lighting common in warehouse environments.
Retail and Shopping Centres
People counting, queue management and heatmap functions give retail operators a data layer that standard CCTV cameras cannot provide. When configured with a compatible VMS, this data can support staffing decisions, layout planning and customer experience improvements alongside standard security recording.
Schools, Universities and Campuses
Courtyards, common areas, walkways and building approaches across large campuses require broad scene coverage. The PNM-A13022RV provides wide-area AI object detection from a single camera, reducing the number of devices needed to monitor open outdoor spaces between buildings.
Public Spaces and Civic Facilities
Plazas, transport interchange areas and civic buildings benefit from the combination of wide panoramic coverage, crowd counting, AI event detection and the FIPS 140-3 and CC EAL6+ cybersecurity certifications required on government and public authority network device procurement lists.
Building Entrances and Frontages
A single PNM-A13022RV can cover multiple entry doors, approach paths and forecourt areas from one mounting position. The 120dB WDR is particularly useful at glass-fronted entries where strong backlight from outdoors would otherwise wash out the image on a standard camera.
Choosing the Right Model
- Choose this model if: You need a single outdoor camera to cover a very wide area with 13MP panoramic resolution, AI object detection, AI business intelligence and IK10 vandal-resistant housing.
- Choose this model if: The project has cybersecurity requirements and procurement specifies FIPS 140-3 level 3 or CC EAL6+ certified network devices.
- Choose this model if: You want AI business intelligence data including people counting, vehicle counting, crowd counting, queue management and heatmap from a single outdoor camera.
- Choose a different model if: You need reliable number plate character recognition. The PNM-A13022RV can detect licence plates as an object type, but a dedicated LPR camera installed at the correct angle, distance and lighting conditions is required for ANPR applications.
- Choose a different model if: You need optical zoom, PTZ tracking or a narrow field of view for identification purposes. The PNM-A13022RV is a fixed-lens panoramic camera and does not support motorised zoom or pan-tilt movement.
FAQs
- Is the PNM-A13022RV a 360-degree fisheye camera?
No. The PNM-A13022RV provides a 194° horizontal and 93° vertical panoramic field of view. It covers a very wide scene, but it is not a full 360-degree fisheye camera. The panoramic stitched image is designed for wide-area situational awareness rather than all-round coverage from a ceiling-mounted position.
- What PoE standard does the PNM-A13022RV require?
The camera requires PoE+ IEEE 802.3at Class 4. Standard PoE (IEEE 802.3af) is not sufficient. The camera draws up to 22.3W on PoE+, so the supplying switch must have enough per-port and total power budget. Alternatively, the camera can be powered by a 12VDC supply.
- How does the 4-zone WiseIR work across a panoramic image?
Rather than applying a single IR illumination level to the entire scene, WiseIR divides the panoramic field into 4 independently adjustable zones. This allows the camera to apply more IR intensity to distant areas of the scene while reducing output in closer zones, reducing overexposure on nearby subjects and improving overall night-time image balance.
- Can the camera be used for both security detection and business analytics at the same time?
Yes. The onboard AI engine supports both security analytics events, such as virtual line crossing, intrusion and object detection, and business intelligence functions including people counting, queue management and heatmap. Whether both sets of functions operate simultaneously in your specific configuration depends on VMS compatibility and configuration settings.
- What edge storage capacity does the PNM-A13022RV support?
The camera has 2 microSD/SDHC/SDXC card slots, each supporting up to 1TB. Total edge storage capacity is up to 2TB. Edge recording can serve as a backup if the network connection to the NVR is interrupted, reducing the risk of recording gaps.
- What does the FIPS 140-3 and CC EAL6+ certification mean for this camera?
These are internationally recognised cybersecurity certifications. FIPS 140-3 level 3 and CC EAL6+ certified products have been tested and validated to specific security standards covering cryptographic modules and system security evaluation. For government, defence, utilities and enterprise projects where network device certification is part of the procurement process, these certifications support compliance documentation.
- Is the PNM-A13022RV suitable for installation in harsh outdoor environments?
Yes. The camera is rated IP66 for dust and water ingress resistance, NEMA4X for corrosion-resistant outdoor enclosures and IK10 for impact resistance. The operating temperature range of -40°C to +55°C makes it suitable for a wide range of Australian outdoor conditions. Correct mounting, sealing and cabling practices are still required to maintain these ratings.
- Which VMS platforms does the PNM-A13022RV work with?
The camera supports ONVIF Profiles S, G, T and M, providing compatibility with a broad range of VMS and recording platforms. For full AI analytics, business intelligence data and BestShot metadata, a Hanwha-compatible VMS or NVR that supports the camera’s AI feature set is recommended. Security Wholesalers can assist with questions about compatible recording platforms for this camera.
