Product SKU: HV-SPC-1010
Product Overview

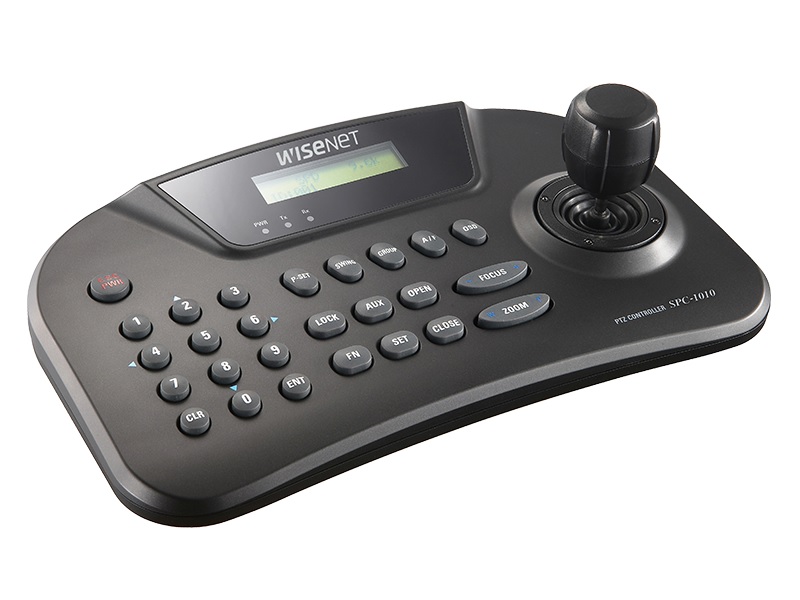

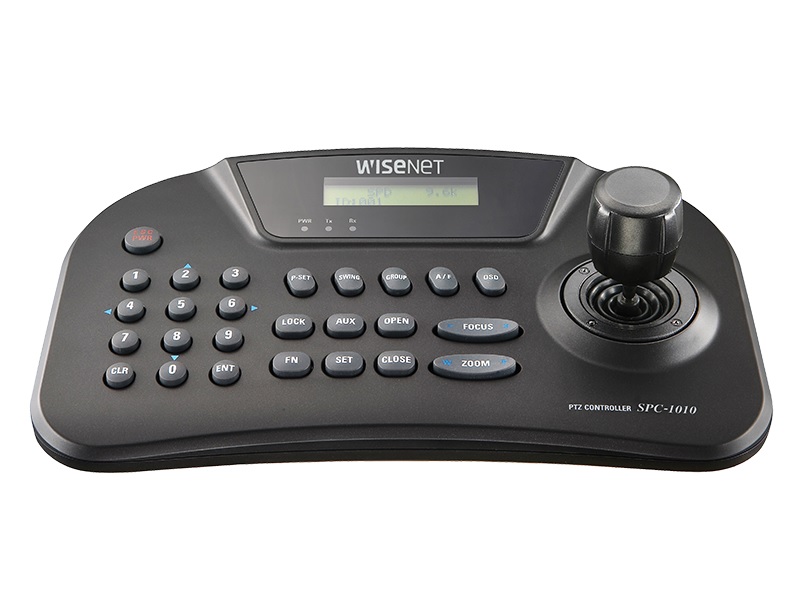

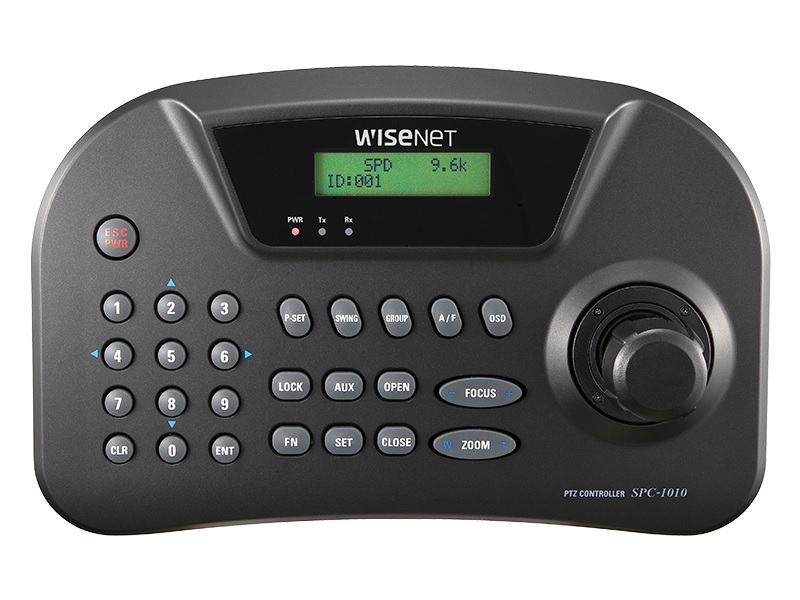

For control room operators managing multiple PTZ cameras across a site, the Hanwha Vision HV-SPC-1010 provides a dedicated hardware control interface built around a 3-axis joystick and a structured key layout designed for extended daily use. Supporting up to 255 PTZ cameras across a single installation, it handles pan, tilt, and zoom input with the tactile precision that on-screen software controls cannot replicate. Featuring RS-485 and RS-422 serial communication along with multi-protocol support, the HV-SPC-1010 is compatible with a broad range of PTZ camera brands and models, not just Hanwha hardware. It also includes OSD menu control and customisable preset positions, allowing operators to navigate camera configurations and return to frequently monitored positions quickly. This makes it well suited to security control rooms, monitoring stations, and professional surveillance environments where direct hands-on camera control is required throughout a shift.
Key Capabilities
255-Camera Control Capacity
The HV-SPC-1010 can address up to 255 PTZ cameras within a single system, making it a practical choice for large-scale surveillance deployments where multiple cameras need to be accessed from a single operator station without switching between software windows.
3D Joystick Control
The 3-axis joystick delivers precise analogue pan, tilt, and zoom input, giving operators graduated speed control rather than stepped button presses. This allows smooth and responsive camera positioning, which is particularly important when tracking moving subjects across a wide scene.
Multi-Protocol Compatibility
Support for multiple PTZ protocols means the keyboard is not restricted to a single camera brand or system. Operators in mixed-equipment environments can manage cameras from different manufacturers through the same controller, reducing the need for separate hardware at a single station.
RS-485 and RS-422 Communication
Both RS-485 and RS-422 serial interfaces are supported, providing compatibility with a wide range of PTZ receivers and camera systems. RS-422 is suited to longer cable runs with lower signal degradation, while RS-485 supports multi-drop wiring across larger installations.
OSD Menu Access and Preset Management
Operators can access camera OSD menus directly from the keyboard and store customisable preset positions for rapid recall. This reduces the time needed to reposition cameras to key monitoring points and allows configuration adjustments without leaving the control station.
Best For
- Security Control Rooms: Operators managing large numbers of PTZ cameras benefit from hardware joystick control and the ability to address up to 255 cameras from one station.
- Mixed-Brand Surveillance Installations: Multi-protocol support allows the HV-SPC-1010 to control cameras from different manufacturers on the same system without requiring separate keyboards.
- Extended Monitoring Shifts: The ergonomic design is suited to operators who need sustained hands-on control throughout long shifts, reducing fatigue compared to mouse-driven software interfaces.
Why Choose the HV-SPC-1010
The HV-SPC-1010 addresses a genuine gap in professional PTZ deployments: the difference between software-only control and a dedicated hardware interface. Clicking on-screen PTZ controls with a mouse introduces lag and imprecision that becomes frustrating during active monitoring. The 3D joystick on the HV-SPC-1010 provides analogue speed control and direct tactile feedback, which operators consistently prefer during sustained use. The support for both RS-485 and RS-422, combined with multi-protocol compatibility, means this keyboard works across a wider range of existing infrastructure than controllers limited to a single protocol or manufacturer. The capacity to address 255 cameras makes it scalable enough for enterprise and government-grade control rooms. Available through Security Wholesalers, the HV-SPC-1010 is a professional-grade tool for sites where direct, reliable PTZ control is part of daily security operations.
Buyer Decision Tips
Buyer Tip: Confirm your PTZ cameras use RS-485 or RS-422 serial communication before ordering. The HV-SPC-1010 connects via these serial interfaces, so cameras that are controlled exclusively over IP or require a proprietary network protocol will not be compatible. If your installation uses a mix of serial and IP PTZ cameras, plan your wiring and camera addressing before setting up the keyboard.
Key Features & Technical Specifications
| Product Type |
PTZ Control Keyboard |
| Model |
HV-SPC-1010 |
| Brand |
Hanwha Vision |
| Camera Control Capacity |
Up to 255 PTZ cameras |
| Joystick Type |
3D (3-axis) joystick |
| Serial Communication |
RS-485, RS-422 |
| Protocol Support |
Multi-protocol |
| OSD Menu Control |
Yes |
| Preset Positions |
Customisable presets supported |
| Ergonomic Design |
Yes, designed for extended operation |
| Intended Application |
Professional surveillance and security control |
Ideal Use Cases
Casino and Gaming Floors
High-density PTZ deployments across gaming floors require operators to move between cameras rapidly and track subjects with precision. The 3D joystick and 255-camera addressing capacity suit this environment directly.
Transport Hubs and Airports
Large-footprint sites with many PTZ cameras covering terminals, platforms, and access corridors benefit from centralised hardware control. Multi-protocol support allows the HV-SPC-1010 to work across different camera systems installed in stages.
Government and Critical Infrastructure Monitoring
Control rooms at water treatment facilities, power stations, and government sites often run dedicated operator stations. The HV-SPC-1010 provides a professional hardware interface suited to these environments where software-only solutions are not always preferred.
Commercial Security Monitoring Centres
Remote monitoring centres managing multiple client sites with PTZ cameras can use the HV-SPC-1010 to give operators a consistent tactile control interface, with preset recall speeding up responses to incidents across different camera positions.
Choosing the Right Model
- Choose this model if: Your installation uses RS-485 or RS-422 PTZ cameras and you need a dedicated hardware keyboard with joystick control for an operator who manages cameras directly throughout their shift. The 255-camera capacity suits medium to large installations.
- Choose a different model if: Your PTZ cameras are controlled exclusively over IP and do not use RS-485 or RS-422 serial communication. In fully IP-based environments, a network-connected PTZ control solution or software-based joystick interface may be more appropriate.
FAQs
- How many PTZ cameras can the HV-SPC-1010 control?
The HV-SPC-1010 supports addressing of up to 255 PTZ cameras within a single system. This makes it suitable for large-scale installations without requiring multiple keyboards at a single operator station.
- What communication interfaces does the keyboard use?
The HV-SPC-1010 uses RS-485 and RS-422 serial communication to connect to PTZ cameras and receivers. These are established serial standards used across a wide range of professional PTZ equipment. RS-422 is particularly suited to longer cable runs where signal integrity is a concern.
- Is the HV-SPC-1010 compatible with cameras from brands other than Hanwha Vision?
Yes. The keyboard supports multiple PTZ protocols, which allows it to work with cameras from a range of manufacturers beyond Hanwha Vision. This makes it a practical choice for mixed-brand installations or sites where cameras from different suppliers are deployed across a single system.
- What does the 3D joystick control?
The 3-axis joystick controls pan, tilt, and zoom simultaneously. Unlike stepped button controls, an analogue joystick allows graduated speed input, so operators can move a camera slowly for fine positioning or push further for rapid repositioning. This is a key advantage in active monitoring scenarios where tracking subjects matters.
- Can operators use preset positions with this keyboard?
Yes. The HV-SPC-1010 supports customisable preset positions that operators can program and recall quickly. This allows a monitoring station to be configured with key positions, such as entry points or high-risk areas, so operators can return to them instantly rather than manually repositioning each time.
- Where can I find the full technical specifications for the HV-SPC-1010?
The official data sheet for the HV-SPC-1010 is available as a PDF download linked in the Additional Information section below. The keyboard is part of the Security Wholesalers range of Hanwha Vision PTZ control products, and the data sheet covers the full specification detail for professional installers and system designers.
Additional Information
Features
The Hanwha Vision HV-SPC-1010 PTZ Control Keyboard is a device used for controlling PTZ (Pan-Tilt-Zoom) cameras. It’s typically employed in surveillance systems, where operators need precise control over camera movements to monitor a specific area or track objects or individuals.
These keyboards usually feature joystick controls for precise pan, tilt, and zoom movements, as well as buttons for other functions like preset positioning, focus, and iris control. They often connect to the cameras or a central control unit via various interfaces like RS-485 or RS-232.
