Product SKU: HV-HRX-835
Product Overview

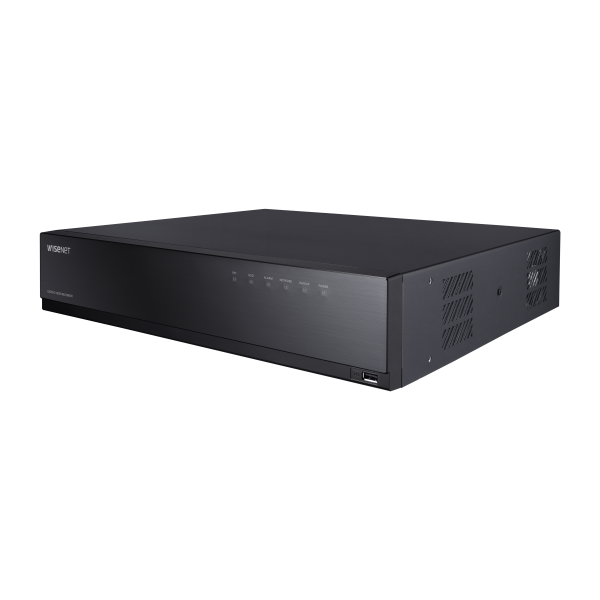

Installers and site owners managing mixed analog and IP camera environments will find the Hanwha Vision HV-HRX-835 a practical, format-flexible recorder for small-to-medium deployments. This 8-channel Pentabrid DVR accepts AHD, HDTVI, HDCVI, CVBS, and IP camera signals across a single unit, removing the need to standardise on one camera type before deploying or expanding a system. The HV-HRX-835 records at up to 8MP resolution with H.265, H.264, and MJPEG codec support, and accommodates up to 4 SATA hard drives at 6TB per bay for substantial on-site storage. Dual HDMI and VGA monitor outputs support simultaneous display on two screens, and the P2P QR code connection enables quick mobile app access without complex network configuration. Coaxial control allows camera settings to be adjusted directly through the recorder interface. Supplied without a hard drive, giving buyers the flexibility to size storage to their specific recording needs.
Key Capabilities
5-in-1 Pentabrid Input Compatibility
Accepts AHD, HDTVI, HDCVI, CVBS, and IP camera signals on a single recorder. This allows installers to retain existing analog cameras while adding IP cameras to the same system without running separate recorders or replacing working equipment.
Up to 8MP Recording Resolution
Supports recording at up to 8MP, with 8fps at 8MP and 12fps at 5MP. Higher-resolution analog cameras can be integrated without sacrificing the recorder, making this unit useful for sites upgrading to higher-definition analog formats.
Flexible Storage Expansion
Supports up to 4 SATA hard drives at 6TB per bay, allowing up to 24TB of on-site storage capacity. Supplied without an HDD, so buyers can size storage independently based on channel count, resolution, and required retention period.
Dual Monitor Output
HDMI and VGA outputs operate simultaneously, supporting two-screen monitoring setups. This suits reception desks, security offices, or control rooms where a main display and a secondary monitor are needed at the same time.
P2P QR Code Remote Access
The P2P service with QR code scanning simplifies mobile app connection, removing the need for port forwarding or static IP configuration in most setups. Users can connect a smartphone or tablet quickly after basic network configuration.
Coaxial Camera Control
Coaxial control allows camera settings including OSD menus to be accessed and adjusted directly from the DVR interface over the existing coax cable. This reduces the need to physically access each camera during setup or ongoing configuration.
Best For
- Analog Camera Retention Projects: Sites with existing AHD, TVI, CVI, or CVBS cameras can connect them directly to the HV-HRX-835 without replacing cameras or running new cable infrastructure.
- Mixed Analog and IP Deployments: The Pentabrid input structure supports simultaneous analog and IP camera connections, allowing staged upgrades where IP cameras are added over time alongside retained analog units.
- Small-to-Medium Business Sites: Up to 8 analog channels with expandable IP channel support covers retail stores, warehouses, offices, and small industrial sites requiring multi-area monitoring from a single recorder.
- Dual-Screen Monitoring Environments: The simultaneous HDMI and VGA output is suited to security desks or reception areas where operators need footage displayed on two monitors at once.
Why Choose the HV-HRX-835
The HV-HRX-835 addresses one of the most common challenges in existing site upgrades: camera signal incompatibility. Rather than forcing a full analog-to-IP migration, this Pentabrid DVR accepts AHD, HDTVI, HDCVI, CVBS, and IP signals simultaneously, letting installers work with what is already on-site while introducing newer camera types progressively. The H.265 codec reduces storage consumption compared to older compression formats, which matters when recording across 8 channels at resolutions up to 8MP. Support for 4 SATA drives at 6TB each provides meaningful long-term retention capacity. The coaxial control feature streamlines on-site configuration without requiring separate management access to individual cameras. Available through Security Wholesalers, the HV-HRX-835 is a well-specified mid-range recorder suited to sites where format flexibility and practical storage scalability take priority over a full IP-only system rebuild.
Buyer Decision Tips
No HDD Included: The HV-HRX-835 is supplied without a hard drive. Before purchasing, calculate your storage requirement based on channel count, recording resolution, frame rate, and required retention days. At 8MP across 8 channels with H.265 compression, storage consumption is significant. The unit supports up to 4 SATA drives at 6TB each, giving up to 24TB total. Surveillance-rated HDDs are recommended over standard desktop drives for continuous recording workloads.
IP Channel Expansion Depends on Analog Channel Usage: The total channel count is up to 10 channels, with the IP channel allocation varying based on how many analog channels are in use. If all 8 analog inputs are occupied, IP channel expansion is limited. If fewer analog channels are used, additional IP cameras can be added to fill the gap. Plan your camera mix before installation to ensure the channel split suits your site layout.
Key Features & Technical Specifications
| Model |
HV-HRX-835 |
| Recorder Type |
5-in-1 Pentabrid DVR |
| Analog Channels |
8 channels (maximum) |
| Total Channel Capacity |
Up to 10 channels (Analog Max. 8CH and Network Max. 8CH, depending on number of analog channels in use) |
| Supported Signal Types |
AHD, HDTVI, HDCVI, CVBS, IP |
| Maximum Recording Resolution |
8MP |
| Recording Frame Rate (8MP) |
8fps |
| Recording Frame Rate (5MP) |
12fps |
| Video Compression |
H.265, H.264, MJPEG |
| HDD Bays |
Up to 4 x SATA |
| Maximum HDD Capacity per Bay |
6TB |
| Maximum Total Storage |
Up to 24TB |
| HDD Included |
No |
| Monitor Outputs |
HDMI and VGA (dual monitor, simultaneous) |
| Coaxial Control |
Yes |
| Remote Access |
P2P service with QR code connect via mobile app |
Ideal Use Cases
Analog System Upgrades
Businesses with AHD, TVI, CVI, or CVBS cameras already installed can connect them directly to the HV-HRX-835 via existing coax cable runs, avoiding the cost and disruption of a full infrastructure replacement.
Retail and Small Commercial Sites
Up to 8 analog channels provides broad multi-area coverage for small shops, showrooms, and offices. The dual HDMI and VGA output supports a front-of-house display alongside a back-office monitor from the same recorder.
Staged IP Camera Integration
Sites planning a phased transition from analog to IP can begin with existing cameras and progressively add IP cameras using the network channel capacity, without needing to replace the recorder mid-project.
Warehouse and Light Industrial Monitoring
Multi-area coverage across loading areas, storage zones, and entry points within a single 8-channel recorder reduces hardware overhead. H.265 compression extends storage retention without requiring maximum HDD capacity from the outset.
Remote Monitoring via Mobile App
The P2P QR code connection enables business owners or site managers to access live and recorded footage remotely without requiring advanced network configuration, making it practical for sites without dedicated IT support.
Choosing the Right Model
- Choose this model if: Your site has existing AHD, TVI, CVI, or CVBS cameras you want to retain, or you need a single recorder that can handle a mixed analog and IP camera environment across up to 8 analog channels with H.265 compression and expandable storage up to 24TB.
- Choose a different model if: Your deployment is fully IP-based from the start, in which case a dedicated NVR will offer higher channel counts, full PoE switching, and greater IP resolution support without the analog input overhead. If you need more than 8 analog channels, a higher-channel Pentabrid recorder would be required.
FAQs
- Does the HV-HRX-835 come with a hard drive included?
No. The HV-HRX-835 is supplied without a hard drive. It supports up to 4 SATA drives at 6TB each, giving a maximum of 24TB. You will need to source and install compatible surveillance-rated HDDs separately before the unit can record. Surveillance-grade drives are recommended for continuous 24/7 recording workloads.
- What camera types can connect to the HV-HRX-835?
The recorder accepts AHD, HDTVI, HDCVI, CVBS, and IP camera signals. This Pentabrid design means cameras using any of these five signal formats can be connected simultaneously, making it compatible with the majority of analog cameras currently in use as well as network IP cameras.
- How does the total 10-channel capacity work if there are only 8 analog inputs?
The HV-HRX-835 supports a maximum of 8 analog channels and up to 8 network (IP) channels, but the combined total is capped at 10 channels. The number of IP channels available depends on how many analog channels are in use. If fewer than 8 analog inputs are occupied, additional IP cameras can be added to reach the 10-channel total.
- What is the maximum recording resolution and frame rate?
The DVR records at up to 8MP resolution. At 8MP, the recording frame rate is 8fps. At 5MP, the frame rate increases to 12fps. These frame rates apply to the analog channel inputs. For sites where smooth motion recording is critical, this is an important factor when selecting cameras and configuring channel settings.
- How does the P2P remote access work?
The HV-HRX-835 includes a P2P service with QR code connect functionality. During setup, scanning the QR code displayed on the recorder or its interface with the Wisenet mobile app links the device to your account without requiring manual port forwarding or static IP configuration in most network environments. This simplifies remote access setup for sites without dedicated IT support.
- Can I connect two monitors to the HV-HRX-835 at the same time?
Yes. The recorder includes both HDMI and VGA outputs that operate simultaneously. This allows you to display camera footage on two separate screens at once, which is useful in environments where a front-desk monitor and a back-office or security room monitor are both needed from the same unit.
- What is coaxial control and when is it useful?
Coaxial control allows the DVR to communicate with compatible cameras through the existing coax cable, rather than requiring a separate data connection for camera configuration. This means OSD menus and camera settings can be accessed and adjusted directly from the DVR interface during setup or maintenance, which reduces the need to physically access each camera after installation. The HV-HRX-835 supports coaxial control as a standard feature, and this function is confirmed in product data available through Security Wholesalers.
