Product SKU: HV-HRX-434
Product Overview

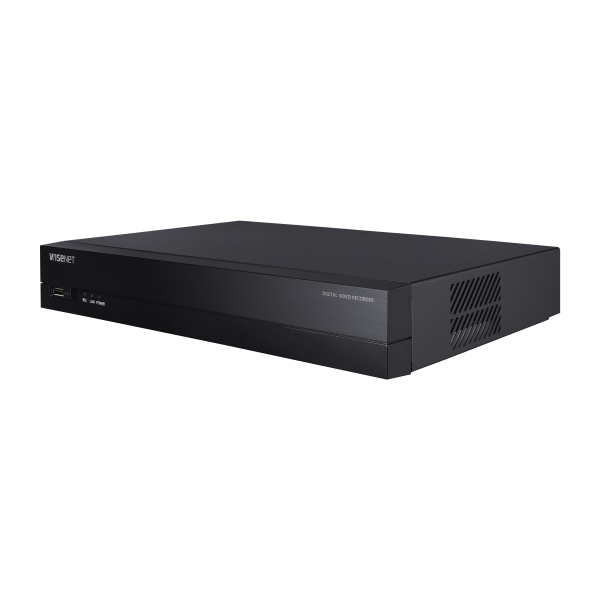

For installers and integrators managing mixed-camera environments, the Hanwha Vision HRX-434 provides a 4-channel Pentabrid DVR capable of accepting AHD, HDTVI, HDCVI, CVBS, and IP camera inputs from a single unit. This 5-in-1 format means existing coax-wired analog cameras can continue operating alongside newer IP cameras without rewiring, making it a practical choice for staged upgrades or hybrid installations. The HRX-434 supports up to 6 total channels when IP cameras supplement the 4 analog inputs, with resolution support reaching up to 8MP. Equipped with H.265, H.264, and MJPEG codec options, it balances storage efficiency with recording quality. A single SATA bay accepts HDDs up to 6TB, and the unit ships without a drive installed. HDMI and VGA outputs allow simultaneous dual-monitor display, while P2P QR code connectivity simplifies mobile app setup for remote viewing. Note that no HDD is included and must be purchased separately.
Key Capabilities
5-in-1 Pentabrid Input Compatibility
Accepts AHD, HDTVI, HDCVI, CVBS analog, and IP camera signals across its 4 analog channels. This means existing cameras from different manufacturers or generations can connect to the same recorder without an infrastructure overhaul.
Expandable to 6 Total Channels
When fewer analog cameras are connected, the HRX-434 can allocate additional capacity to network cameras, reaching up to 6 total channels. This flexibility supports gradual system expansion without replacing the recorder.
Up to 8MP Recording Resolution
Supports recording at up to 8MP, with frame rate options of 8fps at 8MP and 12fps at 5MP. H.265 compression reduces file sizes compared to older codecs, extending usable storage life on a single drive.
Coaxial Control
Camera settings and PTZ control can be managed over the same coaxial cable used for video, removing the need for separate RS-485 wiring on compatible cameras. This simplifies installation in existing analog infrastructure.
P2P QR Code Remote Access
Built-in P2P service with QR code pairing allows the Wisenet mobile app to connect to the DVR quickly without manual port forwarding. Live and recorded footage can be reviewed remotely from a smartphone or tablet.
Best For
- Hybrid Analog and IP Upgrades: Sites with existing coax-wired cameras can retain that infrastructure while adding IP cameras as budget allows, supported by the 5-in-1 input compatibility.
- Small Commercial Installations: Up to 4 analog channels and expansion to 6 total channels suits small offices, retail outlets, and light commercial premises with modest camera counts.
- Dual-Monitor Control Rooms: HDMI and VGA outputs operate simultaneously, allowing one screen for live view and a second for playback or configuration without switching connections.
- Mobile-Managed Sites: The QR code P2P setup removes complex network configuration steps, making remote monitoring accessible for owners or managers who check in via smartphone.
Why Choose the HRX-434
The Hanwha Vision HRX-434 stands apart from basic 4-channel DVRs through its confirmed support for five separate analog signal types alongside IP camera inputs, all managed from one unit. A budget-only CVBS recorder cannot accept AHD or TVI cameras, and a pure IP NVR requires replacing all existing coax-wired cameras immediately. The HRX-434 avoids both limitations. At up to 8MP recording with H.265 compression into a single SATA bay supporting drives up to 6TB, the unit delivers meaningful resolution within a compact footprint. Coaxial control reduces wiring complexity on compatible cameras. The Wisenet P2P QR code pairing removes the need for manual firewall configuration, a practical advantage on sites without dedicated IT support. Available through Security Wholesalers, the HRX-434 is well suited to staged upgrade projects where preserving existing infrastructure investment matters.
Buyer Decision Tips
Storage Planning: The HRX-434 ships with no HDD installed and has a single SATA bay accepting up to 6TB. Calculate your retention requirement before purchasing: at 8MP across 4 channels with H.265, a 4TB or 6TB drive is strongly recommended for practical continuous recording durations. A 1TB or 2TB drive will result in very short overwrite cycles at full resolution.
Channel Count Trade-off: The total 6-channel capacity is shared between analog and IP inputs, not additive. If all 4 analog channels are in use, only 2 additional IP cameras can be connected. If you need higher IP camera counts, consider whether a dedicated NVR with more channels would suit your project better from the outset.
Key Features & Technical Specifications
| Product Model |
Hanwha Vision HRX-434 |
| DVR Type |
5-in-1 Pentabrid (AHD / HDTVI / HDCVI / CVBS / IP) |
| Analog Channels |
4 channels maximum |
| Total Channel Capacity |
Up to 6 channels (4 analog + additional IP depending on analog channel use) |
| Maximum Resolution |
Up to 8MP |
| Recording Frame Rates |
8fps at 8MP, 12fps at 5MP |
| Video Compression |
H.265, H.264, MJPEG |
| Storage |
1 x SATA HDD bay, up to 6TB per drive (HDD not included) |
| Monitor Outputs |
HDMI and VGA (dual monitor simultaneous output) |
| Coaxial Control |
Yes, supported on compatible cameras |
| Remote Access |
P2P service with QR code pairing for Wisenet mobile app |
| HDD Included |
No |
Ideal Use Cases
Staged System Upgrades
Sites transitioning from legacy CVBS or AHD cameras to higher-resolution AHD or IP cameras can keep existing cameras running on the HRX-434 while new cameras are added progressively, avoiding a full system replacement.
Small Retail and Office Premises
4-channel analog capacity with optional IP camera expansion suits shopfronts, small offices, and service businesses where camera counts are low and a compact, straightforward recorder is preferred over a full NVR.
Residential Properties with Coax Wiring
Homes pre-wired with coaxial cable for older cameras can use the HRX-434 to upgrade recording resolution without re-running cable, supporting AHD and HDTVI cameras at resolutions up to 8MP over existing runs.
Remote-Managed Sites Without IT Support
P2P QR code pairing with the Wisenet app means owners or managers can connect to live and recorded footage from a smartphone without configuring port forwarding or static IP addresses, reducing setup complexity on unmanaged sites.
Choosing the Right Model
- Choose this model if: You are connecting a mix of analog camera types (AHD, TVI, CVI, CVBS) alongside one or two IP cameras, want H.265 recording up to 8MP, and need a compact single-HDD-bay DVR with simple QR code mobile access.
- Choose a different model if: You need more than 4 analog channels or more than 6 total channels, require redundant or multi-bay HDD storage for longer retention periods, or plan to run an all-IP camera system where a dedicated NVR with PoE switching would be more appropriate.
FAQs
- Does the HRX-434 come with a hard drive installed?
No. The HRX-434 ships without a hard drive. You will need to purchase and install a compatible 3.5-inch SATA HDD separately. The unit supports drives up to 6TB in its single SATA bay. For continuous recording at higher resolutions, a 4TB or 6TB drive is recommended to achieve a practical footage retention window before the drive overwrites.
- Can I connect my older CVBS cameras alongside newer AHD cameras on the same DVR?
Yes. The Pentabrid design of the HRX-434 allows CVBS, AHD, HDTVI, and HDCVI cameras to be connected simultaneously across the 4 analog channels. Each channel auto-detects the signal type, so a mix of legacy and higher-resolution analog cameras can coexist on the same recorder without any manual switching.
- How does the 6-channel total capacity work?
The HRX-434 supports a maximum of 4 analog channels and a combined maximum of 6 total channels. The IP camera slots are shared with the analog capacity. For example, if 4 analog channels are in use, up to 2 IP cameras can be added. If only 2 analog channels are occupied, up to 4 IP cameras may connect. The total active channel count cannot exceed 6.
- What frame rates can I expect when recording at 8MP?
The HRX-434 records at 8fps per channel at 8MP resolution. At 5MP, the rate increases to 12fps per channel. These are not full 25fps or 30fps rates, so for applications where smooth high-frame motion capture is critical (such as fast-moving vehicle recording), lower resolutions with higher frame rates may be a more practical trade-off.
- How do I set up remote viewing on a mobile device?
The HRX-434 includes a built-in P2P service. During initial setup, the unit displays a QR code that can be scanned using the Wisenet mobile app on a smartphone or tablet. This establishes a remote connection without requiring manual port forwarding on the router, which is particularly useful on sites where router access is restricted. Available at Security Wholesalers, the HRX-434 is supplied with access to Hanwha’s P2P infrastructure for this purpose.
- Can I use two monitors at the same time with the HRX-434?
Yes. The unit provides both an HDMI output and a VGA output, and both can be used simultaneously. This allows a dual-monitor setup where one display shows a live camera grid while the second is used for playback review or system configuration, without needing to disconnect and reconnect cables between tasks.
