Product SKU: HV-HCP-6320HA
Product Overview

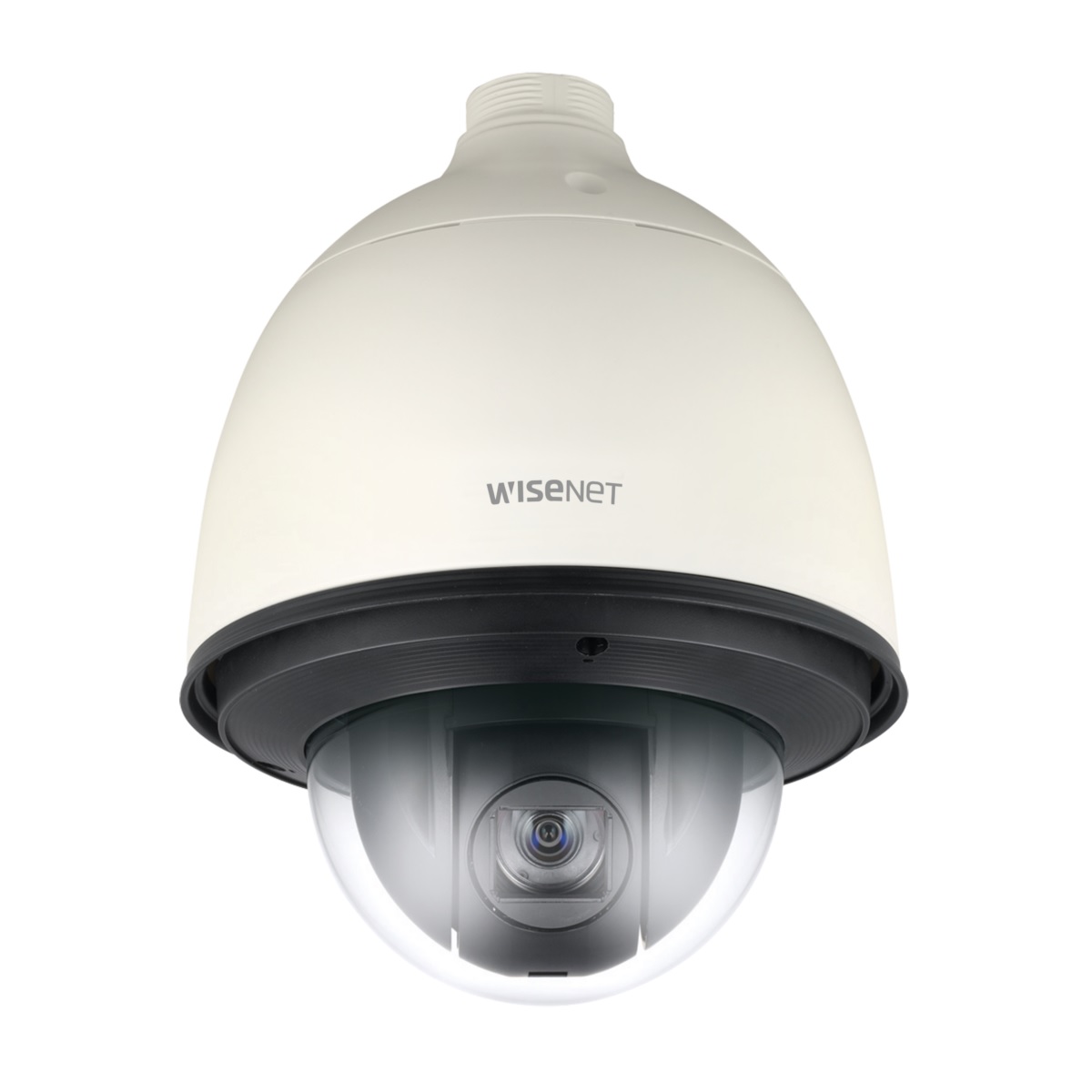

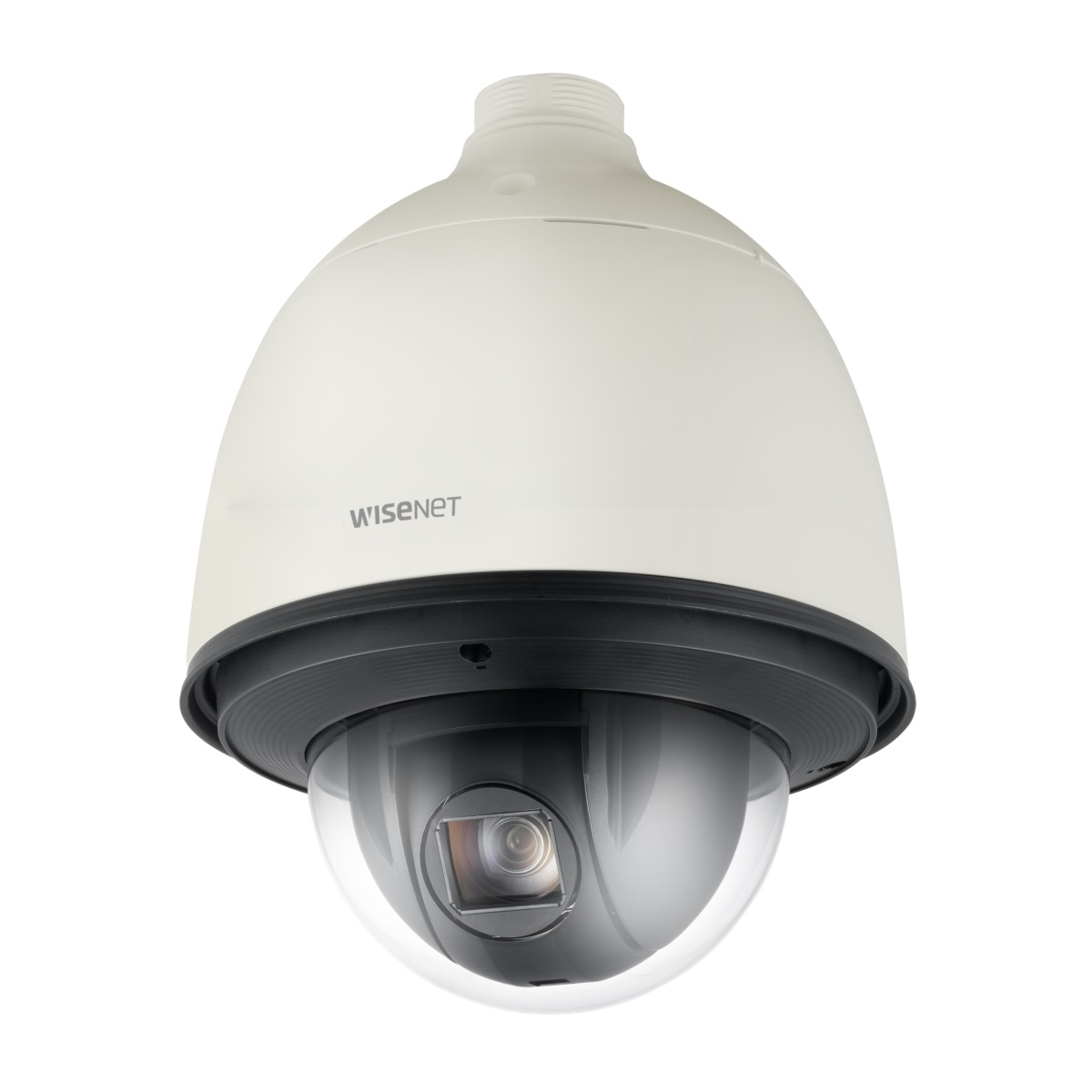

Wide-area outdoor monitoring becomes significantly more manageable when a single camera position can cover an entire car park, perimeter fence line, or facility approach – and the HV-HCP-6320HA is purpose-built for exactly that task. This outdoor PTZ dome camera from Hanwha Vision delivers Full HD 1080p resolution at 30fps with a powerful 32x optical zoom spanning 4.44mm to 142.6mm, enabling detailed coverage from broad scene overviews down to tight close-ups without repositioning the camera. Built on the WiseNet HD+ analog platform, it transmits 1080p footage over existing coaxial cabling at distances up to 500 metres, making it a cost-effective upgrade path for sites already running analog infrastructure. Equipped with Day and Night ICR switching, 120dB WDR, and a low-light sensitivity of 0.2 Lux in colour mode, it maintains usable image quality across changing lighting environments. The IP66 weatherproof and IK10 vandal-resistant dome housing keeps the unit operational in exposed outdoor installations, while the 700 degrees per second preset speed supports rapid repositioning between programmed patrol points.
Key Capabilities
32x Optical Zoom with 16x Digital Extension
The 4.44mm to 142.6mm motorised lens provides genuine optical reach across large outdoor areas. Combined with 16x digital zoom, operators can isolate fine detail – such as number plates or faces – at extended distances from a single fixed camera position.
WiseNet HD+ Analog HD Over Coax
The WiseNet HD+ platform transmits Full HD 1080p video over existing coaxial cable infrastructure at runs up to 500 metres. This makes the HV-HCP-6320HA a practical upgrade for sites that want HD image quality without replacing cabling or switching to an IP network.
120dB Wide Dynamic Range
The 120dB WDR capability balances bright and shadowed zones within the same frame – useful for entrances, driveways, and car parks where sunlight, headlights, and shaded areas routinely appear together in a single shot.
700 Degrees Per Second Preset Speed
The high-speed azimuth preset positioning at 700 degrees per second means the camera can sweep rapidly between programmed patrol points, supporting active monitoring across large perimeters without slow pan transitions that miss fast-moving subjects.
IP66 and IK10 Outdoor Protection
The dome housing carries IP66 dust and water ingress protection alongside IK10 impact resistance, making it suitable for exposed rooftop, wall, or pole mounts in environments where weather exposure and physical interference are genuine risks.
Day and Night ICR with Low-Light Sensitivity
The mechanical IR cut filter switches automatically between colour and monochrome modes at dusk and dawn. With a colour sensitivity of 0.2 Lux and B/W sensitivity of 0.01 Lux at F1.6, the camera retains usable detail in low ambient light without requiring supplementary lighting.
Best For
- Existing Coax Infrastructure Sites: The WiseNet HD+ platform transmits Full HD 1080p over existing coaxial cabling at up to 500 metres, allowing sites to upgrade image quality without rewiring.
- Large Perimeter and Open-Area Monitoring: The 32x optical zoom and pan-tilt functionality allow a single camera to actively monitor fence lines, yards, car parks, and wide open spaces that would otherwise require multiple fixed cameras.
- Mixed-Light Outdoor Environments: The 120dB WDR and 0.01 Lux B/W sensitivity handle locations where direct sunlight, vehicle headlights, and deep shadow coexist within the camera’s field of view.
- Sites Requiring Active Operator Control: The 700 degrees per second preset speed and RS-485 or coax control options suit installations where operators actively steer the camera to track subjects or respond to incidents in real time.
Why Choose the HV-HCP-6320HA
The HV-HCP-6320HA addresses a specific gap in the market: sites that need genuine PTZ zoom capability and wide-area coverage but operate on existing coaxial cabling rather than an IP network. A basic fixed analog camera cannot reposition or zoom to track a subject across a large yard. A standard IP PTZ requires network cabling and PoE infrastructure that may not exist on the site. This model delivers 32x optical zoom, full pan-tilt-zoom control, and 1080p Full HD resolution transmitted over the existing coax run – up to 500 metres – using the WiseNet HD+ platform. The IK10 vandal-resistant dome housing and IP66 weatherproofing add durability for exposed outdoor deployments. SSNRIII noise reduction supports cleaner footage in low-light or high-ISO conditions, and defog processing maintains clarity in hazy or foggy environments. Available through Security Wholesalers, the HV-HCP-6320HA is suited to commercial and industrial sites looking to extend their existing analog systems with meaningful PTZ performance.
Buyer Decision Tips
Coaxial Infrastructure and Power Requirements: The HV-HCP-6320HA runs on 24V AC and uses RS-485 or coax control signalling rather than PoE. Before specifying this unit, confirm that your existing coaxial runs are in good condition and that 24V AC power can be delivered to the mounting point. The WiseNet HD+ platform supports runs up to 500 metres over coax, but cable quality and connector integrity directly affect signal performance at longer distances.
PTZ vs Fixed Wide-Angle Coverage: A PTZ camera covers one direction at a time and relies on operator input or preset patrols to reposition. If your site requires continuous simultaneous coverage of multiple entry points without active operator monitoring, a combination of fixed cameras may be more appropriate. The HV-HCP-6320HA is strongest when paired with fixed overview cameras and used as the detail and tracking tool within a broader system design.
Key Features & Technical Specifications
| Model |
HV-HCP-6320HA |
| Resolution |
Full HD 1920 x 1080 at 30fps |
| Optical Zoom |
32x (4.44mm to 142.6mm) |
| Digital Zoom |
16x |
| Minimum Illumination (Colour) |
0.2 Lux at F1.6 |
| Minimum Illumination (B/W) |
0.01 Lux at F1.6 |
| Day and Night |
ICR (mechanical IR cut filter) |
| Wide Dynamic Range |
120dB WDR |
| Noise Reduction |
SSNRIII |
| Defog |
Yes |
| Preset Speed |
700 degrees per second (Azimuth) |
| Camera Platform |
WiseNet HD+ Analog HD |
| Maximum Coax Transmission Distance |
Up to 500 metres (1640ft) over coaxial cable |
| Control Interface |
RS-485, Up-the-coax control |
| Power Supply |
24V AC |
| Ingress Protection |
IP66 |
| Impact Resistance |
IK10 |
| Housing Type |
Outdoor PTZ dome |
Ideal Use Cases
Commercial and Industrial Car Parks
The 32x optical zoom allows operators to read number plates or track individuals across large paved areas from a single pole or rooftop mounting point, making it effective for car park oversight without requiring a dense fixed camera network.
Perimeter and Fence Line Monitoring
The 700 degrees per second preset speed allows rapid patrol sweeps along perimeter fence lines, and the IP66 and IK10 rated dome housing withstands outdoor exposure on posts or walls at the boundary of industrial or commercial sites.
Analog System Upgrades
The WiseNet HD+ platform delivers Full HD 1080p over existing coaxial cabling at up to 500 metres, allowing facilities with legacy analog DVR infrastructure to add a capable PTZ without rewiring or introducing a separate IP network segment.
Warehouse and Loading Dock Environments
Warehouse interiors and loading docks involve high-contrast lighting, moving vehicles, and wide floor areas. The 120dB WDR manages daylight flooding through dock doors while the zoom capability supports close-up views of goods or activity at the far end of a large space.
Town Centres and Public Space Monitoring
The combination of a high-speed PTZ mechanism, 32x optical zoom, and full HD resolution suits operator-controlled monitoring of pedestrian areas, plazas, and public infrastructure where the ability to zoom in and follow events in real time is a primary requirement.
Choosing the Right Model
- Choose this model if: Your site already has coaxial cabling in good condition, requires 24V AC-powered PTZ capability, and needs 32x optical zoom range with Full HD 1080p resolution without transitioning to an IP-based infrastructure.
- Choose a different model if: Your installation runs Cat5e or Cat6 cabling with PoE switching – an IP PTZ camera would be more compatible with that infrastructure and would typically offer additional network integration features not available over coax. Similarly, if your site requires continuous wide-area coverage without active operator input, a multi-sensor panoramic camera may provide better unattended area coverage than a single PTZ position.
FAQs
- Does the HV-HCP-6320HA require a network connection or IP infrastructure?
No. The HV-HCP-6320HA operates on the WiseNet HD+ analog HD platform and transmits 1080p video over standard coaxial cable. It does not require an IP network, Cat6 cabling, or PoE switching. Control is handled via RS-485 or up-the-coax signalling, and power is supplied by a 24V AC source at the camera location.
- How far can the camera transmit video over coaxial cable?
The WiseNet HD+ platform supports Full HD 1080p transmission over existing coaxial cabling at distances up to 500 metres (1640 feet). Cable quality and connector integrity affect performance at longer runs, so it is worth inspecting older coax infrastructure before assuming maximum distance is achievable.
- What does the 32x optical zoom actually allow the camera to see?
The 32x optical zoom moves the lens between 4.44mm (wide, broad scene overview) and 142.6mm (tight telephoto). At the telephoto end, the camera can resolve detail such as faces or vehicle number plates at distances that would be impractical for any fixed-lens camera covering the same scene. The 16x digital zoom extends this further, though at a reduction in image sharpness.
- Is the dome housing suitable for exposed outdoor mounting on a pole or rooftop?
Yes. The HV-HCP-6320HA carries IP66 ingress protection, which covers sustained rain, dust, and high-pressure water exposure, and IK10 impact resistance, which rates the dome housing against significant physical strikes. These ratings make it appropriate for exposed outdoor mounts including poles, parapets, and external wall brackets.
- How quickly can the camera move between preset positions?
The azimuth preset speed is 700 degrees per second. This means the camera can complete a full rotation in just over half a second when moving between programmed patrol points, allowing rapid repositioning to cover multiple areas of a large site in sequence without lengthy transition delays.
- Does the HV-HCP-6320HA work with existing older analog DVRs?
The WiseNet HD+ platform is described as backward compatible with existing analog systems. However, Full HD 1080p output requires a recorder that supports the HD+ signal format. An older standard-definition DVR may accept a signal from the camera but will not display or record at 1080p resolution. Confirming recorder compatibility before installation is recommended.
- Where can I get technical support or purchase the HV-HCP-6320HA in Australia?
The HV-HCP-6320HA is part of the Security Wholesalers range, with the product datasheet available for download from the product listing. Technical specifications and support documentation are also available directly from Hanwha Vision. Contacting Security Wholesalers prior to purchase is worthwhile if you need to confirm compatibility with your existing DVR or coaxial cabling setup.
