Product SKU: HV-HCO-6080R
Product Overview

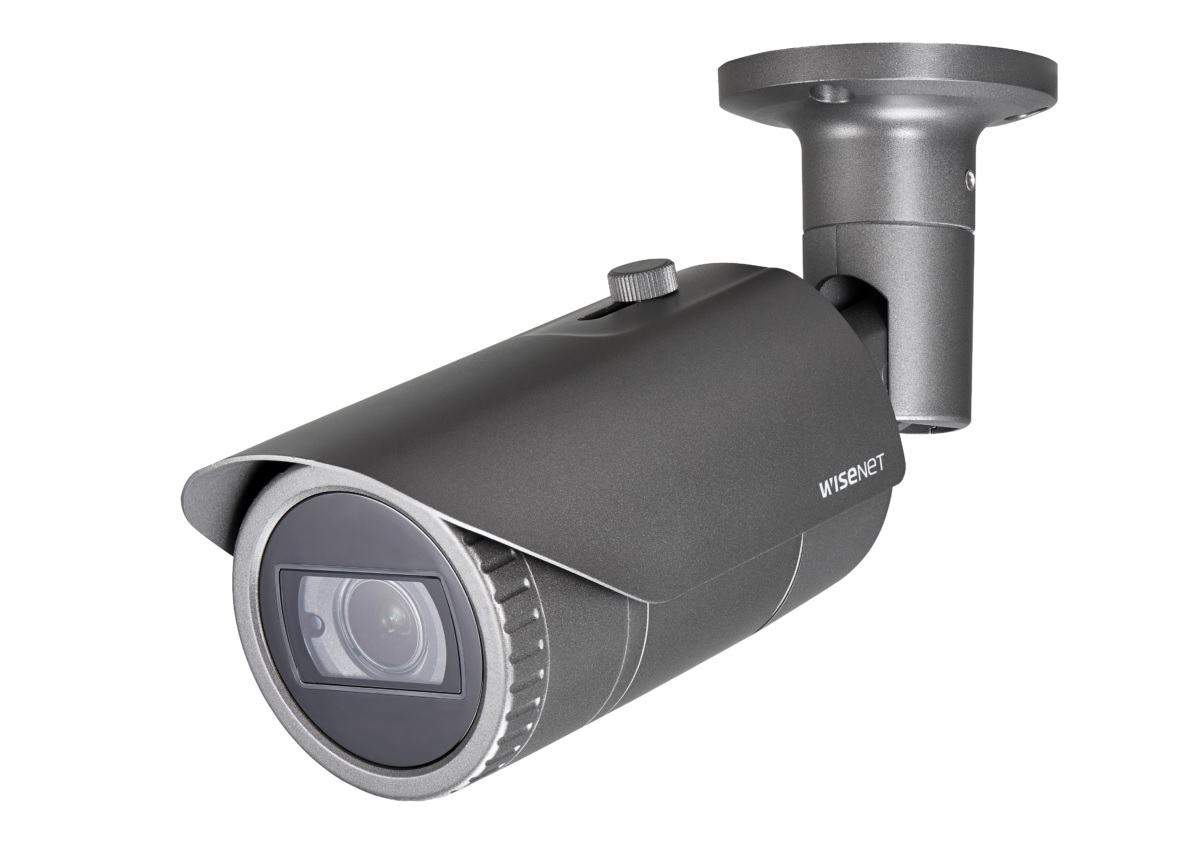

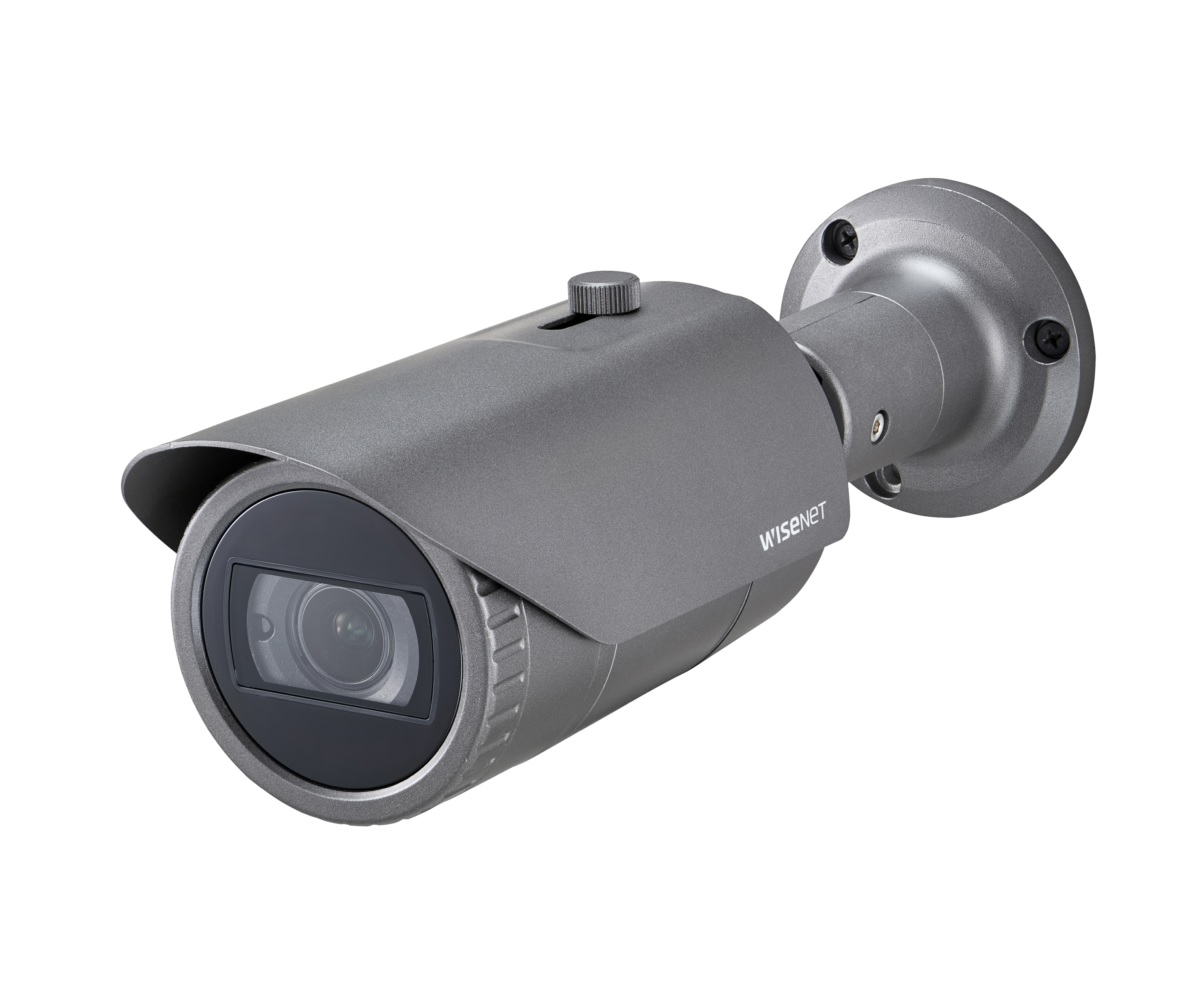

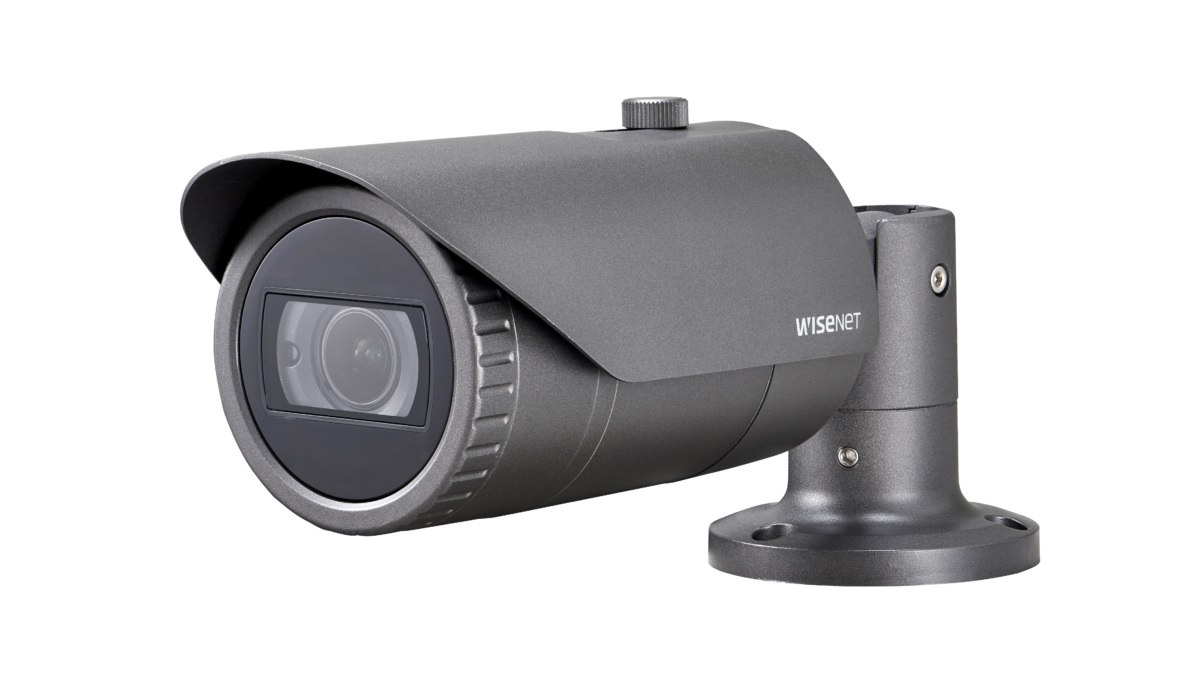

For sites running existing coaxial cable infrastructure, the HV-HCO-6080R delivers a practical path to 1080p Full HD image quality without replacing cabling. This outdoor bullet camera is part of Hanwha Vision’s WiseNet HD+ analog HD series, capable of transmitting high-definition video over coax at distances up to 500m, making it well suited to perimeter monitoring across large commercial yards, loading docks, and driveways. Featuring a 3.2-10mm motorised varifocal lens with 3.1x optical zoom, installers can frame the coverage zone remotely after mounting, reducing the need for repositioning. Equipped with a 120dB wide dynamic range, SSNR IV digital noise reduction, and 30m infrared illumination, it maintains usable image quality across challenging lighting conditions. It also carries IP66 weather protection and an IK10 vandal resistance rating, suited to exposed wall and pole mounting in harsh outdoor locations.
Key Capabilities
Motorised Varifocal Lens
The 3.2-10mm motorised varifocal lens with 3.1x optical zoom allows the coverage angle to be adjusted after the camera is physically mounted. This is practical for wall or pole installations where repositioning is inconvenient, allowing precise field-of-view framing from the ground or recorder interface.
500m Coax Transmission
WiseNet HD+ technology enables analog HD video transmission over existing coaxial cable at distances up to 500m. This makes the HV-HCO-6080R a strong fit for upgrading legacy analog installations to 1080p resolution without the cost or disruption of recabling across large sites.
120dB Wide Dynamic Range
A 120dB WDR rating allows the camera to retain detail in both bright and shadowed areas simultaneously. This matters at entry points, loading dock doors, and fence-line positions where strong backlight from sunlight or vehicle headlights would otherwise wash out the image.
30m Infrared Illumination
Built-in IR LEDs provide up to 30m of illumination, enabling clear monochrome imaging in complete darkness. Combined with the ICR day/night filter, the camera transitions automatically between colour daytime operation and IR-assisted night mode without manual intervention.
IP66 and IK10 Rated Housing
The bullet housing is rated IP66 for dust ingress protection and resistance to high-pressure water jets, alongside IK10 for protection against physical impact. This combination supports outdoor mounting in locations exposed to weather, dust, and potential interference, including industrial yards and commercial exteriors.
Best For
- Analog Infrastructure Upgrades: Sites with existing coaxial cable runs can move to 1080p Full HD without rewiring, using the 500m WiseNet HD+ transmission capability.
- Outdoor Perimeter and Driveway Monitoring: The bullet form factor and motorised varifocal lens suit directional coverage along fence lines, vehicle entries, and access roads where framing flexibility after mounting is useful.
- High-Contrast Outdoor Environments: The 120dB WDR rating handles entry gates, loading bay doors, and other positions where bright ambient light or vehicle headlights create contrast challenges.
- Exposed Industrial and Commercial Locations: The IK10 vandal-rated and IP66-sealed housing suits wall and pole mounting in exposed yards, warehouses, and commercial exteriors where environmental durability is a priority.
Why Choose the HV-HCO-6080R
The HV-HCO-6080R stands apart from basic fixed-lens analog cameras through its combination of motorised varifocal zoom and long-range coax transmission. Where a fixed-lens bullet requires physical repositioning to correct the field of view, the 3.1x motorised lens on this model allows zoom and framing adjustments after the camera is secured to the mounting surface. The 500m transmission distance over standard coaxial cable makes it practical for large commercial and industrial sites where long cable runs are unavoidable. The 120dB WDR rating adds capability at entry points and outdoor areas where lighting is inconsistent. IK10 and IP66 ratings ensure the housing holds up in demanding outdoor conditions. Available at Security Wholesalers, the HV-HCO-6080R is suited to installers and integrators looking to deliver a meaningful upgrade to existing analog systems without a full infrastructure replacement.
Buyer Decision Tips
Analog HD Compatibility: The HV-HCO-6080R outputs analog HD video over coaxial cable and requires a compatible analog HD DVR or XVR to display and record 1080p footage. It is not an IP camera and does not connect to a standard PoE NVR. Confirm your recorder supports the WiseNet HD+ or analog HD standard before purchasing.
IR Range vs. Lens Zoom: At the telephoto end of the motorised lens (10mm), the camera’s field of view narrows significantly, which is useful for monitoring a specific approach or gate at distance. However, the 30m IR illumination range is fixed, so in complete darkness the effective detail range may be shorter at tighter zoom settings. Consider the lighting conditions at your target monitoring distance when configuring the lens position.
Key Features & Technical Specifications
| Model |
HV-HCO-6080R |
| Resolution |
1080p Full HD (2MP) |
| Lens Type |
Motorised varifocal |
| Focal Length |
3.2-10mm (3.1x optical zoom) |
| Minimum Illumination |
0.11 Lux @ F1.6 (Colour), 0 Lux (B/W with IR on) |
| Day/Night |
ICR (mechanical IR cut filter) |
| Wide Dynamic Range |
120dB |
| Noise Reduction |
SSNR IV |
| IR Illumination Range |
30m |
| Motion Detection |
Yes |
| Weather Protection |
IP66 |
| Vandal Resistance |
IK10 |
| Video Transmission Distance |
Max. 500m over coaxial cable |
| Power |
Dual power |
| Communication |
RS-485 |
| Signal Format |
WiseNet HD+ Analog HD |
| Housing Type |
Outdoor bullet |
| Installation |
Plug and play |
Ideal Use Cases
Commercial Perimeter Monitoring
The bullet form factor and 30m IR range make the HV-HCO-6080R well suited to monitoring fence lines, exterior walls, and vehicle access points on commercial properties where directional coverage and visible deterrence both matter.
Legacy Analog System Upgrades
WiseNet HD+ transmission over existing coaxial cable at up to 500m allows sites to move from standard definition analog to 1080p Full HD without laying new cable, reducing upgrade costs significantly across multi-camera installations.
Loading Docks and Yard Entries
The 120dB WDR handles the strong backlight common at roller door openings and vehicle entry points. The motorised varifocal lens allows the coverage zone to be tightened or widened after mounting without disturbing the physical installation.
Industrial and Exposed Outdoor Sites
IP66 weather sealing and an IK10 impact resistance rating mean the HV-HCO-6080R can be mounted on exterior walls and poles at industrial yards, construction sites, and warehouses where the camera may be exposed to dust, water, and physical interference.
Choosing the Right Model
- Choose this model if: You are upgrading an existing analog coaxial cable system to 1080p and need a durable outdoor bullet camera with a motorised varifocal lens for flexible framing at perimeter positions.
- Choose a different model if: Your installation uses a PoE network switch and IP NVR rather than a DVR or XVR, as the HV-HCO-6080R outputs analog HD signal and is not compatible with IP-only recording infrastructure.
- Choose a different model if: Your monitoring scenario requires IR coverage beyond 30m, such as a long open driveway or wide open yard, where a camera with extended IR illumination would maintain useful image detail at greater distances.
FAQs
- What type of recorder does the HV-HCO-6080R require?
The HV-HCO-6080R outputs analog HD video over coaxial cable using the WiseNet HD+ signal format. It requires a compatible analog HD DVR or XVR that supports this format to record and display 1080p footage. It is not an IP camera and cannot be connected directly to a PoE switch or IP NVR.
- Can this camera be used with existing coaxial cable runs from an older analog system?
Yes. The WiseNet HD+ technology in the HV-HCO-6080R is designed specifically for transmission over standard coaxial cable at distances up to 500m. This makes it a practical upgrade option for sites with legacy analog cabling, as the existing coax infrastructure can be retained.
- How does the motorised varifocal lens work on a bullet camera installation?
The 3.2-10mm motorised varifocal lens allows the zoom level and focus to be adjusted remotely after the camera is physically mounted. This means installers can fine-tune the field of view from the recorder or control interface without climbing back to the camera, which is especially useful for high or hard-to-reach wall and pole mounting positions.
- Is the HV-HCO-6080R suitable for outdoor use in rain and dusty environments?
Yes. The camera carries an IP66 rating, meaning it is sealed against dust ingress and resistant to high-pressure water jets. Combined with the IK10 impact resistance rating, it is designed to withstand typical outdoor environments including industrial sites, commercial yards, and exposed wall or pole mounting locations.
- What does 120dB WDR mean for outdoor monitoring?
A 120dB wide dynamic range allows the camera to capture usable detail in both bright and dark areas of the frame at the same time. At entry gates, loading bay doors, or outdoor positions where direct sunlight or vehicle headlights create strong backlight, WDR prevents the image from washing out or going silhouette on subjects in shadow.
- Is the HV-HCO-6080R available through Security Wholesalers, and what support documentation is provided?
Yes, the HV-HCO-6080R is supplied through Security Wholesalers and a manufacturer datasheet is available for download covering the full technical specification. RS-485 communication is also supported, which allows integration with compatible pan/tilt mounts or control systems where required.
