Product SKU: HV-HCD-7070RA
Product Overview

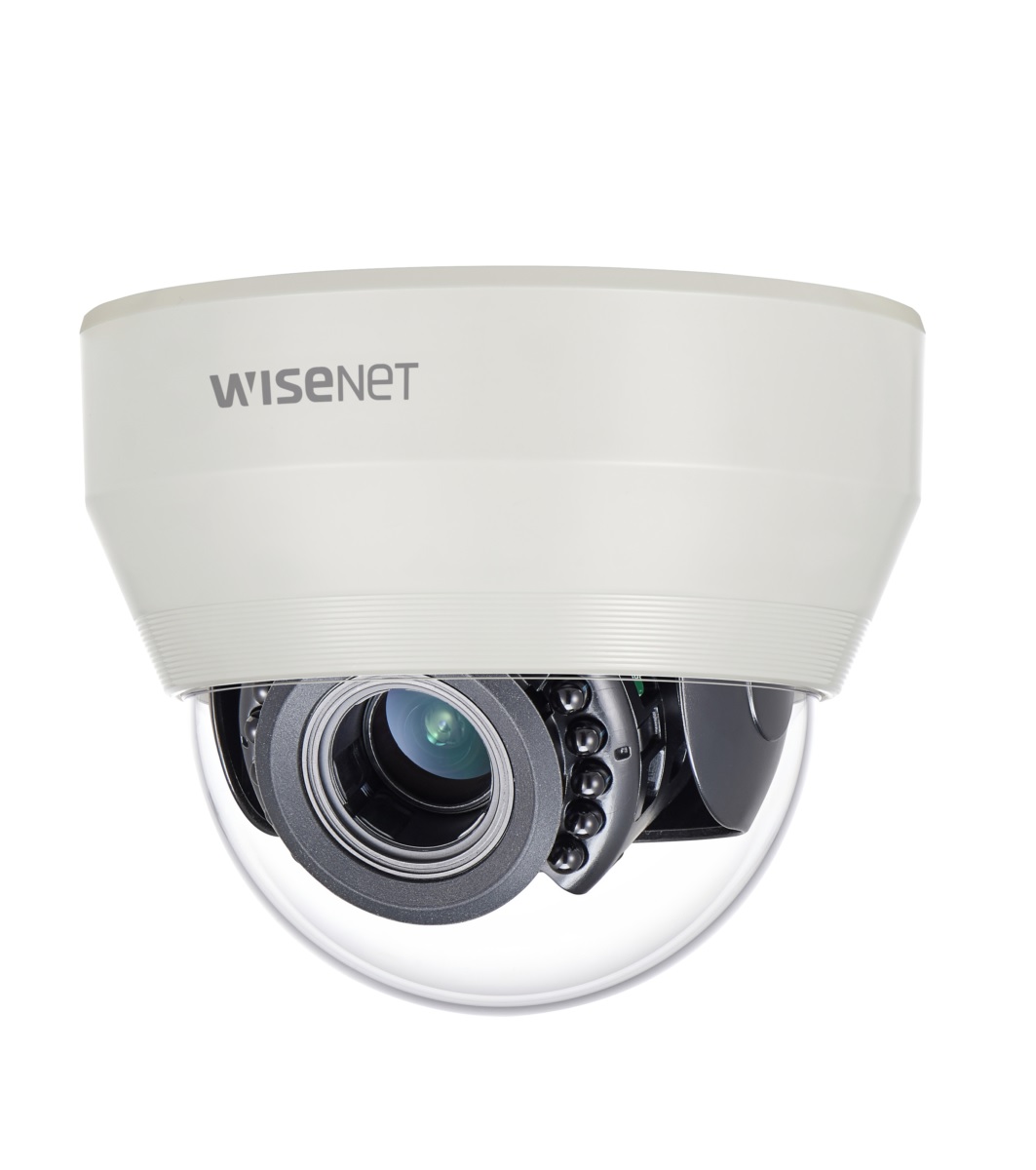

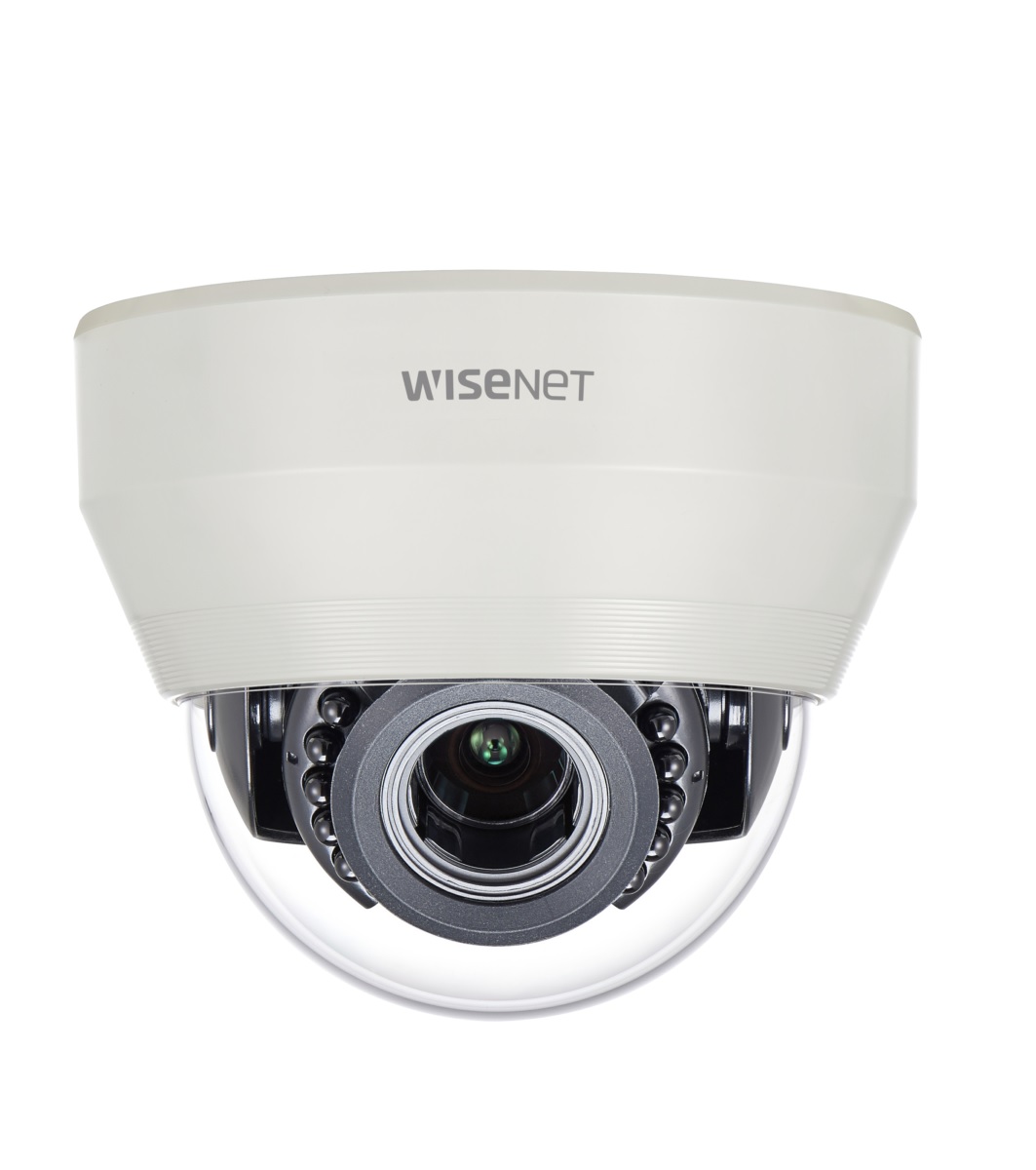

Ceiling-mounted surveillance in offices, retail environments, and indoor facilities often requires a camera that balances a discreet profile with genuine image detail. The HV-HCD-7070RA delivers 4MP QHD resolution at 2560×1440 and 30fps on a Wisenet HD+ analog platform, making it a practical upgrade path for sites already running coaxial cabling. The indoor dome housing is well suited to ceiling installation where a low-profile, unobtrusive form factor matters in customer-facing or staff-occupied spaces. Featuring a 3.2 to 10mm varifocal lens with a 3.1x optical range, installers can fine-tune the field of view during commissioning to suit corridor widths, room dimensions, or entry points. With Day and Night ICR switching, a minimum illumination of 0.16 Lux in colour mode, and full IR operation down to 0 Lux in monochrome, the camera maintains usable footage in low-light indoor conditions. Dual power support and plug-and-play installation reduce setup complexity on site.
Key Capabilities
4MP QHD Resolution
At 2560×1440 and 30fps, the HV-HCD-7070RA captures significantly more detail than a standard 1080p analog camera, making it easier to read faces, signage, or product labels in indoor environments where image detail directly affects incident review.
Varifocal Lens for Installer Flexibility
The 3.2 to 10mm varifocal lens with a 3.1x optical range allows installers to adjust the field of view on site to match the room layout, whether covering a wide reception area or narrowing in on a doorway or corridor section.
Day and Night ICR Switching
Automatic infrared cut filter switching transitions the camera between colour mode in daylight and monochrome with IR in low-light conditions, reaching 0 Lux operation when the IR LED is active, so indoor coverage does not drop off after hours.
Wisenet HD+ Analog Platform
Transmitting over existing coaxial cabling at distances up to 500m, Wisenet HD+ allows sites to upgrade to 4MP image quality without replacing infrastructure. It is also backward compatible with existing analog recorder setups, protecting prior investment.
DWDR and Motion Detection
Digital Wide Dynamic Range helps retain visible detail in scenes with mixed lighting, such as a lobby with windows or overhead fluorescents. On-camera motion detection supports event-triggered recording to reduce unnecessary storage use.
Best For
- Coax Infrastructure Upgrades: Sites with existing coaxial cable runs can move to 4MP QHD image quality without rewiring, thanks to the Wisenet HD+ platform’s 500m transmission capability.
- Mixed-Lighting Indoor Spaces: DWDR compensates for challenging contrast conditions in lobbies, reception areas, and retail floors where lighting is uneven across the scene.
- Ceiling-Mounted Indoor Coverage: The dome housing is designed for flush or surface ceiling installation, providing an unobtrusive profile in offices, schools, corridors, and retail environments.
- After-Hours Indoor Monitoring: With IR LED support and 0 Lux monochrome capability, the camera maintains usable footage in unlit or dimly lit indoor areas outside business hours.
Why Choose the HV-HCD-7070RA
Where most analog upgrades stop at 1080p, the HV-HCD-7070RA steps up to 4MP QHD at 2560×1440, delivering noticeably more usable detail for indoor environments where facial recognition during incident review is important. The 3.1x varifocal lens gives installers genuine framing flexibility without requiring fixed-lens compromises, and the Wisenet HD+ platform keeps transmission distances up to 500m over existing coax, which a basic IP camera cannot match on legacy infrastructure without a full recabling project. The ICR switching and 0 Lux IR operation mean the camera continues performing in unlit areas after hours. Dual power support gives installers additional flexibility on sites where power routing varies. Available through Security Wholesalers, the HV-HCD-7070RA suits commercial and institutional indoor installations where image quality and infrastructure compatibility both matter.
Buyer Decision Tips
Analog HD vs IP: The HV-HCD-7070RA is an analog HD camera operating on the Wisenet HD+ platform over coaxial cable. It does not use PoE or connect to an IP NVR. If your recorder is an analog DVR or HD-over-coax recorder, this camera is a direct fit. If your site is running a pure IP NVR setup, you will need an analog-compatible recorder or a separate video encoder to use this camera.
Key Features & Technical Specifications
| Resolution |
4MP QHD (2560 x 1440) at 30fps |
| Minimum Illumination (Colour) |
0.16 Lux @ F1.6 |
| Minimum Illumination (B/W) |
0 Lux (IR LED on) |
| Lens Type |
Varifocal |
| Focal Length |
3.2 to 10mm (3.1x optical range) |
| Day/Night |
ICR (Infrared Cut Filter) |
| Wide Dynamic Range |
DWDR |
| Motion Detection |
Yes |
| Video Platform |
Wisenet HD+ (Analog HD) |
| Transmission Distance |
Max. 500m over coaxial cable |
| Power |
Dual power |
| Installation |
Plug and play |
| Housing Type |
Indoor dome |
| Backward Compatibility |
Compatible with existing analog systems |
Ideal Use Cases
Office Environments
The dome housing sits flush to the ceiling with a low-profile appearance suitable for open-plan offices, meeting rooms, and access points where aesthetic integration matters alongside monitoring coverage.
Retail Stores
DWDR handles the mixed lighting common in retail environments with overhead fluorescents and window light, while the 4MP resolution supports clearer review of customer and staff activity across the sales floor.
School and Education Facilities
The discreet dome profile and varifocal lens suit classroom corridors, reception areas, and common spaces where the camera needs to cover varying room sizes without drawing unnecessary attention.
Analog System Upgrades
Sites with existing coaxial cabling can use the Wisenet HD+ platform to move to 4MP QHD image quality over runs up to 500m, without replacing cable or switching to an entirely new IP infrastructure.
Reception and Entry Lobbies
The varifocal lens can be set to frame a wide lobby entry or narrow in on a reception counter, and ICR switching ensures the camera continues operating in lower-light conditions at the start and end of business hours.
Choosing the Right Model
- Choose this model if: Your site runs coaxial cabling and an analog or HD-over-coax recorder, and you want to upgrade to 4MP QHD resolution without rewiring. The varifocal lens also suits installations where the final field of view needs to be adjusted on site.
- Choose a different model if: Your recorder infrastructure is IP-based and PoE-powered. This camera operates on the analog HD platform and does not connect to an IP NVR without additional hardware. If your site requires onboard AI analytics, person detection, or smart event filtering, an IP camera with those confirmed features would be a better fit.
FAQs
- What recorder does the HV-HCD-7070RA connect to?
The HV-HCD-7070RA uses the Wisenet HD+ analog HD platform and connects via coaxial cable to an analog DVR or HD-over-coax compatible recorder. It does not connect directly to an IP NVR. Check that your recorder supports the Wisenet HD+ or compatible analog HD signal format before purchasing.
- How far can the coaxial cable run from the camera to the recorder?
The HV-HCD-7070RA supports a maximum transmission distance of 500m over coaxial cable using the Wisenet HD+ platform. This makes it suitable for larger indoor facilities where camera positions are spread across a building and long cable runs are required.
- Can I use this camera to replace an older 1080p analog camera?
Yes. Because the HV-HCD-7070RA is backward compatible with existing analog systems and runs over coaxial cable, it can replace an older analog or 1080p HD-over-coax camera on the same cable run, provided the recorder supports the 4MP QHD signal. Verify recorder compatibility before installation.
- How does the varifocal lens affect installation?
The 3.2 to 10mm varifocal lens with a 3.1x optical range allows the installer to manually set the field of view during commissioning. This is useful when the exact coverage requirement varies between rooms or when mounting positions cannot be predetermined. It avoids the limitations of a fixed focal length in variable indoor layouts.
- Does the HV-HCD-7070RA work in complete darkness?
Yes. When the IR LED is active, the camera operates at 0 Lux in black-and-white mode, meaning it can capture footage in an unlit indoor room. In colour mode, the minimum illumination is 0.16 Lux at F1.6, which covers dimly lit but not completely dark environments.
- Where can I access the datasheet for this camera?
The official datasheet for the HV-HCD-7070RA is available via the Additional Information section below. Security Wholesalers supplies this product with full documentation support, and the datasheet covers detailed specifications including sensor, lens, and video output parameters.
