Product SKU: HV-HCD-6080R
Product Overview

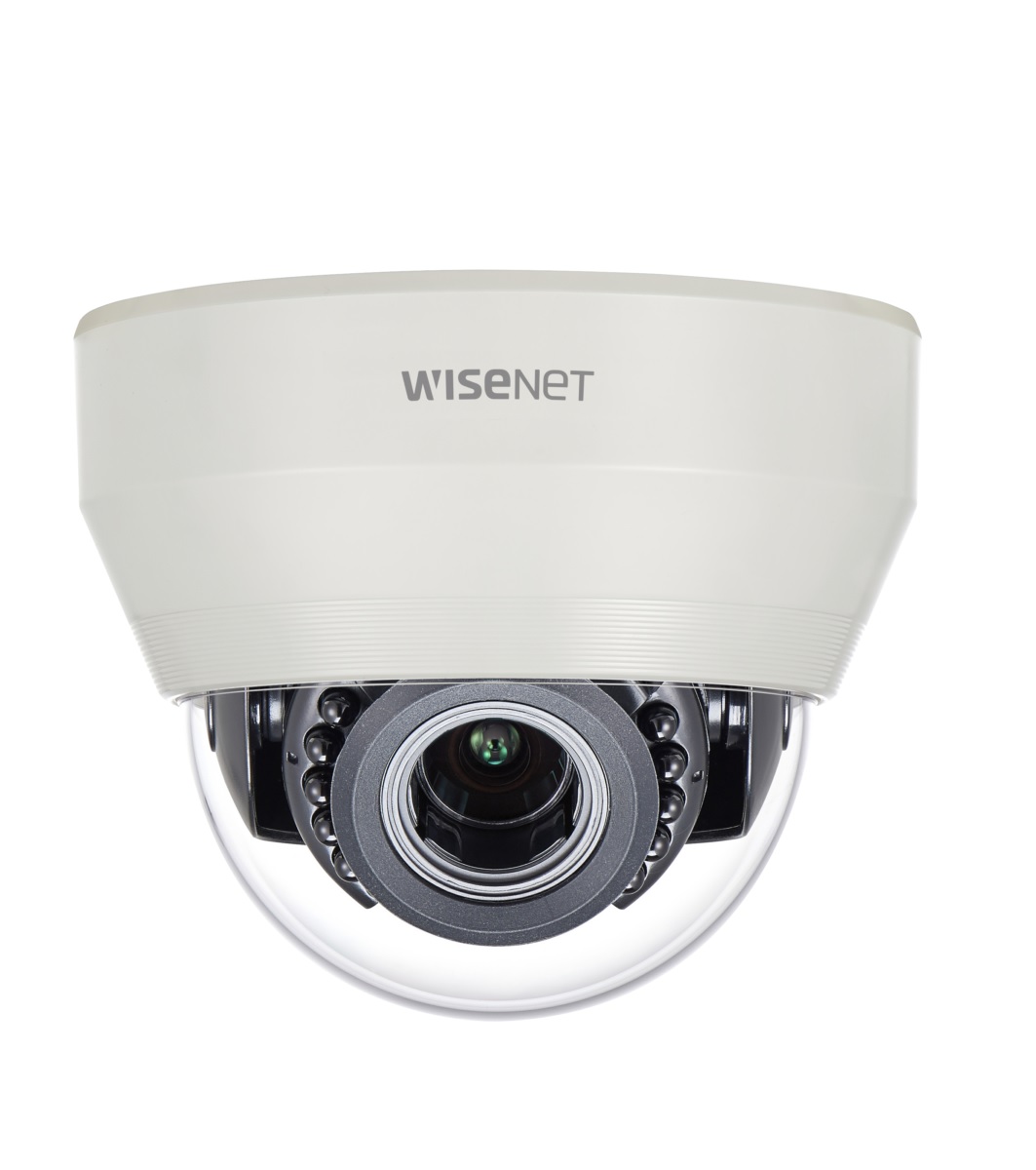

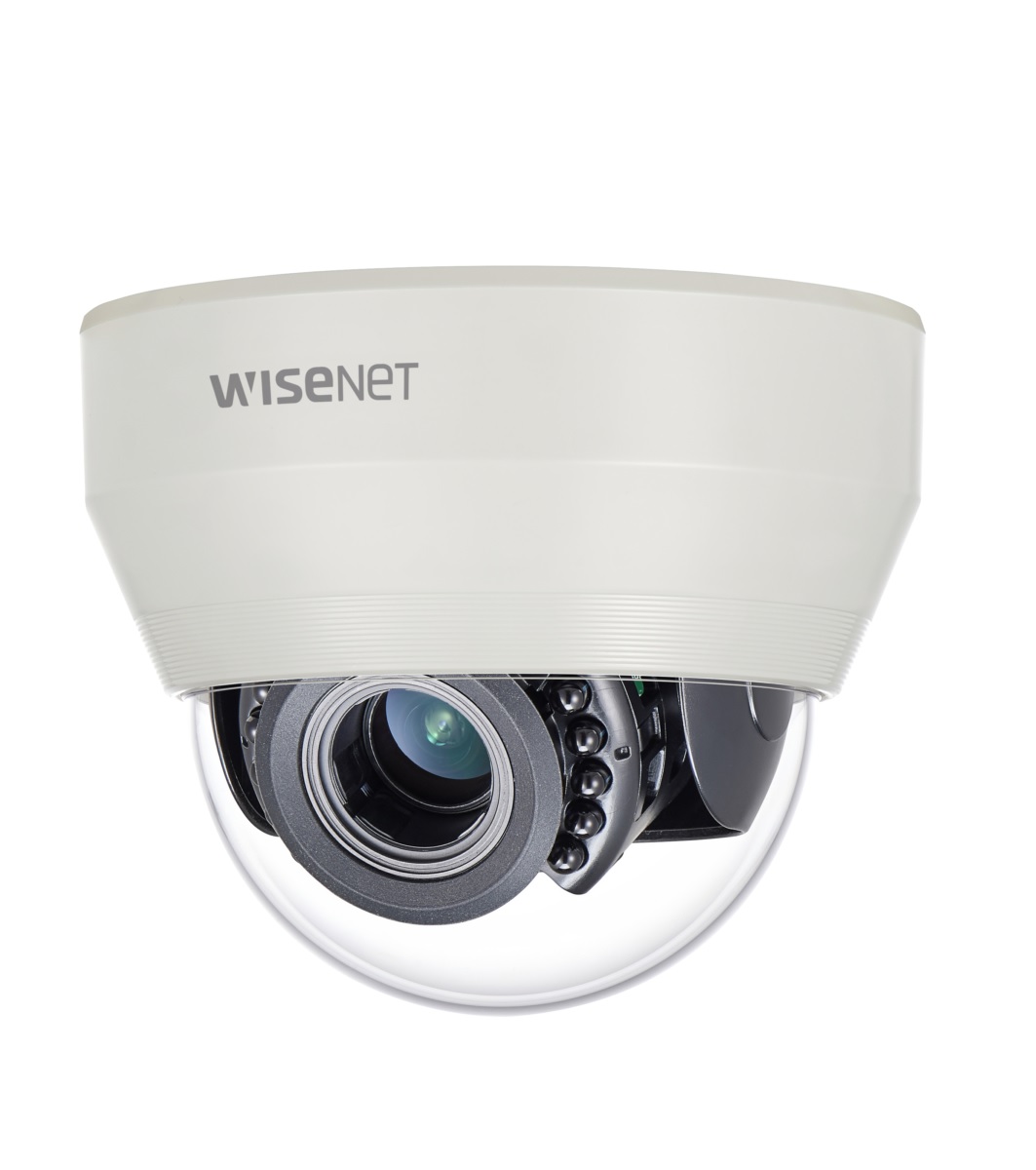

Designed for ceiling-mounted indoor surveillance, the Hanwha Vision HV-HCD-6080R is a 2MP analog HD dome camera built around the WiseNet HD+ platform, transmitting 1080p Full HD video over existing coaxial cable infrastructure at distances up to 500m. Featuring a 3.2-10mm motorized varifocal lens, installers can remotely adjust framing after mounting without touching the camera body, which is particularly valuable in ceiling-recessed or hard-to-reach locations. Equipped with an ICR day and night filter, 120dB Wide Dynamic Range, and SSNR IV noise reduction, the HV-HCD-6080R maintains clear imagery in mixed-light environments such as retail floors, lobbies, and corridors. The built-in IR illuminator reaches up to 20m, supporting low-light and complete darkness with 0 Lux performance when IR is active. Rated IP66 and IK10, this dome handles both moisture ingress and vandal impact, making it a dependable fit for public-facing indoor locations. Dual power input and RS-485 support add further installation flexibility.
Key Capabilities
Motorized Varifocal Lens
The 3.2-10mm motorized varifocal lens allows remote zoom and focus adjustment after the camera is physically installed. This removes the need to reposition the dome in tight ceiling spaces or corridors where access after mounting is inconvenient.
WiseNet HD+ Coaxial Transmission
WiseNet HD+ delivers 1080p Full HD over standard coaxial cable up to 500m, making the HV-HCD-6080R a straightforward upgrade path for sites with existing coax runs. It also remains backwards compatible with legacy analog systems already in place.
120dB Wide Dynamic Range
A 120dB WDR rating allows the camera to handle scenes with strong contrast between bright and shadowed areas, such as entrances with daylight behind a subject. Detail is preserved in both bright zones and darker corners simultaneously.
20m IR Illumination
The built-in IR LEDs cover up to 20m in complete darkness, dropping to 0 Lux in black and white mode with IR active. This supports monitoring in unlit areas such as storage rooms, stairwells, and after-hours retail environments.
IK10 Vandal and IP66 Weather Rating
The IK10 impact rating protects the dome against deliberate physical interference, while IP66 seals the housing against dust and water jets. This combination suits public-facing indoor locations where tampering or cleaning spray is a realistic concern.
Best For
- Coax Upgrade Projects: Sites with existing coaxial cable infrastructure can adopt 1080p Full HD via WiseNet HD+ without re-cabling, with transmission supported up to 500m per run.
- Mixed-Light Indoor Areas: The 120dB WDR and ICR day/night filter handle retail floors, reception areas, and corridors where lighting conditions vary significantly across the field of view.
- Hard-to-Access Ceiling Locations: The motorized varifocal lens lets installers fine-tune zoom and focus after the dome is secured in position, avoiding the need to re-open or remount the unit.
- Public-Facing Indoor Spaces: The IK10-rated dome housing resists deliberate impact in spaces such as lift lobbies, school corridors, and retail back-of-house areas where tampering is a consideration.
Why Choose the HV-HCD-6080R
The HV-HCD-6080R stands apart from basic fixed-lens analog domes through its motorized varifocal lens, which gives installers and facility managers genuine post-installation framing flexibility without revisiting the ceiling mount. The WiseNet HD+ platform pushes 1080p Full HD over coaxial cable at up to 500m, which no standard CVBS analog camera can match, and the backwards compatibility with legacy analog DVRs makes it a lower-risk upgrade for staged rollouts. The 120dB WDR is a meaningful step up from the 100dB or less commonly found in budget analog domes, and the combination of IP66 and IK10 ratings means the housing can withstand both moisture exposure and physical abuse in demanding indoor environments. Available through Security Wholesalers, the HV-HCD-6080R suits commercial installers who need a proven analog HD dome with the flexibility and protection that higher-traffic locations demand.
Buyer Decision Tips
Coax Infrastructure Check: The HV-HCD-6080R is designed for analog HD systems using coaxial cable and is not an IP or PoE camera. Before purchasing, confirm your recorder supports WiseNet HD+ or a compatible analog HD format such as AHD, TVI, or CVI, and that your cable runs fall within the 500m transmission limit. If your site is being cabled fresh for IP cameras, an IP dome would suit better than this model.
Key Features & Technical Specifications
| Model |
HV-HCD-6080R |
| Resolution |
2MP / 1080p Full HD |
| Lens Type |
Motorized varifocal |
| Focal Length |
3.2-10mm (3.1x zoom) |
| Min. Illumination (Colour) |
0.11 Lux @ F1.6 |
| Min. Illumination (B/W with IR) |
0 Lux |
| IR Range |
Up to 20m (approx. 65ft) |
| Day/Night |
ICR (IR Cut Filter) |
| Wide Dynamic Range |
120dB |
| Noise Reduction |
SSNR IV |
| Motion Detection |
Yes |
| Ingress Protection |
IP66 |
| Vandal Rating |
IK10 |
| Power |
Dual power |
| Interface |
RS-485 |
| Max. Transmission Distance |
500m (approx. 1640ft) via coaxial cable |
| Technology Platform |
WiseNet HD+ Analog HD |
| Installation |
Plug and play |
Ideal Use Cases
Retail Stores
The 120dB WDR handles the contrast between bright display lighting and shaded aisles. The motorized varifocal lens lets the camera be focused on a specific counter or entrance after ceiling installation is complete.
Lift Lobbies and Stairwells
The IK10-rated housing resists tampering in confined access points, and the 20m IR range ensures coverage remains clear in stairwells and lift lobbies where artificial lighting may be minimal or switched off overnight.
Schools and Education Facilities
The discreet dome profile suits corridor and classroom ceiling mounting. Dual power and plug-and-play installation simplify deployment across multiple buildings, and the IK10 rating provides protection in high-traffic student areas.
Analog System Upgrades
Sites with legacy coaxial cable infrastructure can step up to 1080p Full HD using WiseNet HD+ without replacing existing cable runs. The backwards compatibility with standard analog systems reduces upgrade cost and disruption.
Warehouses and Back-of-House Areas
The IP66 housing handles dust and moisture from cleaning equipment, while the 20m IR range and 0 Lux low-light performance support monitoring in stock rooms and loading corridors that may lack adequate lighting after hours.
Choosing the Right Model
- Choose this model if: Your site uses existing coaxial cable, your recorder supports analog HD input, and you need a dome with a motorized varifocal lens for post-installation framing adjustment, combined with IK10 vandal resistance and 120dB WDR for mixed-light indoor environments.
- Choose a different model if: Your system is IP or PoE-based, as this camera outputs an analog HD signal over coax and cannot connect directly to an NVR or network switch without an analog-to-IP converter. If future-proofing to a fully IP infrastructure is a priority, an IP dome would be a more suitable direction.
FAQs
- What type of recorder does the HV-HCD-6080R connect to?
The HV-HCD-6080R is an analog HD camera that transmits over coaxial cable using the WiseNet HD+ format. It connects to analog HD-compatible DVRs or XVRs with matching analog HD input support. It is not compatible with IP-only NVRs or network switches without additional conversion hardware.
- Can this camera be used with an existing standard CVBS analog DVR?
Yes. The WiseNet HD+ platform is backwards compatible with legacy analog systems. When connected to a standard CVBS DVR, the camera will operate in standard definition analog mode rather than 1080p HD, so the full resolution benefit requires a compatible analog HD recorder.
- How far can the HV-HCD-6080R transmit video over coaxial cable?
The maximum coaxial cable transmission distance is 500m, which is approximately 1640ft. This is significantly further than standard CVBS analog cameras and is a core advantage of the WiseNet HD+ platform for larger sites or buildings with long cable runs already in place.
- Does the motorized varifocal lens allow remote adjustment after installation?
Yes. The 3.2-10mm motorized varifocal lens supports remote zoom and focus control, meaning the framing can be adjusted electronically after the dome is physically mounted on the ceiling. This is useful when the camera is installed in a high or awkward location where manual adjustment after mounting is impractical.
- Is the HV-HCD-6080R suitable for outdoor use?
The camera carries an IP66 rating, which provides protection against dust ingress and strong water jets, and an IK10 rating for impact resistance. While these ratings support use in protected outdoor locations, the product is categorised as an indoor camera by Hanwha. Confirm the intended installation environment against the rated protections before deploying in exposed outdoor positions.
- Where can I find technical documentation for the HV-HCD-6080R?
The official Hanwha Vision datasheet for the HV-HCD-6080R is linked in the Additional Information section below. Security Wholesalers provides this documentation to support pre-purchase verification of specifications and installation planning. Always refer to the datasheet for the most current and detailed technical values before completing system design.
