Product SKU: HV-HCB-6001
Product Overview

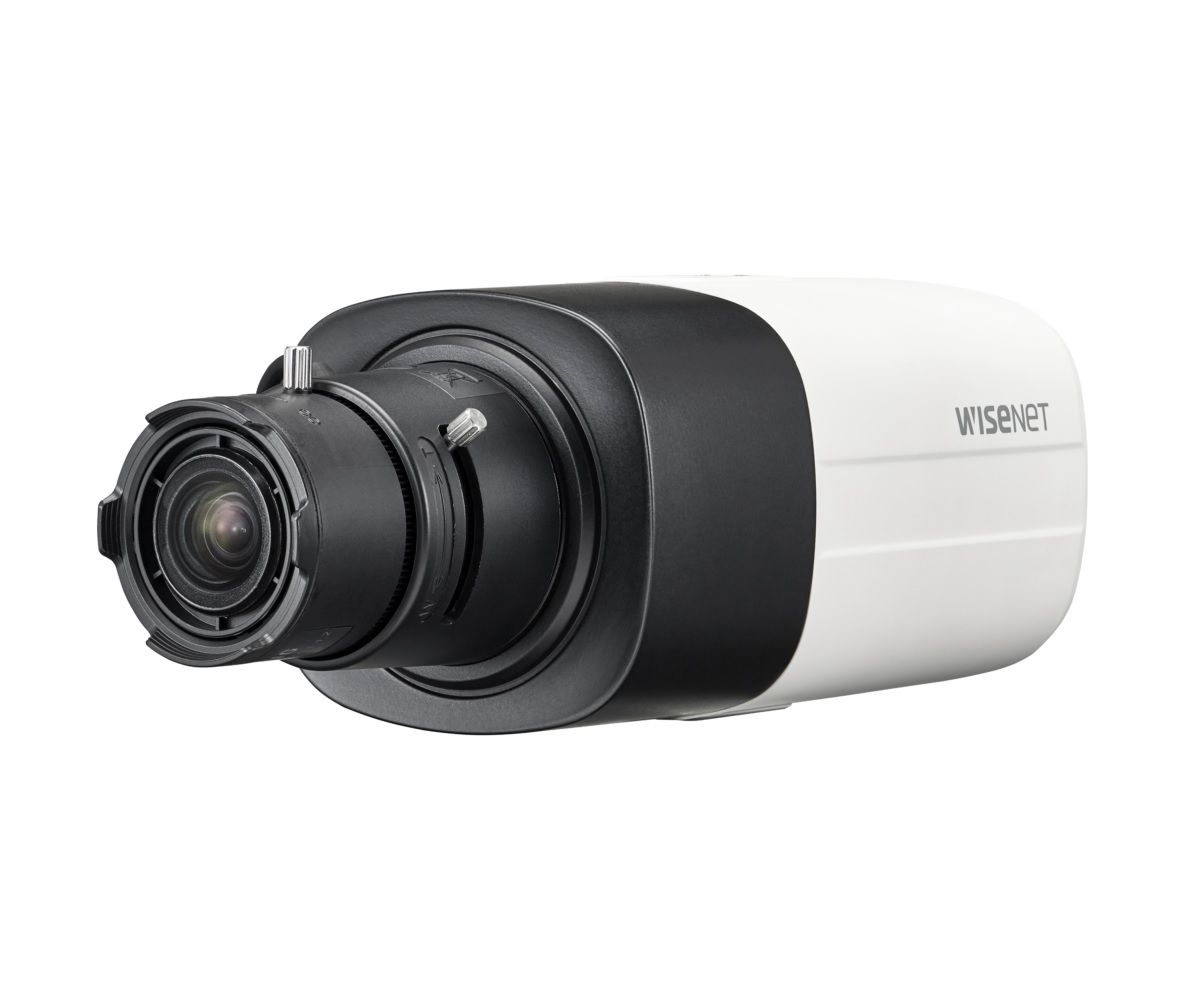

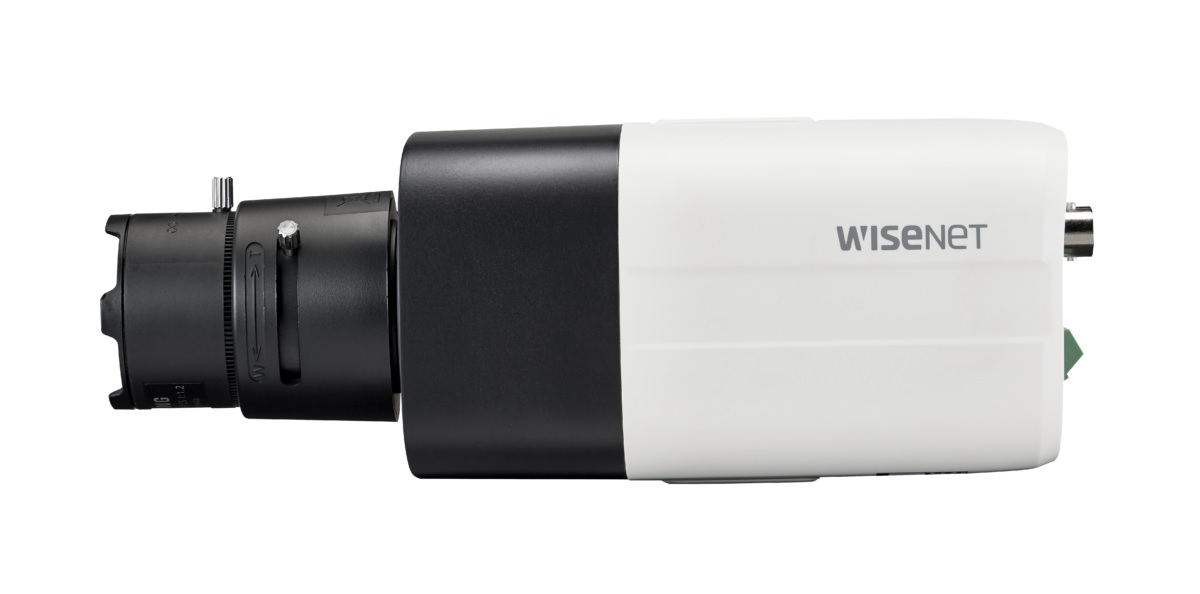

Built for sites with established coaxial infrastructure, the Hanwha Vision HV-HCB-6001 is a 2MP analog HD box camera that delivers Full HD 1080p resolution at 30fps without requiring a network refit. As a box-form camera, it suits professional installer applications where a separate housing and lens selection is preferred, giving technicians the flexibility to configure the setup for specific mounting positions and coverage angles. Featuring WiseNet HD+ analog HD technology, it transmits high-quality images over coaxial cable at distances of up to 500m, making it practical for larger commercial or industrial sites. Built-in ICR day/night switching, 120dB WDR, and SSNR IV noise reduction support usable image quality across a broad range of lighting conditions. Dual power input (12V DC and 24V AC) and RS-485 control simplify integration into both new and legacy analog systems.
Key Capabilities
Full HD 1080p at 30fps
The 1920 x 1080 sensor captures smooth, full-resolution footage at 30 frames per second, providing the level of detail needed to identify individuals and read signage in busy commercial or industrial environments.
500m Coaxial Transmission
WiseNet HD+ technology extends analog HD signal transmission up to 500m over standard coaxial cable, making this camera a practical upgrade for large-site retrofits where rewiring to Cat6 is not an option.
120dB Wide Dynamic Range
The 120dB WDR capability helps maintain legible image detail in scenes with strong contrast between bright and shadowed areas, such as entry points, loading docks, or areas with direct sun exposure.
ICR Day/Night Switching
The mechanical infrared cut filter automatically switches between colour and monochrome modes as ambient light changes, extending usable coverage into low-light conditions down to 0.009 Lux in black and white mode.
SSNR IV Noise Reduction
Samsung/Hanwha’s fourth-generation Super Spatial Noise Reduction reduces video noise in low-light and low-bitrate recording scenarios, keeping footage cleaner without introducing the motion blur associated with some noise filtering approaches.
Best For
- Analog System Upgrades: Sites already running coaxial cable can step up to 1080p Full HD without replacing existing wiring infrastructure, thanks to WiseNet HD+ compatibility and 500m transmission range.
- Large Commercial and Industrial Sites: The 500m coaxial transmission distance makes this camera practical for warehouses, manufacturing facilities, and sites where camera-to-recorder cable runs exceed what standard analog products support.
- Professional Installer Deployments: As a box-form camera requiring a separate housing and lens, this model is designed for professional installers who need to configure coverage precisely for the mounting position and scene requirements.
- Mixed-Power Environments: Dual 12V DC and 24V AC power input means the camera can be integrated into installations where either power source is already available, reducing the need for additional power conversion equipment.
Why Choose the HV-HCB-6001
The HV-HCB-6001 occupies a specific role that plug-and-play dome and turret cameras are not designed to fill. Its box form factor supports custom housing and lens selection, giving installers the ability to match the camera to demanding or unusual mounting scenarios. The 500m coaxial transmission distance through WiseNet HD+ is a practical advantage on large sites where camera points are located far from the recording equipment. The 120dB WDR combined with ICR day/night switching and SSNR IV noise reduction gives this camera a level of imaging capability that older standard-definition analog cameras cannot match on the same cable plant. RS-485 control integration and dual power input reduce the need for additional hardware during integration. The HV-HCB-6001 is available at Security Wholesalers for installers and integrators working on analog HD projects that require professional-grade flexibility.
Buyer Decision Tips
Lens and Housing Selection: The HV-HCB-6001 is supplied as a board/box camera body only and requires a compatible CS-mount or C-mount lens and a separate protective housing. Before purchasing, confirm the intended mounting location, required field of view, and whether an indoor or outdoor-rated housing is needed. The lens focal length you choose will directly determine coverage angle and working distance, so have your scene dimensions on hand before specifying a lens.
Recorder Compatibility: This camera transmits via coaxial cable using WiseNet HD+ analog HD signal. Confirm that your existing DVR or XVR supports the HD+ signal format before integrating this camera. While the camera is backwards compatible with standard analog systems, operating it in standard analog mode will not deliver the Full HD 1080p resolution this camera is designed to output.
Key Features & Technical Specifications
| Model |
HV-HCB-6001 |
| Resolution |
1920 x 1080 (Full HD 1080p) |
| Sensor |
2MP |
| Frame Rate |
30fps |
| Min Illumination (Colour) |
0.09 Lux @ F1.2 |
| Min Illumination (B/W) |
0.009 Lux @ F1.2 |
| Day/Night |
ICR (Infrared Cut filter Removable) |
| Wide Dynamic Range |
120dB WDR |
| Noise Reduction |
SSNR IV |
| Motion Detection |
Yes |
| Max Transmission Distance |
Up to 500m via coaxial cable |
| Power Supply |
Dual power: 12V DC / 24V AC |
| Control Interface |
RS-485 |
| Technology |
WiseNet HD+ Analog HD |
Ideal Use Cases
Warehouse and Industrial Facilities
The 500m coaxial transmission range and dual power input make this camera well suited to large warehouse floors and industrial buildings where cable runs are long and central power distribution is already in place.
Analog Infrastructure Retrofits
For sites upgrading from standard-definition analog cameras, the HV-HCB-6001 delivers Full HD 1080p over existing coaxial cable, removing the cost and disruption of recabling to IP.
Entry and Access Points with Mixed Lighting
Loading dock entries, gatehouse approaches, and building entry points with direct sunlight or headlight glare benefit from the camera’s 120dB WDR, which reduces blown-out or underexposed areas in high-contrast scenes.
Custom Professional Installations
Where a standard fixed-lens dome or turret camera does not meet the site’s coverage or mounting requirements, the box form factor allows the installer to select an appropriate lens and housing combination for the specific application.
Choosing the Right Model
- Choose this model if: You are upgrading or expanding a site that runs existing coaxial cable, your cable runs exceed what standard analog products support, or you need the flexibility of a box-form camera to specify a lens and housing separately for a professional installation.
- Choose a different model if: You are building a new greenfield installation and plan to run Cat5e or Cat6 cable, in which case an IP network camera will give you greater remote management capability, higher resolution options, and simpler system expansion. Alternatively, if you need a self-contained weatherproof camera with a built-in lens ready to mount, a fixed dome, bullet, or turret-style camera will be faster to deploy without the need for separate housing and lens sourcing.
FAQs
- Does the HV-HCB-6001 come with a lens and housing included?

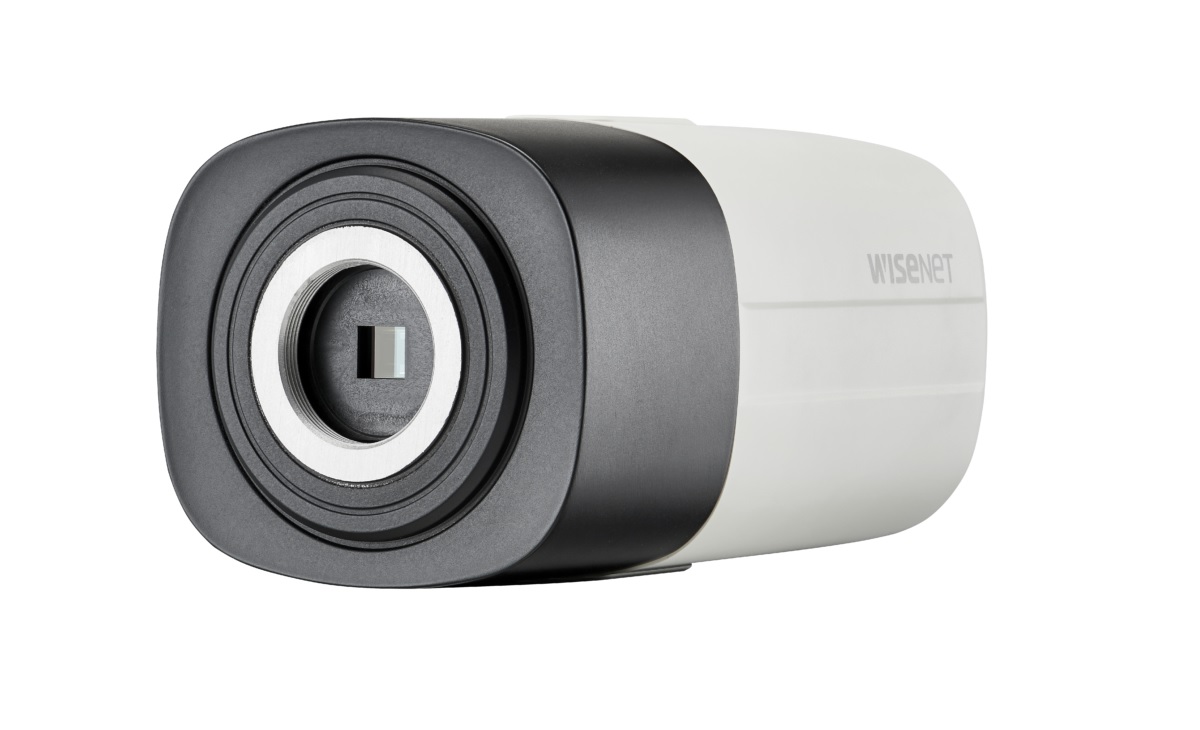

No. The HV-HCB-6001 is a camera body only and does not include a lens or protective housing. You will need to source a compatible CS-mount or C-mount lens based on your required field of view, and a housing suitable for your mounting environment. This is standard practice for professional box-camera installations and allows full control over the final configuration.
- How far can this camera transmit video over coaxial cable?
Using Hanwha’s WiseNet HD+ analog HD technology, the HV-HCB-6001 can transmit a Full HD 1080p signal over standard coaxial cable at distances of up to 500m. This is a significant advantage over standard analog cameras on larger sites where long cable runs are required.
- Is the HV-HCB-6001 compatible with standard analog DVRs?
Yes. The camera is backwards compatible with existing standard analog systems. However, operating it in this mode will not deliver the Full HD 1080p resolution the camera is capable of. To get the full 1080p output, your DVR or XVR must support the WiseNet HD+ signal format.
- What power options does this camera support?

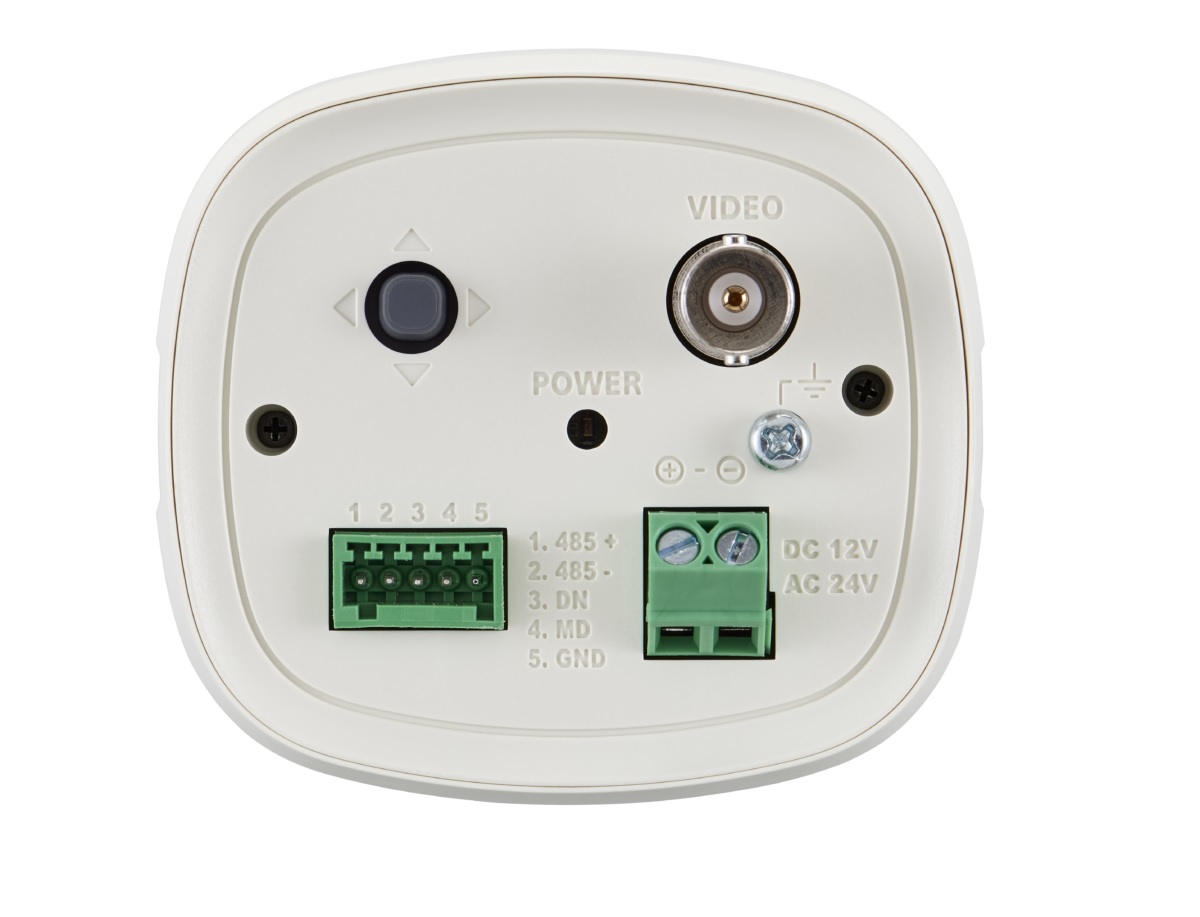

The HV-HCB-6001 supports dual power input, accepting either 12V DC or 24V AC. This gives installers flexibility when integrating the camera into sites where one power type is already distributed to camera mounting points, avoiding the need for additional power adapters or conversion equipment.
- What does the ICR day/night function do on this camera?
ICR stands for Infrared Cut filter Removable. The camera contains a mechanical filter that sits in front of the sensor. During daylight, the filter removes infrared light to maintain accurate colour reproduction. At night or in low-light conditions, the filter is removed automatically to allow more light to reach the sensor, enabling the camera to operate in monochrome mode down to 0.009 Lux at F1.2.
- Where can I find the datasheet and technical specifications for the HV-HCB-6001?
The official datasheet for the HV-HCB-6001 is available through Security Wholesalers via the Additional Information section on this product page. It contains full technical specifications, mounting diagrams, and wiring details relevant to professional installation planning.
