Product SKU: HV-ARN-1610S
Product Overview
For installers and integrators building out medium to large IP camera systems, the Hanwha Vision HV-ARN-1610S is a 16-channel NVR with a built-in 16-port PoE switch, removing the need for a separate switch and keeping installations clean and cost-effective. Featuring H.265 compression and support for cameras up to 8MP resolution, it delivers efficient storage without sacrificing image quality across all 16 channels. With an 80Mbps recording bandwidth, dual HDD bays supporting up to 6TB each, and both HDMI and VGA local monitor outputs, this recorder suits permanent installations where centralised management and long-term storage are priorities. It also includes ARB (Automatic Recovery Backup), P2P QR code remote access, and compatibility with the Wisenet Viewer and Wisenet Mobile apps. Part of the Hanwha Wisenet A Series Essential Value range, the HV-ARN-1610S positions itself as a capable recorder for commercial and multi-zone deployments that demand Hanwha ecosystem compatibility without unnecessary overhead.
Key Capabilities
16 Built-In PoE Ports

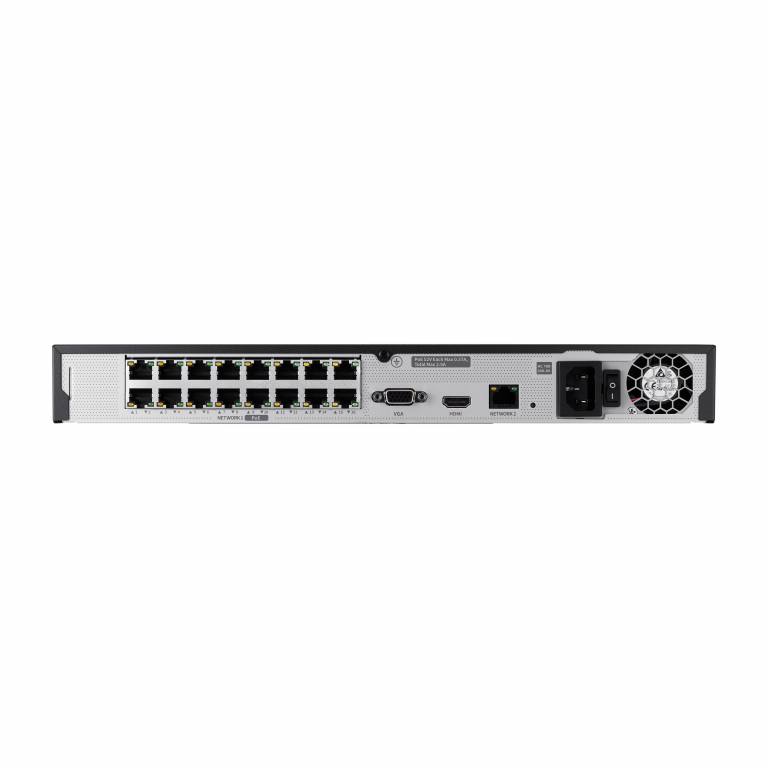

The integrated 16-port PoE switch (10/100 LAN) powers and connects IP cameras over a single Ethernet run per camera, eliminating the cost and rack space of a separate PoE switch and significantly simplifying multi-camera installation.
8MP Resolution Support Across All 16 Channels
The HV-ARN-1610S supports recording up to 8 megapixels per channel, making it compatible with high-resolution Hanwha IP cameras and ensuring detail retention across wide coverage areas such as car parks, warehouses, and retail floors.
H.265 Compression
H.265 (HEVC) encoding reduces file sizes compared to H.264 at equivalent image quality, stretching HDD storage capacity further and lowering network bandwidth demands, which is particularly valuable in long-retention commercial deployments.
Dual HDD Bays with Up to 12TB Total Storage
Two internal HDD bays each support drives up to 6TB, providing up to 12TB of on-device storage. This allows extended recording retention without relying on external storage or cloud services for day-to-day archiving.
ARB (Automatic Recovery Backup)
ARB allows cameras to store footage locally during a network interruption and automatically sync that footage back to the NVR once connectivity is restored, reducing the risk of recording gaps in critical areas.
P2P Remote Access via QR Code
Built-in P2P connectivity allows remote viewing through the Wisenet Viewer desktop app or Wisenet Mobile app by scanning a QR code. This simplifies remote setup without requiring complex port-forwarding or static IP configuration.
Best For
- Commercial Multi-Camera Installations: The 16 built-in PoE ports and 8MP channel support make this recorder well suited to businesses deploying 8 to 16 IP cameras across a single site, including retail stores, warehouses, and office buildings.
- Hanwha Wisenet Ecosystem Builds: Integrators working within the Hanwha camera ecosystem will benefit from native compatibility and plug-and-play PoE camera recognition, reducing on-site configuration time.
- Installations Requiring Long Retention: With dual 6TB HDD bays and H.265 compression, this NVR suits sites where 30 days or more of footage retention is required across multiple camera streams.
- Remote-Monitored Sites: P2P QR code access and Wisenet Mobile app support make this a practical choice for site owners who need to review live or recorded footage without a dedicated on-site IT setup.
Why Choose the HV-ARN-1610S
The HV-ARN-1610S stands apart from entry-level 16-channel recorders by combining native Hanwha Wisenet compatibility, a fully integrated 16-port PoE switch, and genuine 8MP per-channel recording support in a single unit. A basic NVR without an onboard PoE switch would require a separate managed switch, adding cost, cabling complexity, and an additional failure point. The ARB feature adds a layer of recording resilience that cheaper recorders do not offer, automatically recovering footage from camera-side storage after any network disruption. With a 1Gbps WAN port for uplink and a straightforward P2P setup process for the Wisenet Mobile app, this recorder is designed for efficient deployment and day-to-day usability. Available at Security Wholesalers, the HV-ARN-1610S is part of the Hanwha Wisenet A Series Essential Value range, offering a practical entry into Hanwha’s professional NVR line without compromising on channel count or resolution ceiling.
Buyer Decision Tips
Bandwidth Planning: The HV-ARN-1610S supports 80Mbps total recording bandwidth. When deploying 16 cameras at high resolution and full frame rate simultaneously, calculate each camera stream’s bitrate to confirm the combined load stays within this ceiling. Higher-resolution 8MP cameras at maximum quality settings will consume more of this budget than lower-resolution streams. Reducing frame rates or enabling H.265 on all cameras will help manage bandwidth across all 16 channels.
Storage Capacity Planning: With 2 HDD bays supporting a maximum of 6TB each, plan your HDD selection based on retention requirements before installation. At 8MP resolution with H.265 across multiple streams, storage consumption per day will vary depending on motion activity and bitrate settings. Use a storage calculator with your expected camera count, resolution, and frame rate to determine whether 6TB or 12TB total storage meets your minimum retention goal.
Key Features & Technical Specifications
| Model |
HV-ARN-1610S |
| Channel Count |
16 channels |
| Maximum Camera Resolution |
8MP (4K) per channel |
| Video Compression |
H.265, H.264, MJPEG |
| Recording Bandwidth |
80Mbps |
| PoE Ports |
16 x PoE (LAN, 10/100Mbps) |
| WAN Port |
1 x RJ-45 (1Gbps) |
| HDD Bays |
2 bays maximum |
| Maximum HDD Capacity |
Up to 6TB per HDD (12TB total) |
| Local Monitor Output |
HDMI, VGA |
| ARB Support |
Yes – Automatic Recovery Backup |
| Remote Access |
P2P service with QR code connect |
| Compatible Apps |
Wisenet Viewer, Wisenet Mobile |
| Series |
Hanwha Wisenet A Series (Essential Value Range) |
| Firmware |
v5.05.12 (important update – see product notes) |
Ideal Use Cases
Retail Stores and Shopping Centres
16 channels with plug-and-play PoE connectivity suits multi-zone retail environments covering entrances, checkouts, stockrooms, and car parks from a single recorder location, with remote viewing via Wisenet Mobile for after-hours monitoring.
Warehouses and Distribution Centres
8MP resolution support across all 16 channels allows high-detail coverage of loading docks, racking aisles, and access points, where identifying individuals or vehicle plates at distance is a regular requirement.
Office Buildings and Corporate Campuses
The dual HDD bay configuration with up to 12TB storage supports extended retention periods that corporate security policies often require, while H.265 compression keeps storage consumption manageable across busy multi-floor deployments.
Schools and Educational Facilities
ARB support ensures that footage from cameras in remote buildings or areas with intermittent network connectivity is recovered automatically, reducing the risk of surveillance gaps in locations with distributed infrastructure.
Multi-Tenancy and Strata Properties
P2P remote access via QR code allows body corporate managers or strata committees to review footage remotely without requiring complex network configuration, making handover and ongoing management more straightforward.
Choosing the Right Model
- Choose this model if: You are deploying up to 16 Hanwha Wisenet IP cameras and want to eliminate a separate PoE switch from the installation, while recording at up to 8MP resolution with H.265 compression and ARB resilience.
- Choose a different model if: Your site requires more than 16 camera channels, as this recorder does not expand beyond 16 channels regardless of additional switches or external equipment. Consider a higher-channel Hanwha NVR for 24, 32, or 64-channel deployments.
- Choose a different model if: Your camera count is 8 or fewer and a 16-port PoE NVR represents more hardware than the installation needs. A lower-channel model may provide a better balance of port count and cost for smaller sites.
- Choose a different model if: You require more than 12TB of on-device storage without external NAS integration. The HV-ARN-1610S supports a maximum of 2 internal HDDs, so very high-retention or high-bitrate sites may need a recorder with additional HDD bays.
FAQs
- Do I need a separate PoE switch to connect cameras to the HV-ARN-1610S?
No. The HV-ARN-1610S has 16 PoE ports built directly into the unit, so cameras connect directly to the recorder via a single Ethernet cable per camera. Each PoE port supplies both power and data to a compatible IP camera, removing the need for an external switch in most standard deployments.
- What is the maximum storage capacity this NVR supports?
The HV-ARN-1610S supports 2 internal HDDs with a maximum of 6TB per drive, giving a total on-device capacity of up to 12TB. HDDs are not included and must be sourced separately. Selecting the right drive size before installation based on your retention and bitrate requirements is recommended.
- What does ARB mean and why does it matter for my installation?
ARB stands for Automatic Recovery Backup. When a camera loses its network connection to the NVR, the camera can store footage locally on a memory card (if fitted and supported). Once the connection is restored, the NVR automatically pulls that stored footage across and fills the recording gap. This is particularly useful in sites where network reliability between buildings or floors is not guaranteed.
- How do I access the HV-ARN-1610S remotely?
The recorder supports P2P remote access using a QR code. Scanning the QR code through the Wisenet Mobile app on a smartphone or tablet connects you to the NVR without needing to configure port forwarding or a static IP address. The Wisenet Viewer desktop application is also compatible for PC-based remote access.
- Is the HV-ARN-1610S compatible with non-Hanwha IP cameras?
The HV-ARN-1610S is designed for the Hanwha Wisenet ecosystem and offers plug-and-play compatibility with Hanwha Wisenet IP cameras. While it may support ONVIF-compatible third-party cameras in some configurations, full feature compatibility including ARB and advanced integration is only confirmed with Hanwha Wisenet cameras. Check camera compatibility with your installer before mixing brands.
- What monitor outputs does this NVR support for local viewing?
The HV-ARN-1610S includes both an HDMI output and a VGA output, allowing connection to modern flat-panel monitors (HDMI) or older VGA displays that may already be installed in a control room or security station. Only one display is typically used as the primary local monitor interface.
- Is there an important firmware update I should apply after installation?
Yes. Hanwha has issued firmware update v5.05.12 as an important update for the HV-ARN-1610S. It is strongly recommended to apply this firmware after installation to ensure the recorder is operating with the latest stability and feature improvements. Check the Hanwha Vision support resources or contact your supplier for the update file. The HV-ARN-1610S is part of the Security Wholesalers Hanwha Wisenet range, and the data sheet is available through the product listing for reference.
