Product SKU: HV-ANV-L7082R
Product Overview

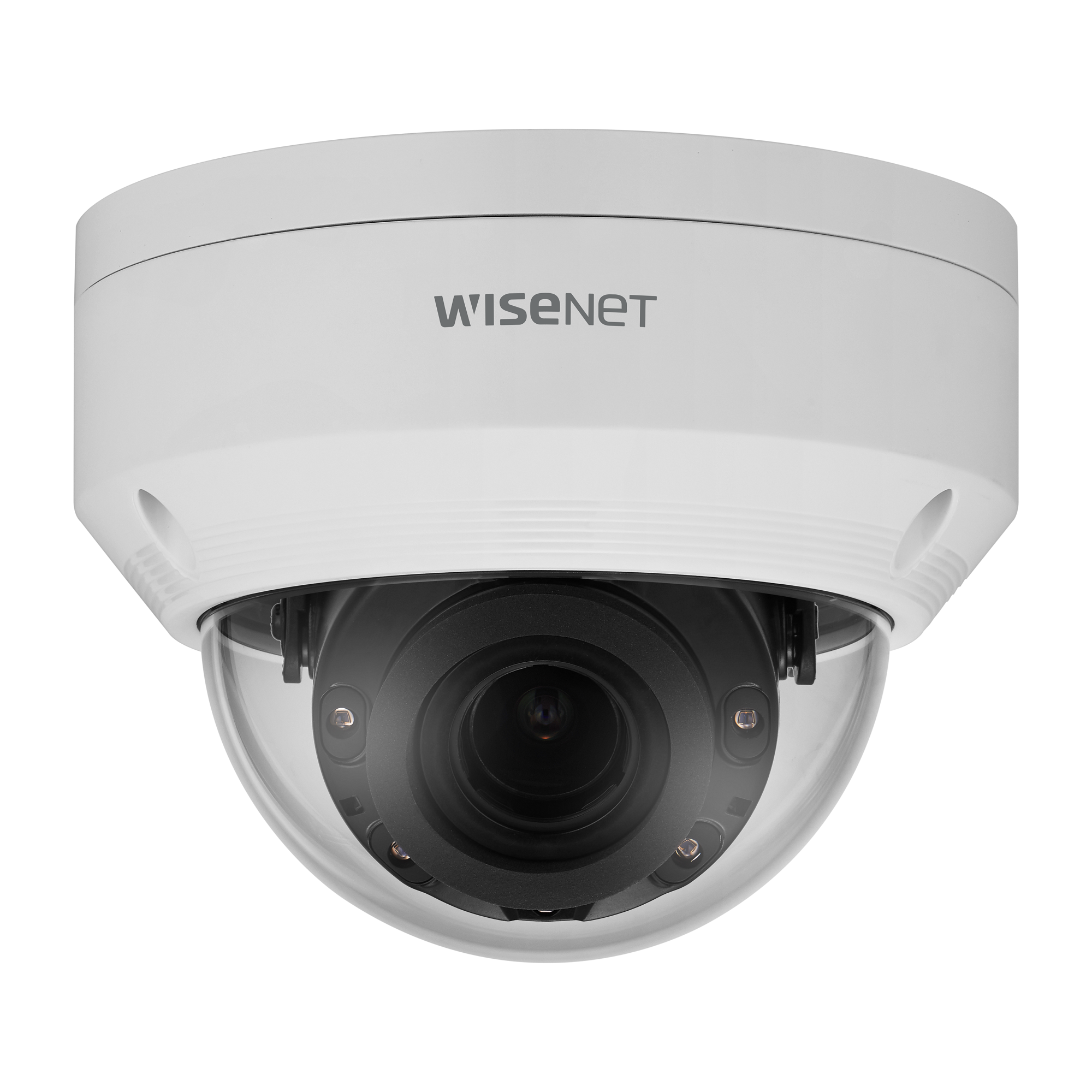

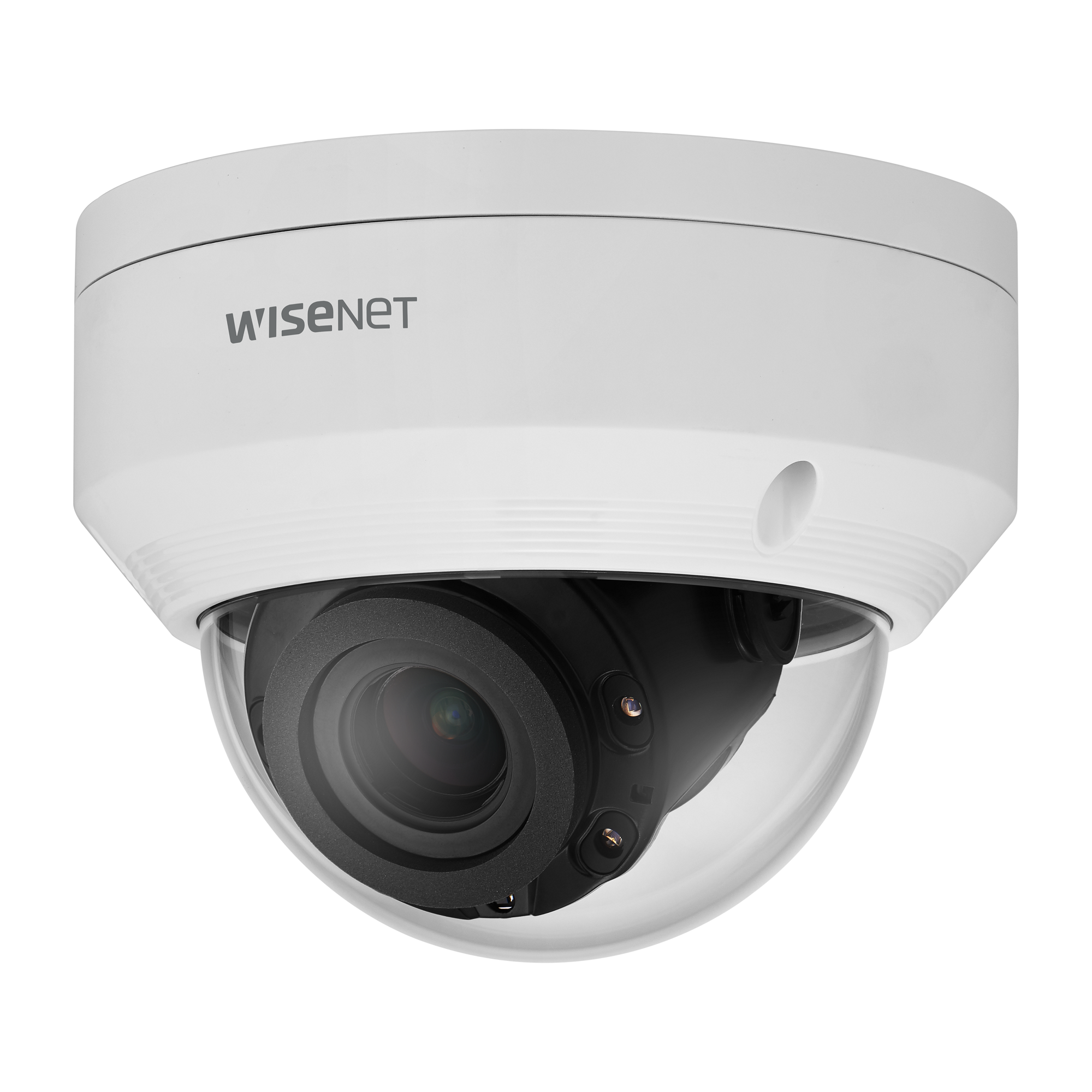

Outdoor dome installations often demand both physical durability and optical flexibility, and the HV-ANV-L7082R delivers both within the Hanwha Wisenet A Series essential value range. This outdoor vandal dome camera is rated IP66 for weatherproofing and IK10 for impact resistance, making it a practical fit for exposed building exteriors, car parks, entryways, and perimeter walls where the dome profile discourages direct tampering. Featuring a 3.3-10.3mm motorised varifocal lens with Simple Focus, installers can remotely adjust the field of view after mounting, removing the need to physically reposition the camera during commissioning. The 4MP sensor delivers up to 30fps at full resolution, supported by 120dB WDR and a Day and Night ICR filter for usable image detail in mixed or backlit lighting conditions. IR coverage extends to 30m for zero-light monitoring, and onboard Micro SD supports up to 128GB of local storage as a network backup option.
Key Capabilities
Motorised Varifocal with Simple Focus
The 3.3-10.3mm motorised varifocal lens allows the installer to adjust zoom and focus remotely via software after the dome is physically fixed to the mounting surface, saving significant time during commissioning on multi-camera sites.
IP66 and IK10 Outdoor Protection
IP66 dust and water ingress protection combined with IK10 impact resistance means this dome can be surface-mounted on exposed external walls, under eaves, or in open car parks without risk from weather or deliberate physical interference.
4MP at 30fps with 120dB WDR
4 megapixel resolution at up to 30fps captures usable detail at outdoor distances. The 120dB Wide Dynamic Range handles high-contrast scenes such as building entrances with strong backlighting from sun or artificial lighting.
30m IR with Day and Night ICR
Integrated IR LEDs provide visibility to 30m in complete darkness, with automatic ICR filter switching between colour daytime capture and monochrome night mode, maintaining scene clarity without external lighting.
WiseStream II and H.265 Compression
Hanwha WiseStream II dynamically adjusts compression based on scene activity, reducing bandwidth and storage consumption significantly compared to standard H.264, without visually degrading image quality during recording.
Best For
- Exposed Outdoor Building Faces: IP66 and IK10 ratings make this dome suitable for direct wall mounting on external building elevations, including locations where the camera is publicly accessible and may be subject to interference.
- Multi-Camera Commissioning Projects: The motorised varifocal with Simple Focus lets installers mount all cameras first and fine-tune fields of view remotely, reducing time spent on ladders or elevated platforms.
- Mixed-Light Entry and Car Park Coverage: The 120dB WDR and 30m IR range together handle transitional lighting conditions common at building entries, basement ramps, and outdoor car parks.
- Sites with Limited Network Redundancy: The onboard Micro SD slot supporting up to 128GB provides local footage retention if network connectivity to the NVR is temporarily interrupted.
Why Choose the HV-ANV-L7082R
The HV-ANV-L7082R stands apart from fixed-lens outdoor domes by including a motorised varifocal lens with Simple Focus in an IK10-rated vandal dome body, a combination that removes the trade-off installers typically face between optical flexibility and physical durability. Fixed-lens domes at a similar price point require lens selection before installation, locking coverage angles in place. This model allows remote focal adjustment after the dome is mounted, which matters on sites where ceiling heights, column positions, or sightline obstructions are only fully apparent once cameras are in position. The 4MP sensor running H.265 with WiseStream II actively reduces storage requirements compared to H.264-only systems, making it a practical choice for longer retention periods on modest NVR configurations. Analytics including defocus detection, directional detection, and Enter/Exit event monitoring add event-driven capability beyond basic motion alerts. Available at Security Wholesalers as part of the Wisenet A Series essential value range.
Buyer Decision Tips
Varifocal Range and Scene Distance: The 3.3-10.3mm motorised lens provides a 3.1x zoom range. At the wide end (3.3mm) you get a broad field of view suited to open areas like car parks or yards. At 10.3mm the angle narrows for longer-distance coverage of driveways or fence lines. Confirm your required coverage width and subject distance before choosing this focal range, as sites needing coverage beyond 30m or very tight telephoto angles may require a longer focal length option.
Hallway View Mode for Corridor Mounting: The HV-ANV-L7082R supports hallway view at 90 and 270 degree rotation, which digitally reorients the image to a tall vertical aspect ratio. If you are mounting this dome in a narrow corridor or stairwell where the standard horizontal frame wastes sensor area, enabling hallway view significantly extends effective coverage along the length of the space.
Key Features & Technical Specifications
| Resolution |
4MP |
| Frame Rate |
Up to 30fps at 4MP (H.265/H.264) |
| Minimum Illumination |
Colour: 0.1 Lux (F1.6, 1/30sec), B/W: 0 Lux (IR LED on) |
| Lens Type |
3.3-10.3mm (3.1x) motorised varifocal with Simple Focus |
| IR Range |
30m (98.43ft) |
| Day/Night |
True Day/Night with ICR (IR Cut filter) |
| WDR |
120dB |
| Video Compression |
H.265, H.264, MJPEG – multiple streaming supported |
| Bandwidth Optimisation |
WiseStream II |
| Analytics |
Motion detection, Tampering, Defocus detection, Directional detection, Enter/Exit |
| Image Features |
Hallway view (90/270 degree), LDC (Lens Distortion Correction) |
| Local Storage |
Micro SD/SDHC/SDXC, 1 slot, up to 128GB |
| Power |
PoE (Power over Ethernet) |
| Weather Rating |
IP66 |
| Impact Rating |
IK10 |
| Housing Type |
Outdoor vandal dome |
| Series |
Hanwha Wisenet A Series (Essential Value Range) |
Ideal Use Cases
Commercial Building Exteriors
The IK10-rated dome housing and IP66 weatherproofing allow direct surface mounting on external walls and soffits of commercial buildings, providing 4MP coverage of vehicle and pedestrian movement around the perimeter.
Car Parks and Open Yards
The 120dB WDR handles the strong contrast between shaded bays and sunlit open areas. The motorised varifocal lens allows the installer to frame bay rows or access lanes precisely after mounting, without repositioning the camera.
Building Entry Points
At entry doors and gate access points, the 30m IR and 0.1 Lux colour sensitivity cover both day arrivals and night-time access. Enter/Exit event detection flags movement across defined zones at these high-activity areas.
Corridors and Covered Walkways
Hallway view mode at 90 or 270 degrees rotates the image to a vertical aspect ratio, making the 4MP sensor far more efficient for long narrow spaces such as covered walkways, access corridors, and stairwells.
Sites with Shared NVR Infrastructure
WiseStream II and H.265 compression together reduce the bandwidth demand placed on shared network infrastructure, allowing more cameras to operate on the same NVR and network without degrading recording quality or frame rates.
Choosing the Right Model
- Choose this model if: You need an outdoor vandal dome with a motorised varifocal lens for flexible post-installation framing, combined with IK10 impact resistance, 30m IR, and 4MP resolution at an essential value price point within the Wisenet A Series range.
- Choose a different model if: Your site requires coverage distances beyond 30m, in which case a bullet-style camera with a longer focal length and extended IR range would better suit the installation. Alternatively, if the mounting location is strictly indoors with no vandalism exposure, a standard fixed-lens dome without the IK10 rating may be a more cost-efficient choice.
FAQs
- Can the HV-ANV-L7082R be installed on an external wall exposed to direct rain?
Yes. The IP66 rating confirms full protection against dust ingress and against powerful water jets from any direction, making direct outdoor wall mounting in rain-exposed locations appropriate. The IK10 rating additionally confirms resistance to 20-joule impacts on the dome housing.
- How does Simple Focus work with the motorised varifocal lens on this camera?
Simple Focus is a Hanwha feature that allows the installer to trigger an automated focus routine via the camera’s web interface or compatible software after physically adjusting the zoom level remotely. This eliminates the need to manually turn a focus ring at the camera, which is particularly useful when the dome is ceiling or high-wall mounted in a difficult-to-reach position.
- What analytics events does the HV-ANV-L7082R support?
Confirmed analytics on this model include motion detection, tampering detection, defocus detection, directional detection, and Enter/Exit zone monitoring. Defocus detection is particularly useful outdoors where vibration or deliberate interference might cause the lens to drift out of focus, triggering an alert to the operator.
- Does this camera require a separate power supply or does it run on PoE?
The HV-ANV-L7082R is powered via PoE (Power over Ethernet), meaning a single Cat5e or Cat6 cable from a PoE-capable switch or NVR carries both data and power to the camera. No separate power adapter or conduit run is needed at the camera mounting point.
- What is WiseStream II and how does it benefit storage planning on this camera?
WiseStream II is Hanwha’s dynamic compression technology that continuously analyses scene complexity and adjusts the compression ratio in real time. In low-activity scenes it compresses more aggressively, saving storage. In high-activity scenes it maintains image detail. Combined with H.265, it can substantially reduce storage consumption compared to standard H.264 recording, allowing longer retention on the same drive capacity.
- Can I use the onboard SD card as the primary recording method instead of an NVR?
The HV-ANV-L7082R supports up to 128GB via the onboard Micro SD slot, which is suitable as a standalone recording fallback or edge storage option. For primary recording across multiple cameras with centralised management and longer retention, a compatible Hanwha NVR is the recommended approach. Security Wholesalers stocks a range of compatible Hanwha NVR options to pair with this camera.
